How to match the 0281014408 / 4L0910401T ECU to your Audi Q7 3.0 TDI

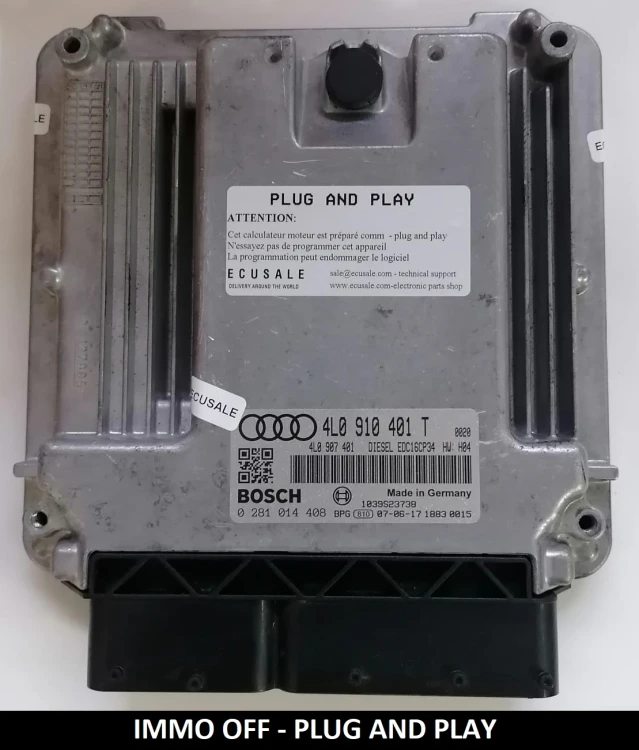

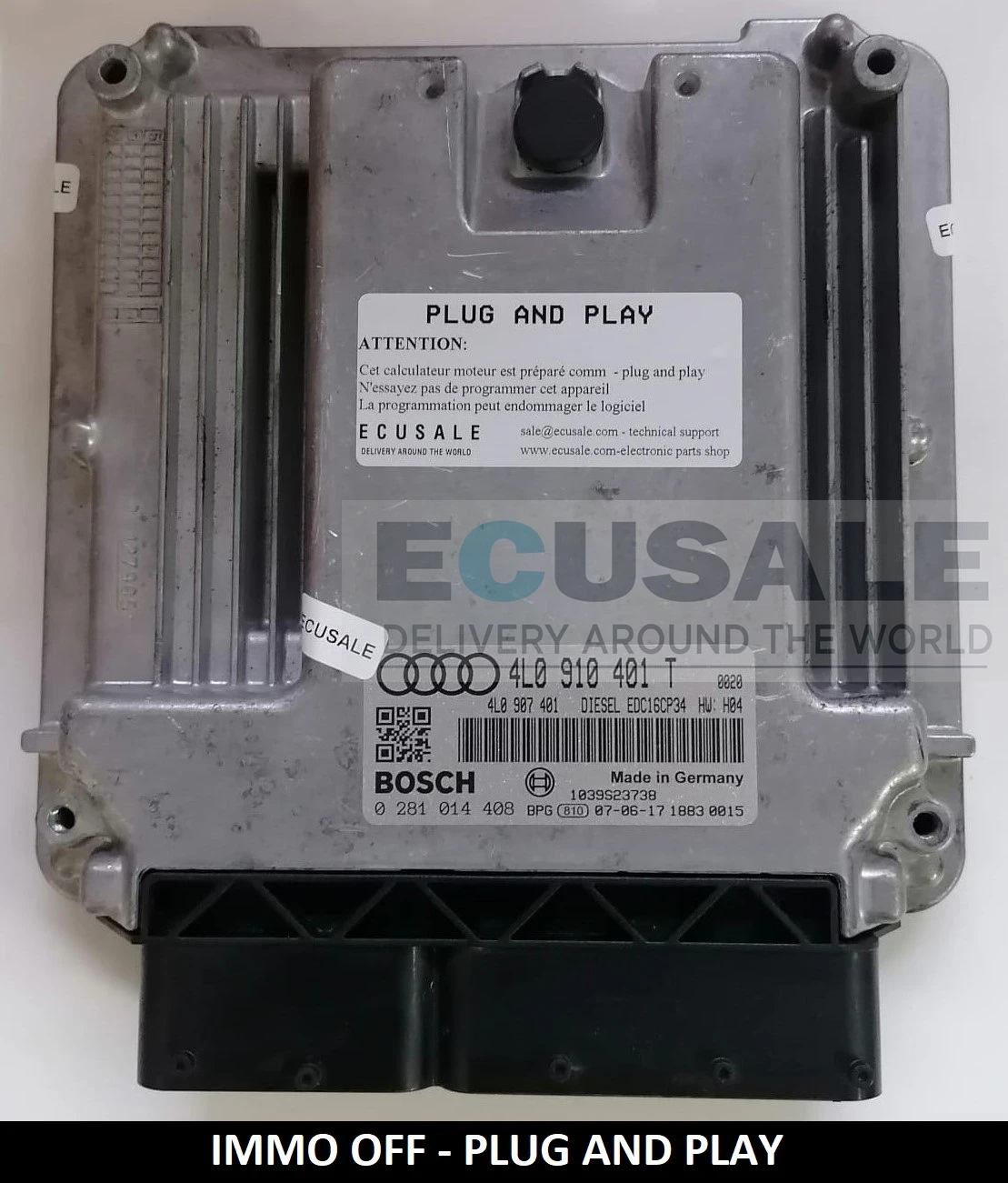

The Bosch EDC16CP34 with number 0281014408 is one of the versions fitted to the Audi Q7 3.0 TDI V6 (4L) – its label carries the Audi number 4L0910401T. We sell it as IMMO OFF Plug & Play, checked in a car; the warranty is 6 months.
Label markings
- Bosch number: 0281014408 (0 281 014 408)
- Audi number: 4L0910401T (4L0 910 401 T)
- ECU type: Bosch EDC16CP34
Vehicle compatibility
The label decides, not the model year: the Bosch number 0281014408 and the Audi number 4L0910401T must be the same as on your ECU. If your Q7 version is not mentioned in the description, the unit may still fit. Watch out for similar numbers – 0281014407 (4L0910401S) has different software and is not a replacement, and Q7s with EDC17 (e.g. 0281015868) use a different ECU type.
Preparation and installation
On the EDC16CP34, disabling the immobiliser has no side effects – there is no message on the instrument cluster and no stored fault, and the engine starts straight after installation. You can also choose data cloning from your old ECU (included in the price) and paid services: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- no communication with the ECU during diagnostics
- CAN bus faults and errors in several modules at once
- the radiator fans run constantly with the ignition on
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water damage to the Audi Q7 3.0 TDI ECU (EDC16CP34).
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281014408 / 4L0910401T ECU
Does the 0281014408 need programming after installation?
No. The unit is IMMO OFF Plug & Play – once connected, the engine starts without immobiliser or key programming.
|
My old ECU is water-damaged and dead – is that a problem?
No. The IMMO OFF version needs no data from your old ECU. If the old unit can still be read and you prefer a clone, we do it at no extra cost.
|
What extra options can I order with the 0281014408?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
