How to match the 0281016832 / 4L1910401H ECU to your Audi Q7 3.0 TDI
Bosch 0281016832 is an EDC17CP44 unit – the newer generation of electronics used in the Audi Q7 3.0 TDI (4L); its housing carries the Audi number 4L1910401H. We supply it as IMMO OFF Plug & Play, tested in a car; the warranty is 6 months.

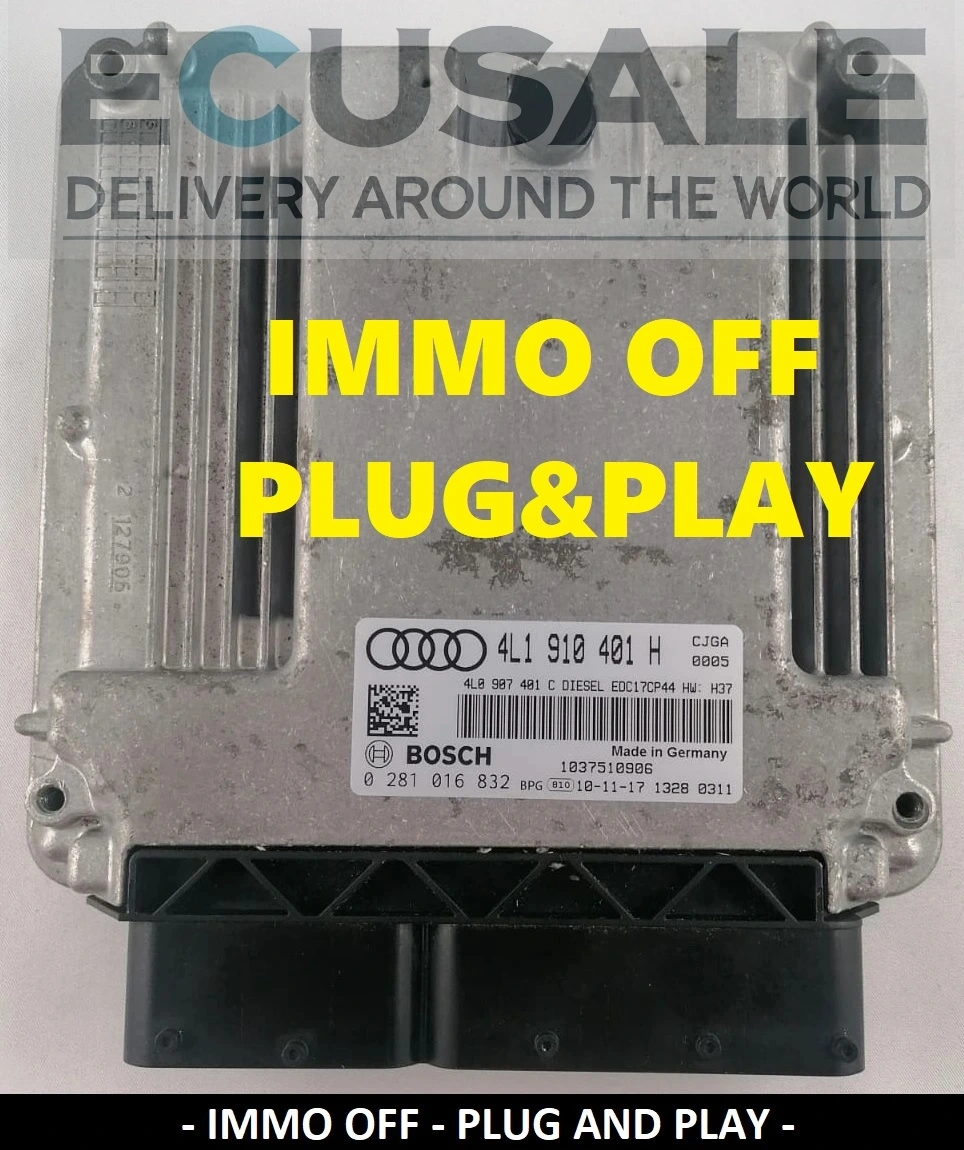

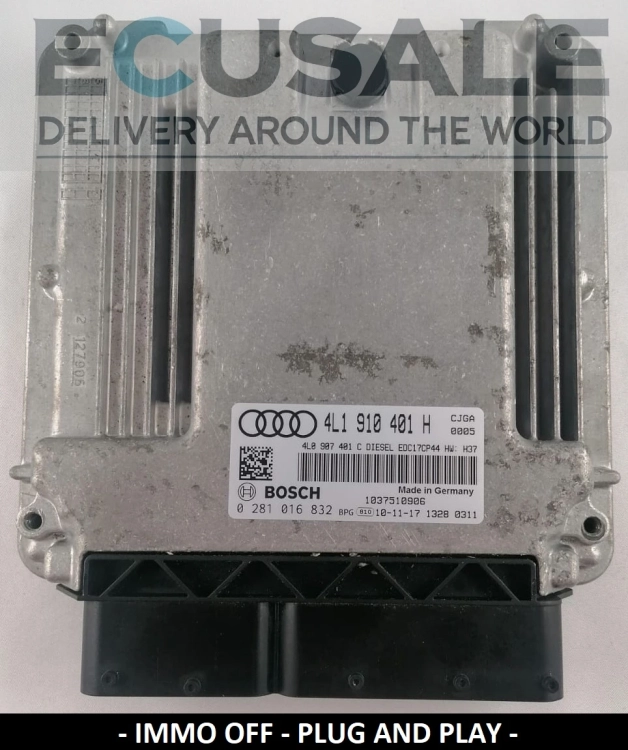

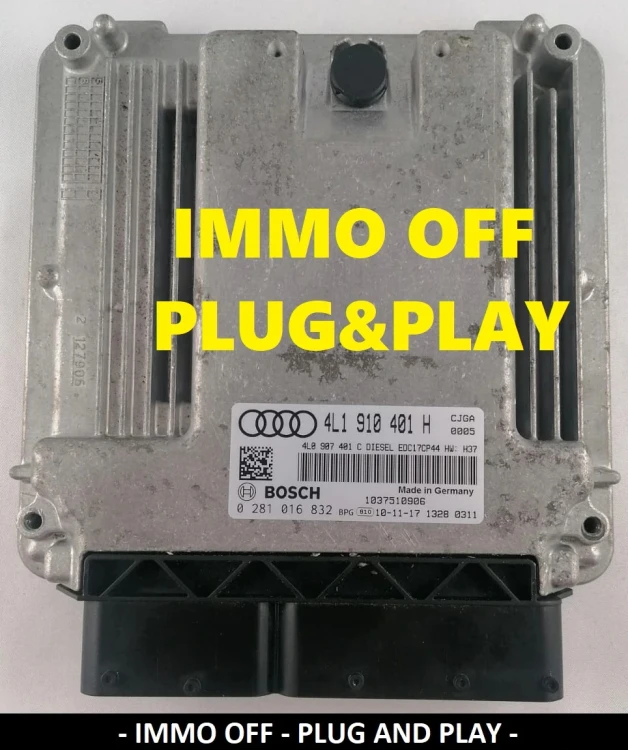

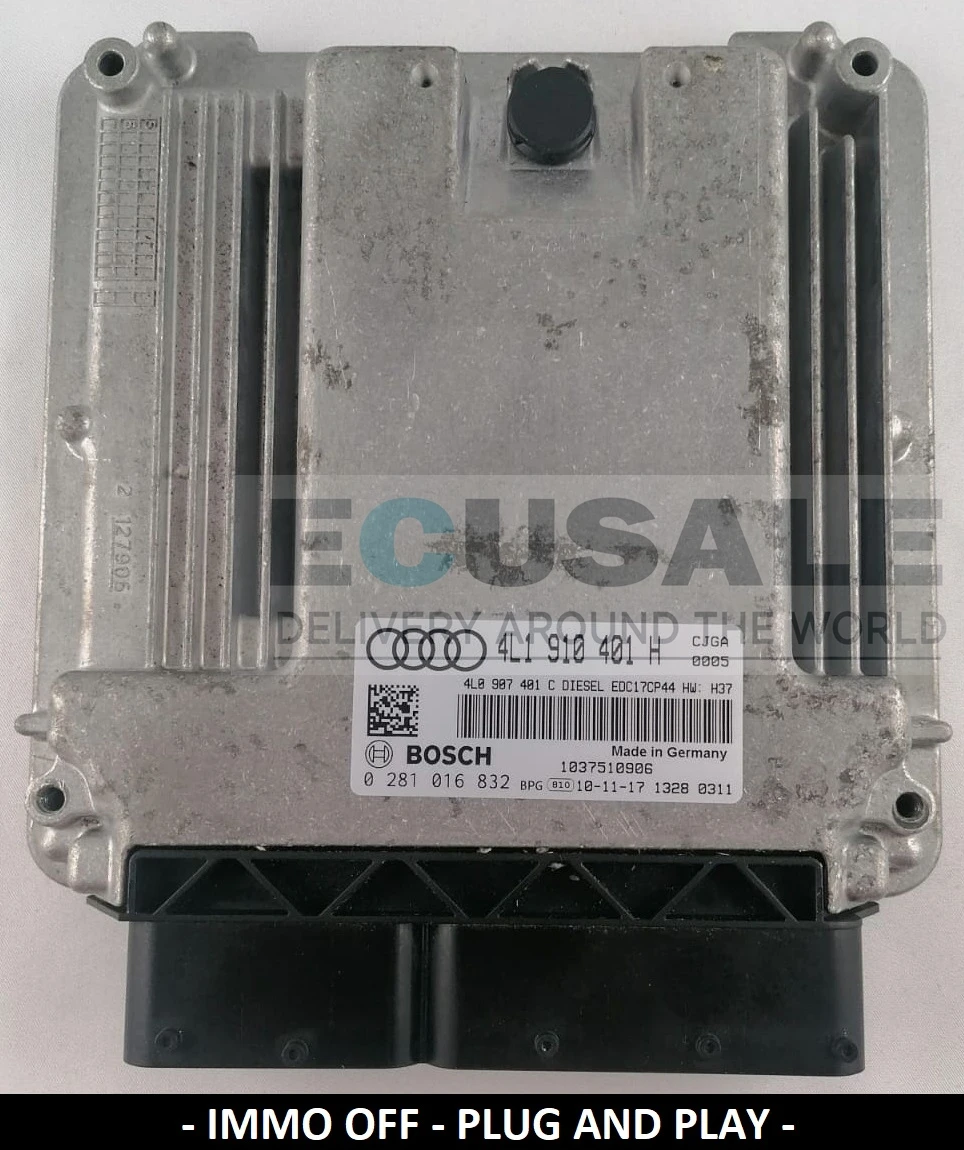

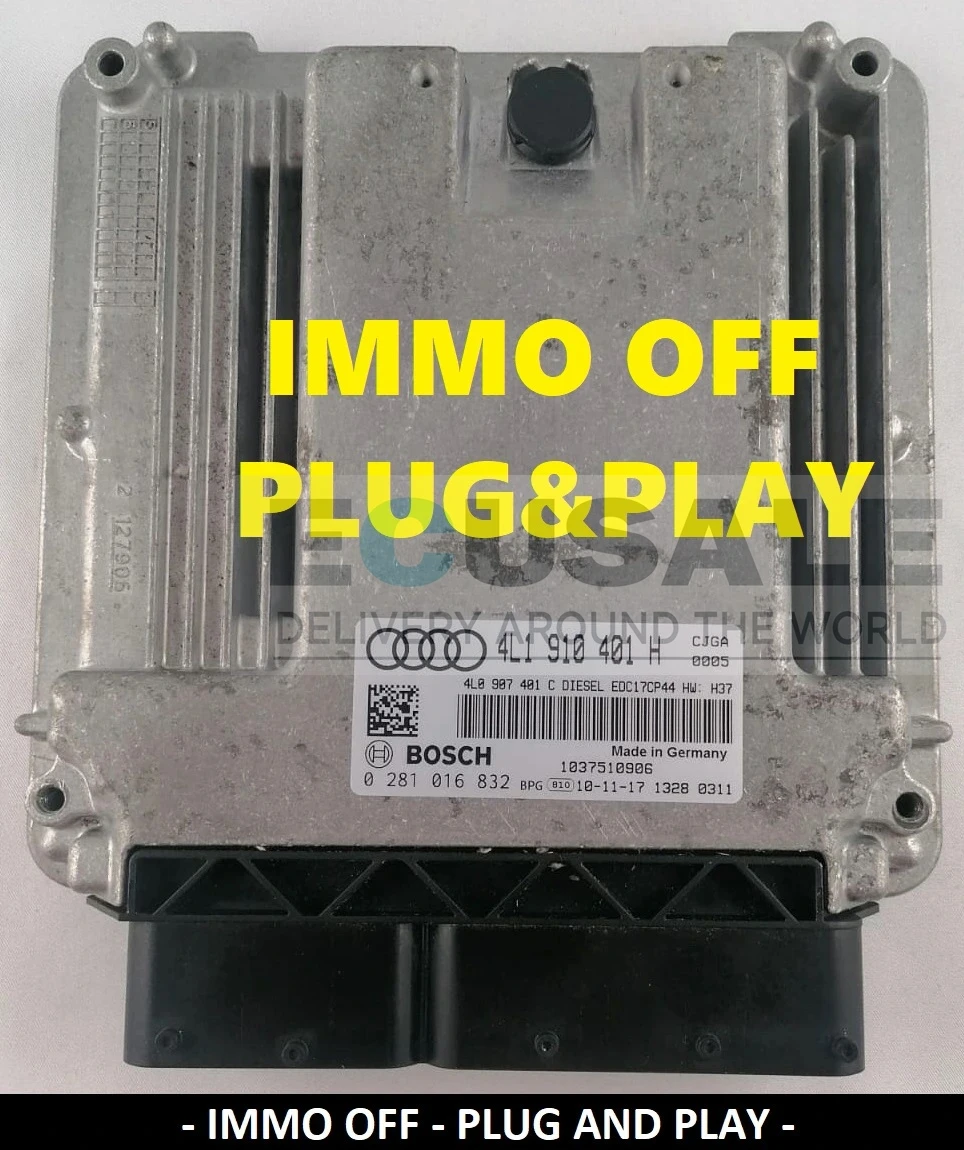

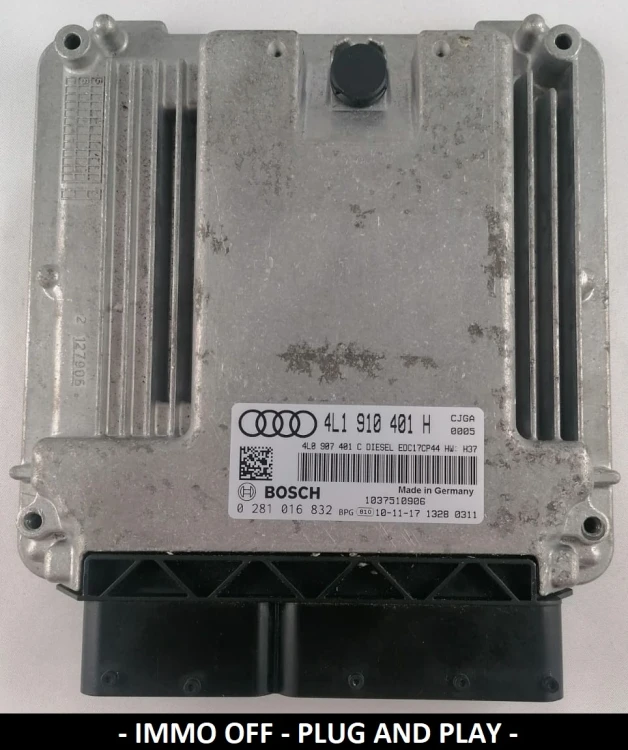

Label markings
- Bosch number: 0281016832 (0 281 016 832)
- Audi number: 4L1910401H (4L1 910 401 H)
- ECU type: Bosch EDC17CP44
Vehicle compatibility
This unit fits an Audi Q7 4L 3.0 TDI that left the factory with ECU 0281016832 / 4L1910401H. Before ordering, compare both numbers with the sticker on the housing – your model missing from the list rules nothing out, but a different number, e.g. 0281016433, means different software. EDC16CP34 units from earlier Q7s (e.g. 0281013691) are a separate group.
Preparation and installation
Important on EDC17: the IMMO OFF version lets the Q7 start without programming, but the immobiliser fault is stored permanently. A cluster with the large screen shows the message SAFE; the smaller one shows no message. The solution is an immobiliser adaptation at a workshop or our data cloning from your current ECU, at no extra cost. Optional paid services: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
Symptoms of a failed ECU in the Q7
A typical cause of failure in the Q7 is water from the scuttle area where the ECU is mounted. Signs of damage include:
- no communication with the ECU during diagnostics
- CAN bus faults and errors in several modules at once
- the radiator fans run constantly with the ignition on
Before buying, rule out the power supply, wiring and battery, as they cause similar symptoms. Read more here: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281016832 / 4L1910401H ECU
Will an immobiliser fault remain after fitting the 0281016832?
Yes. On EDC17 units the IMMO OFF version leaves an immobiliser fault that cannot be cleared. A cluster with the large display shows SAFE; the smaller display shows no message. The engine starts and runs normally.
|
How can I get rid of the SAFE message?
A workshop can carry out an immobiliser adaptation, or you can order data cloning from your old ECU – included in the price, after you send us the unit or its files.
|
Will the 0281016832 fit a Q7 with an EDC16CP34 ECU?
No. This is a Bosch EDC17CP44. Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use different ECUs – choose by the number on the label.
|
