How to match the 0281018301 / 4L2910401B ECU to your Audi Q7 3.0 TDI
Bosch 0281018301 is an EDC17CP44 unit – the newer generation of electronics used in the Audi Q7 3.0 TDI (4L); its housing carries the Audi number 4L2910401B. We supply it as IMMO OFF Plug & Play, tested in a car; the warranty is 6 months.

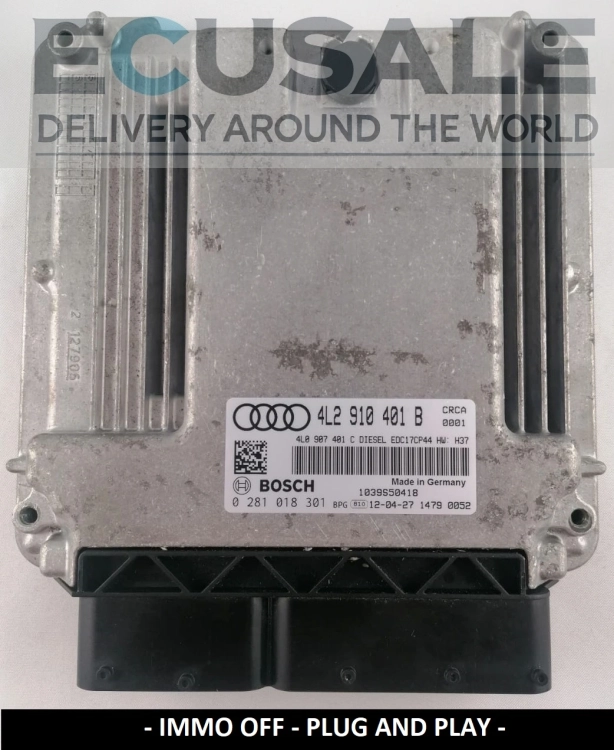

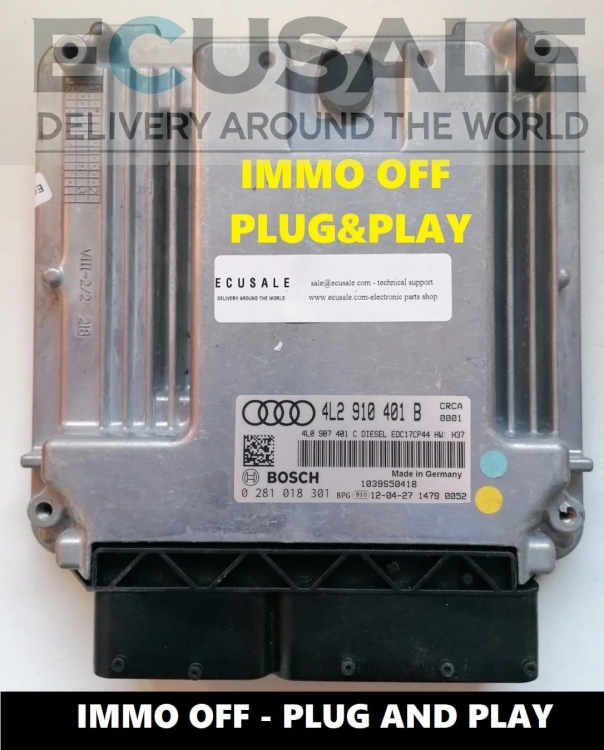

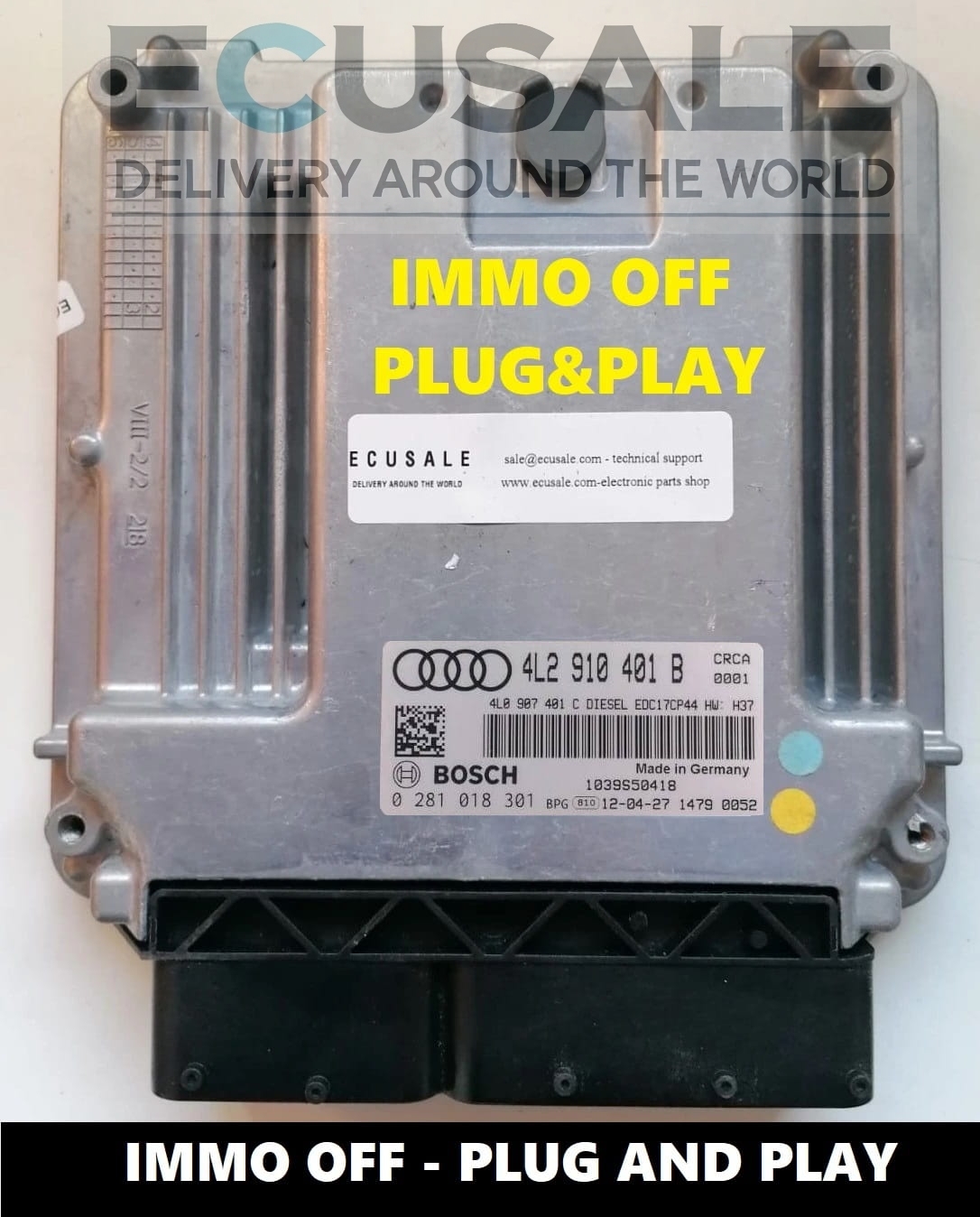

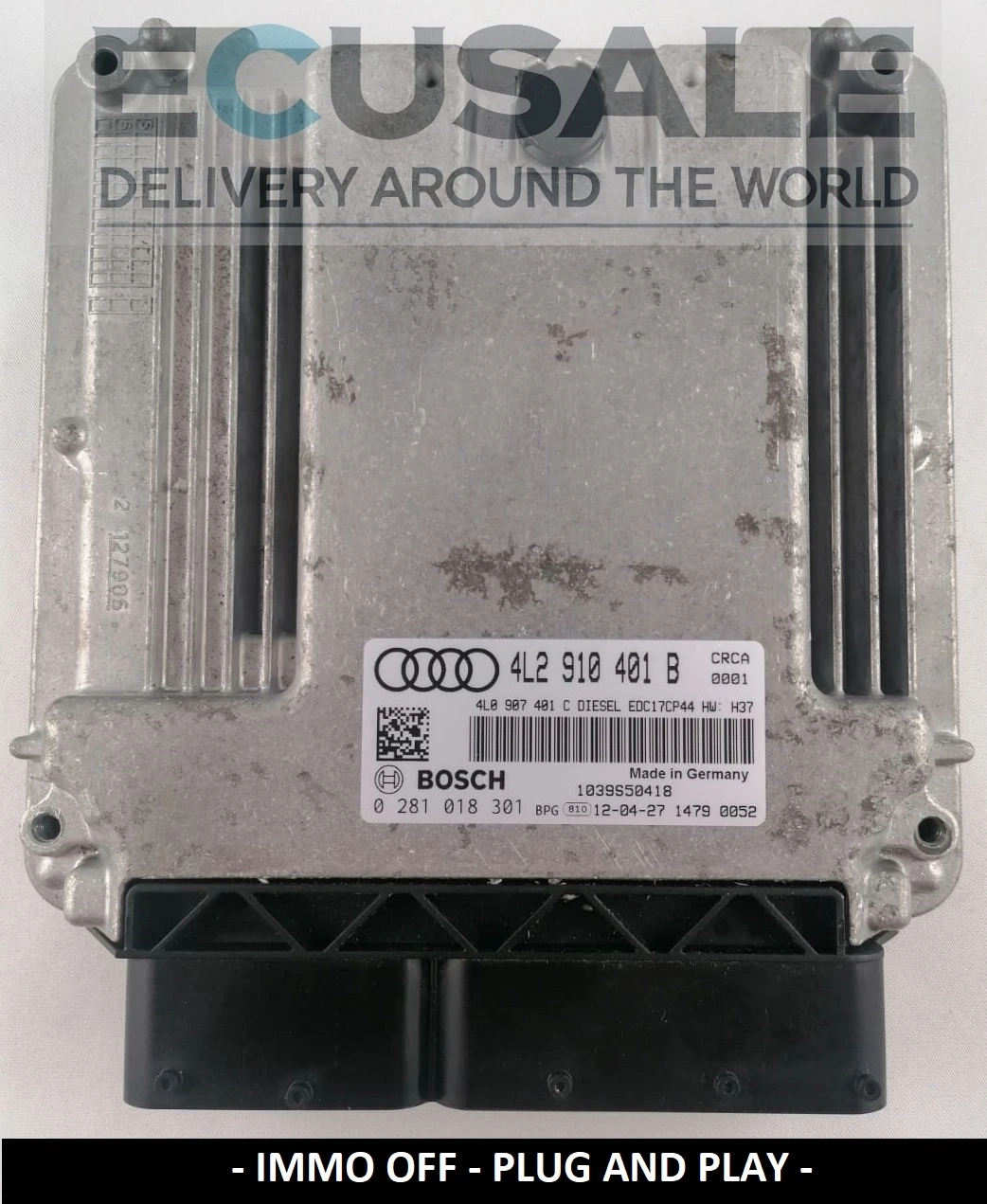

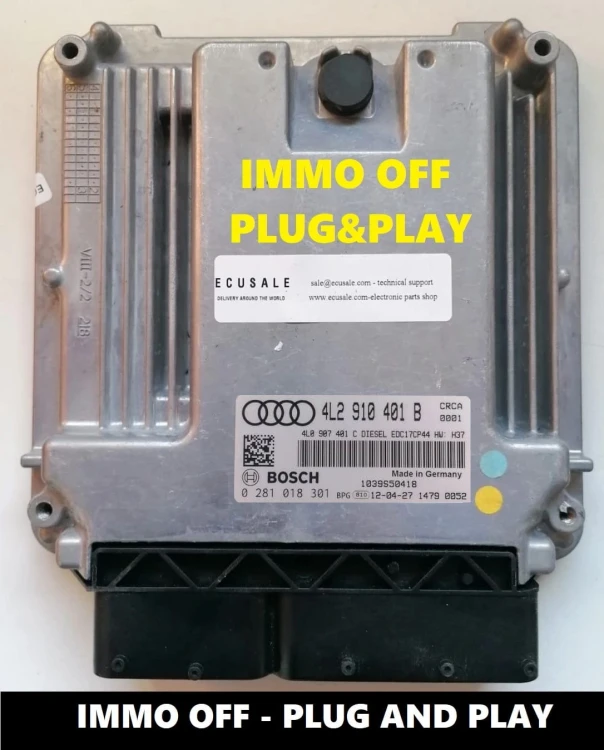

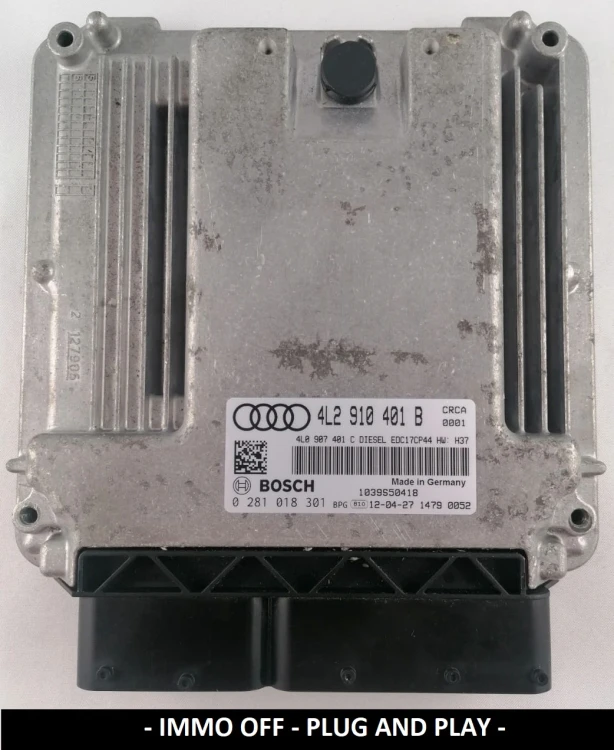

Label markings
- Bosch number: 0281018301 (0 281 018 301)
- Audi number: 4L2910401B (4L2 910 401 B)
- ECU type: Bosch EDC17CP44
Vehicle compatibility
The unit comes from an Audi Q7 4L 3.0 TDI. The model list does not limit the match either way – what matters is that the Bosch number 0281018301 and the Audi number 4L2910401B match the label on your ECU. The neighbouring number 0281017727 (4L1910401J) is also an EDC17 but with different software, so it cannot replace this unit. Earlier Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use a different ECU type.
Preparation and installation
The 0281018301 unit is prepared as IMMO OFF and the engine starts without programming. On EDC17, however, an immobiliser fault remains stored and cannot be cleared. In a Q7 with the large-display instrument cluster the message SAFE appears; with the smaller display there is no message. If you want the car to run without this fault, have a workshop carry out an immobiliser adaptation or order data cloning from your old ECU (included in the price). Paid options: DPF OFF, EGR OFF, FLAPS OFF, chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- the engine cranks but does not start
- CAN bus faults and errors in several modules at once
- corrosion on the pins or the circuit board
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281018301 / 4L2910401B ECU
How can I get rid of the SAFE message?
A workshop can carry out an immobiliser adaptation, or you can order data cloning from your old ECU – included in the price, after you send us the unit or its files.
|
Will the 0281018301 fit a Q7 with an EDC16CP34 ECU?
No. This is a Bosch EDC17CP44. Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use different ECUs – choose by the number on the label.
|
What extra options can I order with the 0281018301?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
