How to match the 0281018302 / 4L2910401C ECU to your Audi Q7 3.0 TDI
0281018302 (Audi 4L2910401C) is a Bosch EDC17CP44 ECU from the Audi Q7 4L 3.0 TDI V6. We ship it as IMMO OFF Plug & Play after a test in a car. On EDC17, however, the IMMO OFF version behaves differently from older units – see the installation section. Warranty: 6 months.

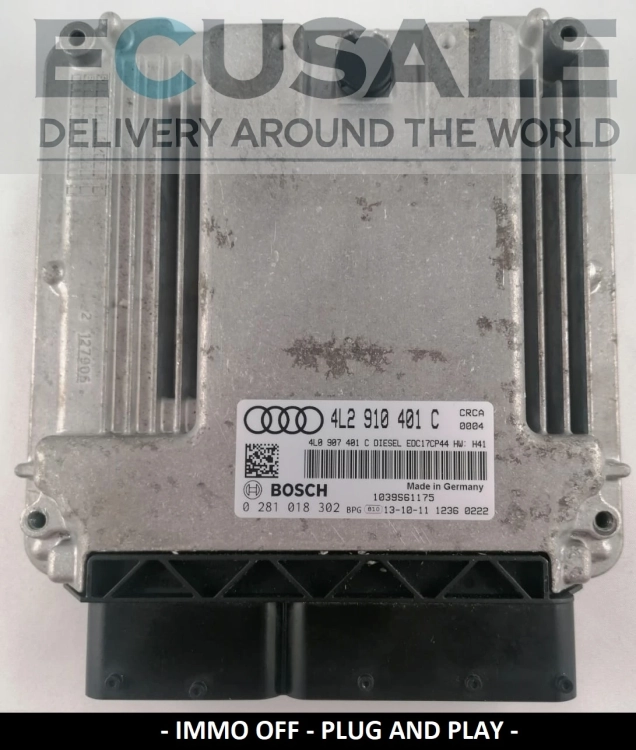

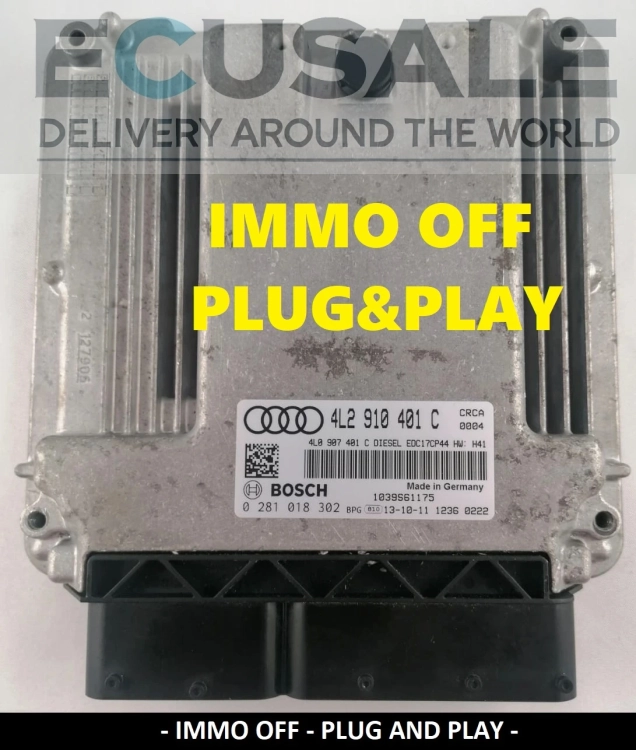

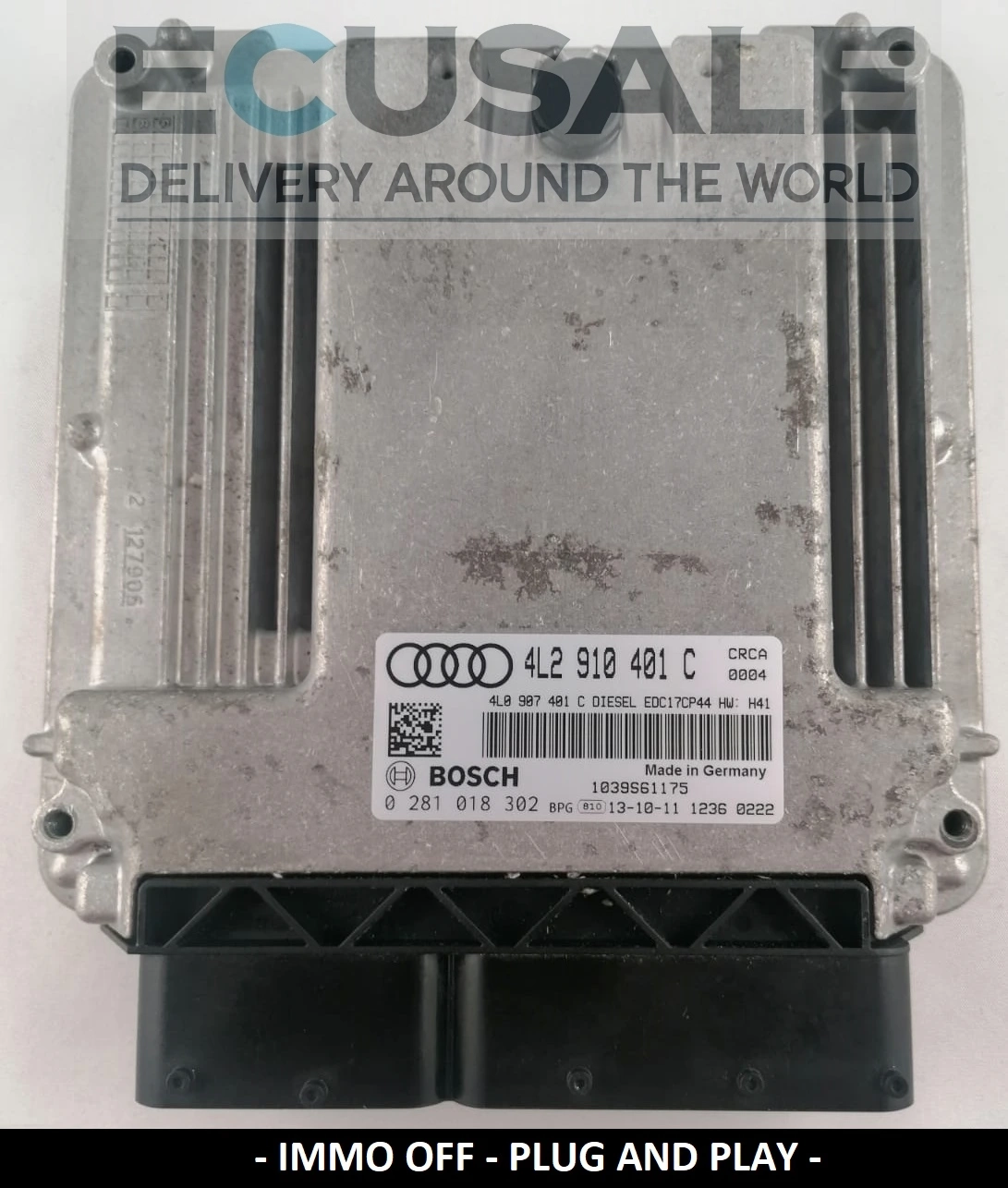

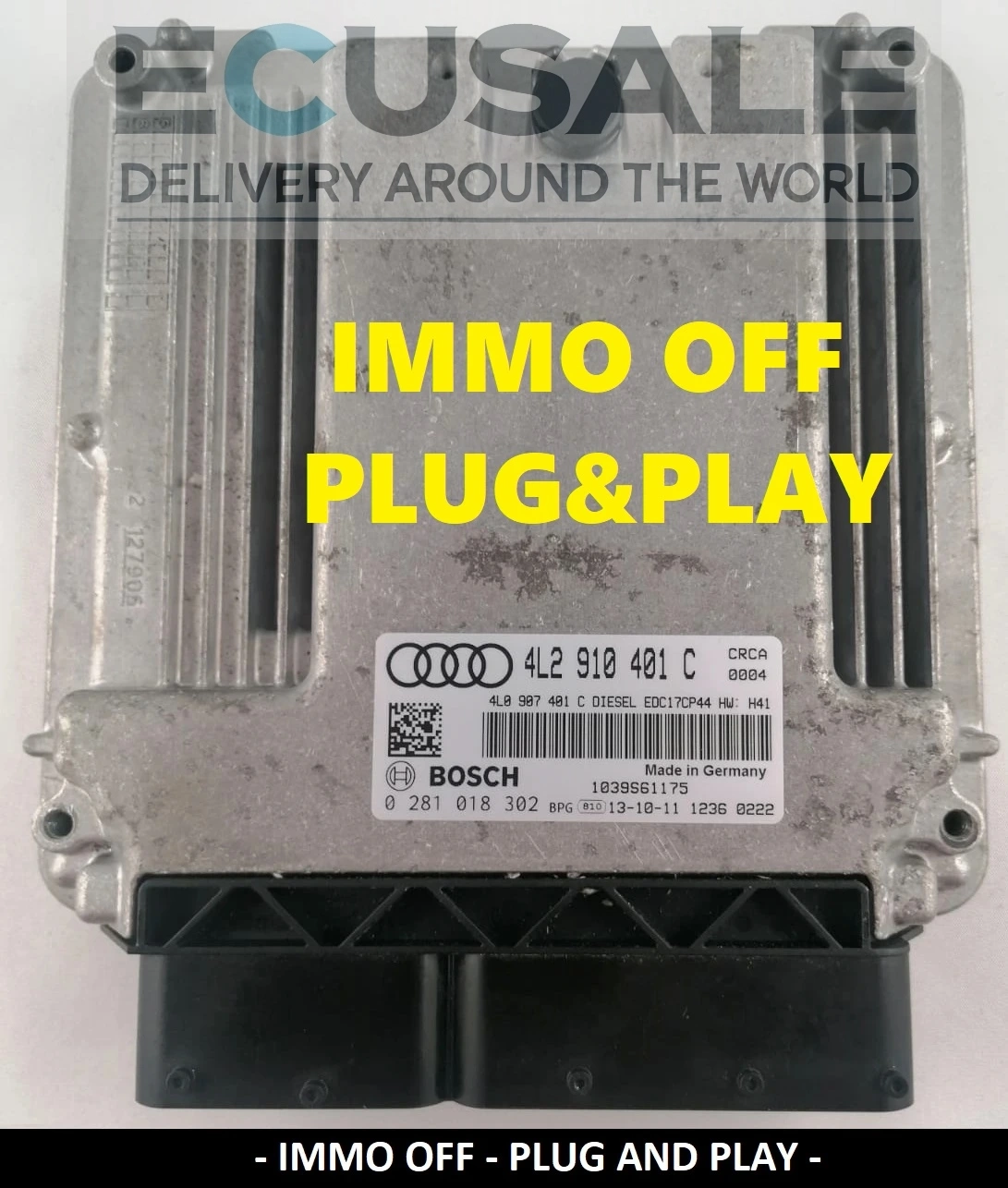

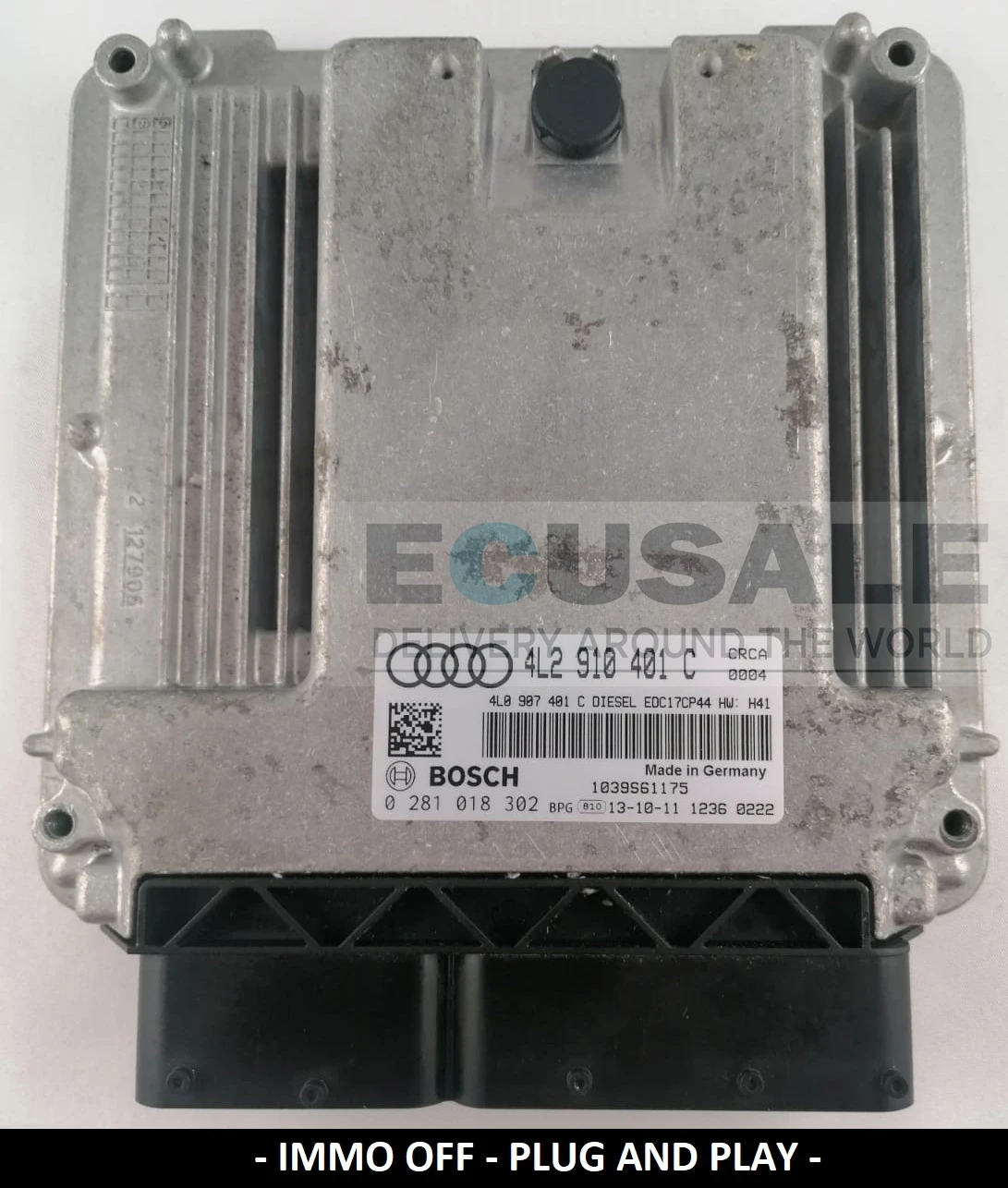

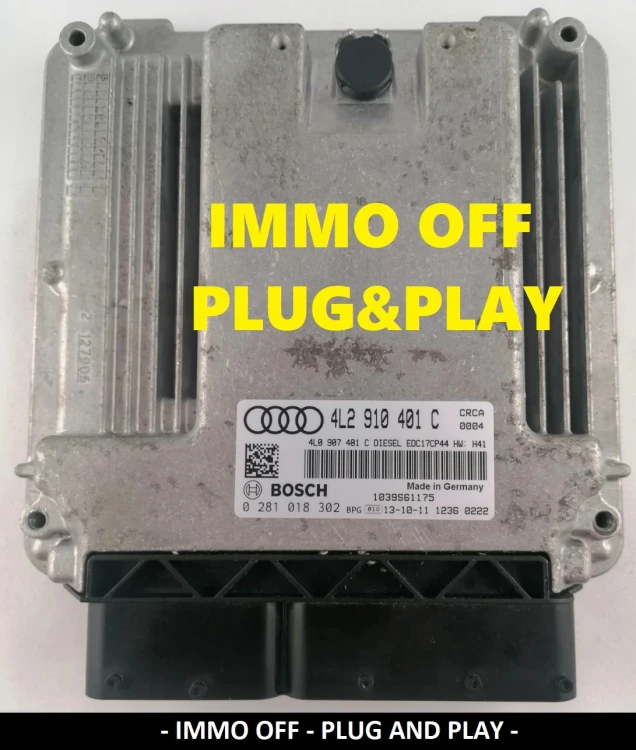

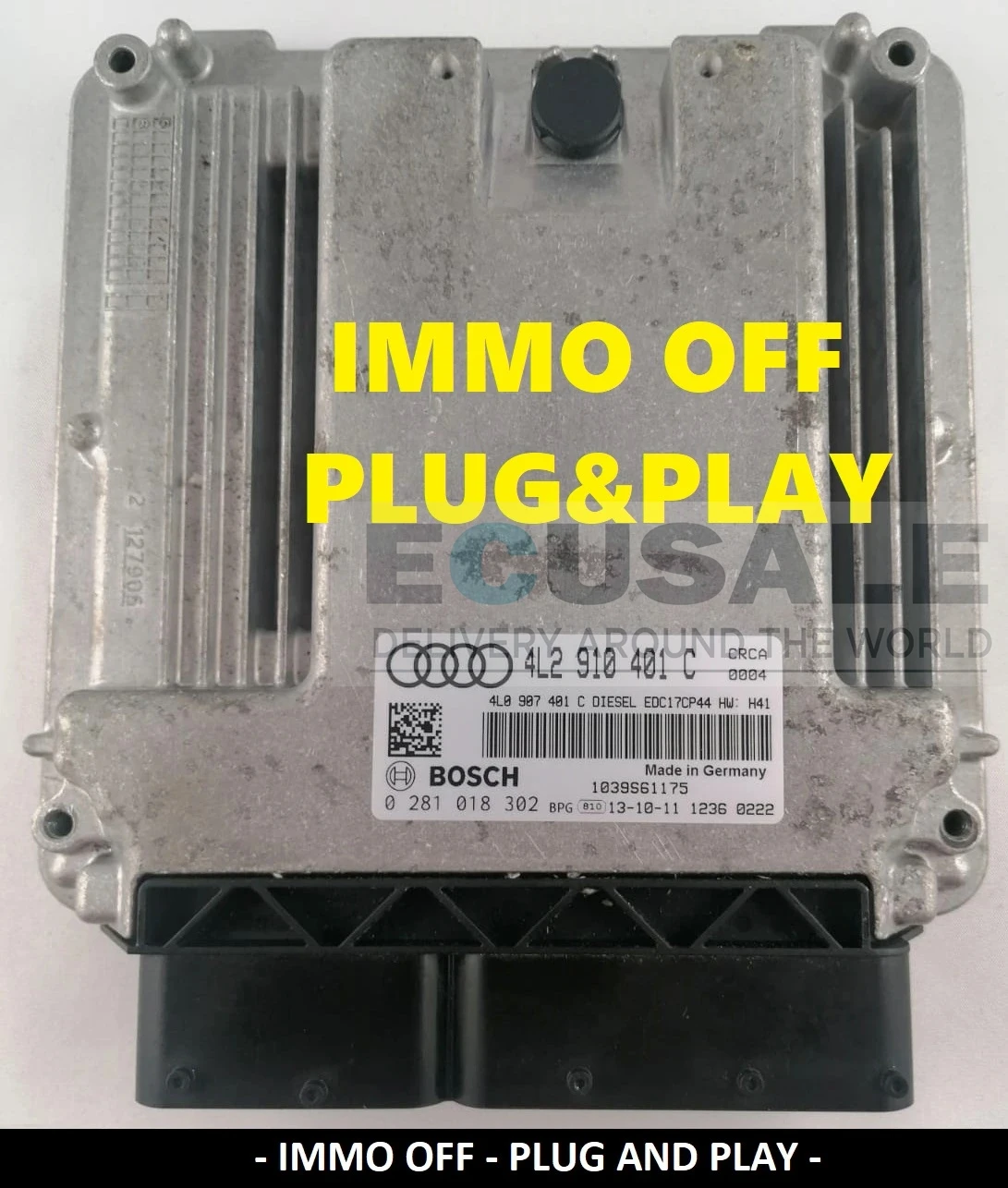

Label markings
- Bosch number: 0281018302 (0 281 018 302)
- Audi number: 4L2910401C (4L2 910 401 C)
- ECU type: Bosch EDC17CP44
Vehicle compatibility
The unit comes from an Audi Q7 4L 3.0 TDI. The model list does not limit the match either way – what matters is that the Bosch number 0281018302 and the Audi number 4L2910401C match the label on your ECU. The neighbouring number 0281018301 (4L2910401B) is also an EDC17 but with different software, so it cannot replace this unit. Earlier Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use a different ECU type.
Preparation and installation
Important on EDC17: the IMMO OFF version lets the Q7 start without programming, but the immobiliser fault is stored permanently. A cluster with the large screen shows the message SAFE; the smaller one shows no message. The solution is an immobiliser adaptation at a workshop or our data cloning from your current ECU, at no extra cost. Optional paid services: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- no communication with the ECU during diagnostics
- the engine stalls when warm or after contact with moisture
- corrosion on the pins or the circuit board
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281018302 / 4L2910401C ECU
Will an immobiliser fault remain after fitting the 0281018302?
Yes. On EDC17 units the IMMO OFF version leaves an immobiliser fault that cannot be cleared. A cluster with the large display shows SAFE; the smaller display shows no message. The engine starts and runs normally.
|
Does the 0281018302 need programming?
No – the IMMO OFF version starts the engine without programming; only the immobiliser fault described above remains.
|
What extra options can I order with the 0281018302?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
