How to match the 0281019323 / 4L2910401E ECU to your Audi Q7 3.0 TDI
0281019323 (Audi 4L2910401E) is a Bosch EDC17CP44 ECU from the Audi Q7 4L 3.0 TDI V6. We ship it as IMMO OFF Plug & Play after a test in a car. On EDC17, however, the IMMO OFF version behaves differently from older units – see the installation section. Warranty: 6 months.

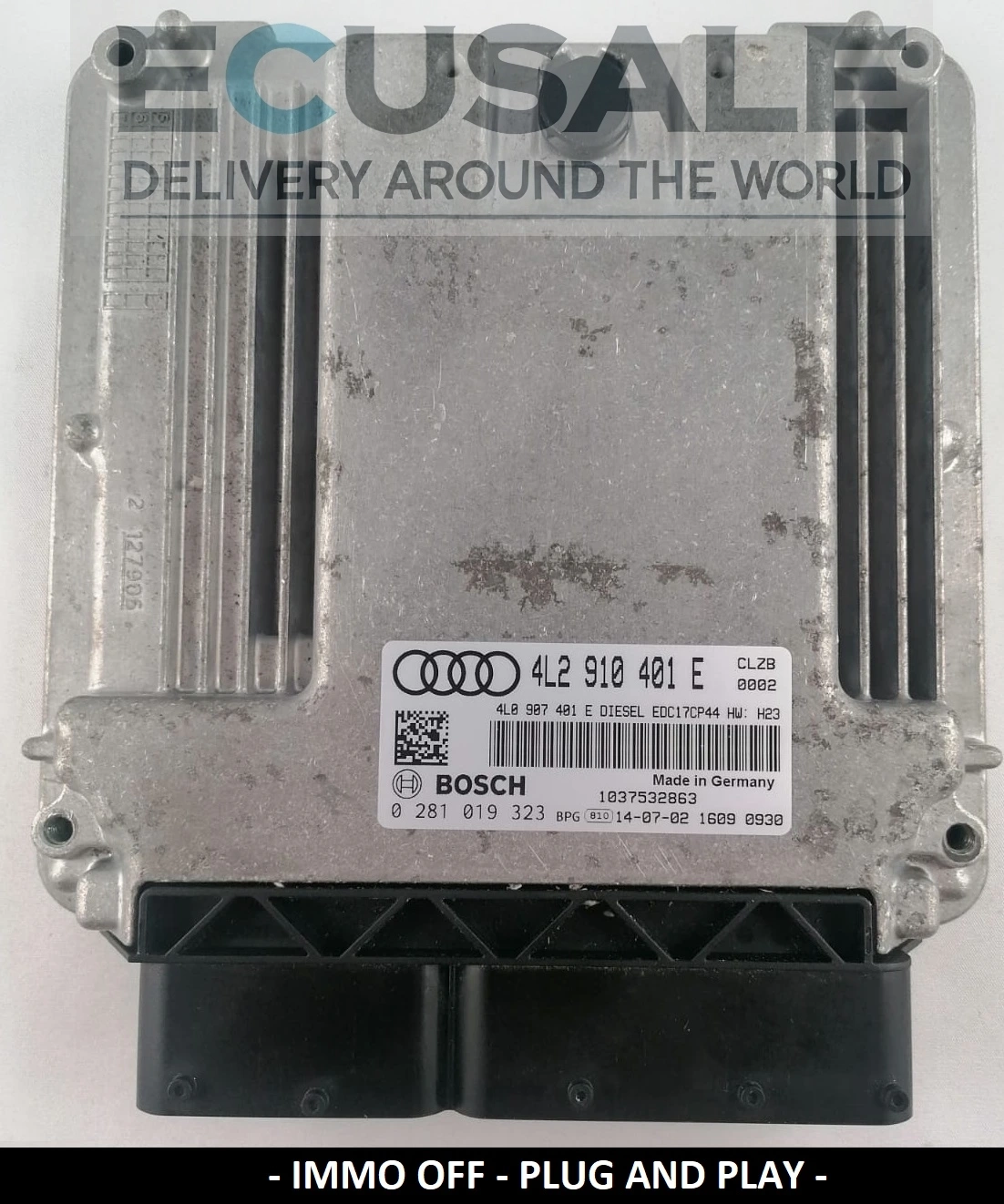

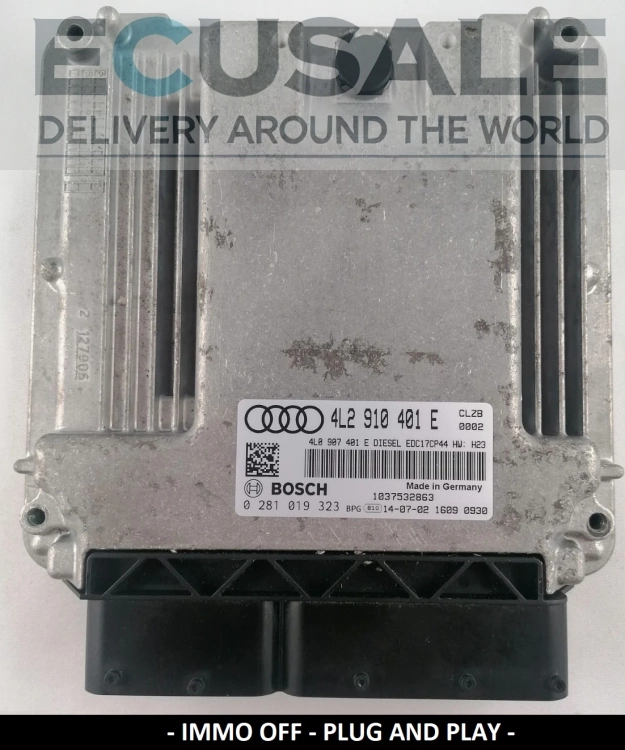

Label markings
- Bosch number: 0281019323 (0 281 019 323)
- Audi number: 4L2910401E (4L2 910 401 E)
- ECU type: Bosch EDC17CP44
Vehicle compatibility
The label decides, not the model year: the Bosch number 0281019323 and the Audi number 4L2910401E must be the same as on your ECU. If your Q7 version is not mentioned in the description, the unit may still fit. Watch out for similar numbers – 0281018302 (4L2910401C) has different software and is not a replacement, and earlier Q7s with EDC16CP34 (e.g. 0281013691) use a different ECU type.
Preparation and installation
The engine will start straight after installation, because the unit is IMMO OFF. On EDC17, though, an immobiliser fault stays in memory and cannot be cleared; a cluster with the large display then shows SAFE, the smaller one shows nothing. Want the car without this fault? Have the immobiliser adapted at a workshop or order data cloning from your old ECU from us, included in the price. For an extra charge: DPF OFF, EGR OFF, FLAPS OFF or chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- no communication with the ECU during diagnostics
- CAN bus faults and errors in several modules at once
- the engine stalls when warm or after contact with moisture
Before buying, rule out the power supply, wiring and battery, as they cause similar symptoms. Read more here: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281019323 / 4L2910401E ECU
Will an immobiliser fault remain after fitting the 0281019323?
Yes. On EDC17 units the IMMO OFF version leaves an immobiliser fault that cannot be cleared. A cluster with the large display shows SAFE; the smaller display shows no message. The engine starts and runs normally.
|
Does the 0281019323 need programming?
No – the IMMO OFF version starts the engine without programming; only the immobiliser fault described above remains.
|
What extra options can I order with the 0281019323?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
