How to match the 0281016433 / 4L1910401N ECU to your Audi Q7 3.0 TDI

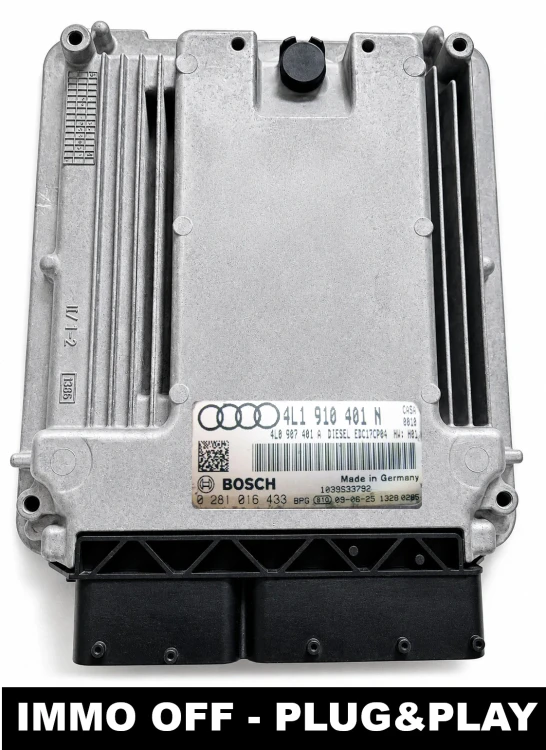

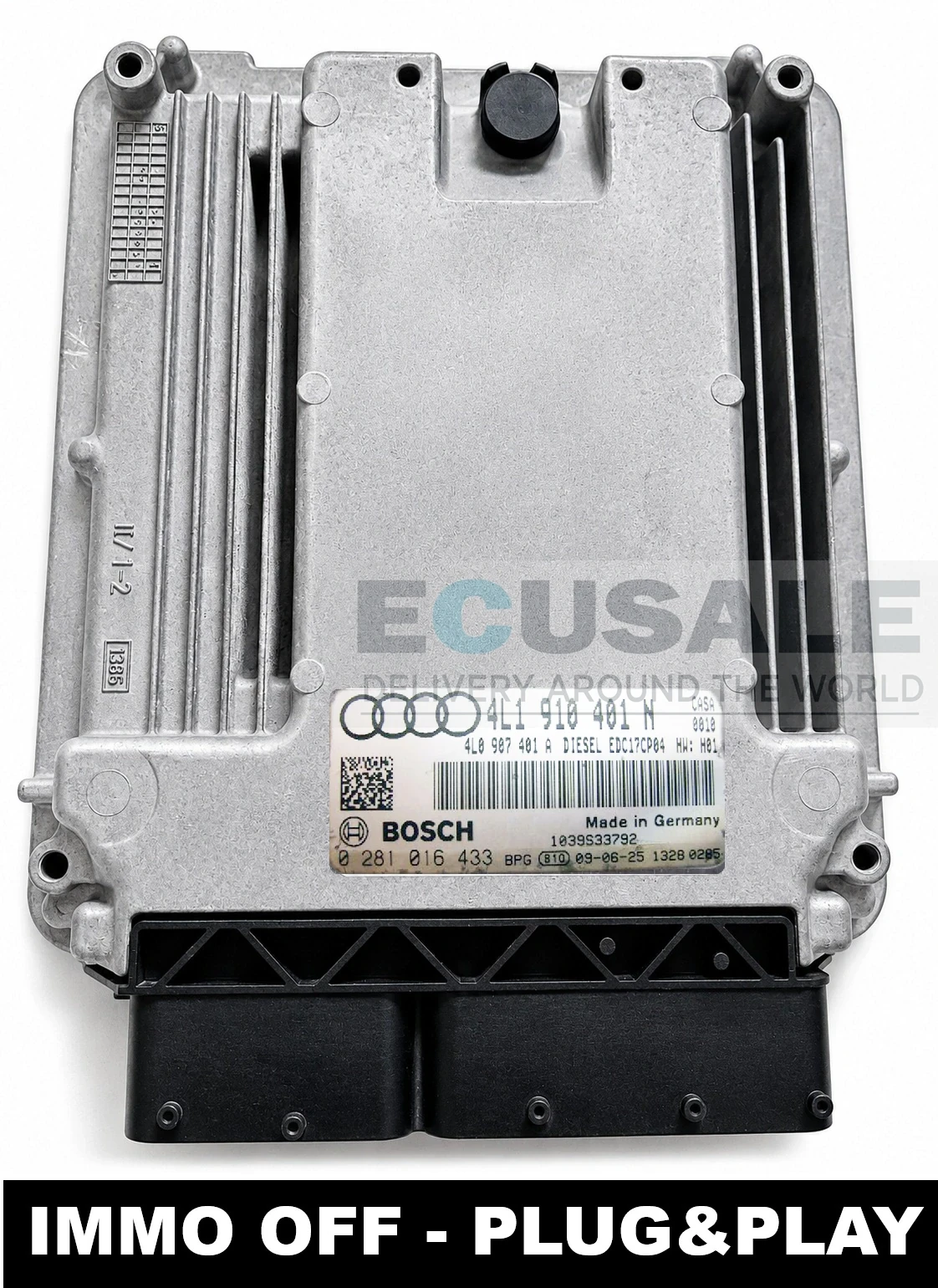

Does your Q7 have an ECU numbered 4L1910401N? The matching unit is this Bosch 0281016433 (EDC17CP04) from an Audi Q7 4L 3.0 TDI, prepared as IMMO OFF Plug & Play and checked in our test car. Before you buy, read how the immobiliser behaves on EDC17. Warranty: 6 months.

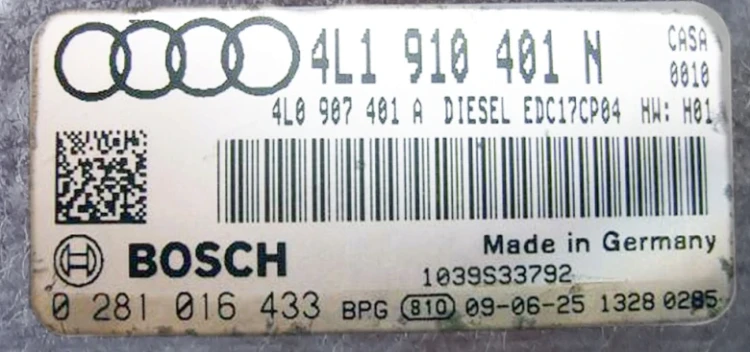

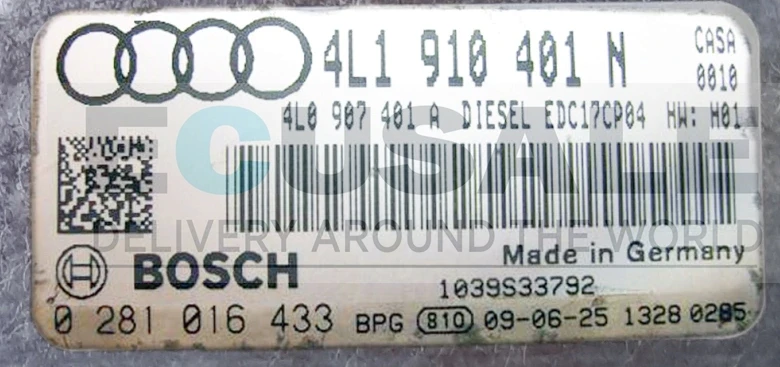

Label markings
- Bosch number: 0281016433 (0 281 016 433)
- Audi number: 4L1910401N (4L1 910 401 N)
- ECU type: Bosch EDC17CP04
Vehicle compatibility
The label decides, not the model year: the Bosch number 0281016433 and the Audi number 4L1910401N must be the same as on your ECU. If your Q7 version is not mentioned in the description, the unit may still fit. Watch out for similar numbers – 0281015868 (4L1910401D) has different software and is not a replacement, and earlier Q7s with EDC16CP34 (e.g. 0281013691) use a different ECU type.
Preparation and installation
Important on EDC17: the IMMO OFF version lets the Q7 start without programming, but the immobiliser fault is stored permanently. A cluster with the large screen shows the message SAFE; the smaller one shows no message. The solution is an immobiliser adaptation at a workshop or our data cloning from your current ECU, at no extra cost. Optional paid services: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- CAN bus faults and errors in several modules at once
- the radiator fans run constantly with the ignition on
- corrosion on the pins or the circuit board
Before buying, rule out the power supply, wiring and battery, as they cause similar symptoms. Read more here: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281016433 / 4L1910401N ECU
Will the 0281016433 fit a Q7 with an EDC16CP34 ECU?
No. This is a Bosch EDC17CP04. Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use different ECUs – choose by the number on the label.
|
Does the 0281016433 need programming?
No – the IMMO OFF version starts the engine without programming; only the immobiliser fault described above remains.
|
What extra options can I order with the 0281016433?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
