How to match the 0281013691 / 4L0910401K ECU to your Audi Q7 3.0 TDI
The Bosch EDC16CP34 with number 0281013691 is one of the versions fitted to the Audi Q7 3.0 TDI V6 (4L) – its label carries the Audi number 4L0910401K. We sell it as IMMO OFF Plug & Play, checked in a car; the warranty is 6 months.

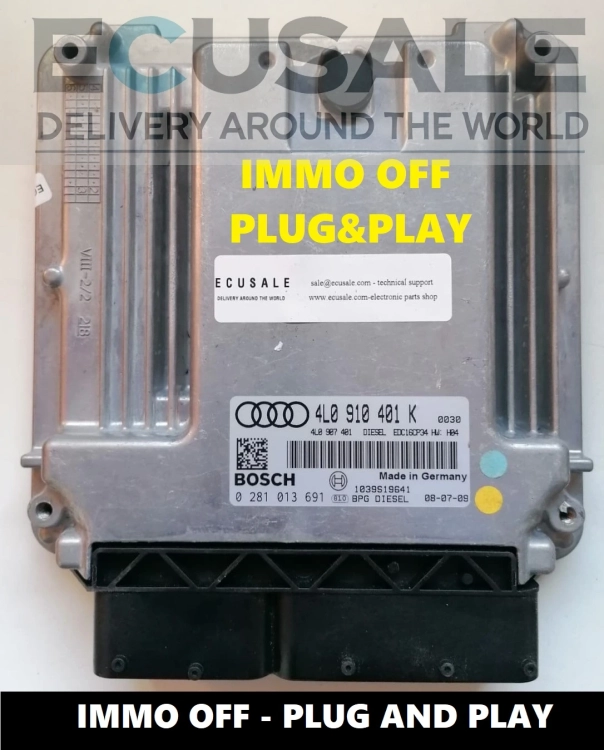

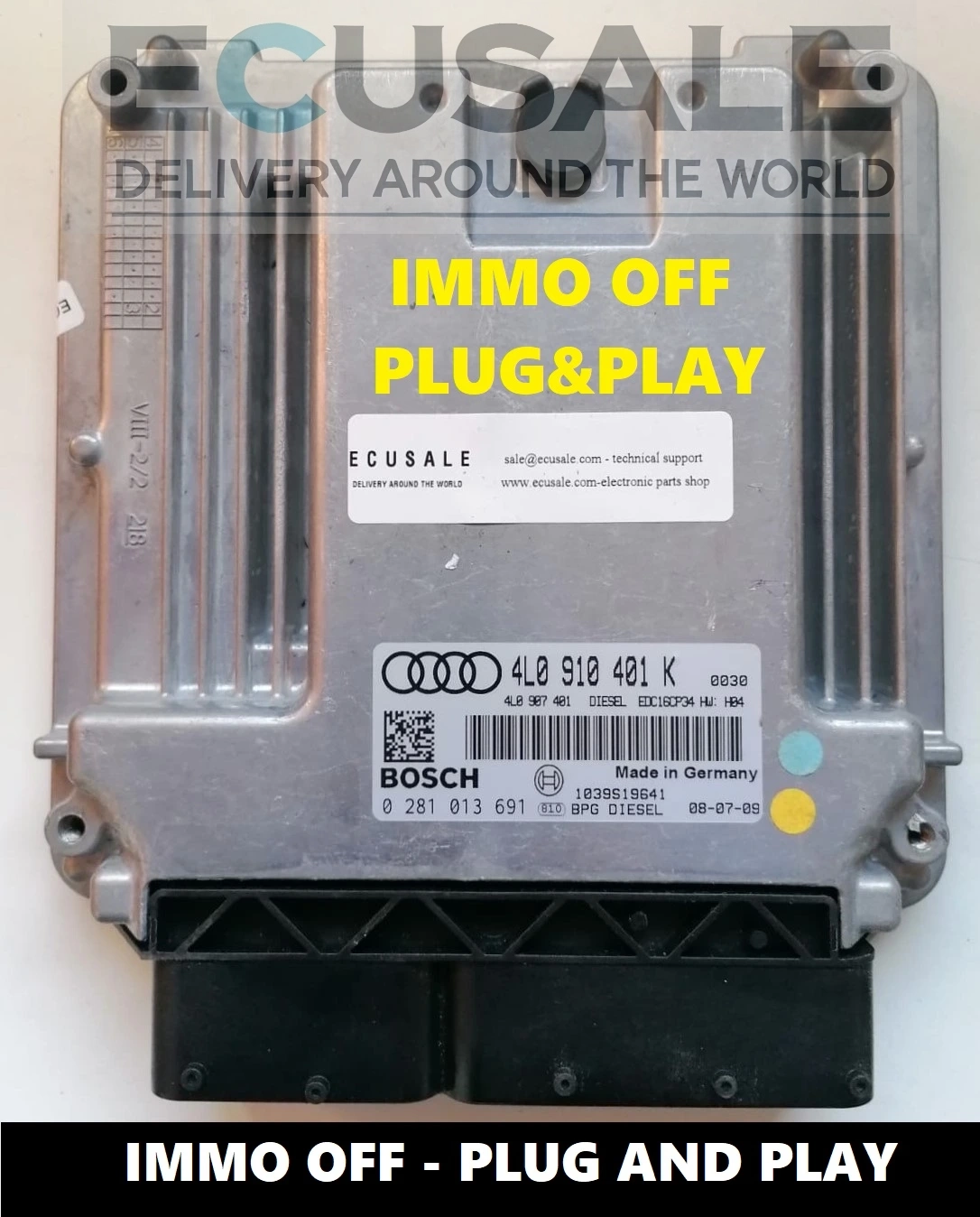

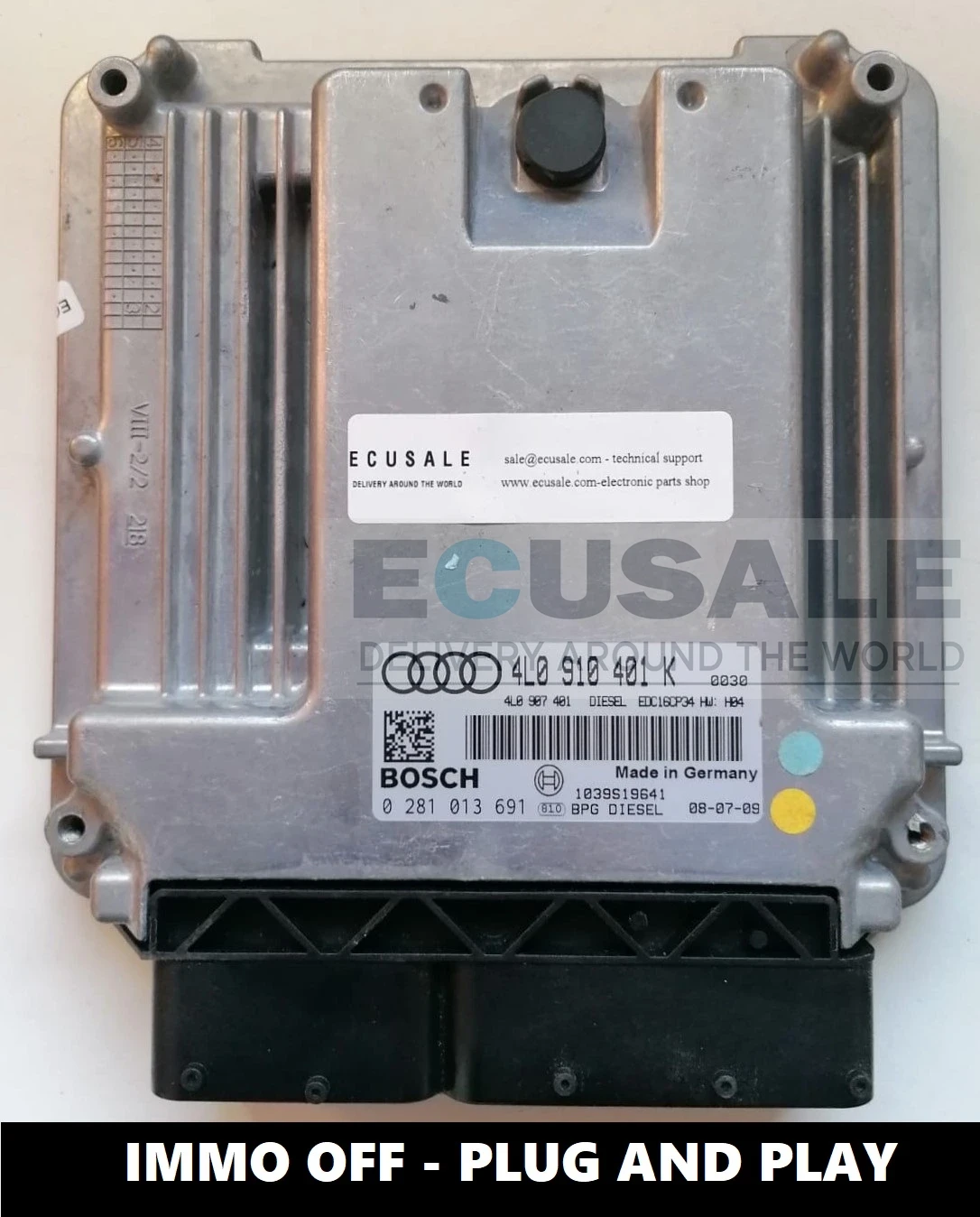

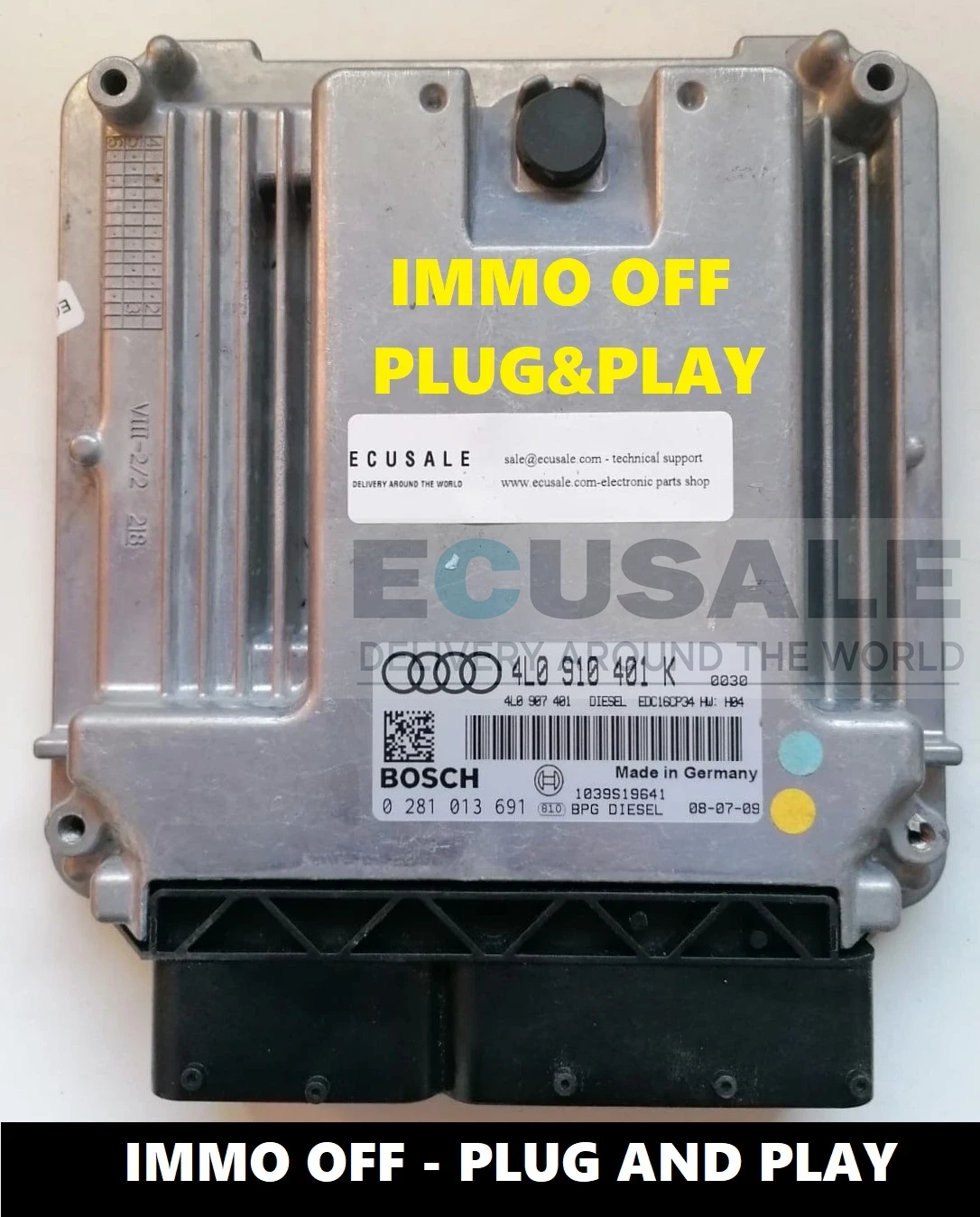

Label markings
- Bosch number: 0281013691 (0 281 013 691)
- Audi number: 4L0910401K (4L0 910 401 K)
- ECU type: Bosch EDC16CP34
Vehicle compatibility
The unit comes from an Audi Q7 4L 3.0 TDI. The model list does not limit the match either way – what matters is that the Bosch number 0281013691 and the Audi number 4L0910401K match the label on your ECU. The neighbouring number 0281013690 (4L0910401L) is the same EDC16CP34 family but different software, so it cannot replace this unit. Q7 3.0 TDI models with EDC17 (e.g. 0281015868) use completely different ECUs.
Preparation and installation
The 0281013691 unit is prepared as IMMO OFF – once connected, the engine starts without immobiliser programming or key coding, and no fault remains stored. Cloning the data from your old ECU is included in the price (send us the unit or the files). Paid options: DPF OFF, EGR OFF, FLAPS OFF, chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- the engine cranks but does not start
- no communication with the ECU during diagnostics
- the engine stalls when warm or after contact with moisture
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water damage to the Audi Q7 3.0 TDI ECU (EDC16CP34).
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281013691 / 4L0910401K ECU
Does the 0281013691 need programming after installation?
No. The unit is IMMO OFF Plug & Play – once connected, the engine starts without immobiliser or key programming.
|
My old ECU is water-damaged and dead – is that a problem?
No. The IMMO OFF version needs no data from your old ECU. If the old unit can still be read and you prefer a clone, we do it at no extra cost.
|
Will the 0281013691 fit a Q7 with an EDC17 ECU?
No. This unit is a Bosch EDC16CP34. Q7 3.0 TDI models with EDC17 (e.g. 0281015868) use different ECUs – choose by the number on the label.
|
