How to match the 0281013690 / 4L0910401L ECU to your Audi Q7 3.0 TDI
0281013690 (Audi 4L0910401L) is a Bosch EDC16CP34 engine control unit from the first-generation Audi Q7 (4L) with the 3.0 TDI V6 engine. We ship it as IMMO OFF Plug & Play, after fitting it to our test car and checking how the engine runs. Warranty: 6 months.

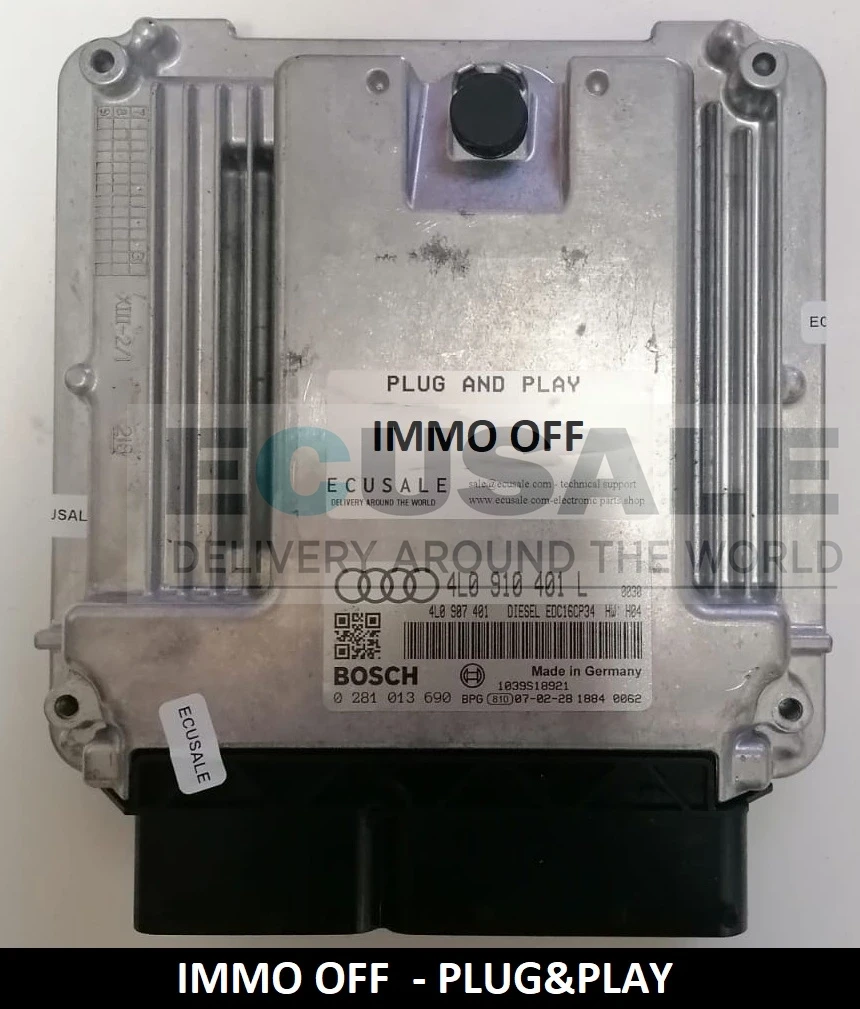

Label markings
- Bosch number: 0281013690 (0 281 013 690)
- Audi number: 4L0910401L (4L0 910 401 L)
- ECU type: Bosch EDC16CP34
Vehicle compatibility
This unit fits an Audi Q7 4L 3.0 TDI that left the factory with ECU 0281013690 / 4L0910401L. Before ordering, compare both numbers with the sticker on the housing – your model missing from the list rules nothing out, but a different number, e.g. 0281013689, means different software. EDC17 units from later Q7s (e.g. 0281015868) are a separate group.
Preparation and installation
On the EDC16CP34, disabling the immobiliser has no side effects – there is no message on the instrument cluster and no stored fault, and the engine starts straight after installation. You can also choose data cloning from your old ECU (included in the price) and paid services: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- no communication with the ECU during diagnostics
- the engine stalls when warm or after contact with moisture
- corrosion on the pins or the circuit board
Before buying, rule out the power supply, wiring and battery, as they cause similar symptoms. Read more here: water damage to the Audi Q7 3.0 TDI ECU (EDC16CP34).
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281013690 / 4L0910401L ECU
Does the 0281013690 need programming after installation?
No. The unit is IMMO OFF Plug & Play – once connected, the engine starts without immobiliser or key programming.
|
My old ECU is water-damaged and dead – is that a problem?
No. The IMMO OFF version needs no data from your old ECU. If the old unit can still be read and you prefer a clone, we do it at no extra cost.
|
Will a SAFE message appear in a Q7 with 4L0910401L?
No. After fitting this EDC16CP34 unit in IMMO OFF version, no immobiliser fault remains.
|
