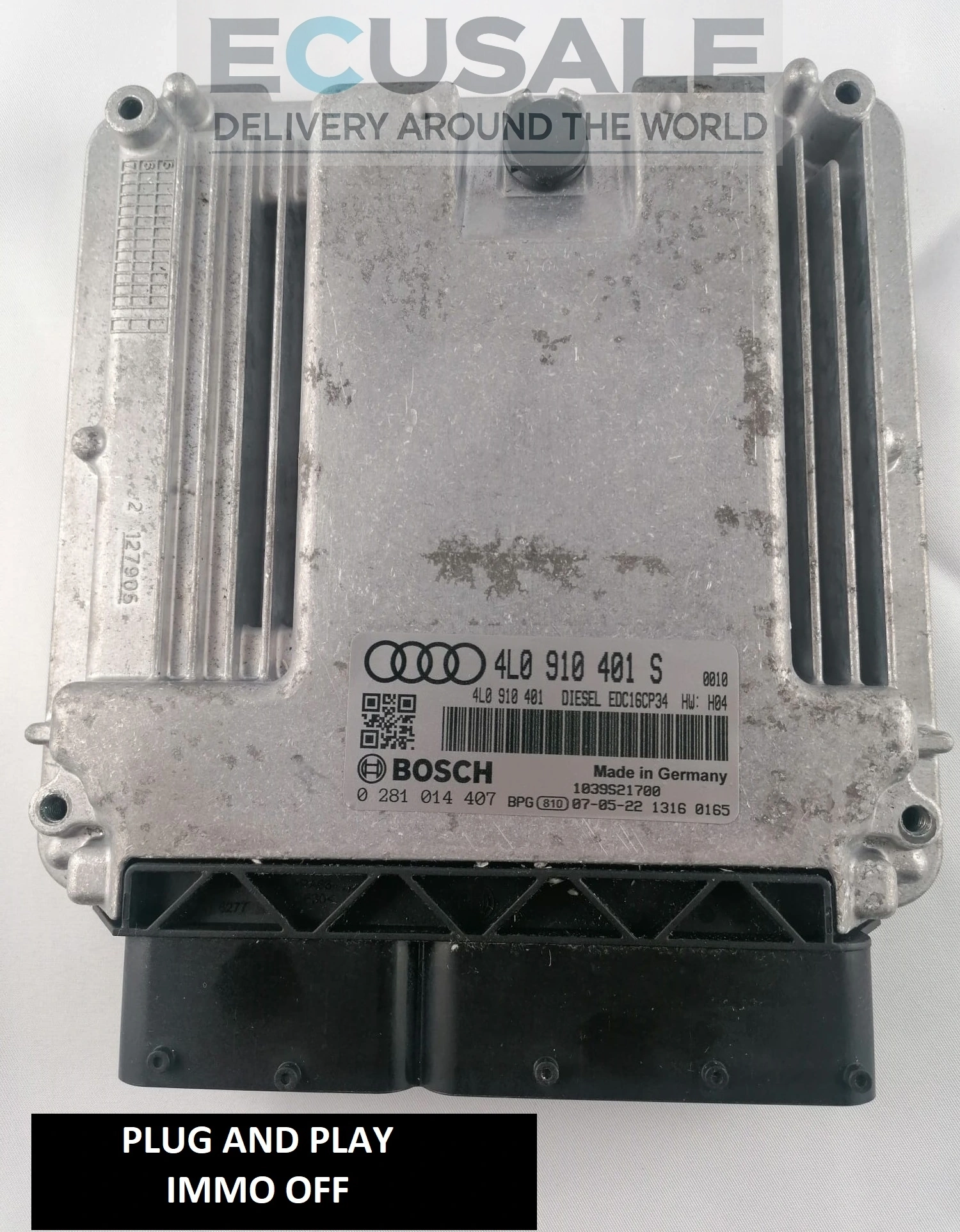

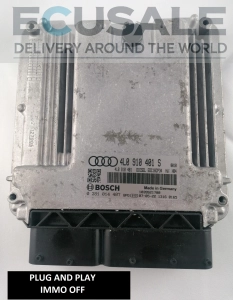

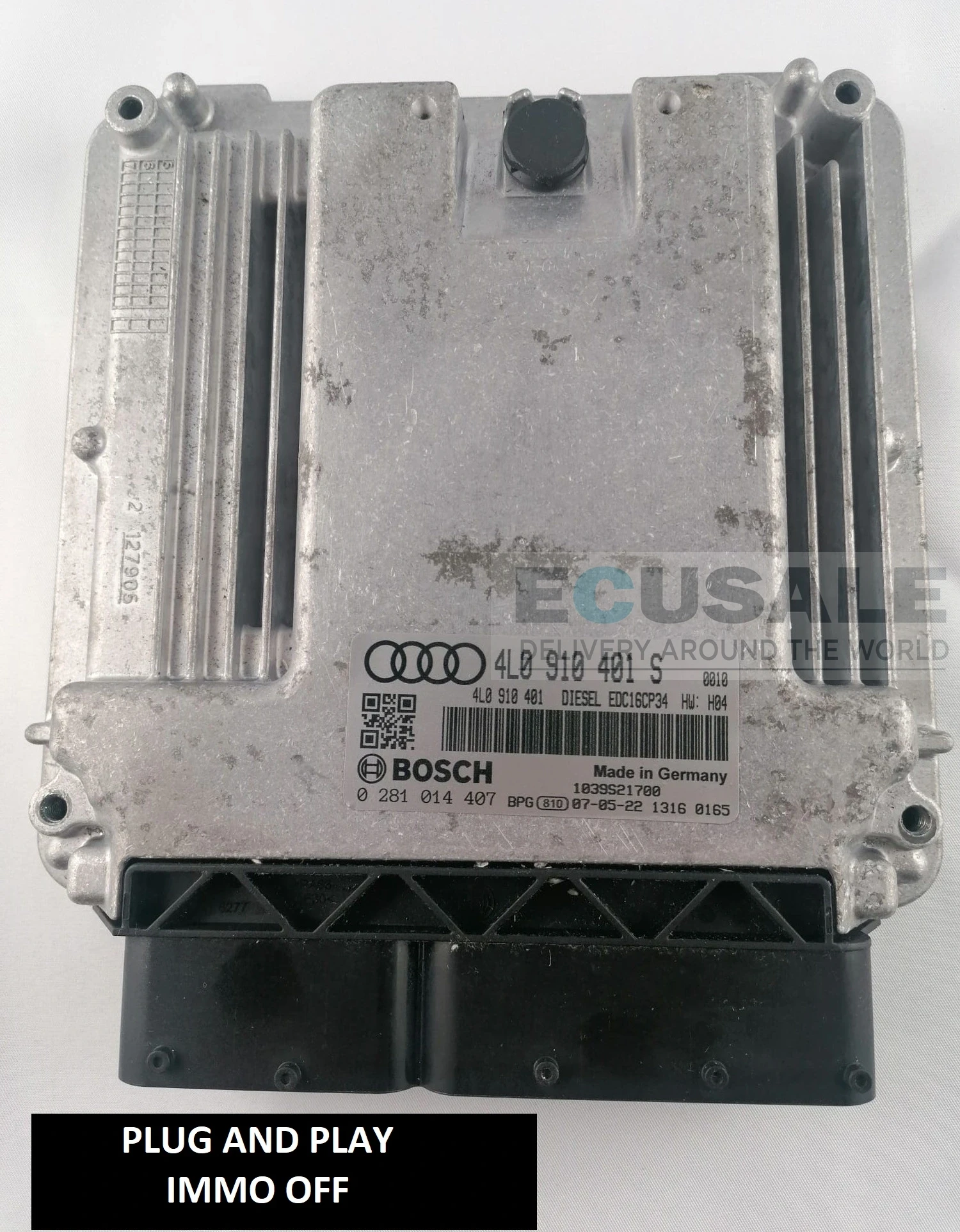

How to match the 0281014407 / 4L0910401S ECU to your Audi Q7 3.0 TDI
Looking for a replacement for ECU 4L0910401S? This Bosch 0281014407 (EDC16CP34) comes from an Audi Q7 4L 3.0 TDI and is prepared as IMMO OFF Plug & Play. We start every unit in our test car before it is dispatched; the warranty is 6 months.
Label markings
- Bosch number: 0281014407 (0 281 014 407)
- Audi number: 4L0910401S (4L0 910 401 S)
- ECU type: Bosch EDC16CP34
Vehicle compatibility
The label decides, not the model year: the Bosch number 0281014407 and the Audi number 4L0910401S must be the same as on your ECU. If your Q7 version is not mentioned in the description, the unit may still fit. Watch out for similar numbers – 0281014406 (4L0910401R) has different software and is not a replacement, and Q7s with EDC17 (e.g. 0281015868) use a different ECU type.
Preparation and installation
Installation comes down to plugging in the connectors: the IMMO OFF version needs no key coding or immobiliser adaptation and leaves no faults. If you prefer a clone of your own ECU, we make it at no extra cost once you send the unit or its files. For an extra charge we can also prepare DPF OFF, EGR OFF, FLAPS OFF or chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- no communication with the ECU during diagnostics
- CAN bus faults and errors in several modules at once
- the engine stalls when warm or after contact with moisture
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water damage to the Audi Q7 3.0 TDI ECU (EDC16CP34).
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281014407 / 4L0910401S ECU
My old ECU is water-damaged and dead – is that a problem?
No. The IMMO OFF version needs no data from your old ECU. If the old unit can still be read and you prefer a clone, we do it at no extra cost.
|
Will the 0281014407 fit a Q7 with an EDC17 ECU?
No. This unit is a Bosch EDC16CP34. Q7 3.0 TDI models with EDC17 (e.g. 0281015868) use different ECUs – choose by the number on the label.
|
Will a SAFE message appear in a Q7 with 4L0910401S?
No. After fitting this EDC16CP34 unit in IMMO OFF version, no immobiliser fault remains.
|
