How to match the 0281013013 / 4L0910409 ECU to your Audi Q7 4.2 TDI
0281013013 (Audi 4L0910409) is a Bosch EDC16CP34 engine ECU from the first-generation Audi Q7 (4L) with the 4.2 TDI V8 engine. The unit comes from a dismantled vehicle and we check it in a car before shipping. It is sold as a programming version; warranty: 6 months.

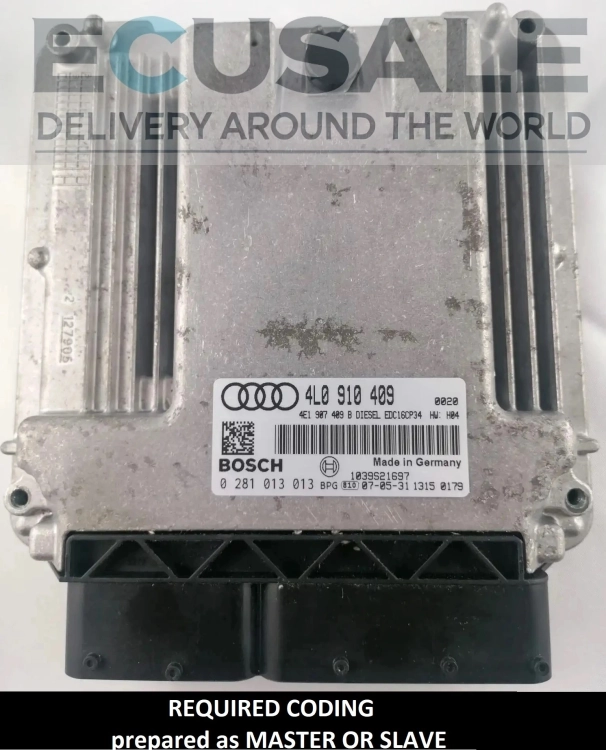

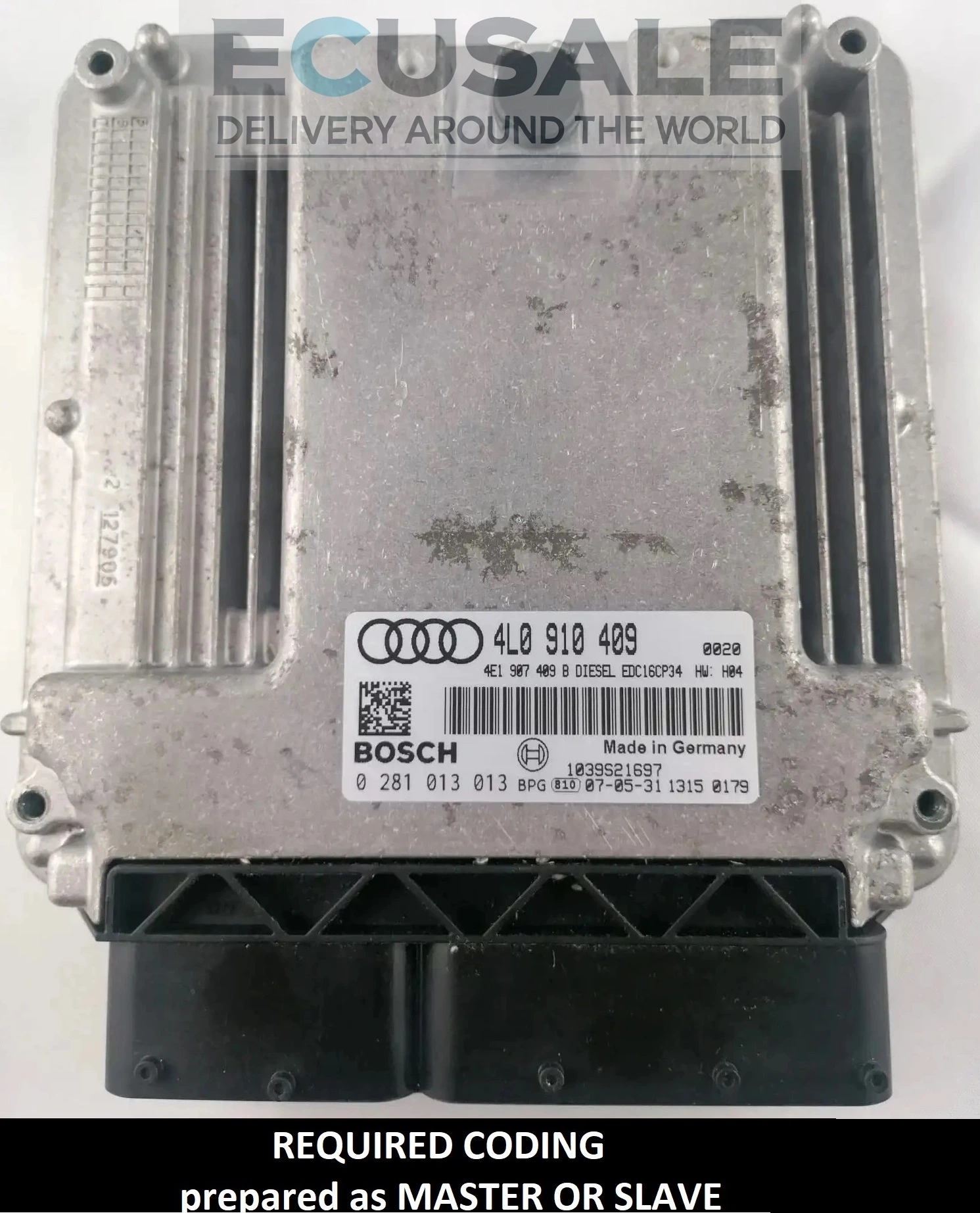

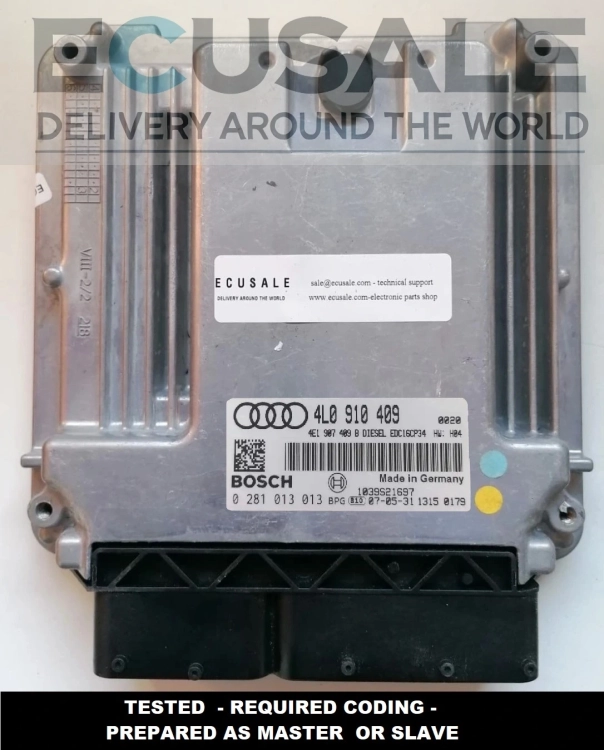

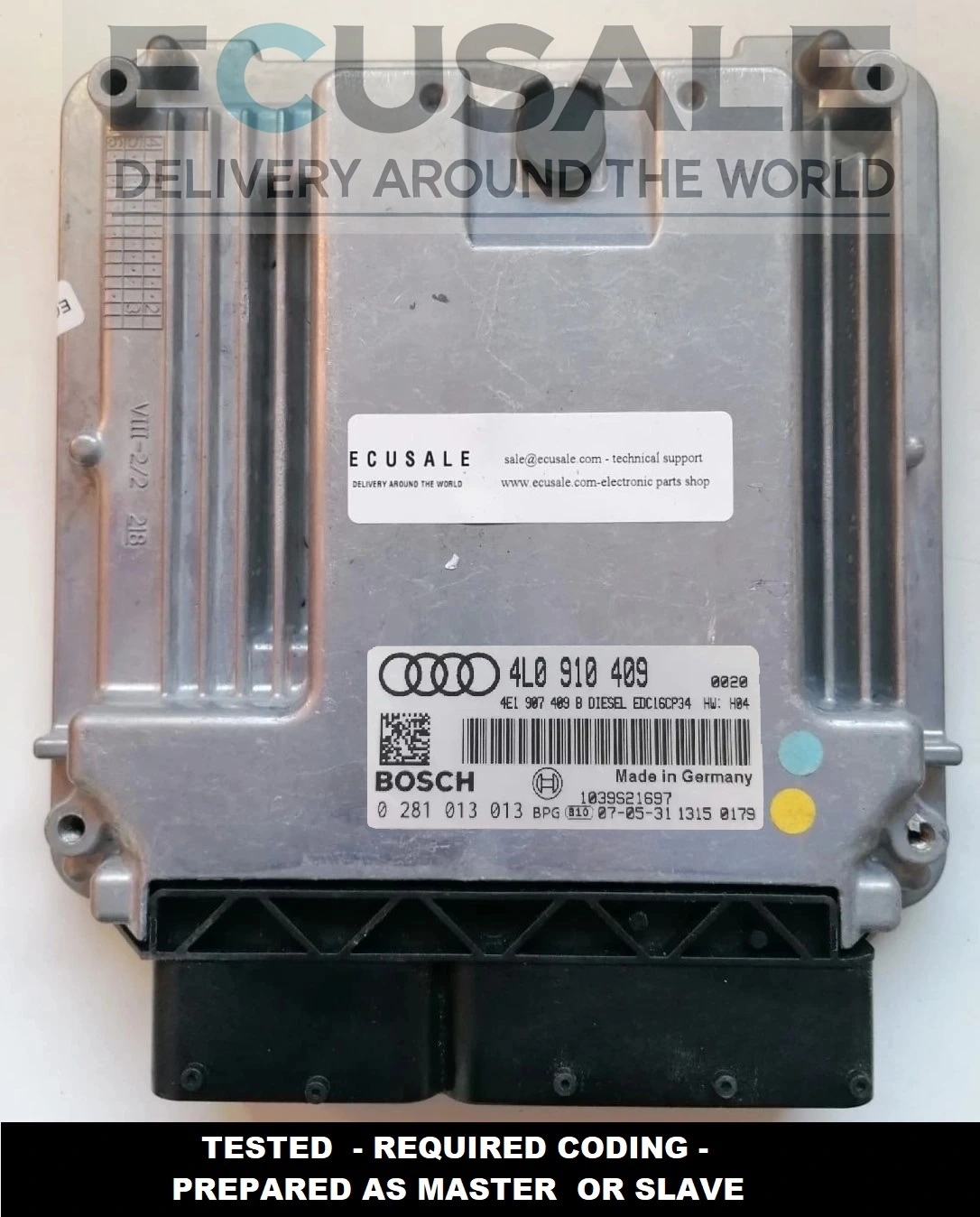

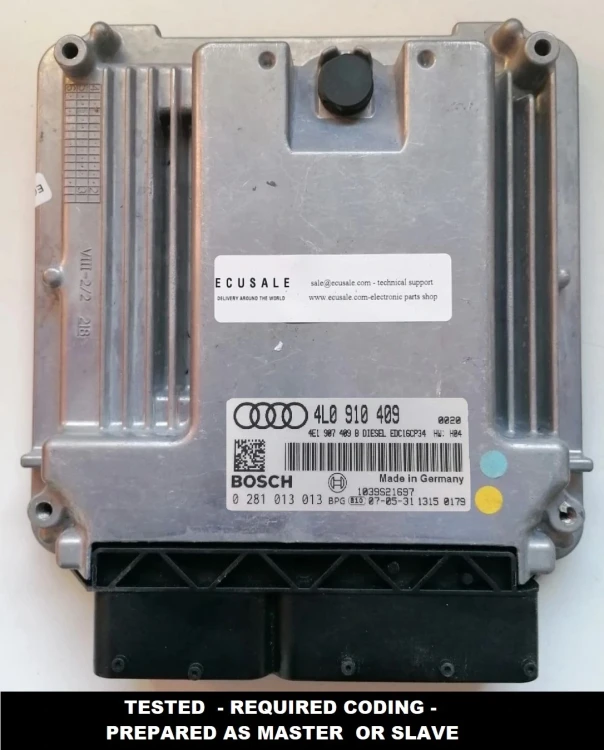

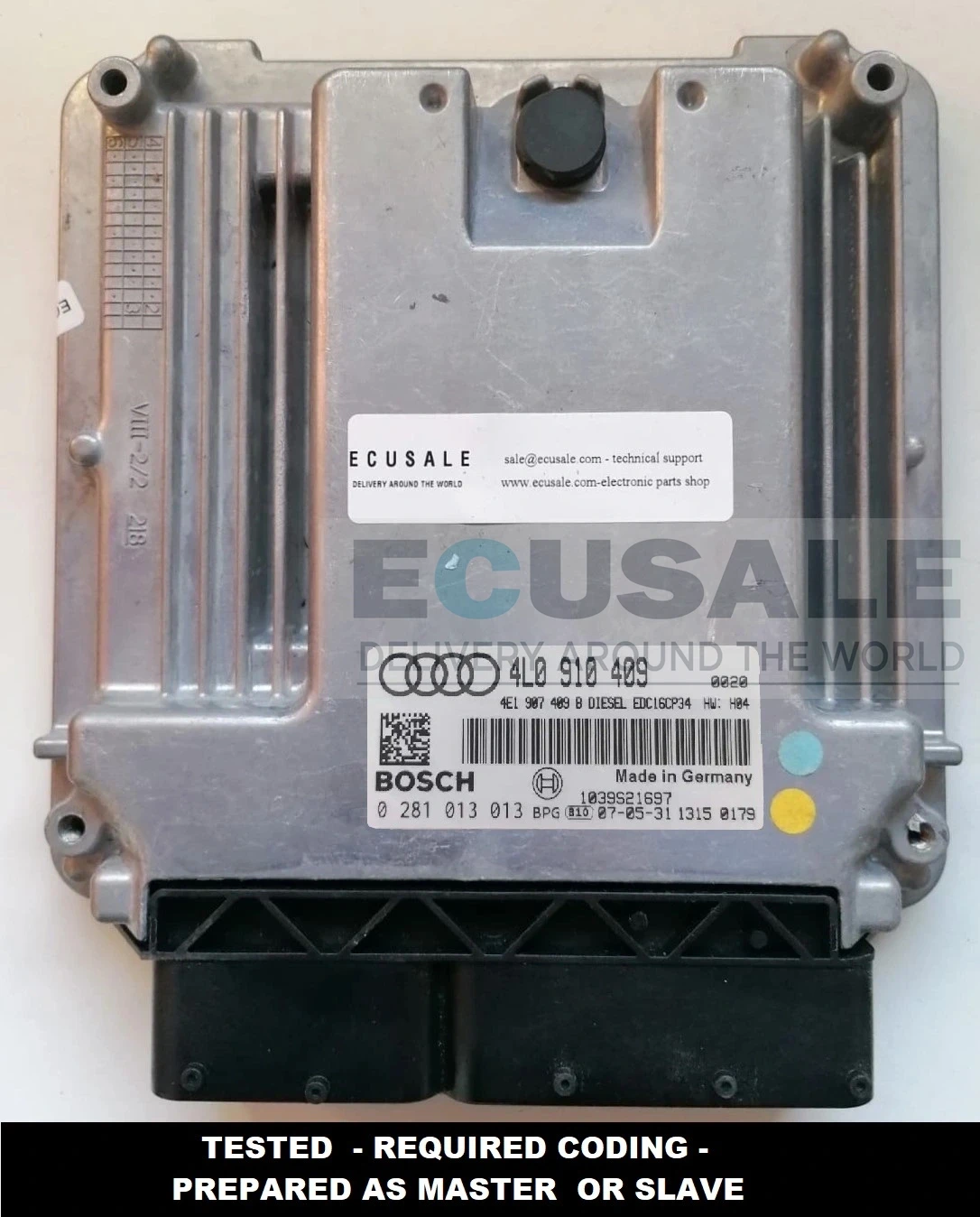

Label markings
- Bosch number: 0281013013 (0 281 013 013)
- Audi number: 4L0910409 (4L0 910 409)
- ECU type: Bosch EDC16CP34
Master and slave in the Audi Q7 4.2 TDI
The 4.2 TDI V8 has two engine ECUs working together: a master mounted horizontally and a slave mounted vertically. Both carry the same number 4L0910409 / 0281013013. In practice it is almost always the master that gets replaced – water from the wiper area gets under the scuttle panel, runs down a sensor cable into the ECU and damages the electronics. The slave fails very rarely.
Vehicle compatibility
The ECU fits the Audi Q7 4L 4.2 TDI V8. The model list does not decide fitment either way – what matters is that Bosch number 0281013013 and Audi number 4L0910409 match the label on your ECU. A different number, e.g. 0281015165 (4L0910409D), means different software, so it will not replace this unit.
Preparation and installation
A single 0281013013 ECU needs programming after fitting – matching it to the immobiliser and the car at a dealer or an auto electrician (ODIS, VAS, VCDS). Instead you can order cloning: we transfer the data from your old ECU or from files you send, at no extra cost.
Prefer to skip programming? We have a master + slave set with the same numbers in an IMMO OFF version, fitted without programming: 0281013013 / 4L0910409 – set of 2, IMMO OFF.
Symptoms of a failed ECU in the Q7 4.2 TDI
The master sits horizontally under the scuttle panel, which is why it is the one that usually fails after water ingress. Typical symptoms:
- the car does not start
- no diagnostic communication with one of the ECUs
- synchronisation faults between master and slave
- immobiliser fault codes
Power supply, wiring or the battery can cause similar symptoms – run a diagnosis before buying. More in the article: Audi Q7 4.2 TDI – master and slave ECU failure.
Other Audi Q7 4.2 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about 0281013013 / 4L0910409
Is the 0281013013 ECU a master or a slave?
In the Q7 4.2 TDI the master and slave share the same number 4L0910409. After programming or cloning the ECU takes over the role of the unit it replaces; the master, mounted horizontally, is the one replaced most often.
|
Will 0281013013 work without programming?
No. A single ECU has to be programmed after fitting (ODIS, VAS, VCDS), or you can have us clone the data from your old ECU, which is included in the price.
|
Do both ECUs have to be replaced at once?
No. If only the master is damaged, one 0281013013 ECU with programming or cloning is enough.
|
