Audi Q7 4.2 TDI ECU ENGINE CONTROLLERS – Master and Slave (4L0910409 / 0281013013 / 4L0910409D / 0281015165)
In the Audi Q7 4.2 TDI V8, two ECU ENGINE CONTROLLERS operate simultaneously. This is a Master + Slave system, which differs from the standard solutions used in most vehicles where only one engine controller is installed.
In this model it is very important not only to match the correct part numbers, but also to ensure the correct mounting position of the controllers. One controller operates as Master and the other as Slave. They cannot be interchanged.
How are the controllers installed in Audi Q7 4.2 TDI?
In the Audi Q7 4.2 TDI, the engine controllers are installed in two different positions:
- Master – mounted horizontally
- Slave – mounted vertically
This is very important information because incorrect installation may cause problems with starting the vehicle and improper operation of the entire engine management system. After receiving the controllers, they are clearly labeled so it is easy to identify which module should be installed as Master and which as Slave.
The most common problem – water damage to the Master controller
The most common cause of ECU failure in the Audi Q7 4.2 TDI is water damage. In most cases the damaged unit is the Master controller, which is the one mounted horizontally.
This position makes the controller more exposed to moisture accumulation and possible water intrusion inside the housing. In practice this means that very often only one module becomes damaged while the second one remains fully functional.
Symptoms of a damaged ECU in Audi Q7 4.2 TDI
A damaged engine controller in the Audi Q7 4.2 TDI can cause various symptoms. In many cases the problem appears suddenly, especially after water damage to the Master controller.
The most common symptoms of a faulty ECU include:
- the vehicle does not start,
- the engine starts and stalls shortly after,
- no diagnostic communication with one of the controllers,
- synchronization errors between Master and Slave controllers,
- irregular engine operation,
- immobilizer errors appearing,
- inability to properly code or start the vehicle after replacing one ECU.
If your Audi Q7 4.2 TDI shows no communication with one controller or the vehicle starts and immediately stalls, the cause is often a damaged or water-affected ECU.
Q&A – symptoms of a damaged Audi Q7 4.2 TDI ECU
What are the most common symptoms of a faulty ECU in Audi Q7 4.2 TDI?
The most common symptoms include no engine start, the engine stalling after starting, lack of communication with the controller, or synchronization errors between Master and Slave.
Can a damaged Master controller prevent the car from starting?
Yes. In the Audi Q7 4.2 TDI, a damaged Master controller very often prevents the engine from starting.
Does water damage always mean both ECUs are damaged?
No. In most cases only the Master controller mounted horizontally becomes damaged, while the Slave controller often remains functional.
Which controllers are used in Audi Q7 4.2 TDI?
The Audi Q7 4.2 TDI uses controllers from the Bosch EDC16CP34 system. The most common part numbers include:
- 4L0910409
- 0281013013
- 4L0910409D
- 0281015165
These controllers are installed in Audi Q7 4.2 TDI V8 vehicles mainly produced around:
- 2007
- 2008
- 2009
- 2010
When selecting a replacement part, always compare the number from the label on the original controller. This is the most reliable way to ensure compatibility with the vehicle.
Q&A – selecting ECU 4L0910409 / 0281013013 / 0281015165
Which engines use ECU 4L0910409 / 0281013013?
These numbers are used in the Audi Q7 4.2 TDI V8 with the Bosch EDC16CP34 system.
Are controllers 4L0910409D and 0281015165 also used in Audi Q7 4.2 TDI?
Yes, these are also versions of the controllers used in this model and engine.
Should the old ECU number be checked before purchase?
Yes. The part number from the original ECU label should always be checked before purchase to ensure correct compatibility.
What are the options for purchasing an ECU for Audi Q7 4.2 TDI?
In our offer there are two purchasing options for the Audi Q7 4.2 TDI engine controller. The choice depends on whether you want to buy a single controller for programming or a ready-to-install Master + Slave IMMO OFF set.

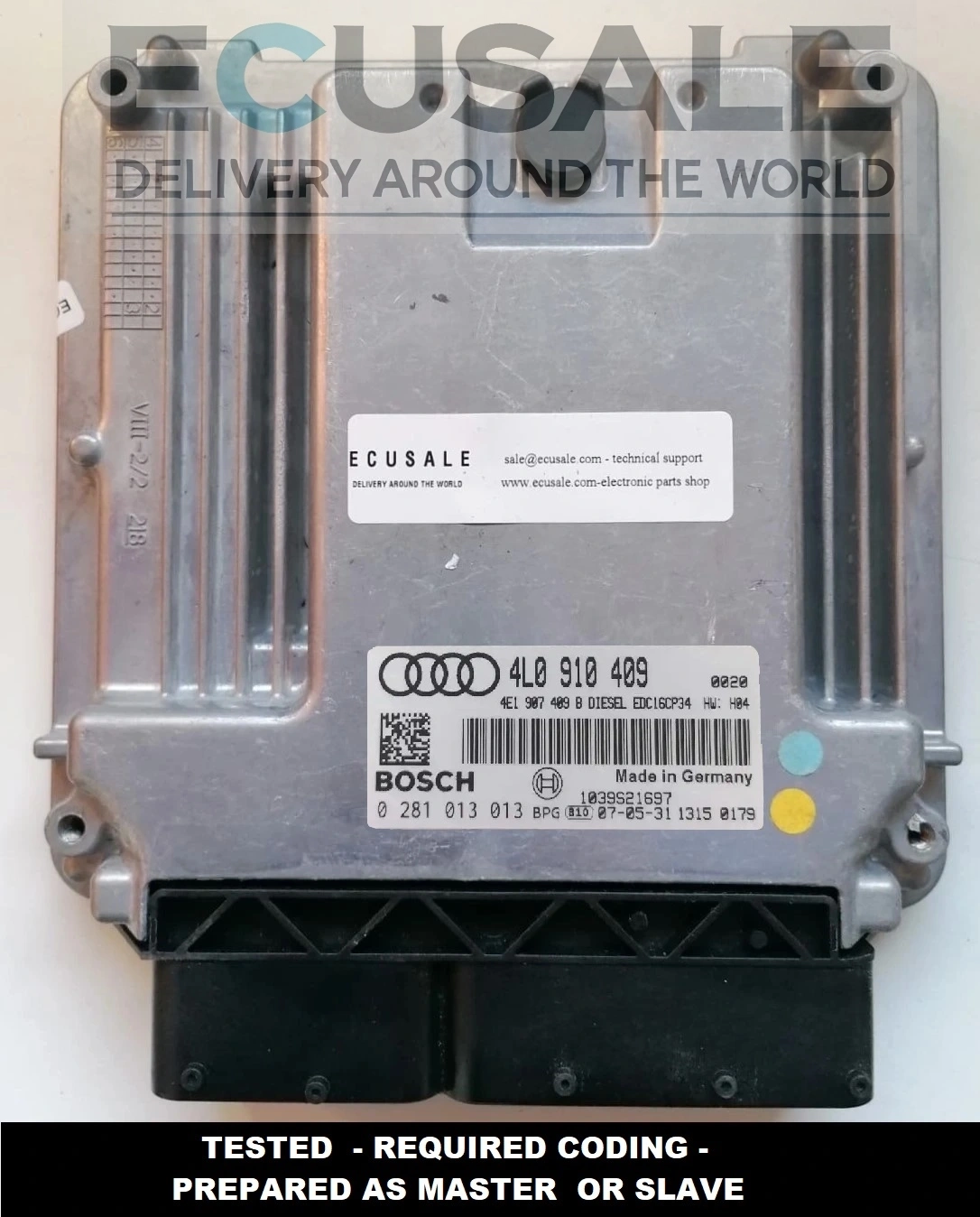

1. Single Master or Slave ECU ENGINE CONTROLLER
The first option is purchasing a single ECU ENGINE CONTROLLER – either Master or Slave, depending on which module has failed.
The cost of such a controller is approximately 2100 PLN.
In this case, after installation the controller must be programmed. This means that proper adaptation and configuration of the ECU to the vehicle is required.
Single controller offers:
LINK to offer – https://ecusale.com/en/4l0910409-0281013013-ecu-engine-control-unit-bosch-edc16cp34-audi-q7-4-2-tdi

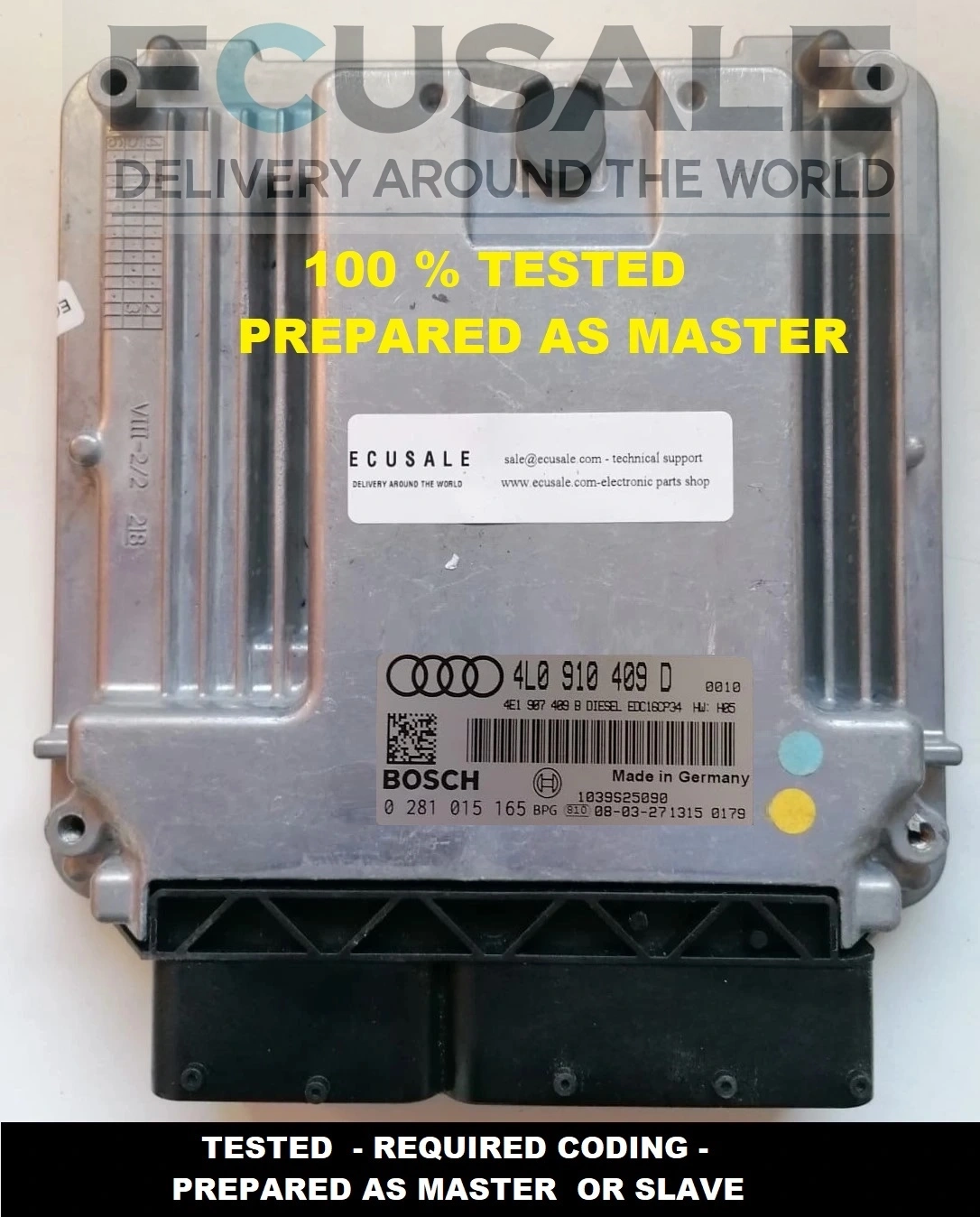

LINK to offer – 4L0910409D / 0281015165 – ECU ENGINE CONTROLLER Bosch EDC16CP34 Audi Q7 4.2 TDI
Q&A – single Master or Slave ECU
Does a single Audi Q7 4.2 TDI ECU require programming?
Yes. After installation, a single controller must be programmed and adapted to the vehicle.
Can I purchase only the Master controller?
Yes. If only the Master controller is damaged, you can purchase the Master module separately for programming.
Does the Slave controller also need programming after installation?
Yes. If a single Slave controller is installed, it also requires programming after installation in the vehicle.
2. Complete set of two controllers – IMMO OFF version
The second option is purchasing a complete set of two controllers Master + Slave prepared in the IMMO OFF version.
The cost of such a set is approximately 4000 PLN.
This solution is designed for customers who want to avoid additional programming. This set does not require programming after installation. You only need to install the controllers according to their designation:
- Master as Master – horizontal installation
- Slave as Slave – vertical installation
IMMO OFF set offers:

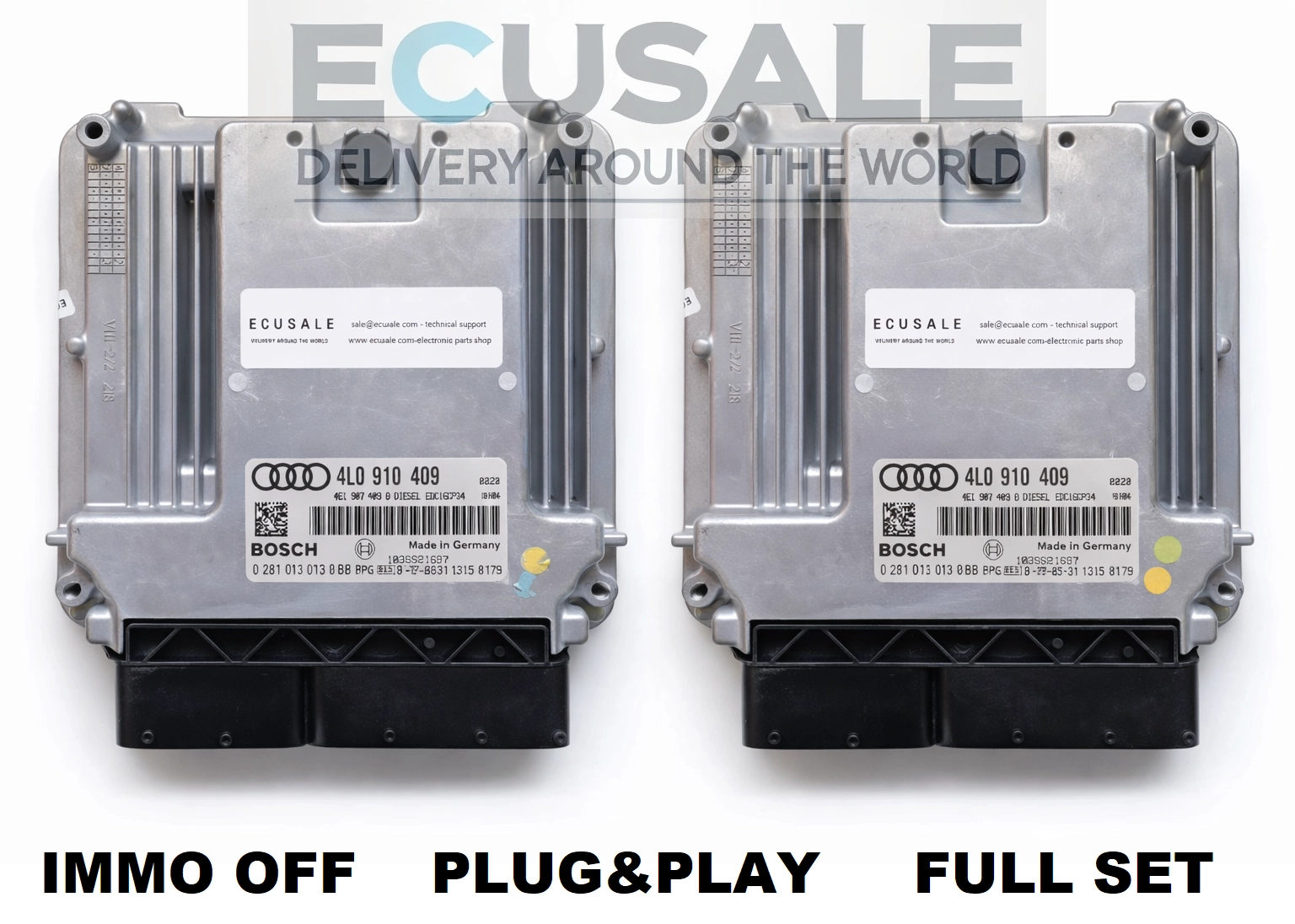

4L0910409 / 0281013013 – IMMO OFF set 2x ECU ENGINE CONTROLLER Audi Q7 4.2 TDI

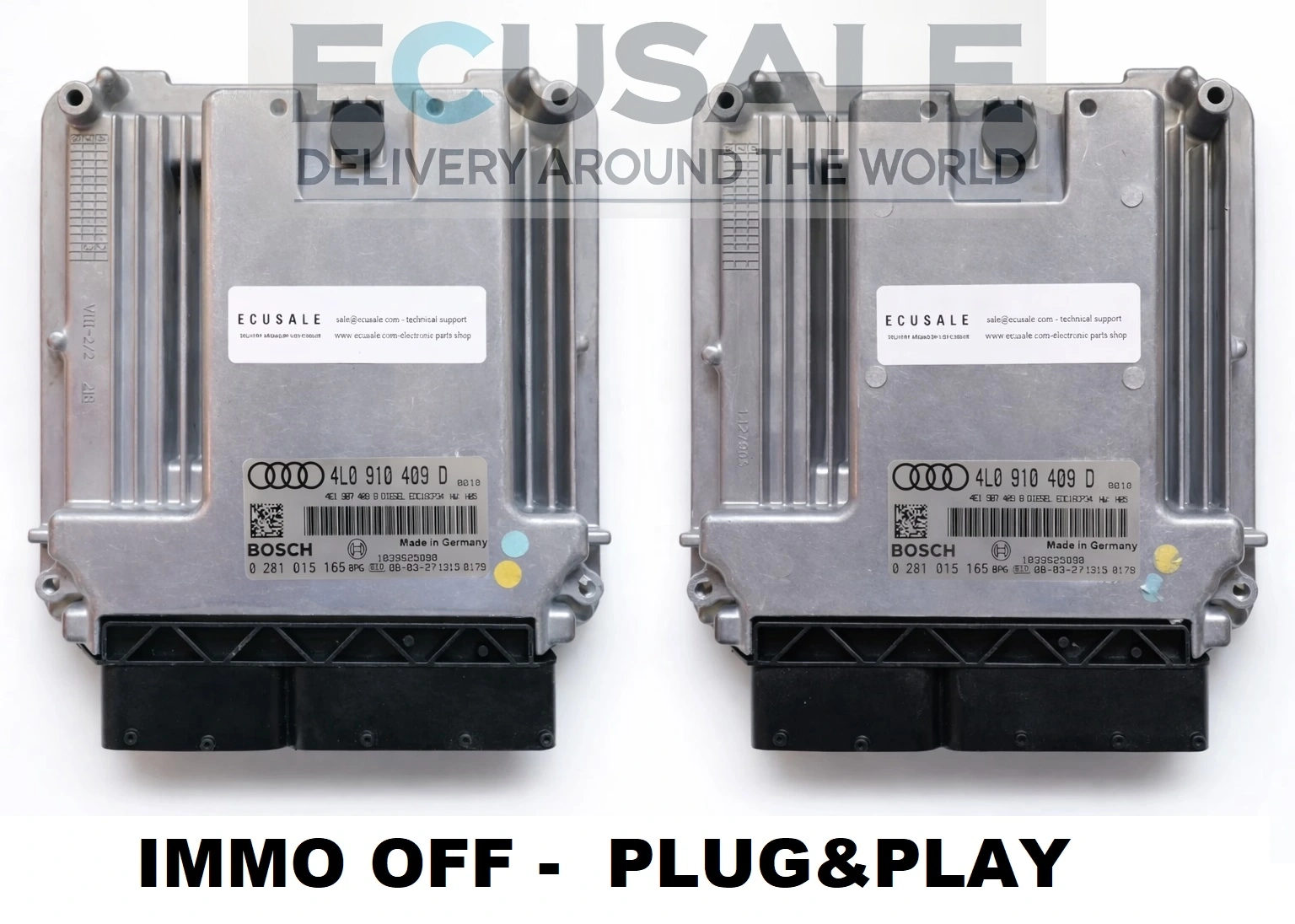

4L0910409D / 0281015165 – IMMO OFF set 2x ECU ENGINE CONTROLLER Audi Q7 4.2 TDI
Q&A – IMMO OFF controller set
Does the IMMO OFF controller set require programming?
No. The Master + Slave IMMO OFF set does not require programming after installation.
How should the IMMO OFF set be installed in Audi Q7 4.2 TDI?
The Master controller must be installed in the Master position horizontally and the Slave controller in the Slave position vertically, exactly according to the labels on the controllers.
Are the controllers labeled after delivery?
Yes. The controllers are clearly labeled so it is easy to identify which module should be installed as Master and which as Slave.
Important information about the IMMO OFF set
When using a pair of controllers prepared in the IMMO OFF version, it is extremely important not to perform any programming or software updates after installation.
You should not perform:
- ECU software updates,
- controller coding,
- immobilizer adaptation,
- controller reprogramming.
This is important because software updates or programming may change the immobilizer configuration stored in the controllers. In such a case the controllers will stop working in IMMO OFF mode and full coding to the vehicle will become necessary.
Therefore after installing the IMMO OFF set, the controllers should remain exactly in the configuration in which they were delivered.
Collection of Audi Q7 engine controllers available immediately
Our store also offers a collection of engine controllers for Audi Q7 covering different engine versions such as 3.0 TDI, 4.0 TDI and 4.2 TDI. The offer includes both single controllers for programming and ready sets in Plug & Play or IMMO OFF versions prepared for quick installation.
All available modules can be viewed in our collection:
Audi Q7 ECU ENGINE CONTROLLERS – collection of available models 3.0 / 4.0 / 4.2 TDI
The collection includes controllers from Bosch EDC16 and Bosch EDC17 systems used in different generations of Audi Q7. Each product contains a detailed description of part numbers and compatibility information, making it easy to select the correct ECU ENGINE CONTROLLER for a specific vehicle.
Best-selling controllers for Audi Q7 3.0 TDI
For Audi Q7 3.0 TDI engines the most commonly sold engine controllers include:
- 4L0910401 / 0281012772
- 4L0910401M / 0281013689
- 4L0910401K / 0281013691
- 4L1910401H / 0281016832
- 4L0910409T / 0281031081
These are some of the most common and frequently searched part numbers for Audi Q7 3.0 TDI ECU ENGINE CONTROLLERS. In many cases they are available in our offer in Plug & Play versions or prepared in a configuration adapted to a specific vehicle.
Posts about Audi Q7 4.2 TDI on our social media
For this article we have also prepared short materials on our social media. On Facebook and Instagram we show additional photos of the engine controllers and briefly explain the most common problem in the Audi Q7 4.2 TDI, which is the failure of the Master / Slave ECU Bosch EDC16CP34 system. If you want to see what a damaged engine controller looks like in practice and how to recognize this fault, check out our posts on social media.
Summary
If your Audi Q7 4.2 TDI shows symptoms such as no start, engine stalling after start, no ECU communication, or synchronization errors, the cause may very likely be a damaged engine controller.
In most cases the problem affects the Master controller mounted horizontally, which due to its position is more exposed to water damage.
Depending on the situation you can choose one of two solutions:
- a single Master or Slave controller for programming – cost around 2100 PLN,
- a complete Master + Slave set in IMMO OFF version – cost around 4000 PLN.
This allows you to choose the best solution both for workshops that perform ECU programming and for customers looking for a ready-to-install set without coding.
