How to match the 0281018825 / 4L0910409M ECU to your Audi Q7 4.2 TDI
0281018825 (Audi 4L0910409M) is a Bosch EDC17CP44 engine ECU from the first-generation Audi Q7 (4L) with the 4.2 TDI V8 engine. The unit comes from a dismantled vehicle and we check it in a car before shipping. It is sold as a programming version; warranty: 6 months.

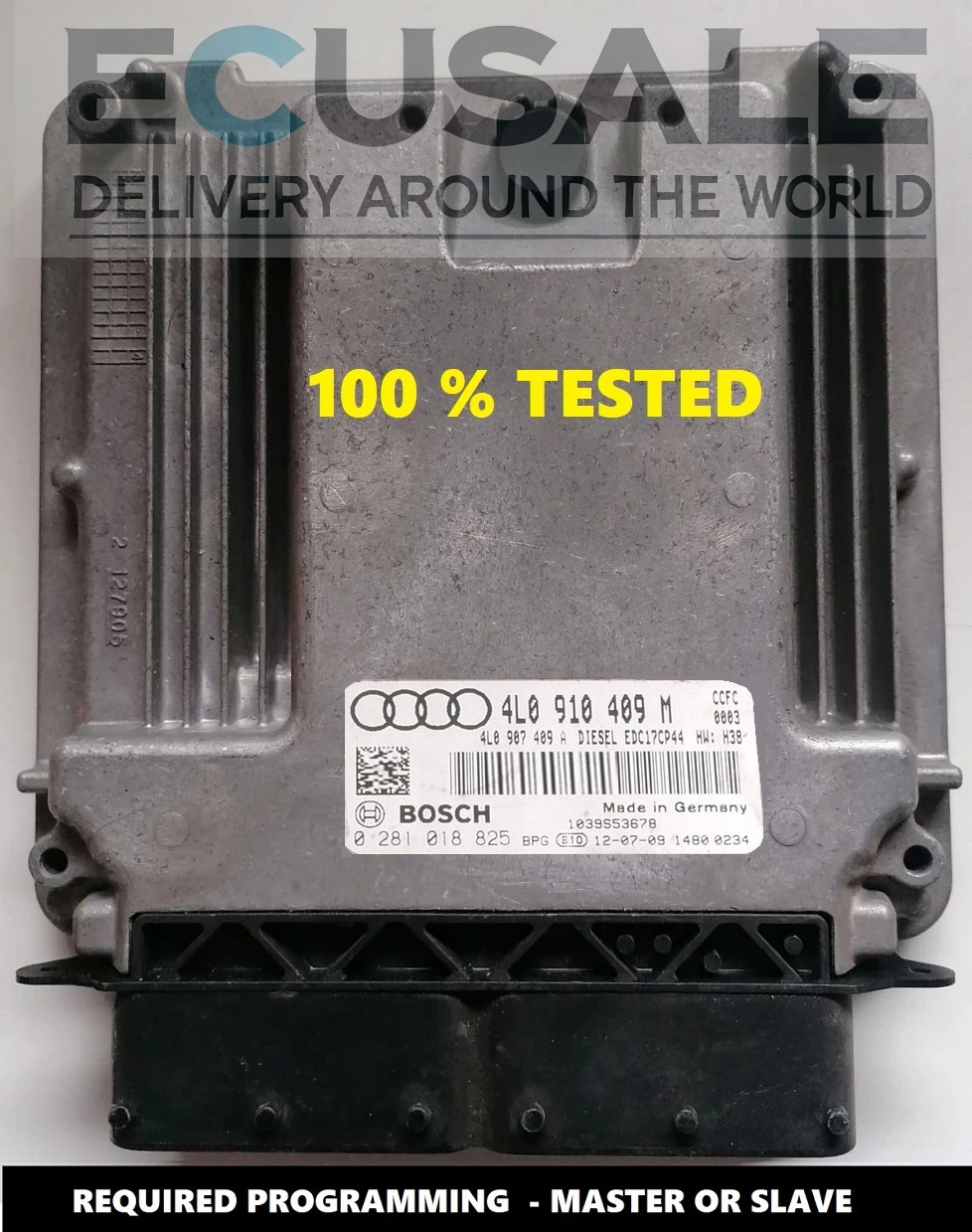

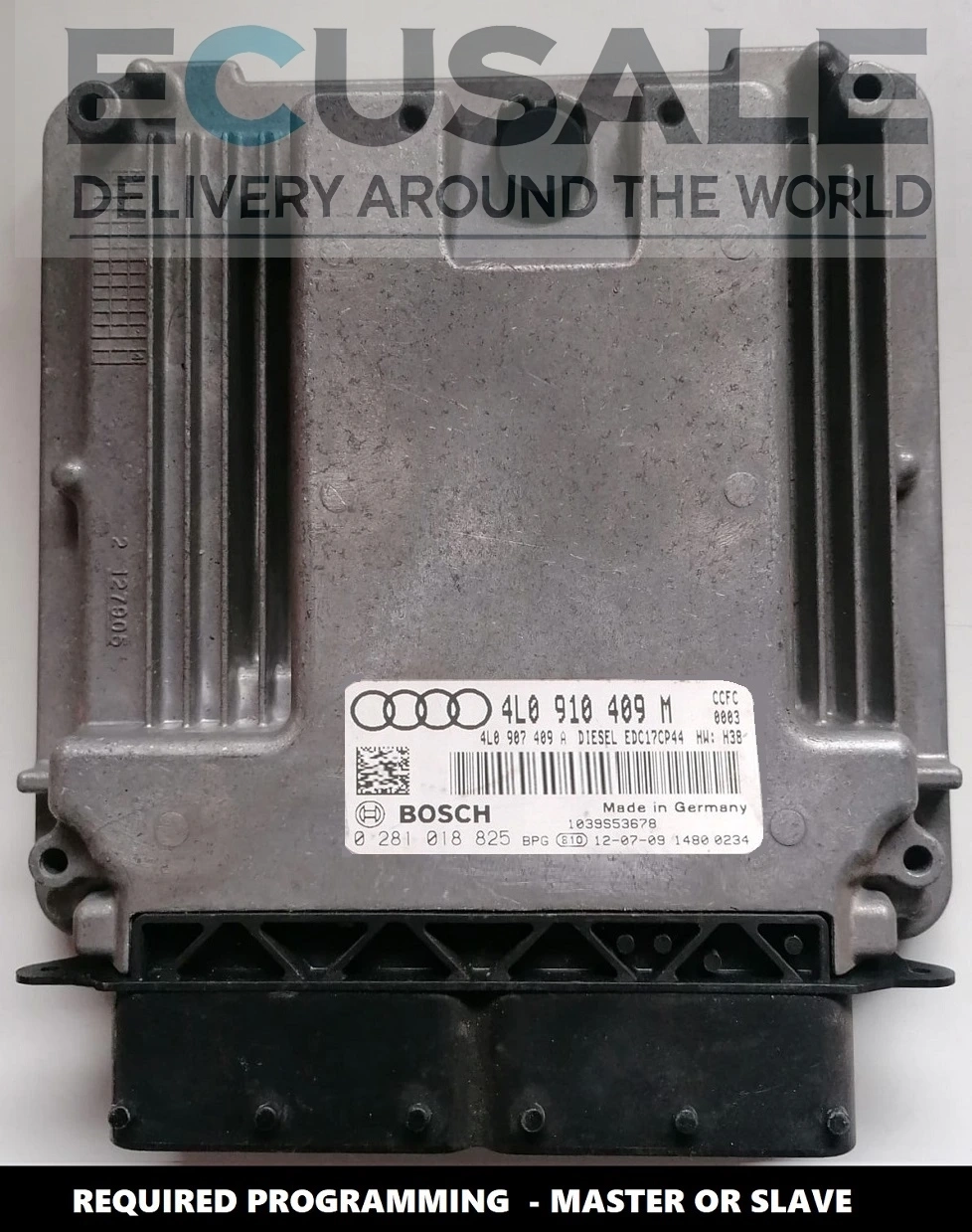

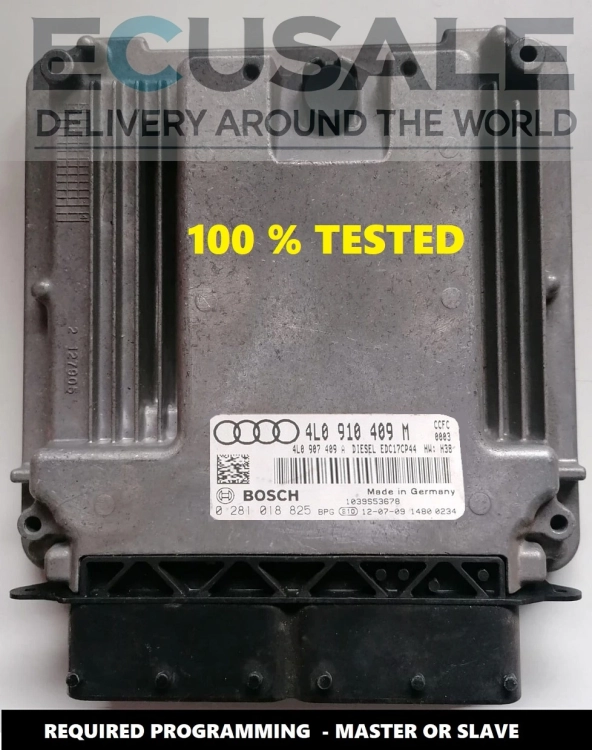

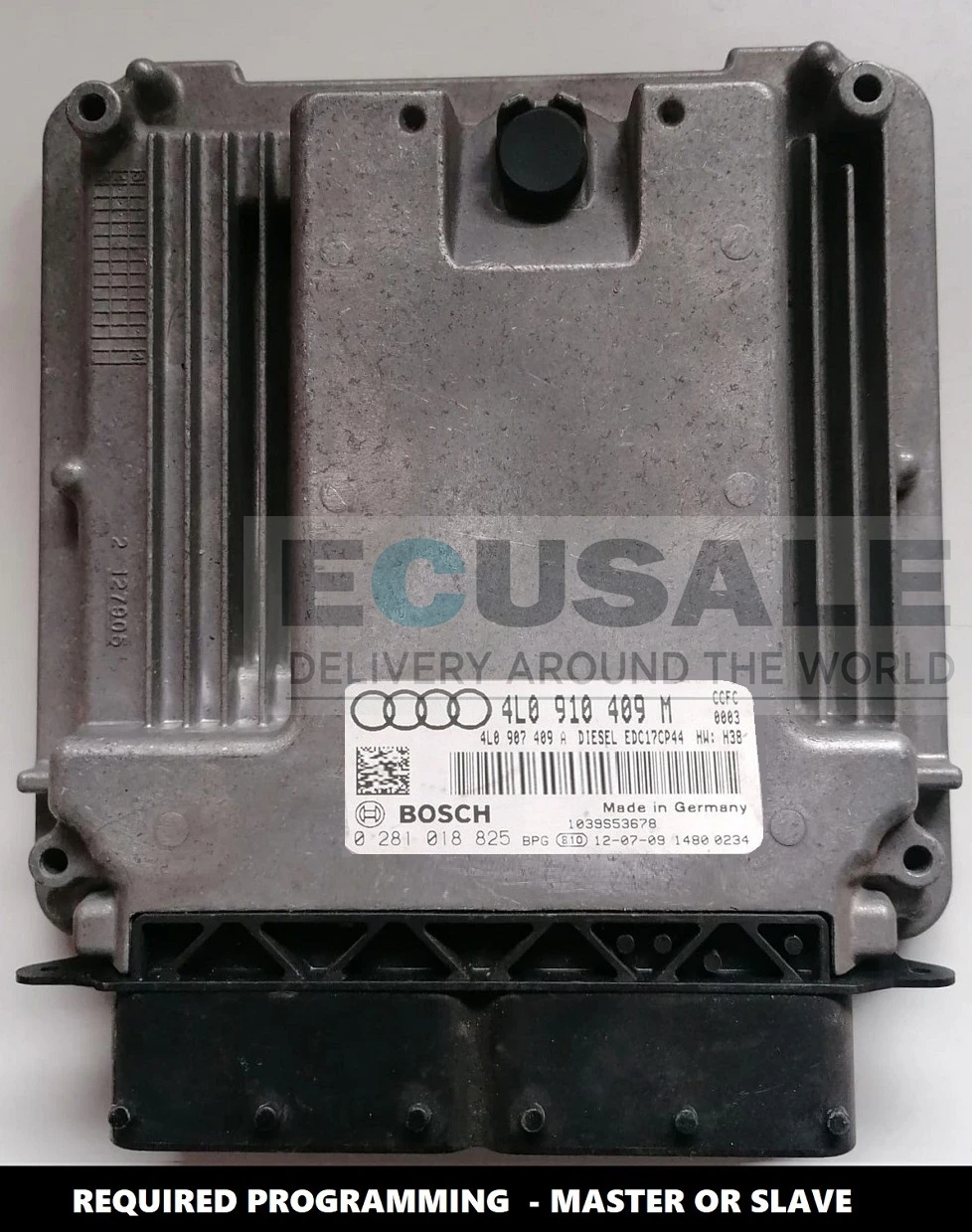

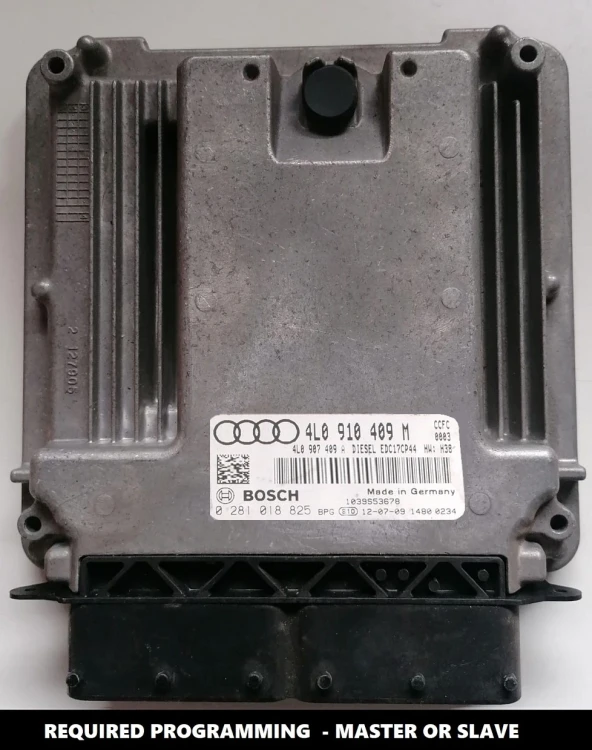

Label markings
- Bosch number: 0281018825 (0 281 018 825)
- Audi number: 4L0910409M (4L0 910 409 M)
- ECU type: Bosch EDC17CP44

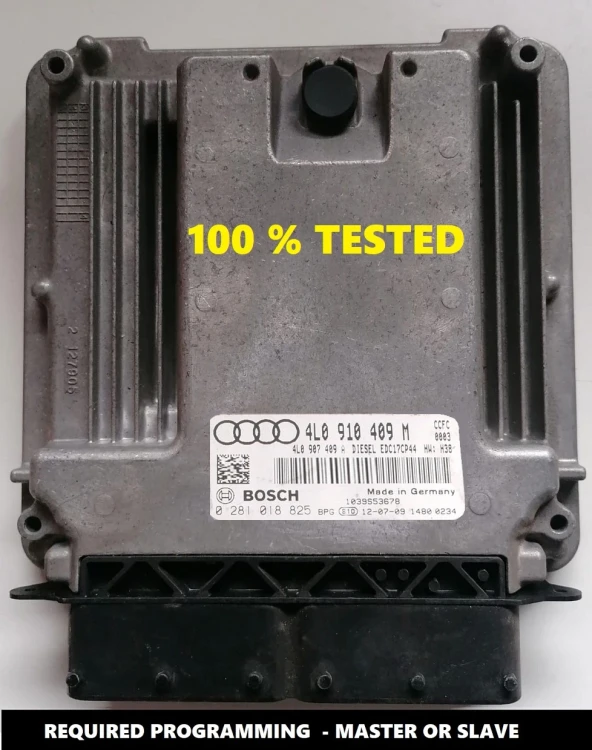

Master and slave in the Audi Q7 4.2 TDI
The Q7 4.2 TDI uses a pair of ECUs: master (horizontal) and slave (vertical), both numbered 0281018825. If you are looking for a replacement, it is most likely the master. It is the one exposed to water that enters under the scuttle panel from the wipers and reaches the housing along a sensor cable. Slave failures are only occasional.
Vehicle compatibility
Before ordering, compare both numbers – 0281018825 and 4L0910409M – with the sticker on the housing. Your model missing from the list rules nothing out, but a different number, e.g. 0281031081, means a different program. EDC16CP34 ECUs from other Q7 4.2 TDI cars (e.g. 0281013013) are a separate group.
Preparation and installation
Once connected, this unit has to be programmed to the car – usually a workshop does it with ODIS, VAS or VCDS. If you prefer to avoid programming, we will clone the data from your current ECU or from files; the service is included in the price.
For EDC17CP44 ECUs from the Q7 4.2 TDI we do not offer an IMMO OFF set – you can choose programming or cloning, which is included in the price.
Symptoms of a failed ECU in the Q7 4.2 TDI
The master sits horizontally under the scuttle panel, which is why it is the one that usually fails after water ingress. Typical symptoms:
- no diagnostic communication with one of the ECUs
- the car cannot be started after replacing one ECU
- synchronisation faults between master and slave
- rough engine running
Power supply, wiring or the battery can cause similar symptoms, so it is worth running a diagnosis before buying.
Other Audi Q7 4.2 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about 0281018825 / 4L0910409M
Will 0281018825 work without programming?
No. A single ECU has to be programmed after fitting (ODIS, VAS, VCDS), or you can have us clone the data from your old ECU, which is included in the price.
|
Why is it mainly the master that fails in the Q7 4.2 TDI?
The master lies horizontally under the scuttle panel. When water from the wipers gets under the panel, it runs along a sensor cable into the ECU. The vertical slave is much less exposed.
|
Do both ECUs have to be replaced at once?
No. If only the master is damaged, one 0281018825 ECU with programming or cloning is enough.
|
