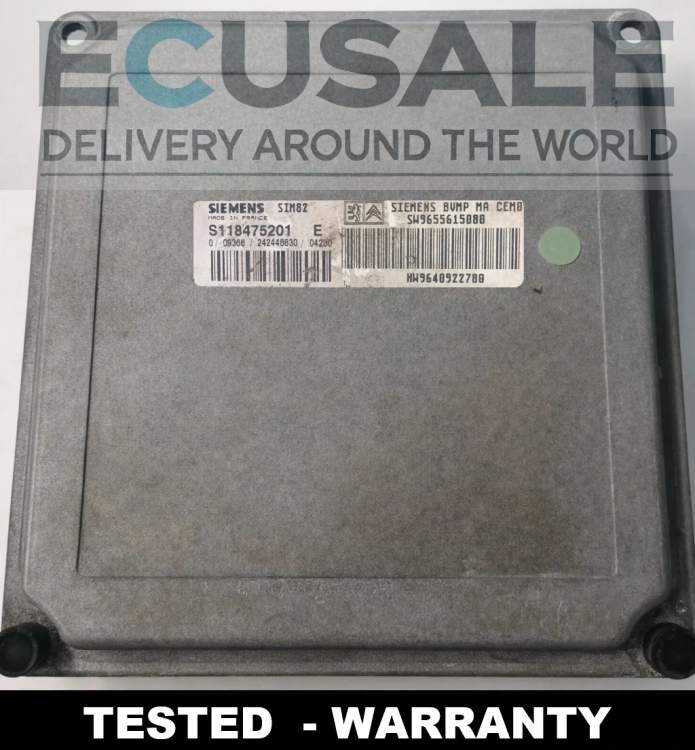

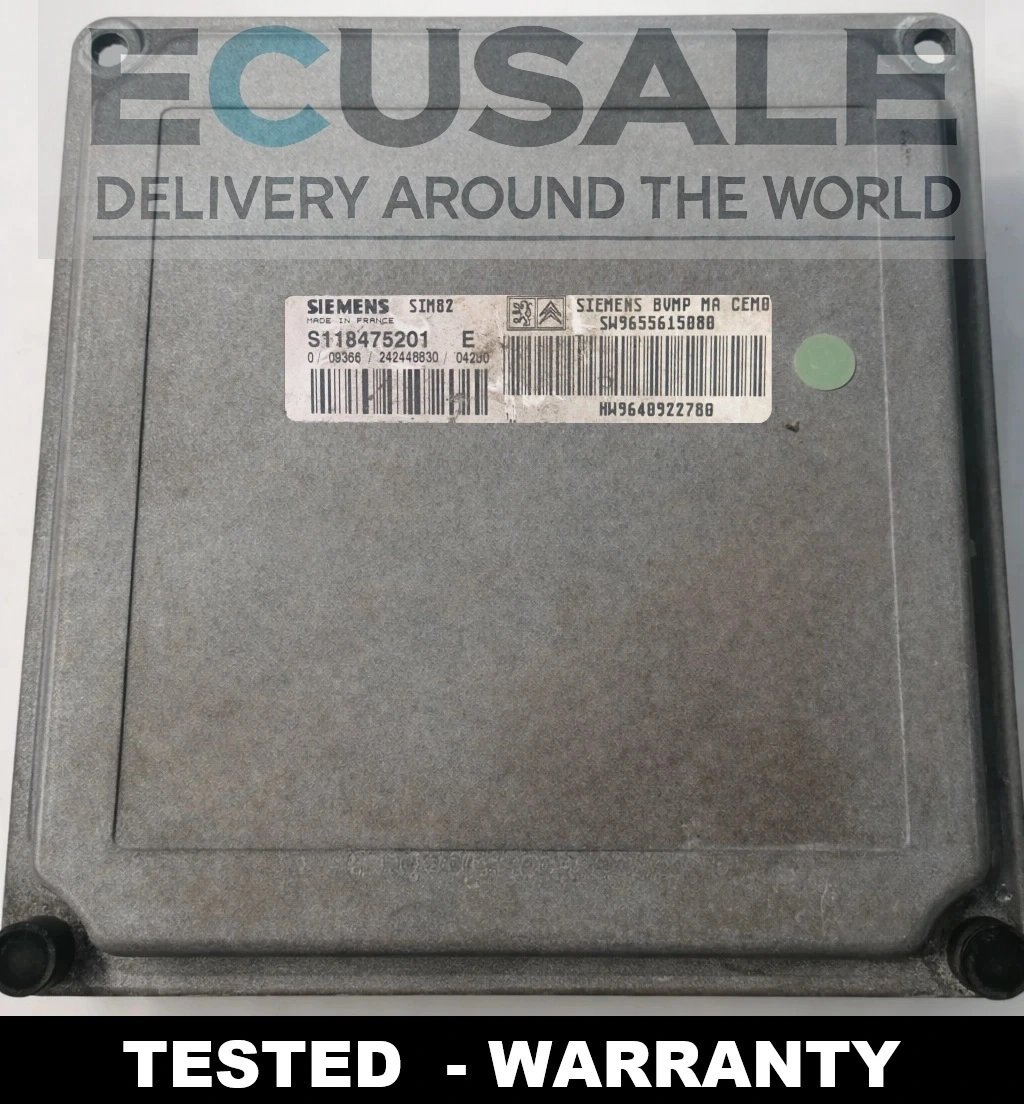

S118475201E 9655615080 TCU Transmission Gearbox Controller CITROEN PEUGEOT SIM82 CONTINENTAL SW9655615080

CONTINENTAL

Transmission control module S118475201E Citroen Peugeot HDI

S118475201E, 9655615080, SW9655615080, HW9640922780 – original transmission control unit Continental SIM82 used in Citroen and Peugeot models. Fully tested, ready for installation, covered by warranty.

Go to full description
Fast delivery of ECU engine unit – within 1–2 working days
English / €
with VAT without VAT
Price €423.07
incl. 23% VAT

Shipping costs are not included in the price.

Shipping from €42.31 - UPS express delivery around world (Afghanistan)

express delivery 3-6 days
pcs
Availability:
available
Ask about the product

info

Information

  • CAR MODEL CITROEN PEUGEOT
  • ENGINE 1.2 / 1.4 / 1.6
  • OEM: S118475201E
  • PART NUMBER 9655615080 / SW9655615080 / HW9640922780
  • WARRANTY 6 MONTH
  • TESTED Second hand product
  • PAYMENT: Credit Card , Bank Transfer , PayPal
  • EXPRESS DELIVERY – in EU Countries: European Union 2-3 working days
  • INTERNATIONAL DELIVERY – Outside EU Countries: Worldwide 4-7 working days

description

Transmission control unit Citroen Peugeot S118475201E 9655615080 SIM82 Continental

S118475201E, 9655615080 is an original transmission control unit Continental SIM82 / SIM824 used in PSA group vehicles (Citroen / Peugeot). The offered unit is fully tested, checked and covered by warranty, ensuring safe installation and proper gearbox operation.

The module is responsible for gear shifting control, communication with the engine ECU and management of automatic / automated gearbox operation. Compatibility must always be confirmed by numbers: S118475201E, 9655615080, SW9655615080, HW9640922780.

Application – compatibility by part number

The SIM82 S118475201E transmission control unit is used in selected PSA models:

  • Citroen C3 (2005–2012) – 1.4 HDI / 1.6 HDI
  • Citroen C4 (2004–2011) – 1.6 HDI / 2.0 HDI
  • Citroen C5 (2004–2008) – 2.0 HDI / 2.2 HDI
  • Peugeot 207 (2006–2013) – 1.4 HDI / 1.6 HDI
  • Peugeot 307 (2003–2008) – 1.6 HDI / 2.0 HDI
  • Peugeot 407 (2004–2010) – 2.0 HDI / 2.2 HDI

Typical engine codes: DV4TD, DV6TED4, DW10BTED4, DW12. It was used in configurations of automatic and semi-automatic (robotized) gearboxes.

Why is part number compatibility the most important?

In PSA transmission controllers even a minimal difference in markings may cause CAN communication errors, emergency mode or lack of gear shifting. Therefore compatibility by part number (9655615080 / S118475201E) is crucial for proper operation.

Most common symptoms of SIM82 / SIM824 failure

  • gearbox emergency mode
  • no response when changing gears
  • jerking during driving
  • communication errors with the engine controller

Installation and start-up

After installation, adaptation using DiagBox / Lexia may be required. Depending on vehicle configuration, operation without programming is possible, however gearbox initialization is recommended.

Q&A – frequently asked questions

Does S118475201E fit Peugeot 207 1.4 HDI?
Yes, if the number 9655615080 is identical – it ensures full compatibility.

9655615080 SIM82 – does it work in Citroen C4 1.6 HDI?
Yes, the controller is used in DV6 engines, but HW and SW compatibility is required.

Does S118475201E require programming in Citroen C3 1.4 HDI?
Gearbox adaptation using DiagBox after installation is recommended.

SIM824 9655615080 Peugeot 307 2.0 HDI – is it compatible?
Yes, if all numbers (HW9640922780, SW9655615080) match.

Will controller 9655615080 from Peugeot 407 work in Citroen C5 2.2 HDI?
It may be compatible only with full part number match.

How to check if SIM82 S118475201E fits my car?
It is best to compare the number from the old controller – this is the only reliable way to ensure compatibility.

Does a faulty SIM82 controller cause lack of gear shifting?
Yes, this is one of the most common symptoms of module failure.

Have doubts? Contact us – we will help you select the correct transmission control unit by part number.

Electronic Car Parts FAQ – ECUSALE

1. Are the electronic modules tested before shipping?

Yes. Every electronic module, including ECU ENGINE CONTROLLERS, ABS pumps, BSI, BCM, comfort modules, transmission controllers and other automotive electronics, is electronically tested before shipping. We verify communication, power supply and basic operation to ensure the product is working correctly before delivery. This allows you to receive a tested and ready-to-install unit.

2. Does the module require programming or coding after installation?

It depends on the product version and the type of module. We offer VIRGIN, IMMO OFF and Plug & Play solutions. Information about programming or coding requirements is always included in the product description. In many cases, installation is possible without additional coding, while some modules may require adaptation using diagnostic equipment.

3. How can I choose the correct module for my vehicle?

The most important step is comparing the part numbers from your original module. Please check the Bosch, Siemens, Magneti Marelli, Continental or OEM manufacturer numbers on the label. If you are unsure, you can send us a photo of your original module or your vehicle VIN number and we will help verify compatibility.

4. Are the products covered by warranty?

Yes. All electronic automotive modules sold in our store are covered by warranty. Every product is checked and prepared before shipping. If any problem occurs, we also provide technical support and product diagnostics assistance.

5. Which payment methods are available in your store?

We offer secure online payments through Stripe and PayPal. Customers can pay using credit or debit cards, Apple Pay, Google Pay, Klarna, online bank transfers and other secure payment methods. After placing an order, you will receive a secure online payment link.
