Ford engine ECU BG9112A650RC – description
On this page you can buy ECU BG91-12A650-RC with number 28284374, a Delphi DCM3.5 unit for Fords with the 2.0 TDCi engine. It goes through a function check before dispatch.

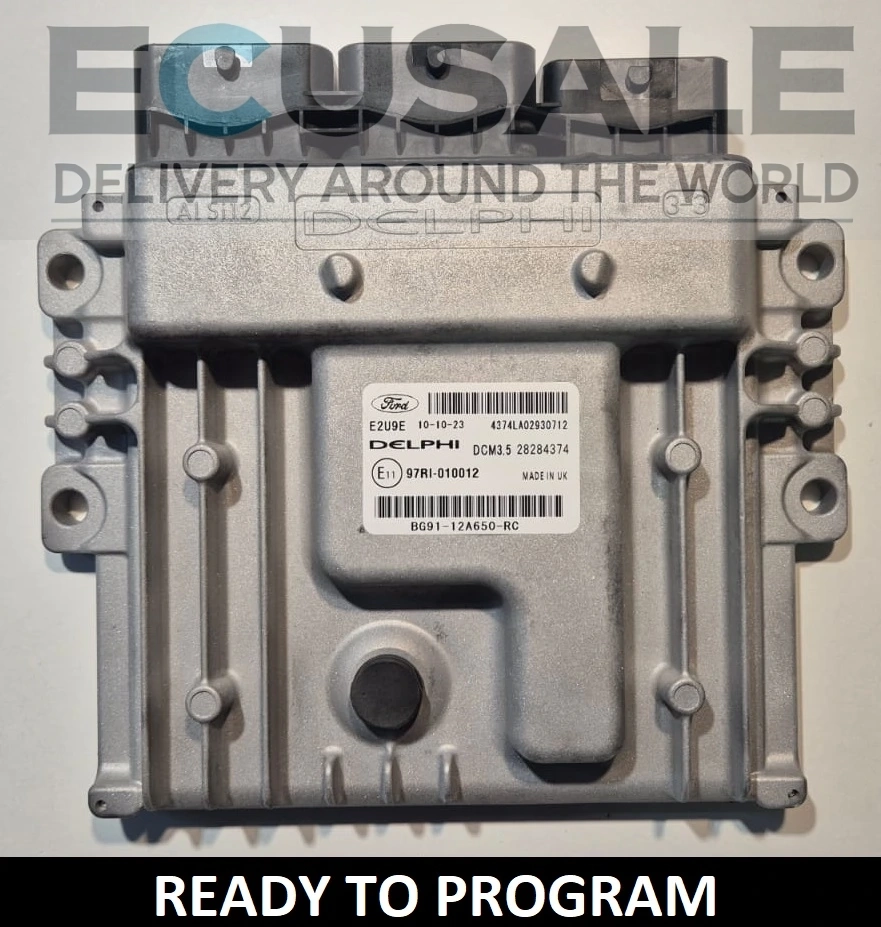

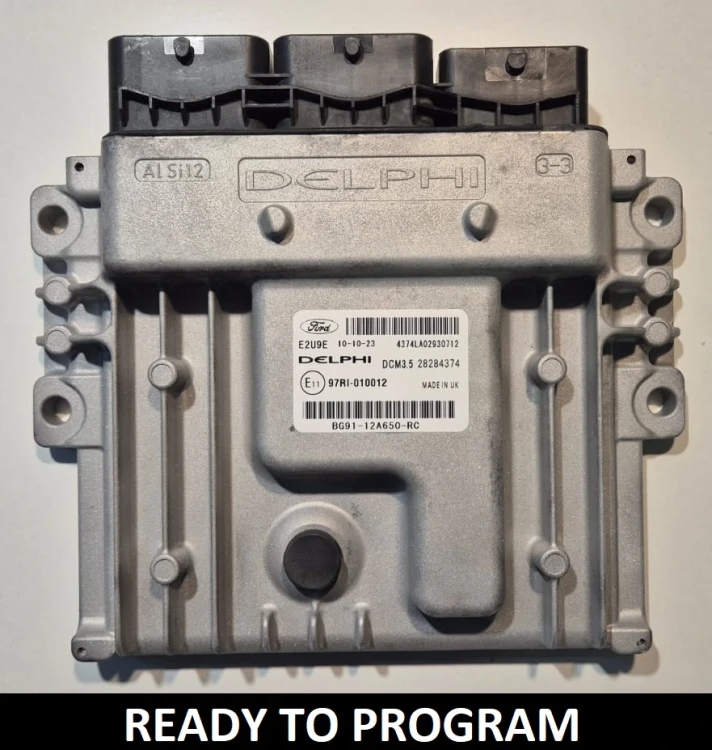

Label data of ECU BG91-12A650-RC
- Ford number: BG91-12A650-RC / BG9112A650RC
- Delphi number: 28284374
- ECU type: Delphi DCM3.5
The Ford number may be written with dashes (BG91-12A650-RC) or without them (BG9112A650RC) – it is the same number.
What happens after purchase
Once you have placed your order, send us the car’s VIN. We prepare the ECU with data from the Ford server and load the latest software – this service costs nothing extra.
The ECU is not plug & play. After fitting, the keys and VIN must be assigned in the PATS procedure using FORScan or Ford IDS. The warranty is 6 months.
How to check compatibility
The safest way is to compare labels. If your ECU shows number BG91-12A650-RC and number 28284374, it is the same version – whatever the Ford model and year, as this number may appear in different cars. If the sticker is hard to read or you have questions, send us a photo of it before buying.
When the ECU may be faulty
An engine ECU failure may show up as:
- no start and no signal at the injectors,
- the diagnostic tool cannot connect to the ECU,
- the ECU gets no power even though the fuses are OK,
- problems after water damage or a short in the wiring.
Faults in the wiring, power supply or sensors can cause similar symptoms, so run a diagnosis before you buy.
Before fitting, it is worth reading our guide Ford DCM3.5 ECU replacement and VIN programming. If your ECU has a different number, check BG91-12A650-RE (28297068), BG91-12A650-SG (28316180), BG91-12A650-RG (28316176), BG91-12A650-RJ (28334095) or the whole Ford DCM3.5 ECU collection. About the manufacturer: Delphi.
You will find other numbers in the Ford Engine Control Units (ECUs) category.
Common questions about ECU BG9112A650RC
Does ECU BG91-12A650-RC fit my Ford?
Check the label of your ECU: Ford number BG91-12A650-RC and number 28284374. The same number is used in several Ford models, so the number decides, not the model and year.
|
Can I just fit ECU BG9112A650RC and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
Can I program ECU BG91-12A650-RC myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
What do I need to send after buying ECU BG91-12A650-RC?
Just your Ford’s VIN. Based on it, we prepare the ECU with data from the Ford server and the latest software.
|
