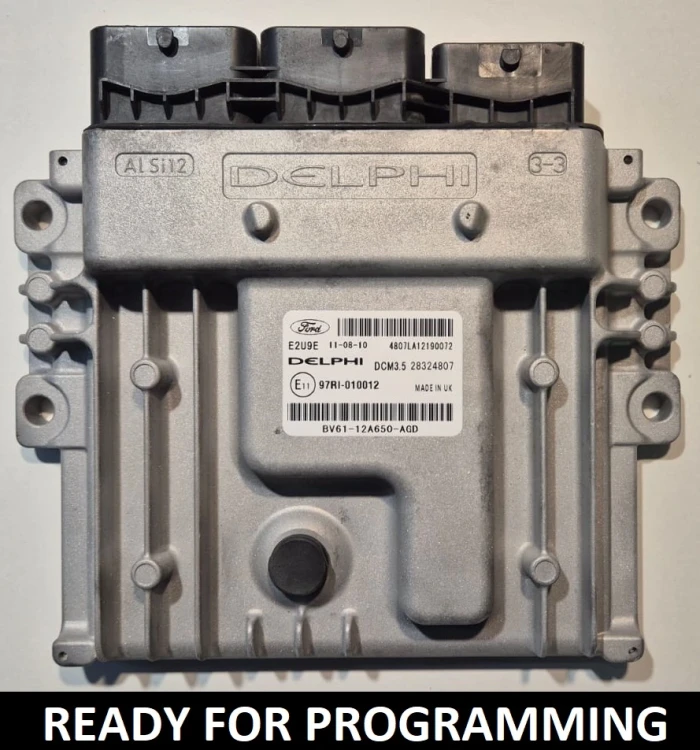

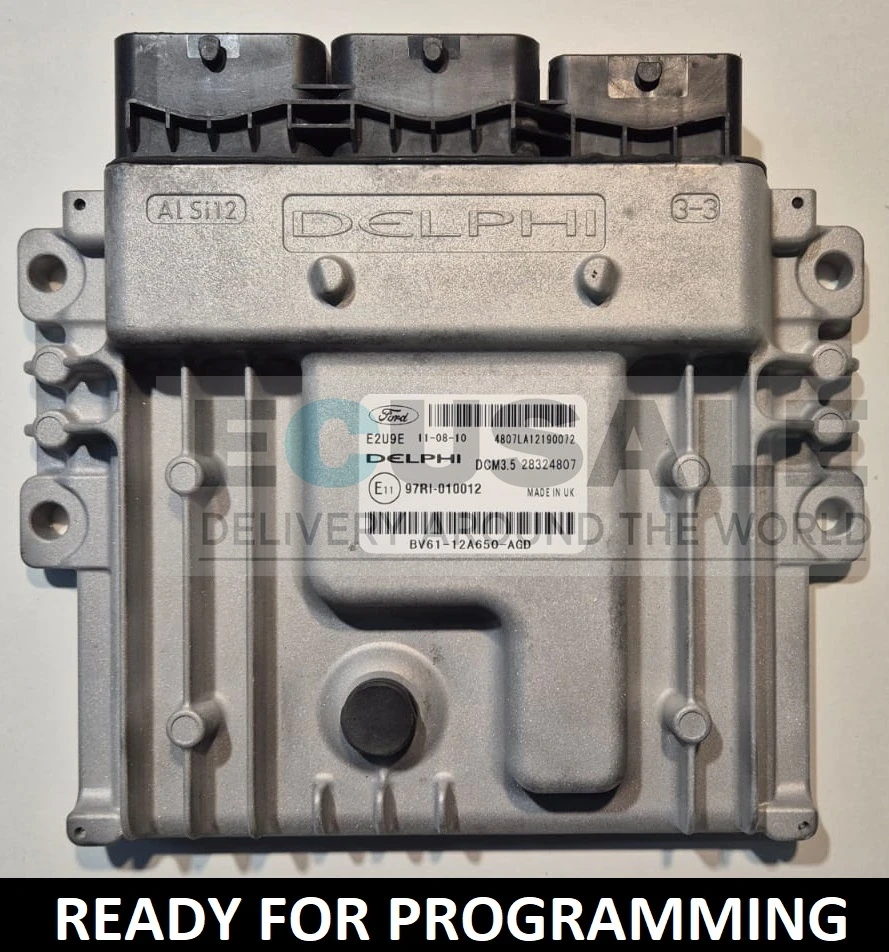

BV61-12A650-AGD / 28324807 – Ford 2.0 TDCi engine control unit
We offer an ECU from the Delphi DCM3.5 family, marked with Ford number BV61-12A650-AGD and Delphi number 28324807. It was fitted to Fords with the 2.0 TDCi engine. Before we ship the ECU, we check that it works.
When the ECU may be faulty
An engine ECU failure may show up as:
- no start and no signal at the injectors,
- the diagnostic tool cannot connect to the ECU,
- the ECU gets no power even though the fuses are OK,
- problems after water damage or a short in the wiring.
Faults in the wiring, power supply or sensors can cause similar symptoms, so run a diagnosis before you buy.
What happens after purchase
Once you have placed your order, send us the car’s VIN. We prepare the ECU with data from the Ford server and load the latest software – this service costs nothing extra.
The ECU is not plug & play. After fitting, the keys and VIN must be assigned in the PATS procedure using FORScan or Ford IDS. The warranty is 6 months.
Numbers on the label
- Ford number: BV61-12A650-AGD / BV6112A650AGD
- Delphi number: 28324807
- ECU type: Delphi DCM3.5
Does this ECU fit your car?
Model and year are not enough, because the same number BV61-12A650-AGD may have been fitted to several Ford models. Look at the label of your ECU and check that it shows BV61-12A650-AGD and 28324807. Not sure? Send us a photo of the sticker and we will check it before you buy.
We describe the replacement and programming in our guide Ford DCM3.5 ECU replacement and VIN programming. Other numbers are in the Ford DCM3.5 ECU collection, and more about the manufacturer on the Delphi page.
Other DCM3.5 ECUs in our range: BV61-12A650-AFK (28419058), BV61-12A650-AFJ (28383933), BV61-12A650-AFH (28367335), BV61-12A650-AFF (28340159).
Full range in this group: Ford Engine Control Units (ECUs).
Common questions about ECU BV6112A650AGD
Can I just fit ECU BV6112A650AGD and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BV61-12A650-AGD myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
Why give the VIN after ordering?
The VIN lets us prepare the ECU for your car with data from the Ford server and the latest software. The service is included in the price.
|
