How to choose ECU BG91-12A650-FHD for your Ford

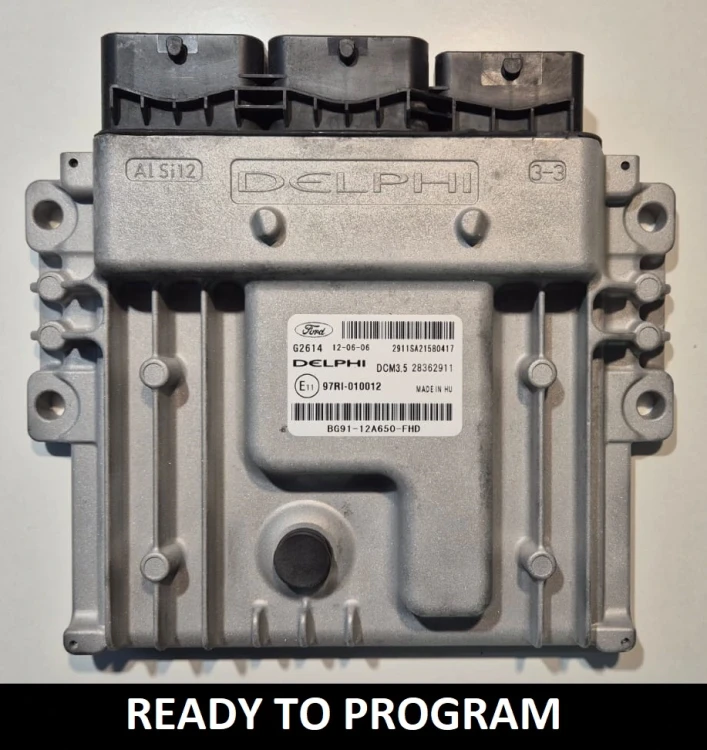

This is a Delphi DCM3.5 engine control unit with Ford number BG91-12A650-FHD and number 28362911, used in Ford vehicles with the 2.0 TDCi engine. The unit is tested before dispatch.
Fitting step by step
- After purchase, you send us the VIN.
- We prepare the ECU with data from the Ford server and the latest software – included in the price.
- You fit the ECU in the car.
- You carry out PATS programming (keys and VIN) with FORScan or Ford IDS, or have a workshop do it.
Warranty on the ECU: 6 months.
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
Does this ECU fit your car?
Model and year are not enough, because the same number BG91-12A650-FHD may have been fitted to several Ford models. Look at the label of your ECU and check that it shows BG91-12A650-FHD and 28362911. Not sure? Send us a photo of the sticker and we will check it before you buy.
Label data of ECU BG91-12A650-FHD
- Ford number: BG91-12A650-FHD / BG9112A650FHD
- Delphi number: 28362911
- ECU type: Delphi DCM3.5
The Ford number may be written with dashes (BG91-12A650-FHD) or without them (BG9112A650FHD) – it is the same number.
Before fitting, it is worth reading our guide Ford DCM3.5 ECU replacement and VIN programming. If your ECU has a different number, check BG91-12A650-FHE (28403823), BG91-12A650-FHF (28425303), BG91-12A650-FHG (28459232), BG91-12A650-FJ (28284374) or the whole Ford DCM3.5 ECU collection. About the manufacturer: Delphi.
See also the other items in the Ford Engine Control Units (ECUs) category.
Frequently asked questions about ECU BG91-12A650-FHD 28362911
How do I know that BG91-12A650-FHD will fit?
Check the sticker on your ECU. If it shows BG91-12A650-FHD and 28362911, the numbers match. The car model and year alone are not enough, as this number may have been used in several Fords. You can also send us a photo of the label.
|
Is ECU BG91-12A650-FHD plug & play?
No. After fitting, PATS programming is required – the keys and VIN are assigned with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BG91-12A650-FHD myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
