Ford engine ECU BV6112A650ADJ – description
On this page you can buy ECU BV61-12A650-ADJ with number 28367342, a Delphi DCM3.5 unit for Fords with the 2.0 TDCi engine. It goes through a function check before dispatch.
Numbers to compare with your label

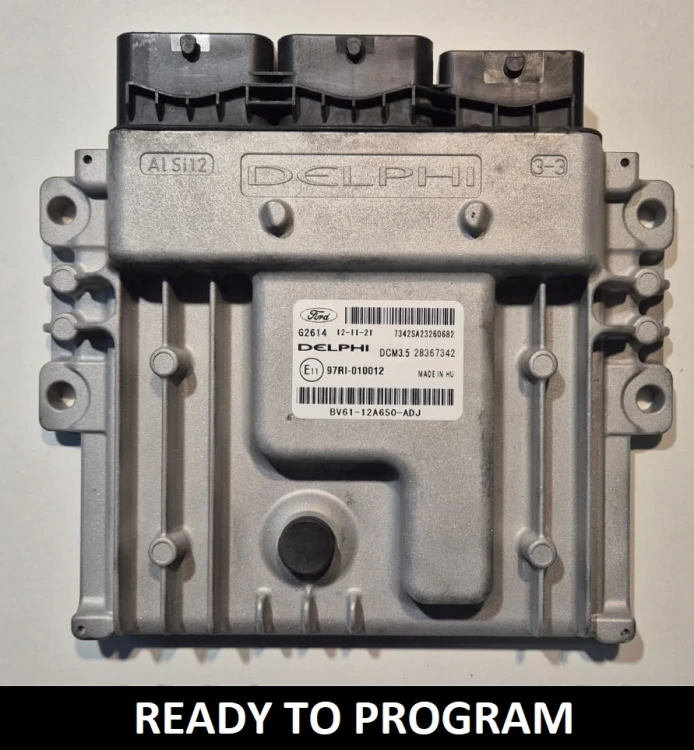

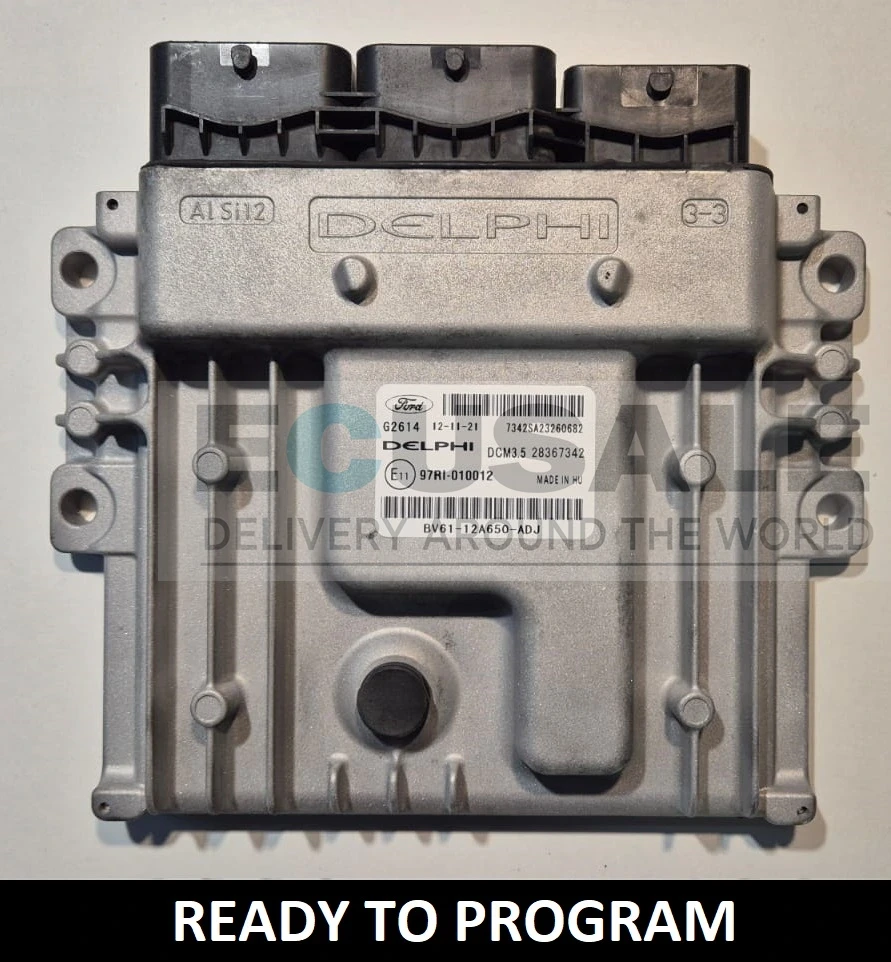

The housing of the original ECU carries a sticker with its numbers. On this unit they are:
- Ford number: BV61-12A650-ADJ / BV6112A650ADJ
- Delphi number: 28367342
- ECU type: Delphi DCM3.5
Choose by number, not by model
Fords with the 2.0 TDCi engine used many versions of the DCM3.5 ECU, and one version could go into several models. That is why you should choose the ECU by its numbers only: Ford BV61-12A650-ADJ and Delphi 28367342 must match your unit. If in doubt, send us a photo of the label before ordering.
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
What happens after purchase
Once you have placed your order, send us the car’s VIN. We prepare the ECU with data from the Ford server and load the latest software – this service costs nothing extra.
The ECU is not plug & play. After fitting, the keys and VIN must be assigned in the PATS procedure using FORScan or Ford IDS. The warranty is 6 months.
We describe the replacement and programming in our guide Ford DCM3.5 ECU replacement and VIN programming. Other numbers are in the Ford DCM3.5 ECU collection, and more about the manufacturer on the Delphi page.
Other DCM3.5 ECUs in our range: BV61-12A650-AEH (28367346), BV61-12A650-ADF (28324811), BV61-12A650-ADE (28305889), BV61-12A650-ACM (28419087).
See also the other items in the Ford Engine Control Units (ECUs) category.
FAQ: Ford ECU BV61-12A650-ADJ (28367342)
Does ECU BV61-12A650-ADJ fit my Ford?
Check the label of your ECU: Ford number BV61-12A650-ADJ and number 28367342. The same number is used in several Ford models, so the number decides, not the model and year.
|
Can I just fit ECU BV6112A650ADJ and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BV61-12A650-ADJ myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
