Ford engine ECU BV6112A650ACJ – description

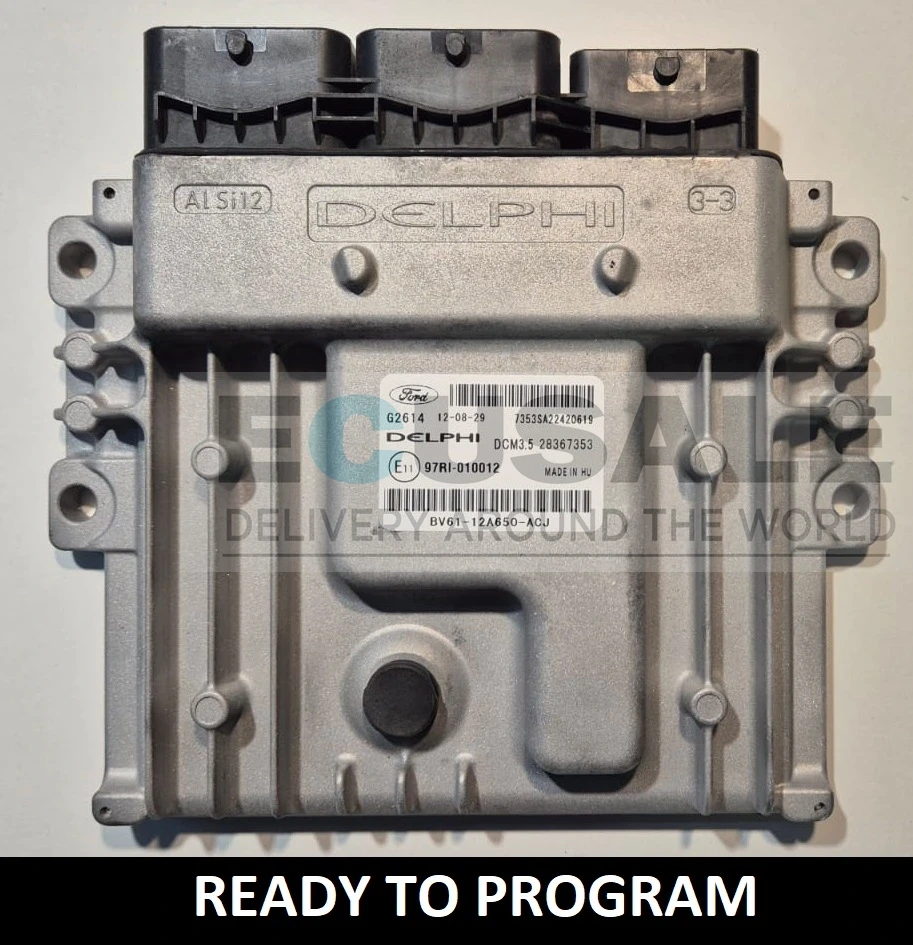

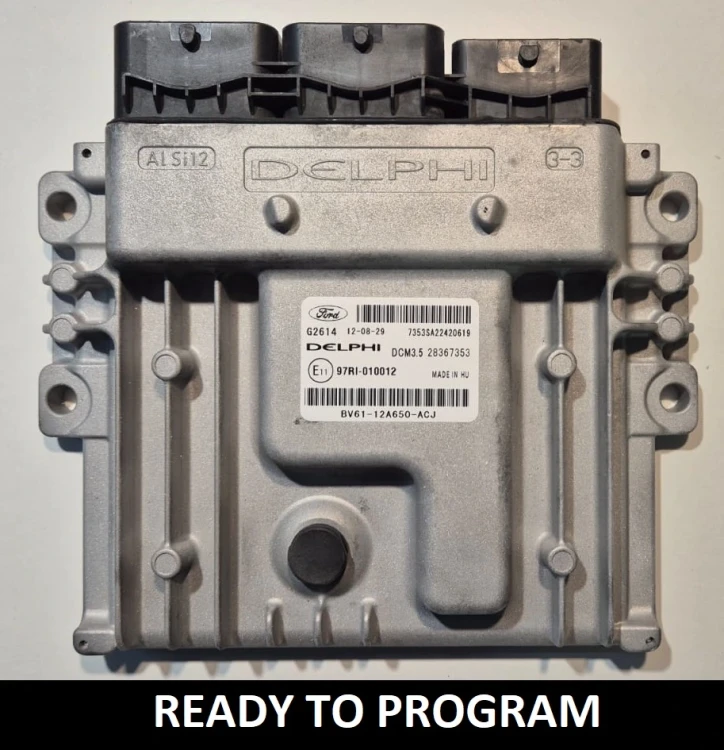

On this page you can buy ECU BV61-12A650-ACJ with number 28367353, a Delphi DCM3.5 unit for Fords with the 2.0 TDCi engine. It goes through a function check before dispatch.
Preparation and fitting
- After purchase, send us your VIN – we prepare the ECU with data from the Ford server and the latest software. This service is included in the price.
- The ECU is not plug & play: after fitting it requires PATS programming (keys and VIN) with FORScan or Ford IDS.
- Warranty: 6 months.
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
Numbers on the label
- Ford number: BV61-12A650-ACJ / BV6112A650ACJ
- Delphi number: 28367353
- ECU type: Delphi DCM3.5
How to check compatibility
The safest way is to compare labels. If your ECU shows number BV61-12A650-ACJ and number 28367353, it is the same version – whatever the Ford model and year, as this number may appear in different cars. If the sticker is hard to read or you have questions, send us a photo of it before buying.
Before fitting, it is worth reading our guide Ford DCM3.5 ECU replacement and VIN programming. If your ECU has a different number, check BV61-12A650-ACF (28324830), BV61-12A650-ACE (28305898), BV61-12A650-ACB (28268297), BV61-12A650-ACG (28334086) or the whole Ford DCM3.5 ECU collection. About the manufacturer: Delphi.
Full range in this group: Ford Engine Control Units (ECUs).
Questions and answers – ECU BV61-12A650-ACJ
How do I know that BV61-12A650-ACJ will fit?
Check the sticker on your ECU. If it shows BV61-12A650-ACJ and 28367353, the numbers match. The car model and year alone are not enough, as this number may have been used in several Fords. You can also send us a photo of the label.
|
Can I just fit ECU BV6112A650ACJ and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BV61-12A650-ACJ myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
