Vendors's code: 5WS40481HT
Product code: 7T1112A650AH
Shipping costs are not included in the price.
Shipping costs are not included in the price.
express delivery 3-6 days
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.

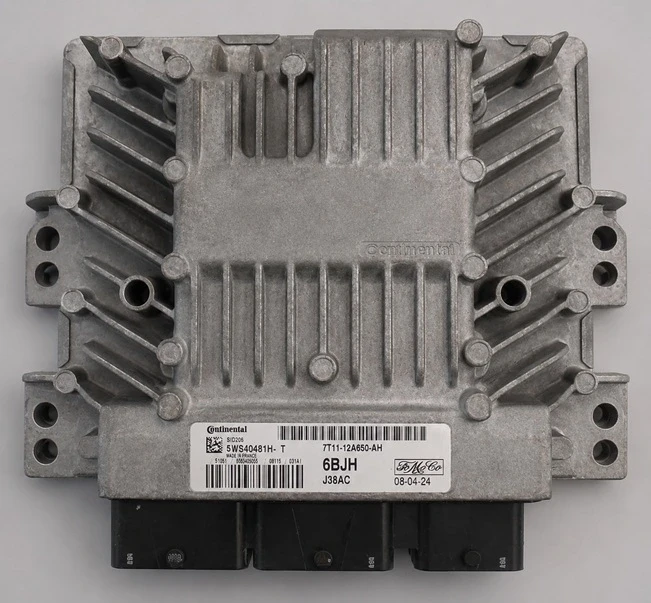

Original Continental SID206 engine control unit 5WS40481H-T / 7T11-12A650-AH for selected Ford models, requiring programming and PATS adaptation after installation using FORScan or IDS.
Original Continental SID206 engine control unit used in selected Ford vehicles. The module carries the references 5WS40481H-T and 7T11-12A650-AH and, after replacement, must be correctly programmed to the specific vehicle.
This ECU variant is used in selected Ford vehicles. Because different software versions, equipment levels and vehicle configurations were available, compatibility should be determined primarily by comparing the references on the original engine control unit.
Before ordering, compare the references 5WS40481H-T and 7T11-12A650-AH with the module originally fitted to the vehicle. The vehicle model, engine capacity or production year alone are not sufficient to confirm compatibility.
ECU problems can appear in different ways and do not always mean that the module must be replaced. Common symptoms include:
Before replacing the ECU, it is advisable to check the power supply, grounds, CAN communication, engine wiring harness and components that work together with the control unit.
This control unit is not Plug & Play. After installation, it must be programmed and matched to the configuration of the specific vehicle. A replacement engine control module must also be programmed with the correct calibration strategy for the vehicle.
In Ford vehicles, the procedure also includes PATS adaptation / synchronisation, referring to the factory Passive Anti-Theft System. The required procedures can be carried out using suitable diagnostic equipment such as FORScan or Ford IDS.
Depending on the condition of the original ECU, it may also be possible to prepare the replacement module by transferring the required data from the original control unit. For cloning, the original ECU must be supplied and its data must be readable correctly.
No. After installation, the ECU must be programmed to the specific vehicle and the appropriate PATS synchronisation procedure must be completed.
The ECU must be programmed with the correct vehicle calibration, followed by the required configuration and immobiliser adaptation procedures. Diagnostic tools such as FORScan and Ford IDS can be used for this purpose.
Yes, unless the ECU has already been prepared by transferring the required data from the original module. A standard ECU replacement requires correct PATS synchronisation so that the vehicle can authorise engine starting.
If the data from the faulty ECU can be read correctly, it may be possible to transfer the required information to a working replacement module. The original ECU must be supplied so that the data can be read.
The safest method is to compare all references on the original module, particularly the Ford and Continental numbers. If any references differ, compatibility should be verified before purchase.
