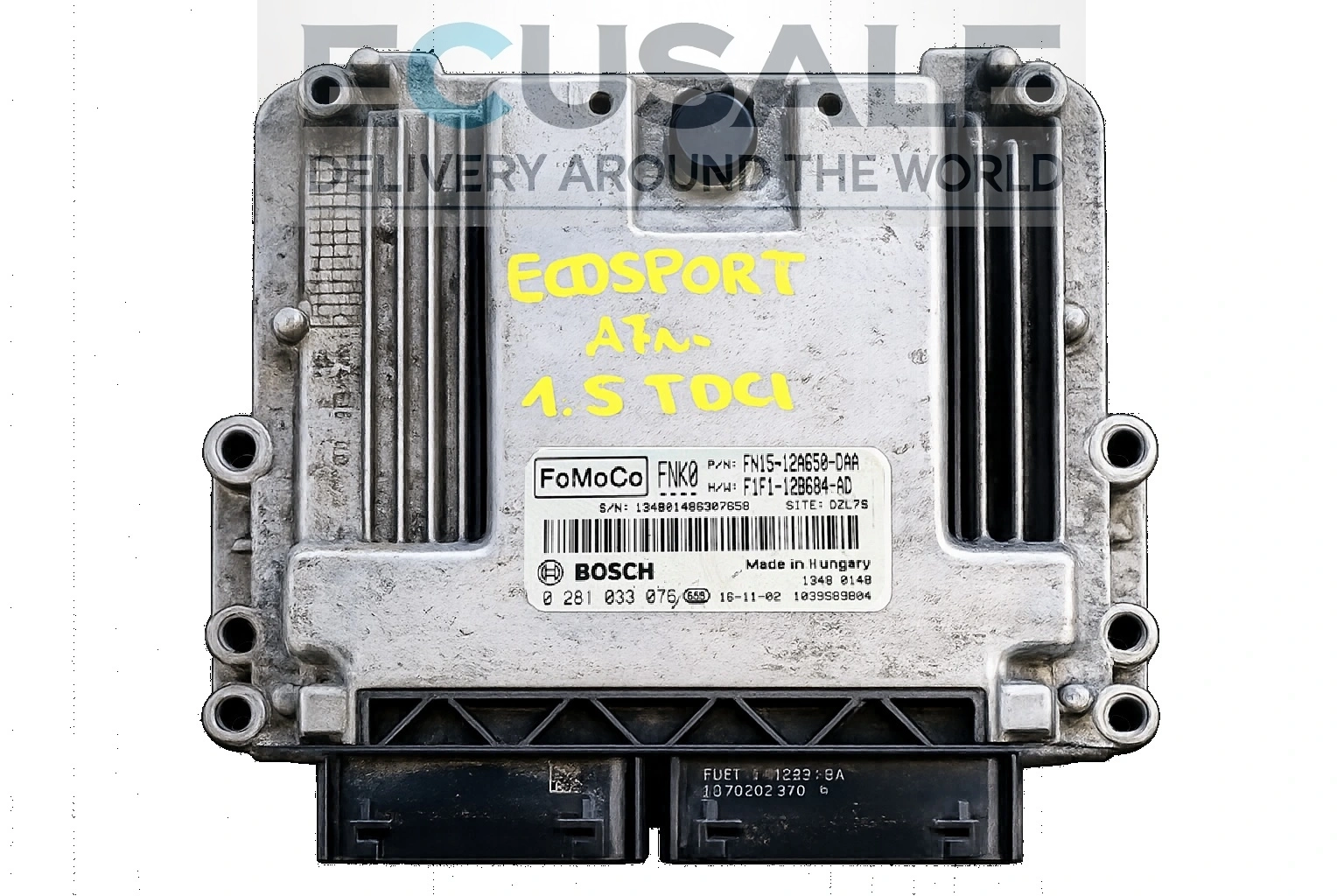

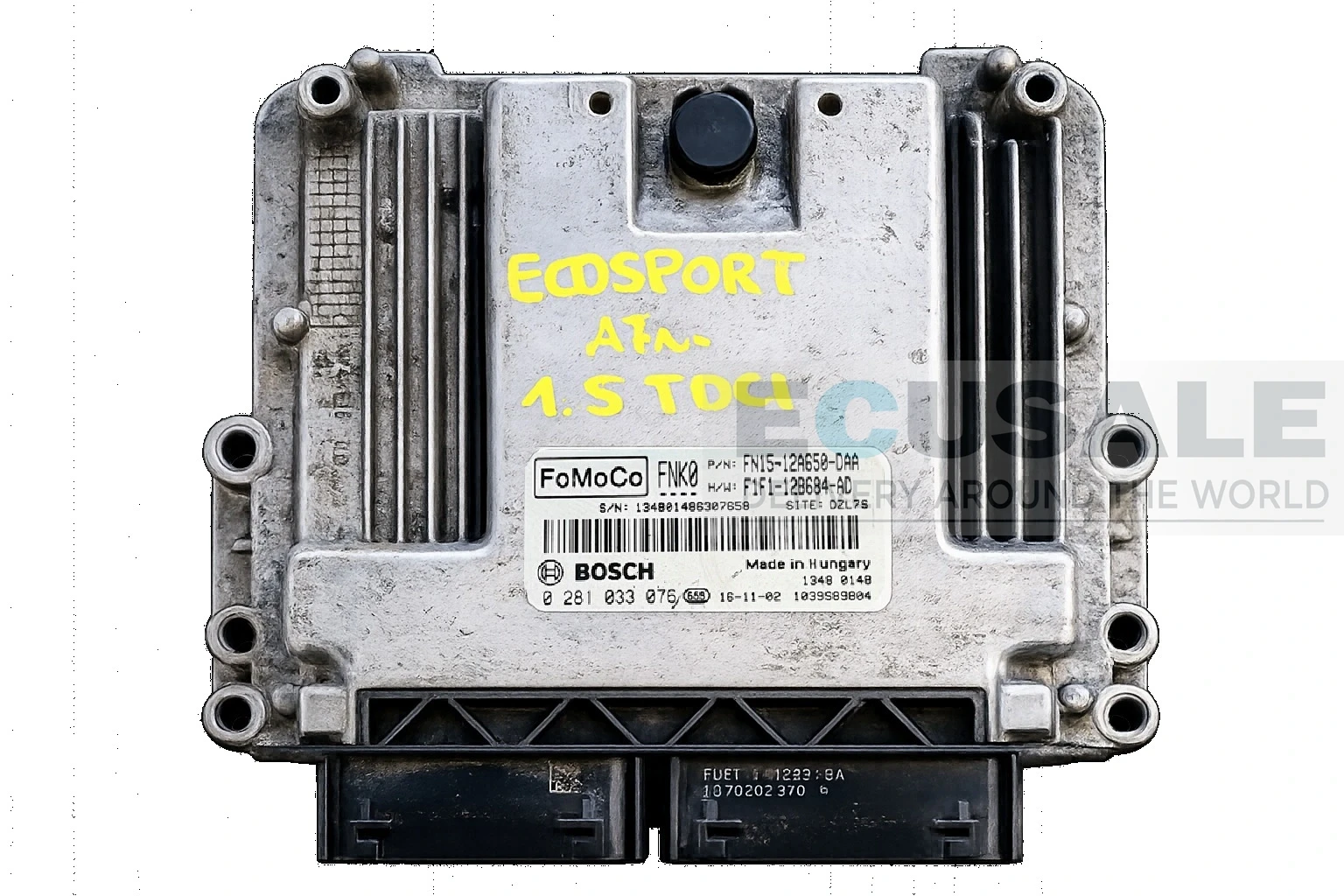

FN15-12A650-DAA engine control unit Ford EcoSport 1.5 TDCi

+48 888 638 546

sale@ecusale.com

Your cart is empty

Original part FN15-12A650-DAA and 0281033076 – application and selection

Used, original part FN15-12A650-DAA and 0281033076. Tested before dispatch; choose it by the designations on the label. Confirmed application: Ford EcoSport 1.5 TDCi (XVJD), 2013–2018. The label number has the final say.

Go to full description

💳 Secure Payments

Stripe, PayPal, Google Pay, Apple Pay, BLIK, and all major credit and debit cards.

🚚 UPS Shipping Across Europe

Delivery within the European Union typically takes 1–3 business days.

🌍 Worldwide UPS Shipping

Worldwide delivery usually takes 4–7 business days.

Technical specifications

Vehicle Make and Model Ford EcoSport 1.5 TDCi (XVJD), 2013–2018
Engine type 1.5 TDCi
Manufacturer Bosch
OEM Part Number FN15-12A650-DAA / FN1512A650DAA
Manufacturer Part Number 0281033076 / 0 281 033 076
Part Number FN15-12A650-DAA / 0281033076
Module Type Engine control unit
Module Version Programming required; cloning on request
PLUG AND PLAY No
Condition Second hand product
Warranty 6 months
Payment Methods Credit Card , Bank Transfer , PayPal
Express Delivery within the EU European Union 2-3 working days
International Delivery Outside the EU Worldwide 4-7 working days

Check FN15-12A650-DAA before you buy

Original, used part – engine control unit: the diesel engine control unit. Designations to compare with the label: FN15-12A650-DAA and 0281033076. Every part is tested before shipping.

Designations of part FN15-12A650-DAA

Label	Number (different formats)
Vehicle manufacturer number	FN15-12A650-DAA / FN1512A650DAA
Bosch number	0281033076 / 0 281 033 076
Label code	EDC17C70

We list the numbers in several formats – the way they are printed on labels and typed into search engines.

Symptoms of a fault

The most common symptoms:

limp mode and reduced power,
engine does not start or stalls,
faults from several sensors at once.

Similar symptoms can be caused by sensors, injectors, power supply or wiring – run a diagnosis before buying.

Other versions in stock

Items with other numbers – the number on your label decides: 7T11-12A650-AH 5WS40481H-T, JK21-12A650-AB A3C01265902, BV61-12A650-ADG 28334077.

Putting it into service

The control unit needs PATS (immobiliser) programming with FORScan or IDS. On request we can clone the data from your old unit.

Which cars does FN15-12A650-DAA fit?

Confirmed application of this number: Ford EcoSport 1.5 TDCi (XVJD), 2013–2018. The list is not closed – what matters is that the codes on your part’s label match: FN15-12A650-DAA and 0281033076.

Warranty and contact

The part is covered by a warranty: 6 months. More items: Ford Engine Control Units (ECUs). Question about a number? Contact us.

FAQ – FN15-12A650-DAA and 0281033076

Question	Answer
How do I check whether the part fits?	Compare designations FN15-12A650-DAA and 0281033076 with the label of your part – they must match.
Has the part been tested?	Yes, it is a used part – we test every one before dispatch.
Which cars does this part fit?	Confirmed application: Ford EcoSport 1.5 TDCi (XVJD), 2013–2018. The label number has the final say.
Does FN15-12A650-DAA need programming?	The control unit needs PATS (immobiliser) programming with FORScan or IDS. On request we can clone the data from your old unit.
