Choosing part BV61-12A650-ADG

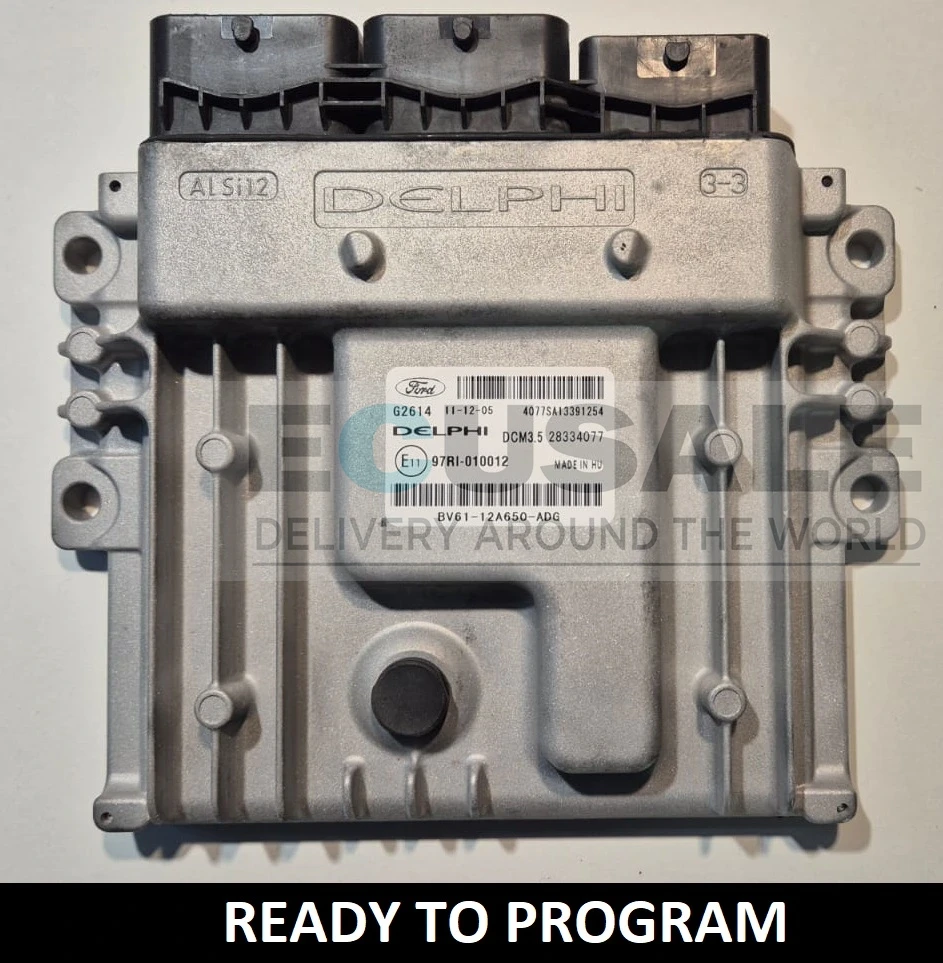

Original, used part – engine control unit: the diesel engine control unit. Key codes to compare: BV61-12A650-ADG and 28334077. Every part is tested before shipping.
Numbers on the label
| Label | Number (different formats) |
|---|
| Vehicle manufacturer number | BV61-12A650-ADG / BV6112A650ADG |
| Delphi number | 28334077 |
| Label code | DCM3.5 |
Application
Confirmed application of this number: Ford C-Max II 2.0 TDCi 120 kW (2011–2015). The list is not closed – what matters is that the codes on your part’s label match: BV61-12A650-ADG and 28334077.
Other versions in stock
Parts with other numbers – the number on your label decides: JK21-12A650-AB A3C01265902, FN15-12A650-DAA 0281033076, 7T11-12A650-AH 5WS40481H-T.
Programming
The control unit needs PATS (immobiliser) programming with FORScan or IDS. On request we can clone the data from your old unit.
Symptoms of a fault
- limp mode and reduced power,
- faults from several sensors at once,
- no communication with the control unit in diagnostics,
- engine does not start or stalls.
Similar symptoms can be caused by sensors, injectors, power supply or wiring – run a diagnosis before buying.
Warranty and contact
The part comes with a 6-month warranty. More parts: Ford Engine Control Units (ECUs). Question about a number? Contact us.
Frequently asked questions – BV61-12A650-ADG
| Question |
Answer |
| How do I check whether the part fits? |
Compare the codes on your part’s label: BV61-12A650-ADG and 28334077. |
| Which cars does this part fit? |
Confirmed application: Ford C-Max II 2.0 TDCi 120 kW (2011–2015). The label number has the final say. |
| Does the control unit need programming? |
The control unit needs PATS (immobiliser) programming with FORScan or IDS. On request we can clone the data from your old unit. |
| Is the part checked? |
Yes – it is a used part and every one is tested before shipping. |
