How to choose ECU 9659099180
This is a used IAW 6LP2.05 engine control unit for Peugeot and Citroën with a petrol engine. The unit is tested before dispatch.
Typical fault symptoms
A faulty ECU may be indicated by:
- the engine does not start, no injector control,
- failure after water ingress or a short circuit in the wiring,
- no power supply to the ECU although the fuses are fine,
- no communication with the ECU during diagnostics.
Before you buy, run a diagnosis – wiring, power supply and sensors can cause the same symptoms.
Choosing by number
You choose it by the numbers on the label (9659099180, 9653979480), not by the car model. It fits selected versions of Peugeot and Citroën with a petrol engine. If in doubt, send us a photo of your ECU label.

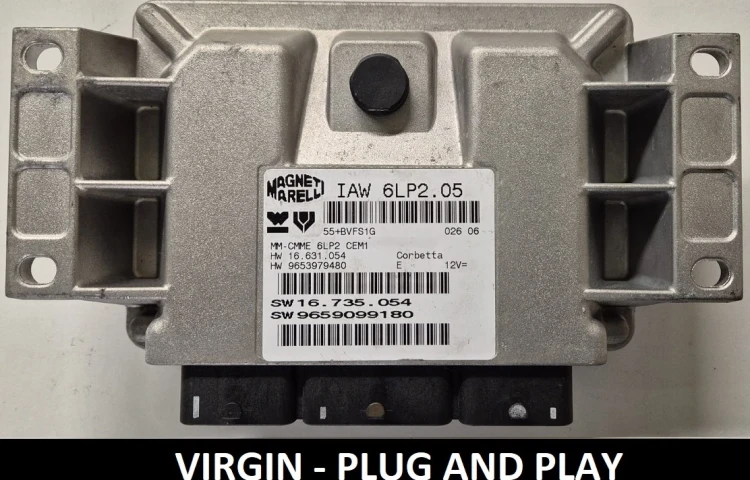

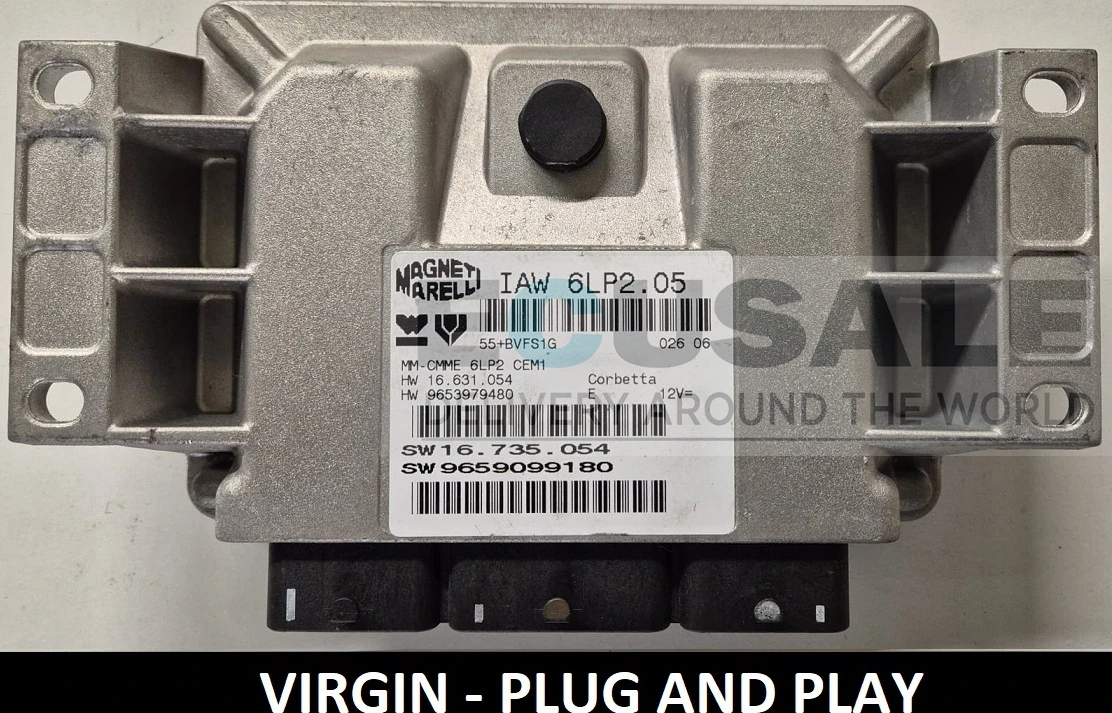

Label of ECU 9659099180
- PSA number: 9659099180
- Additional number: 9653979480
- ECU type: Magneti Marelli IAW 6LP2.05
Fitting without programming
Once plugged in, the Virgin version codes itself to the car and immobiliser – no programming is needed as long as the part number matches. If you prefer, send us your ECU and we will transfer the data free of charge. Warranty: 6 months.
Looking for a different number? See the Peugeot and Citroën categories or the Magneti Marelli manufacturer page.
FAQ – IAW 6LP2.05 ECU 9659099180
What does Virgin Plug & Play mean?
That after fitting the ECU codes itself to the car and immobiliser, with no programming. A matching part number is required.
|
How do I check whether 9659099180 fits?
The sticker on your ECU must show 9659099180, 9653979480. The car model is not enough – if in doubt, send us a photo of the label.
|
Is this IAW 6LP2.05 used?
Yes, it is a used unit. We check that it works before dispatch.
|
