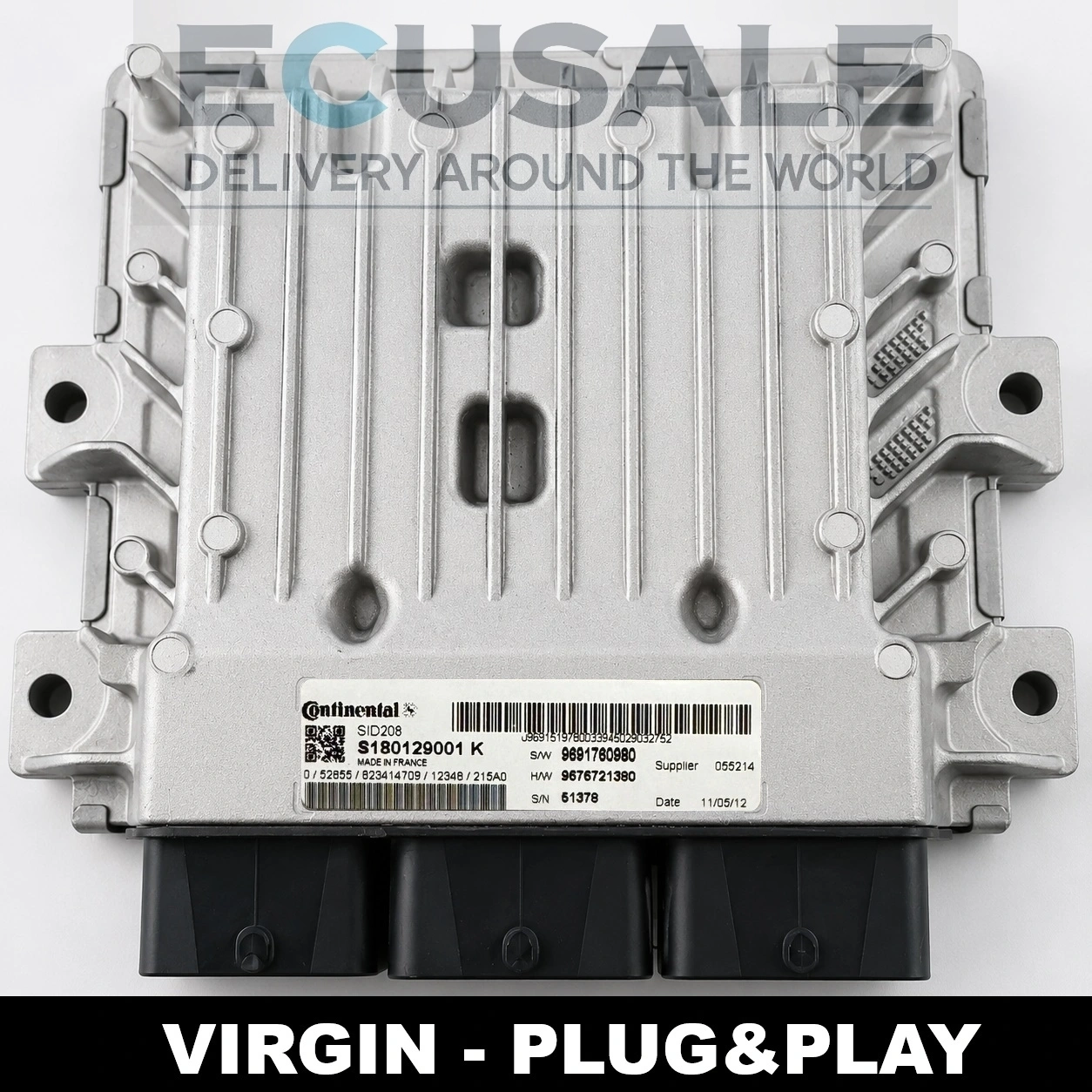

SID208 S180129001K – condition, matching and fitting
How to check that it fits
- Continental number: S180129001K
- Software number S/W: 9691760980
If both numbers on your ECU are the same, this unit fits your Boxer or Jumper 2.2 HDi. You do not need to compare other markings on the label. Different number? Check S180129001G, S180129001J, S180129001N, S180129101D.
Most common cause of failure
Water is almost always to blame. A short circuit from the injectors means the ECU no longer sends the injector signal and the vehicle will not start. The refurbished housing is protected against water but not waterproof, so keep the drains clear and protect the ECU from flooding. Whether to repair or replace is covered in SID208 – repair or replacement?, and what to do with a damaged ECU in Broken SID208 ECU – what to do?.
Virgin – programs itself
We sell it as Virgin: the ECU programs itself once connected – no coding and no pairing with the immobiliser, as long as the immobiliser works and the numbers match. It has never been repaired, and the refurbished housing is protected against water (which does not make it waterproof). Before shipping we test it on the bench and in a vehicle. The warranty is 6 months, and EGR OFF or DPF OFF can be done on request. The first installation is shown in our guide SID208 Virgin ECU installation guide.
Important: information after purchase
- Does the vehicle have air conditioning?
- Gearbox: manual or automatic?
Without these two details we cannot prepare the right software version – one number has two possibilities.
Full range in this group: Peugeot Engine Control Units (ECUs).
Questions and answers – ECU S180129001K
Will S180129001K fit with a software number other than 9691760980?
No. The Continental number S180129001K and the S/W number 9691760980 must be the same as on your ECU label.
|
What do I need to tell you after buying S180129001K?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Has S180129001K been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
