Mercedes-Benz engine control units – tested ECU modules
A Mercedes-Benz engine control unit, also called the ECU or engine computer, manages the operation of the engine. Among other things, it controls the injection system, ignition in petrol engines, fuel and boost pressure, and selected parts of the emission control system.
The ECU also communicates with the EIS/EZS electronic ignition switch, the drive authorisation system, the transmission control unit, the ISM selector module, the instrument cluster and the rest of the car's electronics. That is why an ordinary used control unit from another vehicle will not work just by plugging it in.
At ECUSale you will find original, used and tested ECU engine control units for:
- Mercedes C-Class, E-Class and S-Class,
- Mercedes A-Class and B-Class,
- Mercedes ML, GL and GLA,
- Mercedes CLK, CLS, SL and SLK,
- Mercedes Sprinter, Vito and Viano,
- other models with CDI and petrol engines.
Mercedes VIRGIN control units available at ECUSale
We specialise in preparing Mercedes engine control units as VIRGIN. The module is cleared of the previous vehicle's data and prepared for new personalisation and adaptation, in a similar way to a new service unit.

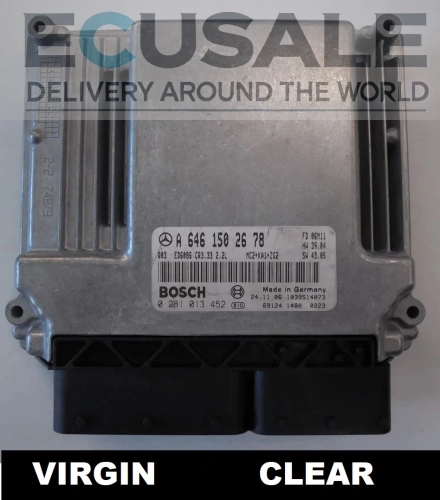

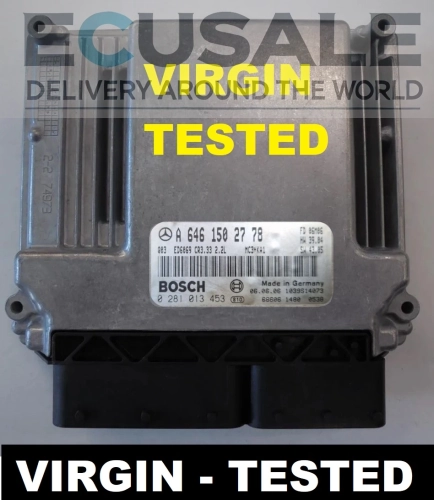

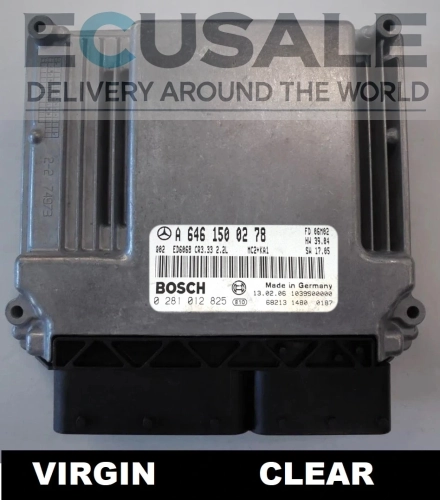

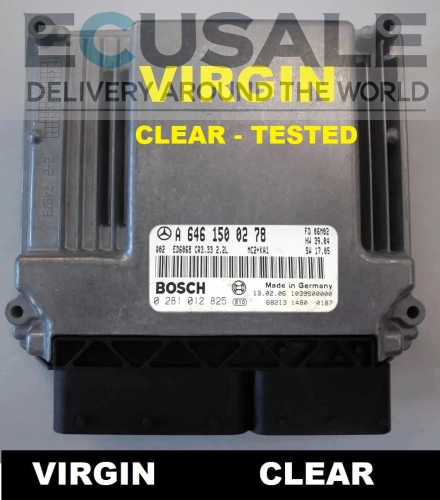

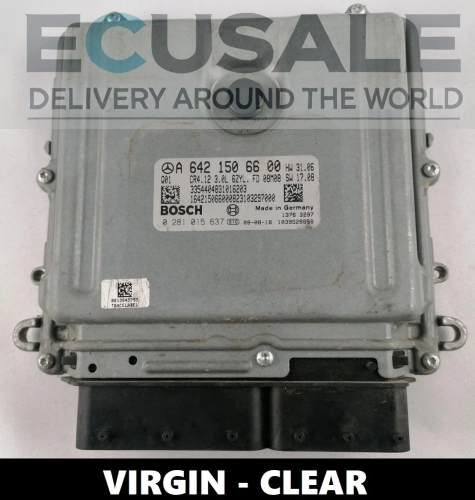

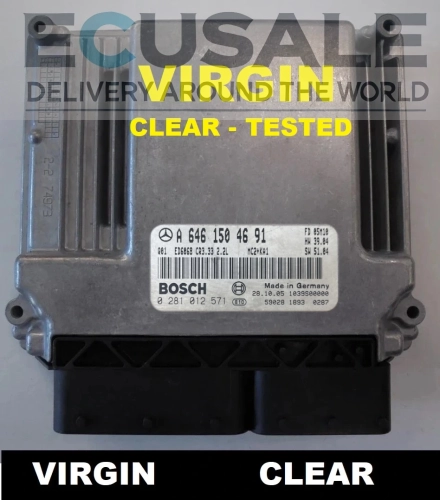

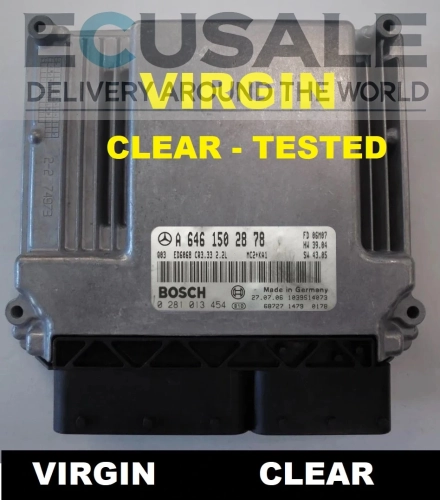

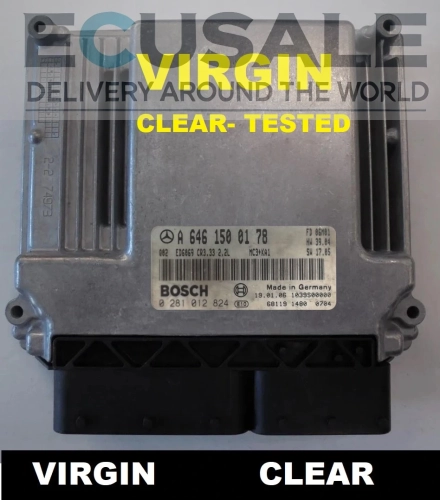

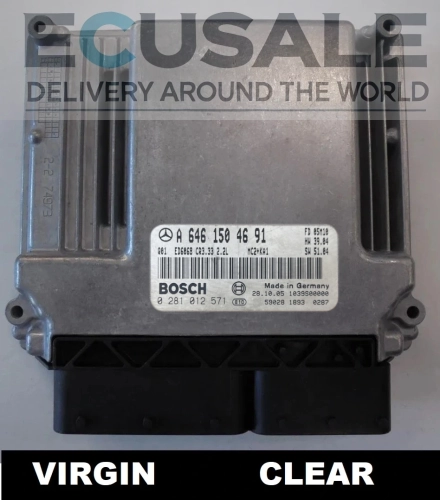

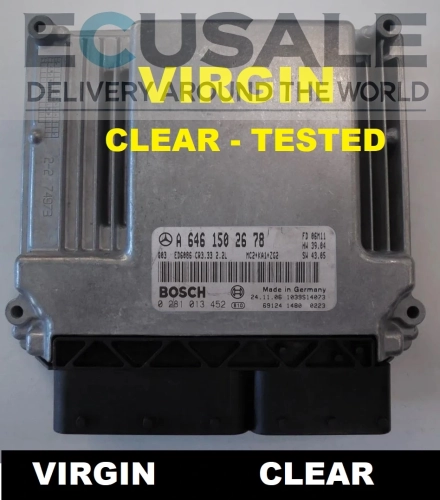

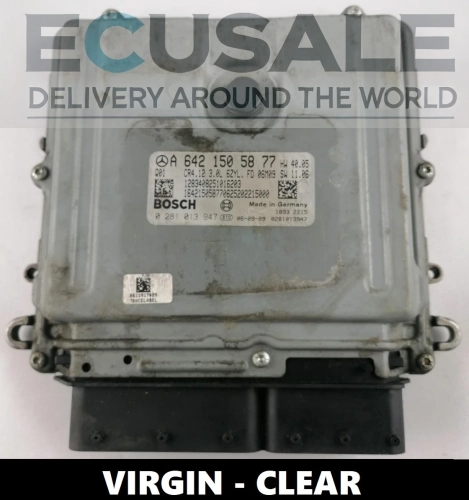

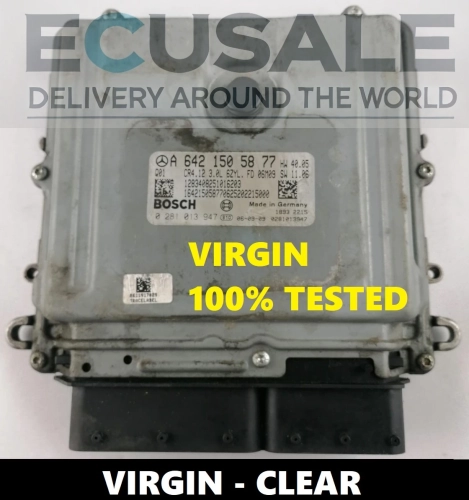

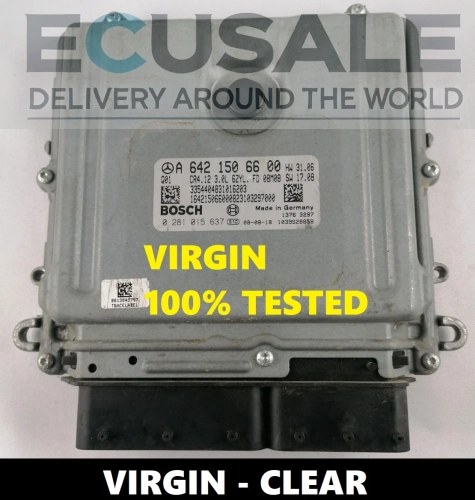

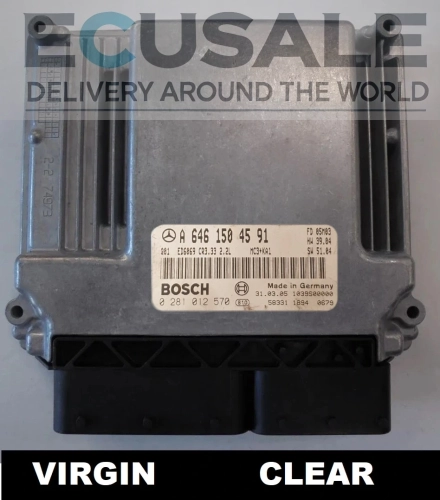

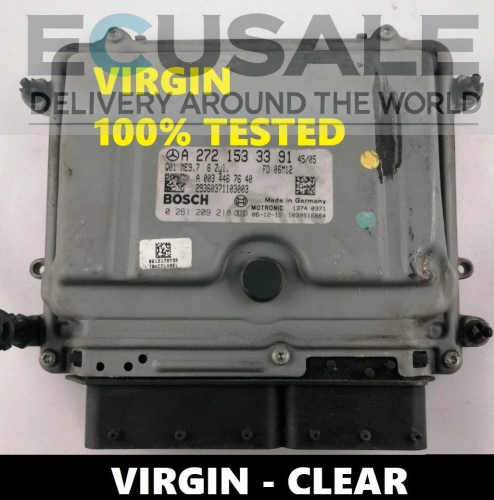

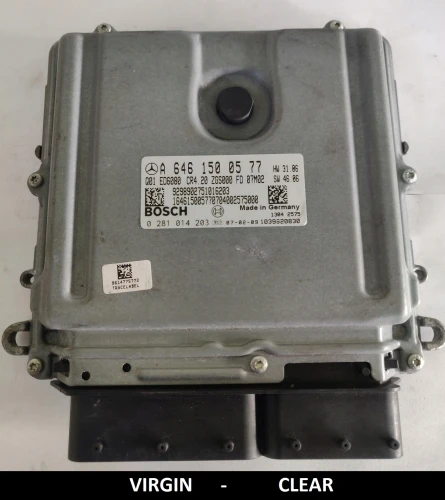

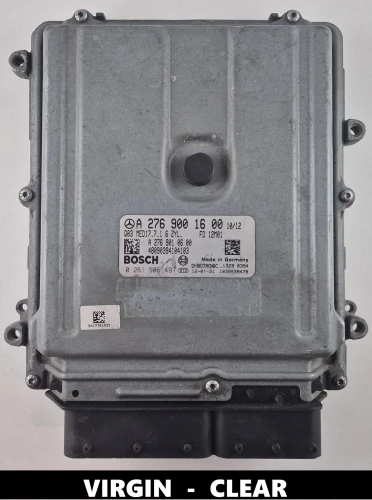

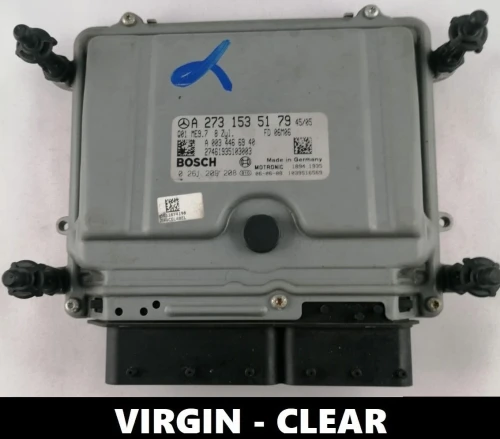

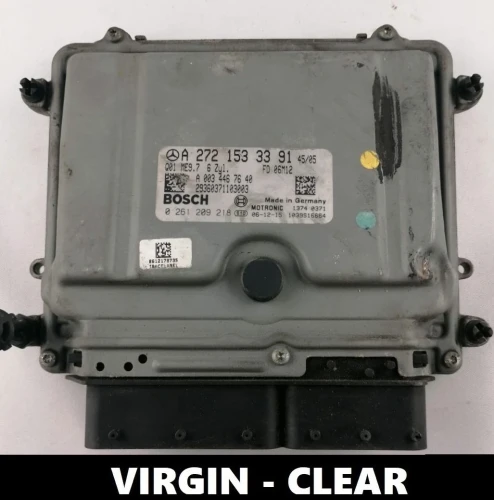

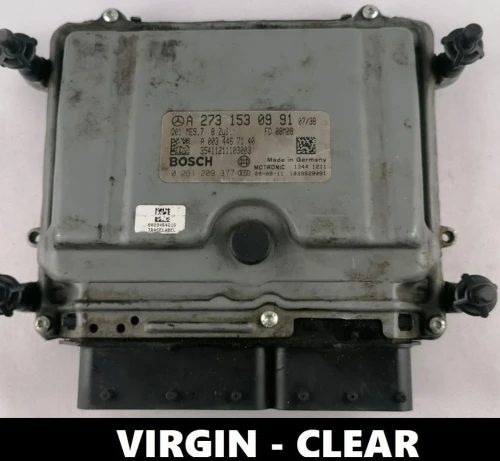

Examples of available control units:
These are selected examples. Before buying, open the page of the specific product and compare all the numbers with the label of the original ECU.
What does a Mercedes VIRGIN control unit mean?
VIRGIN means the previous car's data has been removed and the control unit is prepared to be assigned to another vehicle. After fitting, the module needs personalisation, activation and the correct programming.
A VIRGIN control unit is not ready to drive without coding. The procedure must be carried out with Mercedes Star Diagnosis or Xentry. Depending on the model, year and ECU type, the following may be required:
- initial start-up of the control unit,
- personalisation of the module to the vehicle,
- synchronisation with the drive authorisation system,
- entering the VIN,
- writing the correct software,
- coding the equipment variants,
- SCN coding, if required,
- clearing faults and testing after fitting.
The exact procedure depends on the car generation, the control unit type and the workshop's equipment. Before ordering, make sure that the person fitting the unit has the right diagnostic system and experience in programming Mercedes-Benz vehicles.
Mercedes engine control units are not prepared as IMMO OFF
For Mercedes-Benz engine control units we do not offer an IMMO OFF solution. The correct way to prepare the module is the VIRGIN version followed by personalisation in the car, or cloning the data from the original ECU. Details are below.
The Mercedes drive authorisation system works with many parts of the vehicle, including the EIS/EZS, the key, the ECU and, depending on the model, other modules. Disabling the immobiliser is not the standard way to replace a control unit in these cars.
Up to 2013 VIRGIN, newer units – online programming or cloning
Mercedes-Benz control units from cars up to 2013 are prepared as VIRGIN: clean, logged out of the previous car and ready for programming with Star Diagnosis or Xentry. Products with VIRGIN in the name are prepared in exactly this version.
Control units from newer platforms (after 2013) are locked and cannot be logged out to a VIRGIN state. After fitting they need full online programming via the Mercedes-Benz server. This is stated in the product description.
In both cases we can carry out cloning included in the price, once you send the original module or the files from the control unit. On request we also perform EGR OFF and DPF OFF on CDI diesel control units (DPF OFF only on cars with a particulate filter). Every control unit is used, checked and tested on a bench.
How to choose a Mercedes engine control unit?
The most important thing is the complete set of numbers on the label of the original module. The same model, year and engine version may have used control units with different numbers, hardware and software.
Before buying, check:
- the full Mercedes-Benz OEM number, which usually starts with the letter A,
- the full Bosch number (0 281… on CDI diesels, 0 261… on petrol engines),
- the control unit family and type,
- the HW and SW markings,
- the engine code, capacity and power,
- the gearbox type,
- the vehicle model and generation,
- the VIN as supporting information.
The VIN helps establish the car's factory configuration, but it is not always enough to confirm the number of the ECU actually fitted. The safest option is to send the VIN together with a clear photo of the whole control unit label.
Mercedes and Bosch numbers must match
When choosing, compare both the Mercedes OEM number and the control unit manufacturer's number. For example, the A6461507272 unit should be checked together with the Bosch number 0281015062.
The engine code alone, such as OM646, OM642, M112, M272 or M276, is not enough to confirm compatibility. Within one engine family, different control units may have been used depending on the model, power, emission standard, gearbox and equipment.
Cloning a Mercedes engine control unit
On selected designs, the data from a damaged ECU can be transferred to a compatible replacement unit. Cloning can include the contents of the EEPROM, FLASH and processor memory, as well as data related to drive authorisation and the car's configuration.
A correct clone requires:
- a hardware-compatible replacement control unit,
- a complete read of the original ECU,
- a check that the memory and processor versions match,
- verification of the data after writing,
- a communication test of the prepared module.
If the old control unit cannot be read correctly, the safer solution is usually to prepare a compatible ECU as VIRGIN and program it in the car.
Bosch control units in Mercedes-Benz cars
All engine control units in this category are Bosch modules. The range includes, among others:
- EDC16C2 and EDC16CP31 – CDI engines, e.g. OM646 and OM642,
- units designated by Mercedes as CR3.x, CR4.x and CR6.x, and EDC17 – newer CDI engines,
- ME2.8, ME9.7 and MED17.7 – M112, M272, M273 and M270 petrol engines.
The manufacturer or family name is not enough to confirm compatibility. Always compare the full Mercedes and ECU manufacturer numbers.
How the ECU works with the transmission control unit
The Mercedes engine control unit exchanges information with the automatic transmission control unit. Depending on the model, the system may include EGS and TCM modules and the ISM selector control unit.
If the car does not start, does not select gears, stays in P, goes into limp mode or reports CAN communication faults, the cause is not always the engine ECU. Also check the transmission control unit, the ISM module, the power supply and communication between the modules.
Available modules are in the category: Mercedes ISM, EGS and TCM transmission control units.
After replacing the ISM module, the correct order of steps may need to be followed:
- calibration or adaptation of the ISM selector,
- programming or adaptation of the transmission control unit,
- clearing stored faults and checking communication.
The procedure should be carried out with Star Diagnosis or Xentry according to the requirements of the specific model.
Most common symptoms of a faulty Mercedes ECU
- the engine cannot be started,
- the car cuts out by itself,
- no diagnostic communication with the ECU,
- limp mode and reduced power,
- injector or ignition control faults,
- turbocharger control problems,
- drive authorisation faults,
- CAN communication faults with the EIS/EZS, ISM or transmission control unit,
- problems after interrupted or failed programming,
- electronic damage after a short circuit, flooding or voltage surge.
These symptoms do not automatically confirm a faulty control unit. Similar problems can be caused by the wiring, the EIS/EZS, the key, the ISM module, the transmission control unit, the power supply or one of the actuators.
What to check before replacing the control unit?
Before fitting another ECU, check:
- the control unit's power supply and ground points,
- fuses and relays,
- wiring harnesses and connectors,
- CAN bus communication,
- the drive authorisation system and the key,
- the EIS/EZS module and the related control units,
- the alternator charging voltage,
- actuators that could cause a short circuit.
An undetected wiring fault can damage the next module or cause the same problems after replacement.
Help choosing a Mercedes-Benz control unit
If you are not sure which module is right, send a clear photo of the whole label of the old ECU, the VIN, the car model, engine code, year of manufacture and gearbox details.
Based on this, we will help verify that the numbers match and check whether the right solution is a VIRGIN control unit for programming with Xentry or cloning of the original ECU.
Before ordering, also check the delivery times and costs and the available payment methods.
Can't find your number?
Send us a photo of the whole label of the original part, the VIN and the car model. We will check compatibility and availability.
Ask about a part →
FAQ – Mercedes-Benz engine control units
Can a Mercedes control unit be prepared as IMMO OFF?
We do not offer Mercedes-Benz engine control units in an IMMO OFF version. Units up to 2013 are prepared as VIRGIN for programming with Star Diagnosis or Xentry, and newer ones need online programming. In both cases we can carry out cloning included in the price.
Does a VIRGIN control unit work straight after plugging it in?
No. A VIRGIN control unit is prepared for assignment to a vehicle, but after fitting it needs personalisation, programming and synchronisation with the drive authorisation system.
How is a Mercedes engine control unit programmed?
Programming is done with Star Diagnosis or Xentry. Depending on the model and ECU, initial start-up, personalisation, variant coding, software writing or SCN coding may be needed.
How do I choose the right Mercedes control unit?
Compare the full Mercedes OEM number and the manufacturer number, for example Bosch. Also check the ECU family, engine code, HW/SW version, car model and gearbox type.
Can a Mercedes control unit be cloned?
Yes. We carry out cloning included in the price once you send the original module or the files from the control unit. It requires a complete data read from the original ECU and a hardware-compatible replacement unit.
Can an ECU be chosen by VIN alone?
The VIN helps check the vehicle's factory configuration, but the numbers on the control unit label matter most. It is best to send the VIN together with a photo of the original ECU.
Does a starting problem always mean an ECU fault?
No. The cause can also be the EIS/EZS, the key, the wiring, the power supply, CAN communication, the ISM module or the transmission control unit. A full diagnosis is needed before replacing the ECU.
Can the transmission control unit cause engine ECU faults?
Yes. The engine ECU, EGS/TCM and ISM exchange data over the CAN bus. A failure of one module, a missing power supply or a communication problem can cause faults in several control units at once.
Can every Mercedes control unit be prepared as VIRGIN?
No. Control units from cars up to 2013 are prepared as VIRGIN. Newer ones are locked and need online programming via the Mercedes-Benz server or cloning, which we carry out included in the price.
