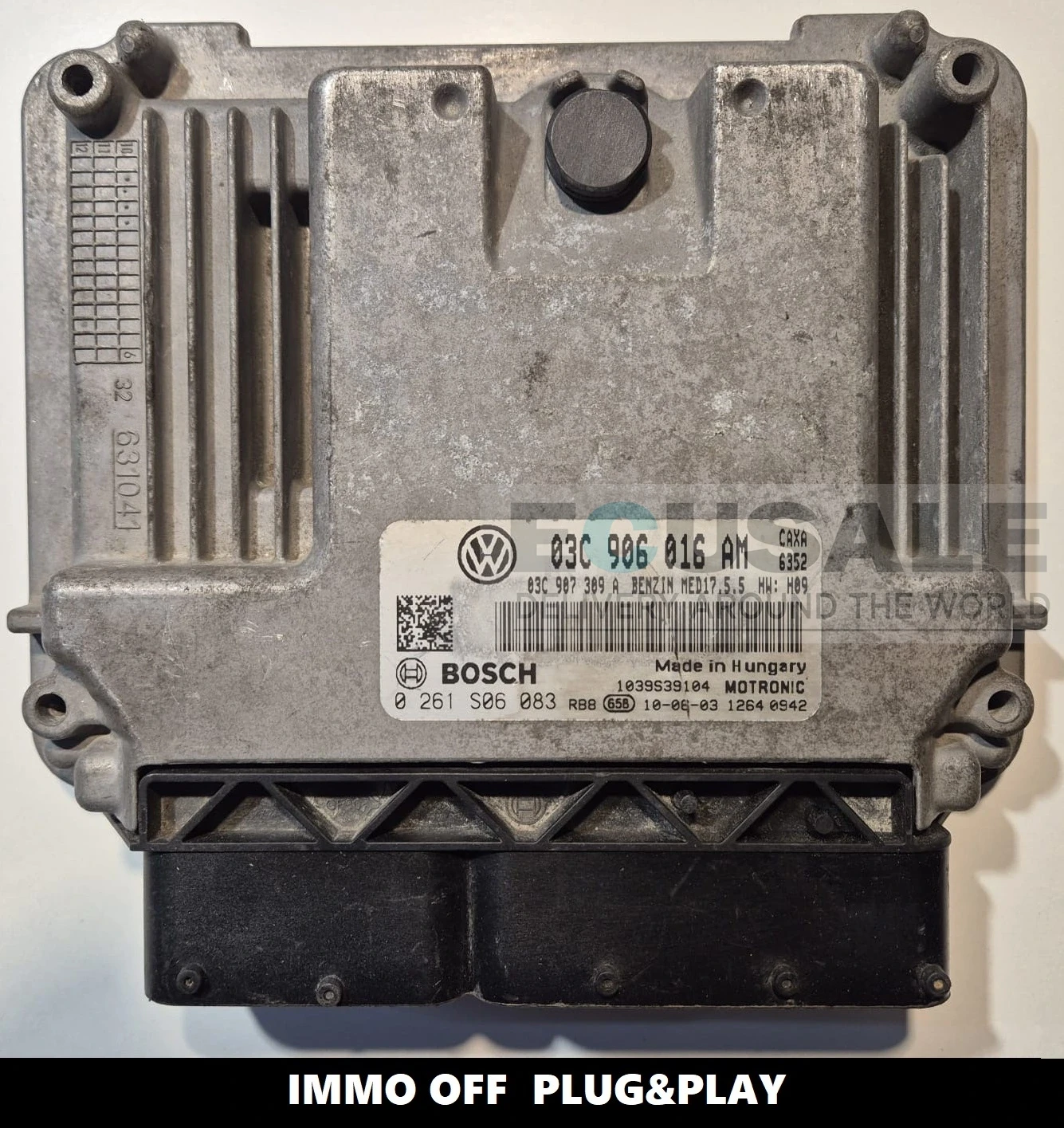

ECU 03C906016AM / 0261S06083 for the VW Golf VI
Bosch 0261S06083 with OEM number 03C906016AM is a Bosch MED17.5.5 ECU listed for: VW Golf VI. It comes as IMMO OFF Plug & Play: once connected, the engine runs without the ECU being added to the immobiliser. Checked before dispatch; warranty: 6 months.

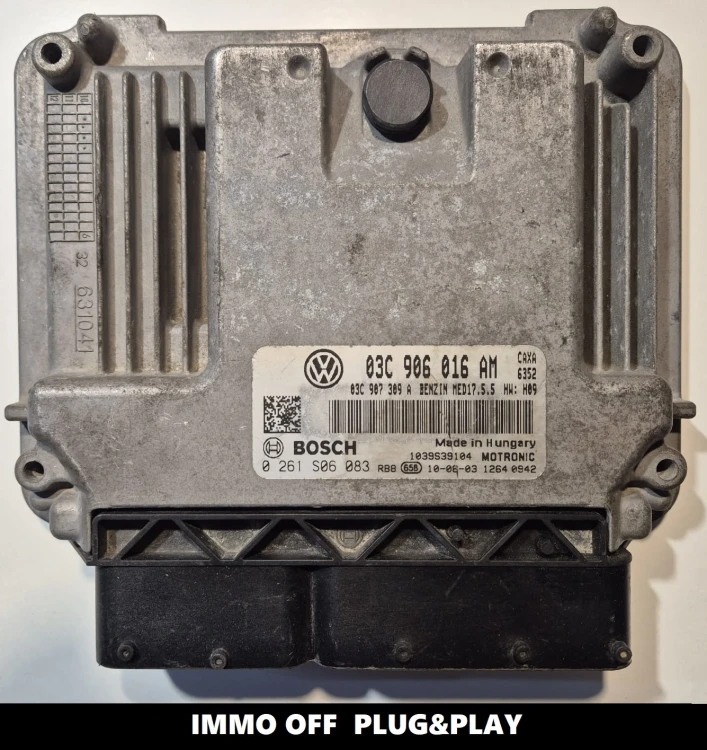

Label markings
- OEM number: 03C906016AM (03C 906 016 AM)
- Bosch number: 0261S06083
- ECU type: Bosch MED17.5.5
Vehicle compatibility
Before ordering, check two numbers on the label: 03C906016AM and 0261S06083. Your version missing from the description rules nothing out, but a different number, e.g. 03C906032H (0261201541), means a different version of the ECU. We list this unit for: VW Golf VI.
Installation and preparation
Fitting means plugging the ECU in where the old one was – no key coding and no programming. It runs without errors after fitting. Cloning the data from your ECU is available on request (send the ECU or files).
Symptoms of a failed ECU
A failed ECU can show different symptoms, for example:
- hard starting on a cold or warm engine
- the engine does not start
- no diagnostic communication with the ECU
- rough engine running
Power supply, earth, wiring and fuses can cause similar symptoms – run a diagnosis before replacing the ECU.
Other VW engine ECUs in stock
Full range: Volkswagen engine ECUs · Bosch ECUs
Frequently asked questions about the 03C906016AM / 0261S06083 ECU
Does the 03C906016AM ECU need programming?
No. It is an IMMO OFF Plug & Play version – after fitting you do not program it to the immobiliser.
|
Do errors appear after fitting?
No. The 03C906016AM ECU is an IMMO OFF version and runs without errors after fitting.
|
How do I check that 0261S06083 fits my car?
Compare OEM number 03C906016AM and Bosch number 0261S06083 with the label on your old ECU. If both match, the ECU fits.
|
