Ford engine ECU BG9112A650NC – description

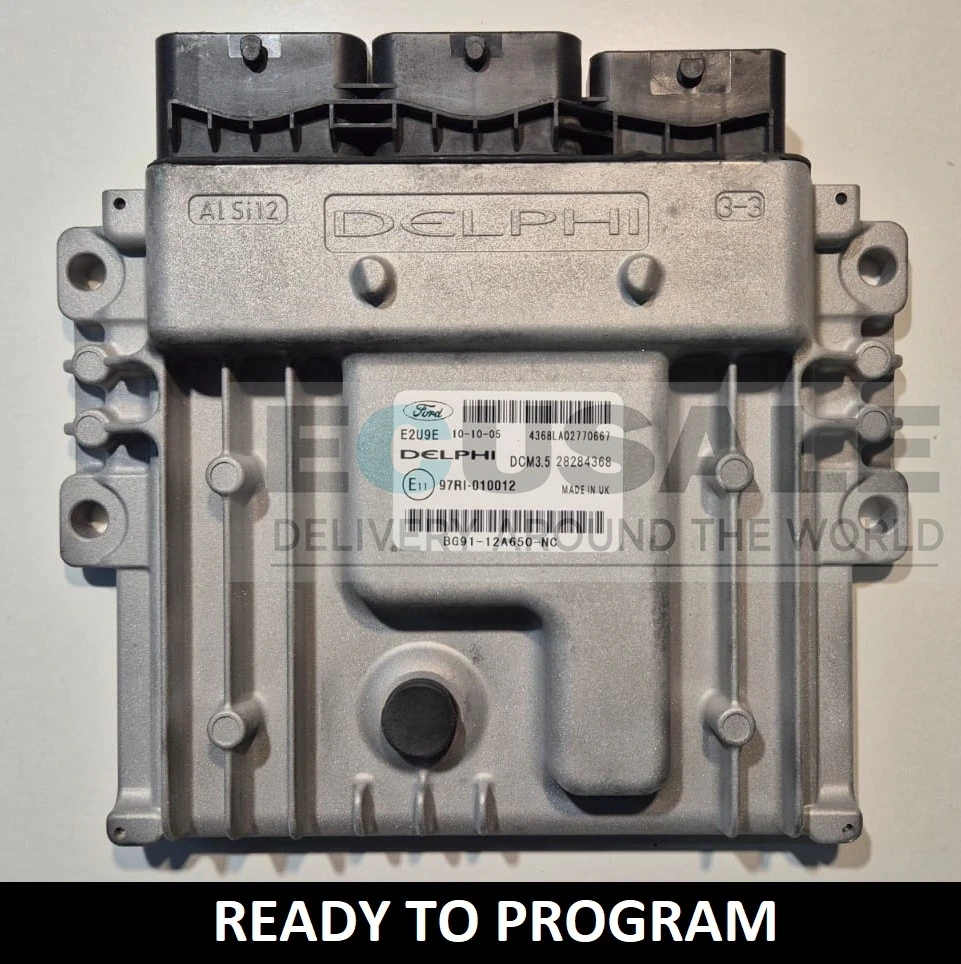

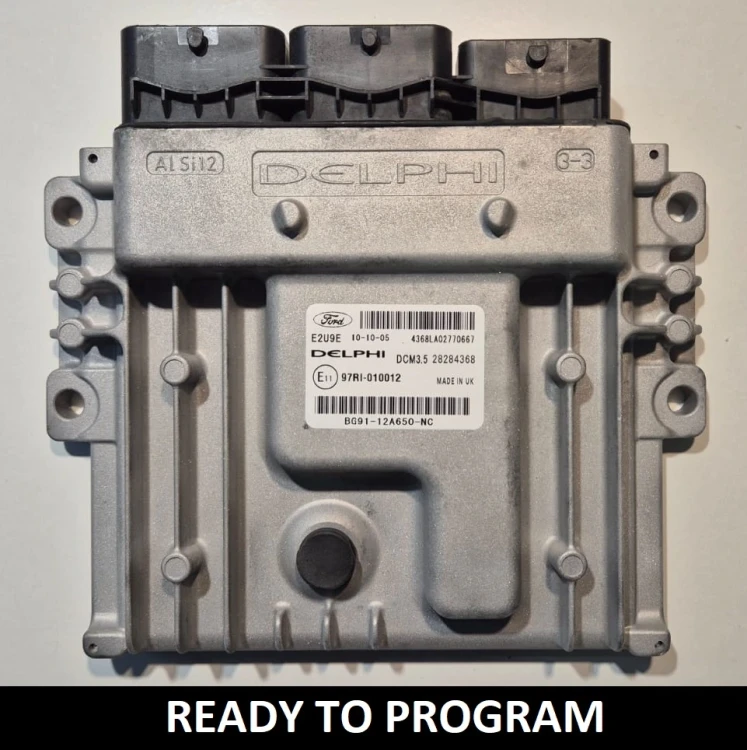

On this page you can buy ECU BG91-12A650-NC with number 28284368, a Delphi DCM3.5 unit for Fords with the 2.0 TDCi engine. It goes through a function check before dispatch.
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
Vehicle compatibility
ECU BG91-12A650-NC may have been fitted to different Ford models, so compatibility is decided by the numbers on the label, not by the model and year of the car. Compare Ford number BG91-12A650-NC and number 28284368 with your ECU. If in doubt, send us a photo of the label before buying.
Fitting step by step
- After purchase, you send us the VIN.
- We prepare the ECU with data from the Ford server and the latest software – included in the price.
- You fit the ECU in the car.
- You carry out PATS programming (keys and VIN) with FORScan or Ford IDS, or have a workshop do it.
Warranty on the ECU: 6 months.
Ford number and Delphi number
Both numbers on the label matter when you order:
- Ford number: BG91-12A650-NC / BG9112A650NC
- Delphi number: 28284368
- ECU type: Delphi DCM3.5
Useful links
You will find other numbers in the Ford Engine Control Units (ECUs) category.
Questions and answers – ECU BG91-12A650-NC
Can I just fit ECU BG9112A650NC and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
Who carries out PATS programming of ECU BG91-12A650-NC?
You can do it yourself with FORScan and a suitable interface or with Ford IDS. If you do not have these tools, a workshop that services Fords can do the PATS programming.
|
Does ECU BG9112A650NC come with a warranty?
Yes – 6 months. The ECU is tested before shipping.
|
Why give the VIN after ordering?
The VIN lets us prepare the ECU for your car with data from the Ford server and the latest software. The service is included in the price.
|
