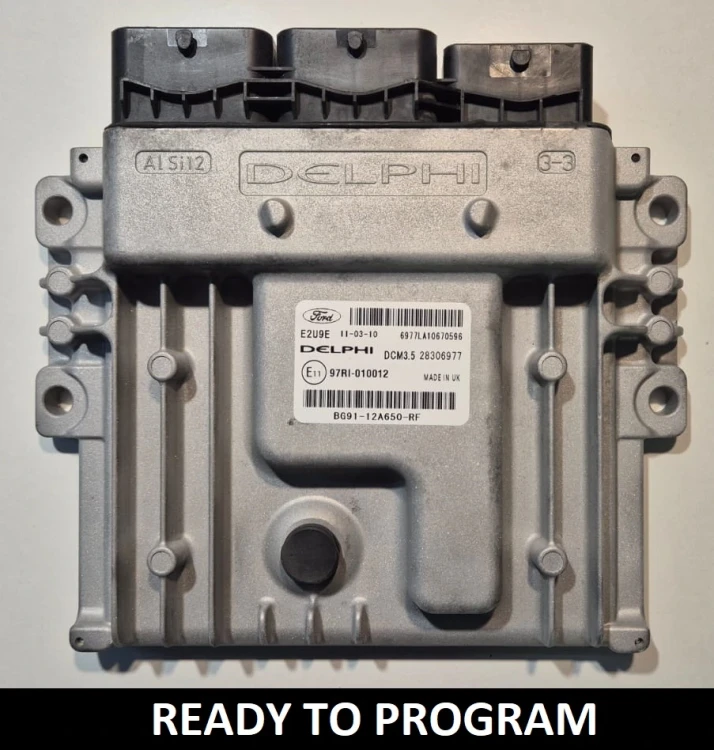

BG91-12A650-RF / 28306977 – Ford 2.0 TDCi engine control unit
We offer an ECU from the Delphi DCM3.5 family, marked with Ford number BG91-12A650-RF and Delphi number 28306977. It was fitted to Fords with the 2.0 TDCi engine. Before we ship the ECU, we check that it works.
Ford number and Delphi number
Both numbers on the label matter when you order:
- Ford number: BG91-12A650-RF / BG9112A650RF
- Delphi number: 28306977
- ECU type: Delphi DCM3.5
What happens after purchase
Once you have placed your order, send us the car’s VIN. We prepare the ECU with data from the Ford server and load the latest software – this service costs nothing extra.
The ECU is not plug & play. After fitting, the keys and VIN must be assigned in the PATS procedure using FORScan or Ford IDS. The warranty is 6 months.
When the ECU may be faulty
An engine ECU failure may show up as:
- no start and no signal at the injectors,
- the diagnostic tool cannot connect to the ECU,
- the ECU gets no power even though the fuses are OK,
- problems after water damage or a short in the wiring.
Faults in the wiring, power supply or sensors can cause similar symptoms, so run a diagnosis before you buy.
How to check compatibility
The safest way is to compare labels. If your ECU shows number BG91-12A650-RF and number 28306977, it is the same version – whatever the Ford model and year, as this number may appear in different cars. If the sticker is hard to read or you have questions, send us a photo of it before buying.
Useful links
You will find other numbers in the Ford Engine Control Units (ECUs) category.
Frequently asked questions about ECU BG91-12A650-RF 28306977
How do I know that BG91-12A650-RF will fit?
Check the sticker on your ECU. If it shows BG91-12A650-RF and 28306977, the numbers match. The car model and year alone are not enough, as this number may have been used in several Fords. You can also send us a photo of the label.
|
Is ECU BG91-12A650-RF plug & play?
No. After fitting, PATS programming is required – the keys and VIN are assigned with FORScan or Ford IDS.
|
Can I program ECU BG91-12A650-RF myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
Why give the VIN after ordering?
The VIN lets us prepare the ECU for your car with data from the Ford server and the latest software. The service is included in the price.
|
