How to choose ECU BG91-12A650-FHB for your Ford
This is a Delphi DCM3.5 engine control unit with Ford number BG91-12A650-FHB and number 28354068, used in Ford vehicles with the 2.0 TDCi engine. The unit is tested before dispatch.
PATS programming and VIN preparation
- VIN preparation included: data from the Ford server and the latest software.
- You send us the VIN after purchase.
- PATS programming (keys + VIN) with FORScan or Ford IDS is required after fitting – the ECU is not plug & play.
- Warranty: 6 months.
Typical symptoms of a faulty DCM3.5 ECU
A damaged ECU can stop the engine from starting because the injectors receive no signal. The tester then cannot connect to the unit, and a measurement may show no power at the ECU despite good fuses. The failure can follow water ingress or a short circuit in the wiring.
The same symptoms can, however, come from a fault in the harness, power supply or sensors, so run a diagnosis before you buy an ECU.
Numbers to compare with your label

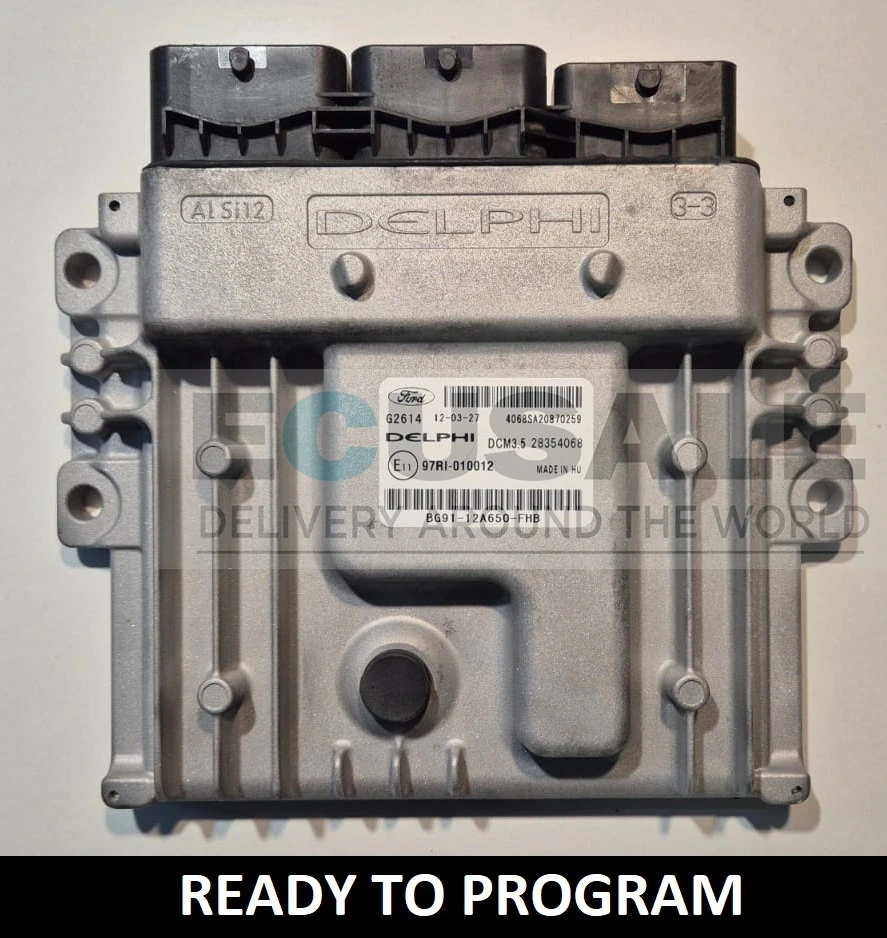

The housing of the original ECU carries a sticker with its numbers. On this unit they are:
- Ford number: BG91-12A650-FHB / BG9112A650FHB
- Delphi number: 28354068
- ECU type: Delphi DCM3.5
Vehicle compatibility
ECU BG91-12A650-FHB may have been fitted to different Ford models, so compatibility is decided by the numbers on the label, not by the model and year of the car. Compare Ford number BG91-12A650-FHB and number 28354068 with your ECU. If in doubt, send us a photo of the label before buying.
We describe the replacement and programming in our guide Ford DCM3.5 ECU replacement and VIN programming. Other numbers are in the Ford DCM3.5 ECU collection, and more about the manufacturer on the Delphi page.
Other DCM3.5 ECUs in our range: BG91-12A650-FHD (28362911), BG91-12A650-FHE (28403823), BG91-12A650-FHF (28425303), BG91-12A650-FHG (28459232).
Full range in this group: Ford Engine Control Units (ECUs).
Frequently asked questions about ECU BG91-12A650-FHB 28354068
Does ECU BG91-12A650-FHB fit my Ford?
Check the label of your ECU: Ford number BG91-12A650-FHB and number 28354068. The same number is used in several Ford models, so the number decides, not the model and year.
|
Can I just fit ECU BG9112A650FHB and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
Is VIN preparation charged extra?
No, it is included in the price. Send us your VIN after purchase – we prepare the ECU with data from the Ford server and the latest software.
|
Who carries out PATS programming of ECU BG91-12A650-FHB?
You can do it yourself with FORScan and a suitable interface or with Ford IDS. If you do not have these tools, a workshop that services Fords can do the PATS programming.
|
