Delphi DCM3.5 ECU BG91-12A650-FGB – what to know
Unit BG91-12A650-FGB (Delphi 28354071) controls the 2.0 TDCi engine in Ford cars. We test every unit before sending it to the customer.
When the ECU may be faulty
An engine ECU failure may show up as:
- no start and no signal at the injectors,
- the diagnostic tool cannot connect to the ECU,
- the ECU gets no power even though the fuses are OK,
- problems after water damage or a short in the wiring.
Faults in the wiring, power supply or sensors can cause similar symptoms, so run a diagnosis before you buy.
Choose by number, not by model
Fords with the 2.0 TDCi engine used many versions of the DCM3.5 ECU, and one version could go into several models. That is why you should choose the ECU by its numbers only: Ford BG91-12A650-FGB and Delphi 28354071 must match your unit. If in doubt, send us a photo of the label before ordering.

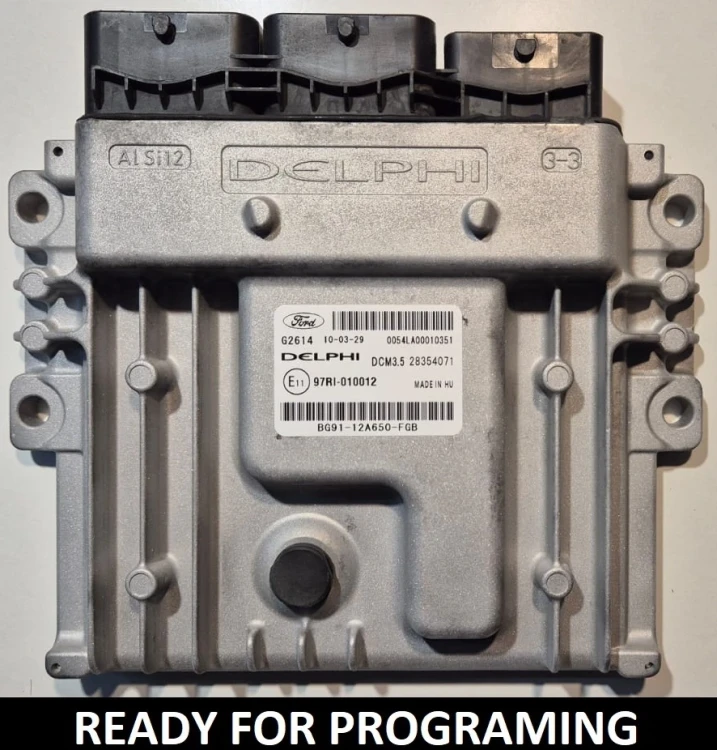

Label data of ECU BG91-12A650-FGB
- Ford number: BG91-12A650-FGB / BG9112A650FGB
- Delphi number: 28354071
- ECU type: Delphi DCM3.5
The Ford number may be written with dashes (BG91-12A650-FGB) or without them (BG9112A650FGB) – it is the same number.
Preparation and fitting
- After purchase, send us your VIN – we prepare the ECU with data from the Ford server and the latest software. This service is included in the price.
- The ECU is not plug & play: after fitting it requires PATS programming (keys and VIN) with FORScan or Ford IDS.
- Warranty: 6 months.
Looking for a different number? See also: BG91-12A650-FGD (28362914), BG91-12A650-FGE (28403828), BG91-12A650-FFE (28403820), BG91-12A650-FFB (28354065). The full list is in the Ford DCM3.5 ECU collection.
Our guide Ford DCM3.5 ECU replacement and VIN programming explains the replacement and programming, and the Delphi page tells you more about the manufacturer.
See also the other items in the Ford Engine Control Units (ECUs) category.
Common questions about ECU BG9112A650FGB
How do I know that BG91-12A650-FGB will fit?
Check the sticker on your ECU. If it shows BG91-12A650-FGB and 28354071, the numbers match. The car model and year alone are not enough, as this number may have been used in several Fords. You can also send us a photo of the label.
|
Is ECU BG91-12A650-FGB plug & play?
No. After fitting, PATS programming is required – the keys and VIN are assigned with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BG91-12A650-FGB myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
