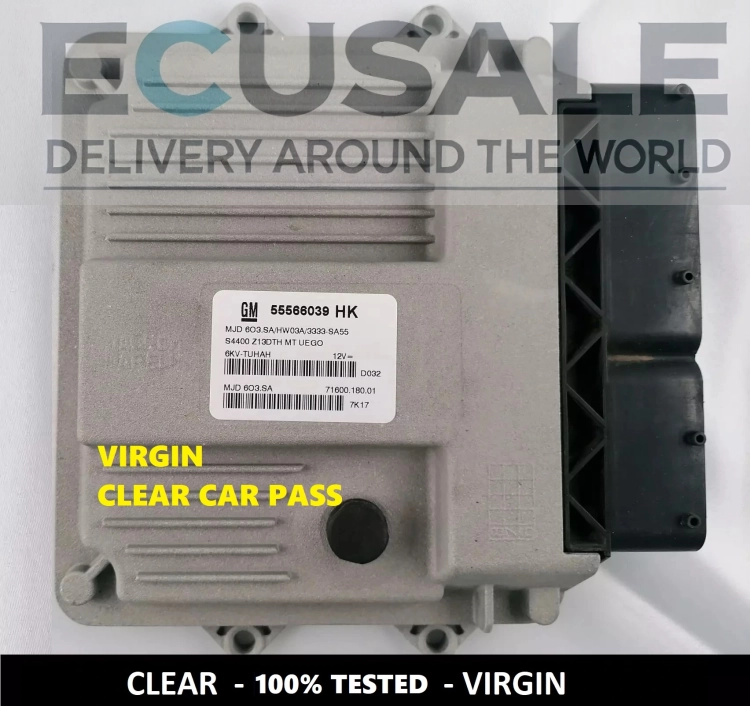

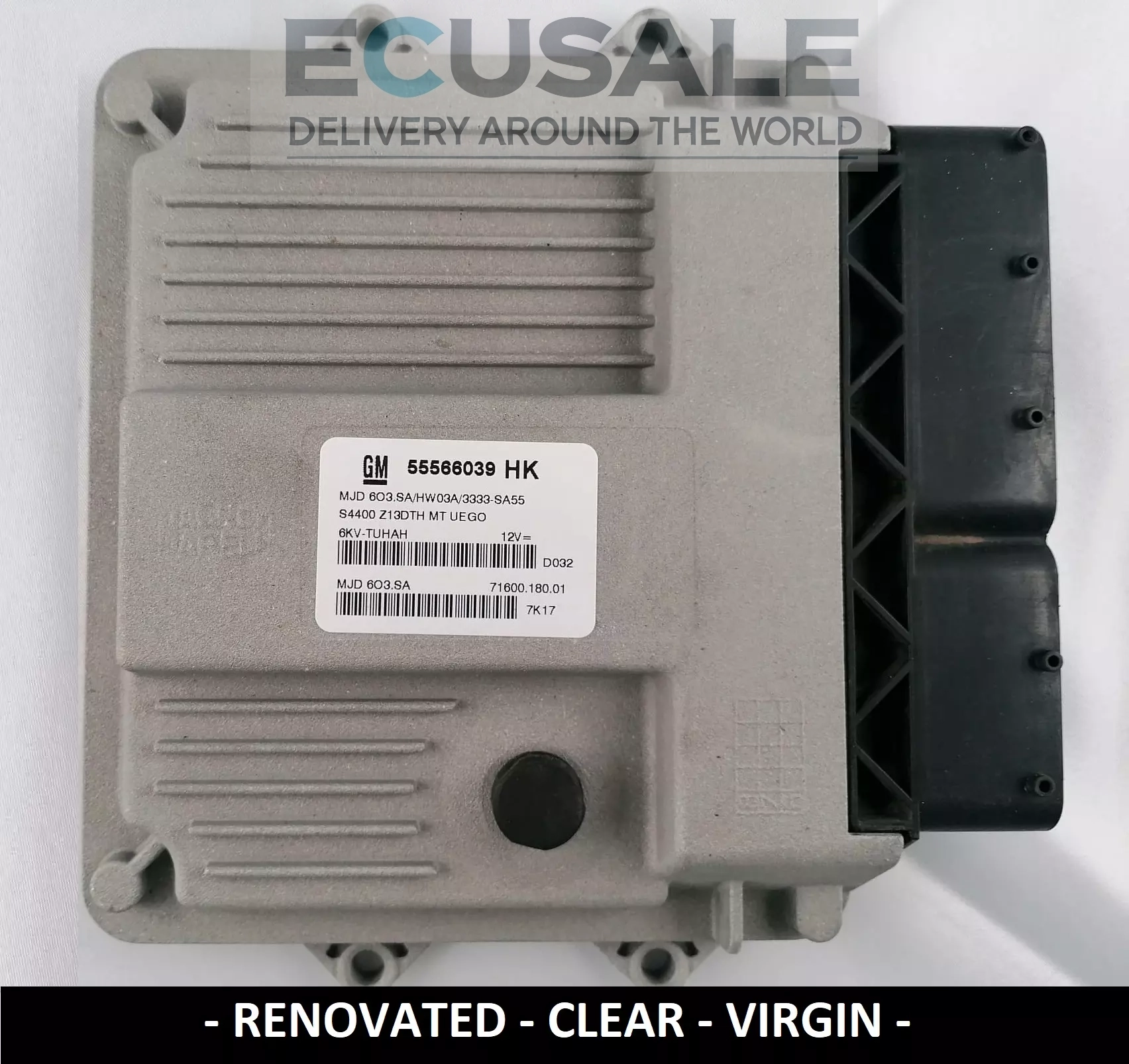

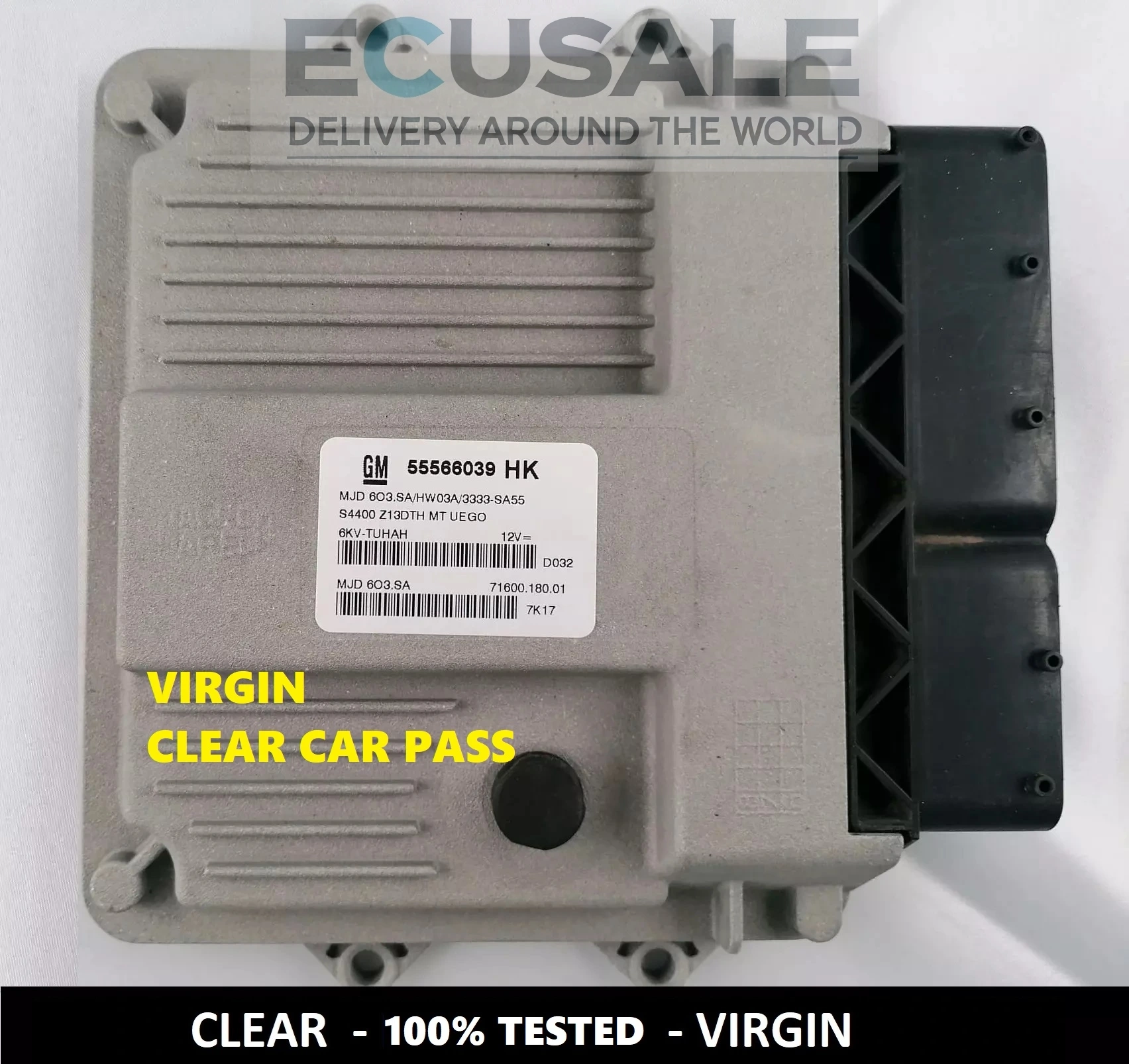

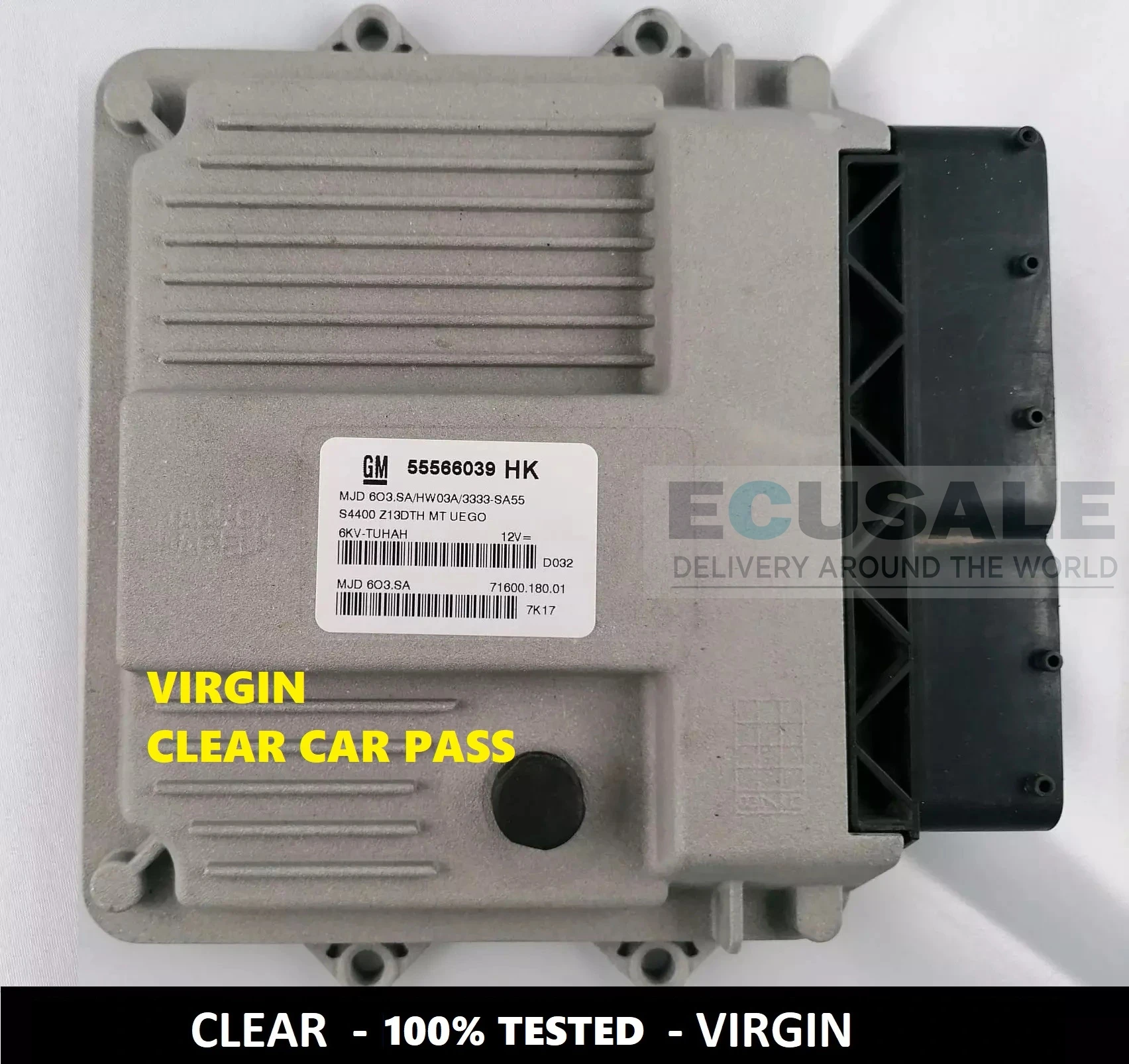

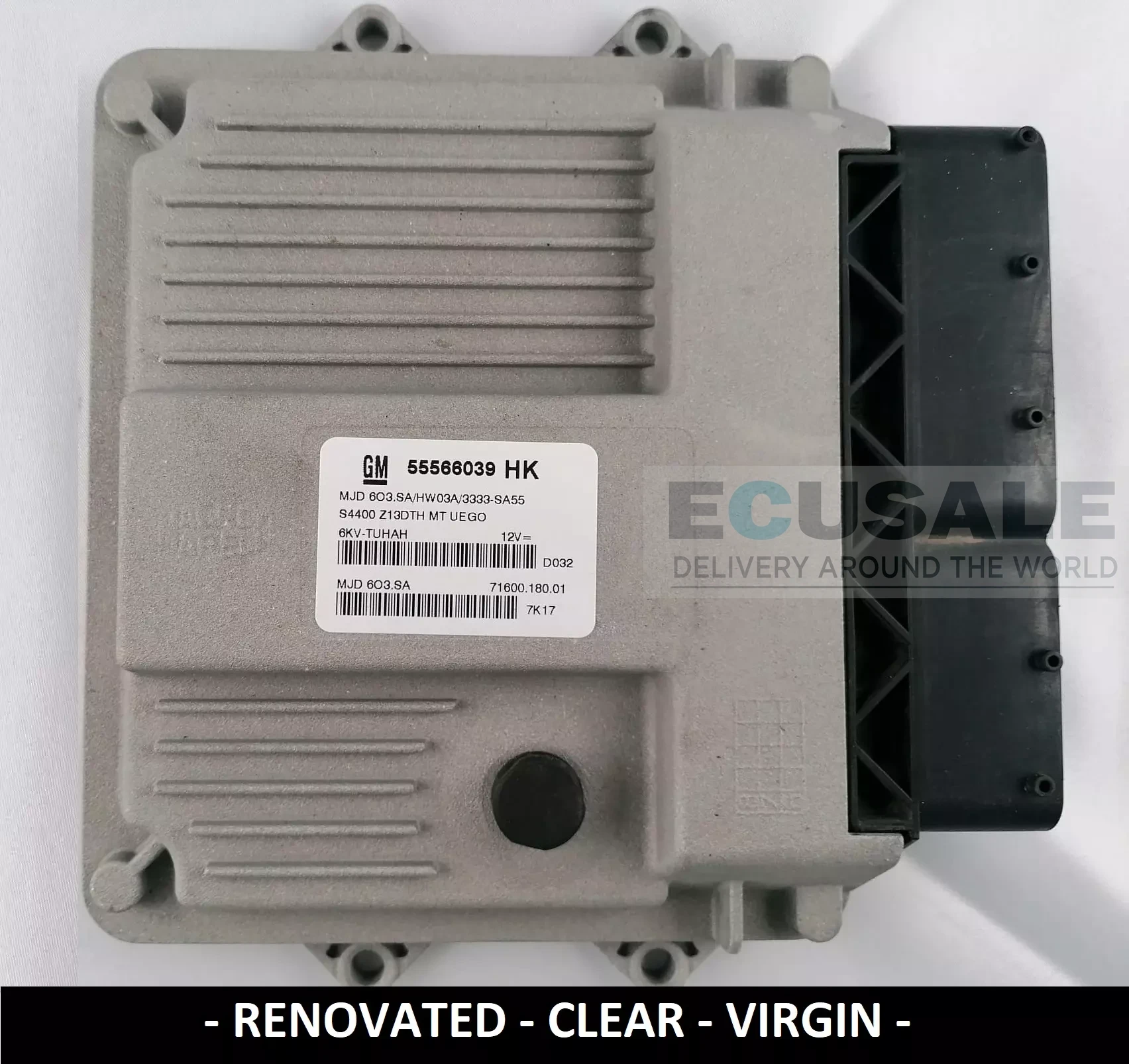

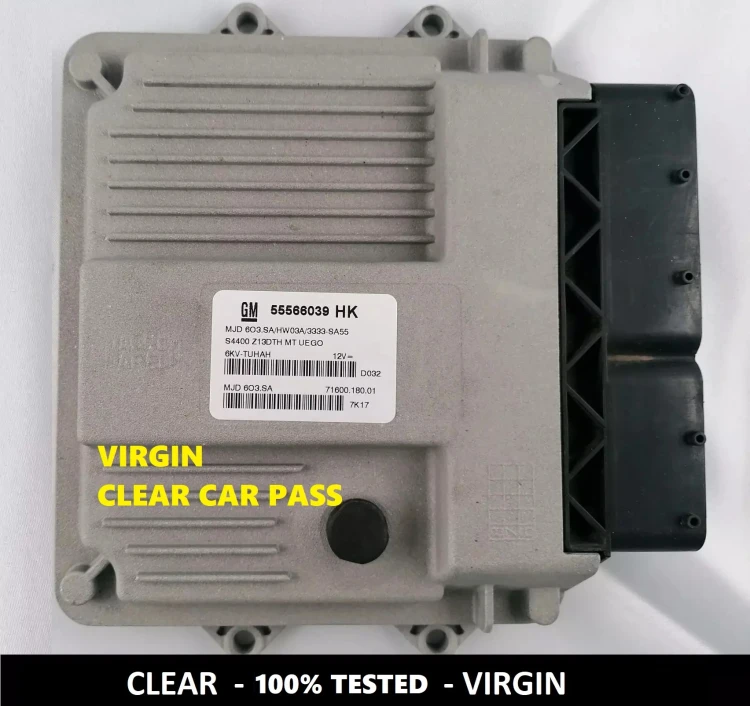

ECU 55566039 HK for the Opel Corsa D
Condition in which we ship the ECU
An unrepaired unit with a refurbished housing protected against water (not waterproof).
Virgin state: no data, immobiliser or Car Pass code – after fitting you program it like a new one with Tech-2 or OP-COM. Alternatively we can clone it free of charge from your EEPROM and FLASH files or from your old ECU. At extra cost: EGR OFF, tuning, DPF OFF. Warranty: 6 months.
Water from the scuttle
The most common cause of 1.3 CDTI ECU failure is water: the ECU sits under the scuttle and blocked drains flood it. Symptoms include starting problems, injector control problems, rough running and misfiring – they can also have other causes, so run a diagnosis before buying. The housing of this unit is protected against water but is not waterproof – keep the water drainage from the scuttle clear.
Vehicle compatibility
The ECU is from an Opel Corsa D 1.3 CDTI; its label shows Z13DTH MT UEGO, i.e. Z13DTH engine, manual gearbox (MT). The GM number still decides the match. Other numbers we offer: 55198931 CJ, 55566037 HJ, 55568379 KU, 55568382 KY.
GM number – the key to matching
Don't know which ECU your Corsa D has? Send us the VIN and we will check which number fits. If you have access to the old ECU, compare the GM number on the label:
- GM number: 55566039 HK
- Software and hardware: MJD 6O3.SA / HW03A
You will find other numbers in the Opel Engine Control Units (ECUs) category.
Questions and answers – ECU 55566039 HK
Will an ECU with a number other than 55566039 HK fit?
No. The GM number on your ECU label must be the same: 55566039 HK.
|
Can I order a clone instead of programming?
Yes, cloning is included. Send the EEPROM and FLASH files (MPC processor) or your whole old ECU.
|
Is the 55566039 HK housing waterproof?
No. It is refurbished and protected against water, but not waterproof – keep the scuttle drains clear.
|
