What you get when you buy 55568381 KX
Why 1.3 CDTI ECUs fail
The typical scenario: blocked drains, water under the scuttle and a flooded ECU. Confirm symptoms – starting problems, injectors, rough running, misfiring – with a diagnosis, as they can have other sources. So that the new ECU does not end up the same way, keep the scuttle drainage clear; the housing protection does not make it waterproof.
Virgin – programmed like new

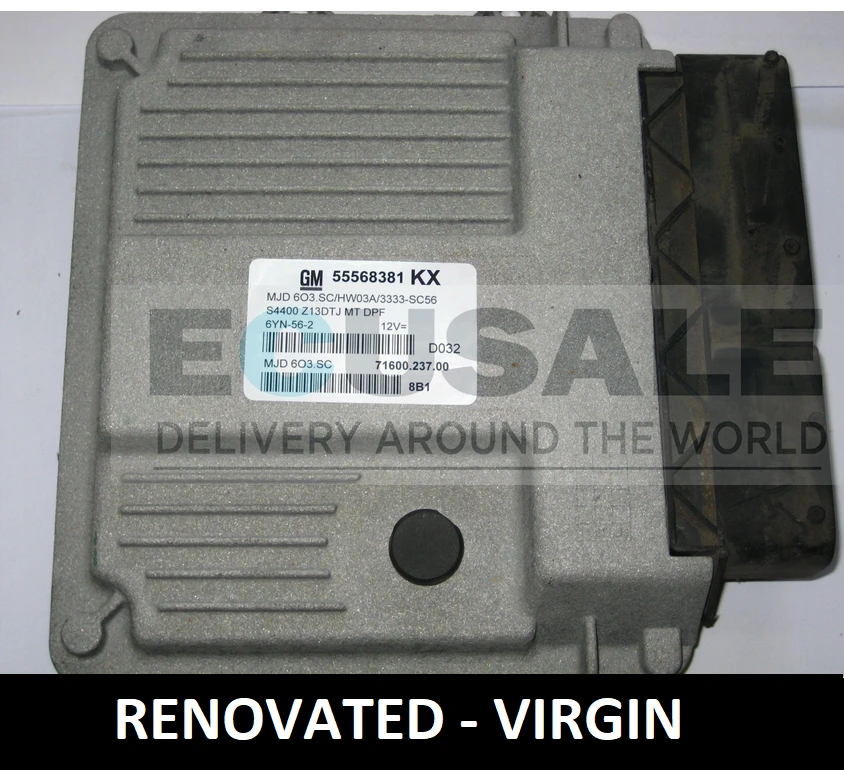

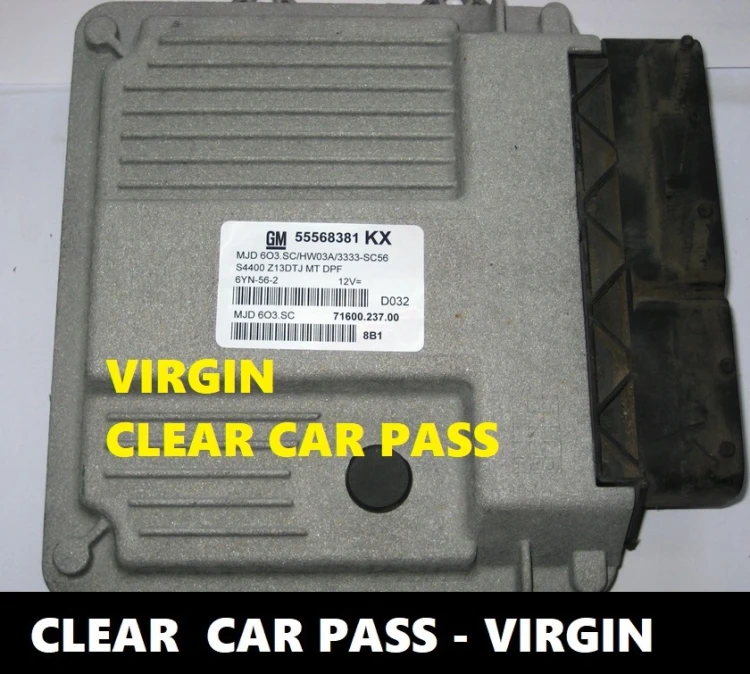

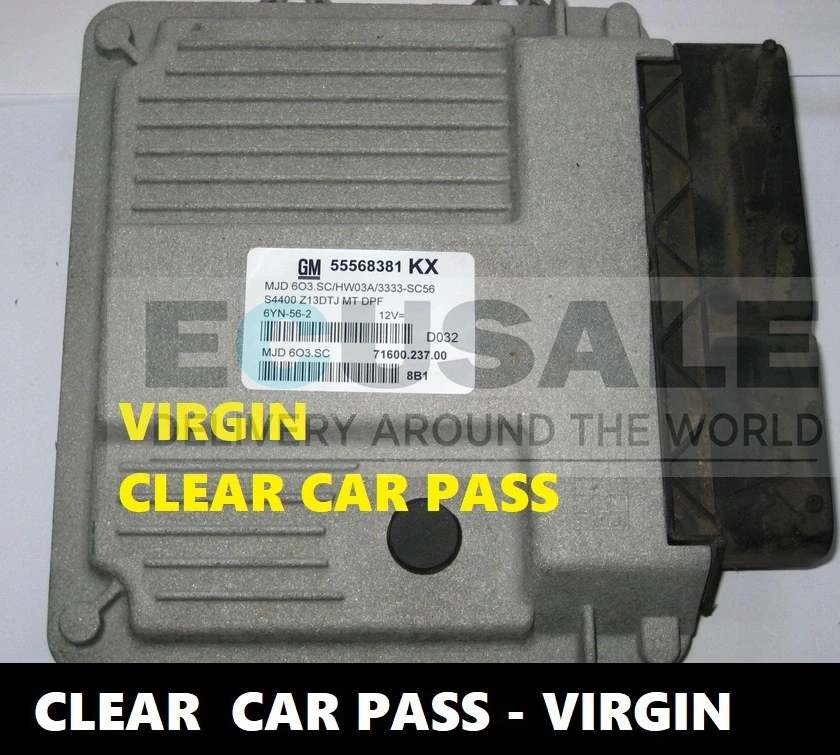

The ECU is clean – Virgin: wiped of data, immobiliser and Car Pass code. After fitting it is programmed like a new unit with Tech-2 or OP-COM. The electronics have never been repaired. We refurbished the housing and protected it against water, but it is not waterproof.
Cloning is included: send the EEPROM and FLASH files (MPC processor) or your whole old ECU. Extra cost: EGR OFF, tuning and, on versions with a DPF filter, DPF OFF. Warranty: 6 months.
Application
Opel Corsa D with the 1.3 CDTI engine. Version marking on the label: Z13DTJ MT DPF – Z13DTJ engine, manual gearbox (MT), with DPF filter. Other 1.3 CDTI ECUs for the Corsa D: 55568002 KQ, 55568379 KU, 55568382 KY, 55568384 LA.
GM number – the key to matching
- GM number: 55568381 KX
- Software and hardware: MJD 6O3.SC / HW03A
The GM number 55568381 KX decides – the other markings are only supporting. If the label is unreadable or you do not know which ECU fits, send us the VIN and we will match the ECU by VIN.
You will find other numbers in the Opel Engine Control Units (ECUs) category.
Frequently asked questions about the 55568381 KX ECU for the Corsa D
Can I order a clone instead of programming?
Yes, cloning is included. Send the EEPROM and FLASH files (MPC processor) or your whole old ECU.
|
Is the 55568381 KX housing waterproof?
No. It is refurbished and protected against water, but not waterproof – keep the scuttle drains clear.
|
Do I need to send anything after purchase?
No, for this ECU we need no extra information. You only send data if you order cloning.
|
