Renault Clio II 1.2 16V VIRGIN engine control unit 8200162381 8200195170

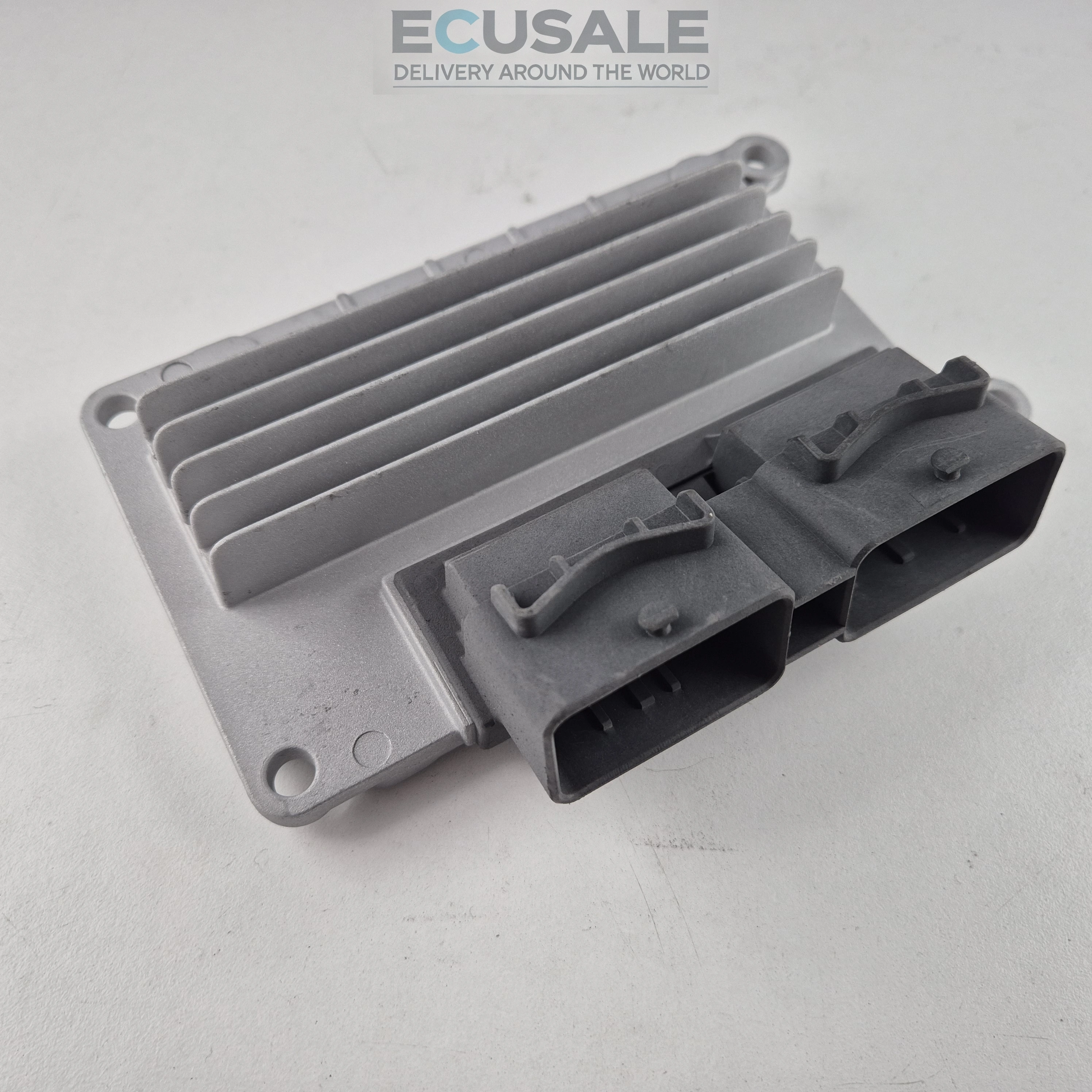

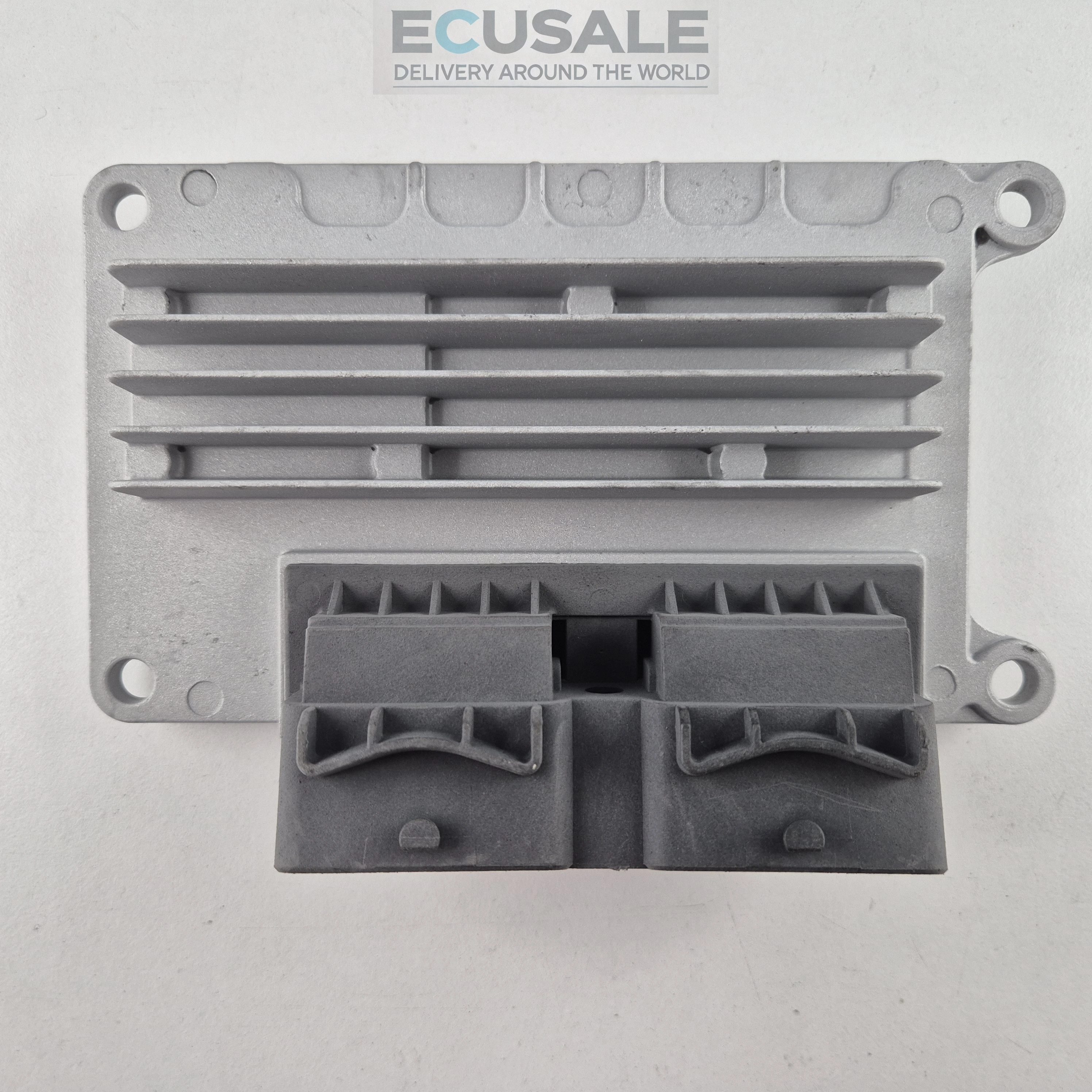

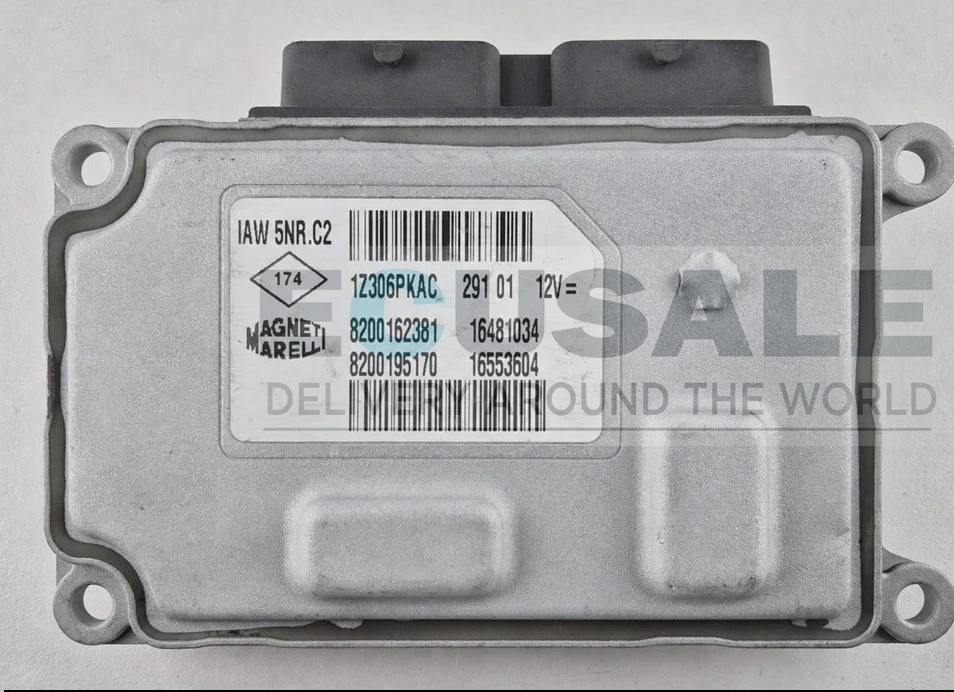

This Magneti Marelli IAW 5NR.C2 engine control unit is intended for selected Renault Clio II models with a 1.2 16V petrol engine. The module has been prepared in VIRGIN condition, allowing it to synchronise automatically with the vehicle’s immobiliser system during the first correct start-up.
Applications of the IAW 5NR.C2 control unit
- Renault Clio II, X65 platform,
- selected BB_ and CB_ hatchback versions,
- 1.2 16V petrol engine,
- approximate period of use for this set of part numbers: 2001–2002.
This control unit was fitted only to selected vehicle configurations. Before purchasing, compare the IAW 5NR.C2 designation and part numbers 8200162381 and 8200195170 with the module removed from the vehicle. Matching the make, model and engine capacity alone is not sufficient to confirm compatibility.
Common symptoms of a faulty engine control unit
- the engine cranks but does not start and the immobiliser remains active,
- no diagnostic communication with the ECU,
- injector control faults or no injector pulse on one cylinder,
- incorrect ignition coil control and engine misfires,
- rough engine operation, intermittent stalling or difficulties restarting the engine.
Similar symptoms may also be caused by faulty wiring, ignition coils, injectors, poor ground connections or the immobiliser system. Before replacing the ECU, we recommend checking the module’s power supply and reading the stored fault codes.
Programming and preparation of the VIRGIN module
The offered control unit has been prepared in VIRGIN condition. It does not contain the immobiliser assignment from the previous vehicle and is designed to synchronise automatically after installation in the target Renault Clio.
- copying data from the faulty ECU is not normally required,
- during the first start-up, the module stores the vehicle’s immobiliser data,
- the original key and immobiliser system must be fully operational,
- the battery should be fully charged and the voltage must remain stable during the first adaptation,
- once synchronisation is complete, the control unit becomes assigned to that specific vehicle.
If the original control unit can still be read, a complete data cloning service is also available. With the VIRGIN version, however, cloning is not required because the module has been prepared for automatic pairing with the vehicle.
Frequently asked questions
Does the 8200162381 control unit fit every Renault Clio II 1.2 16V?
No. This ECU was fitted only to selected Clio II versions. Before purchasing, compare all numbers on the original control unit, especially the IAW 5NR.C2 designation and part number 8200195170.
Does the VIRGIN IAW 5NR.C2 ECU need programming after installation?
The offered version has been prepared for automatic synchronisation with the vehicle. If the immobiliser, original key and installation are all correct, copying data from the old ECU is not required.

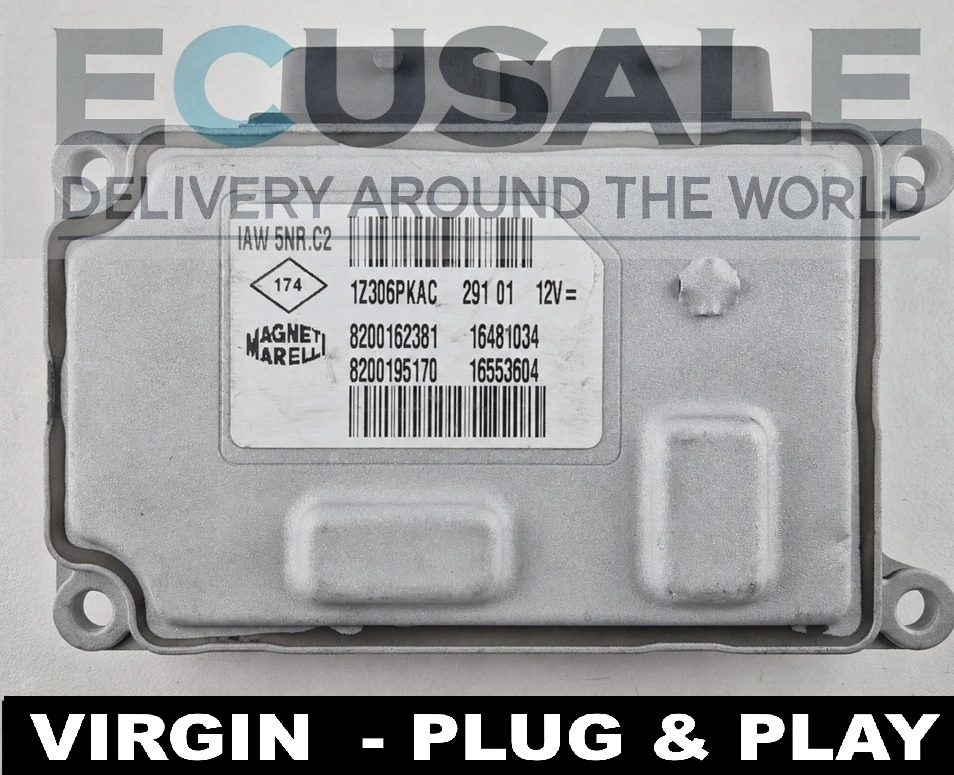

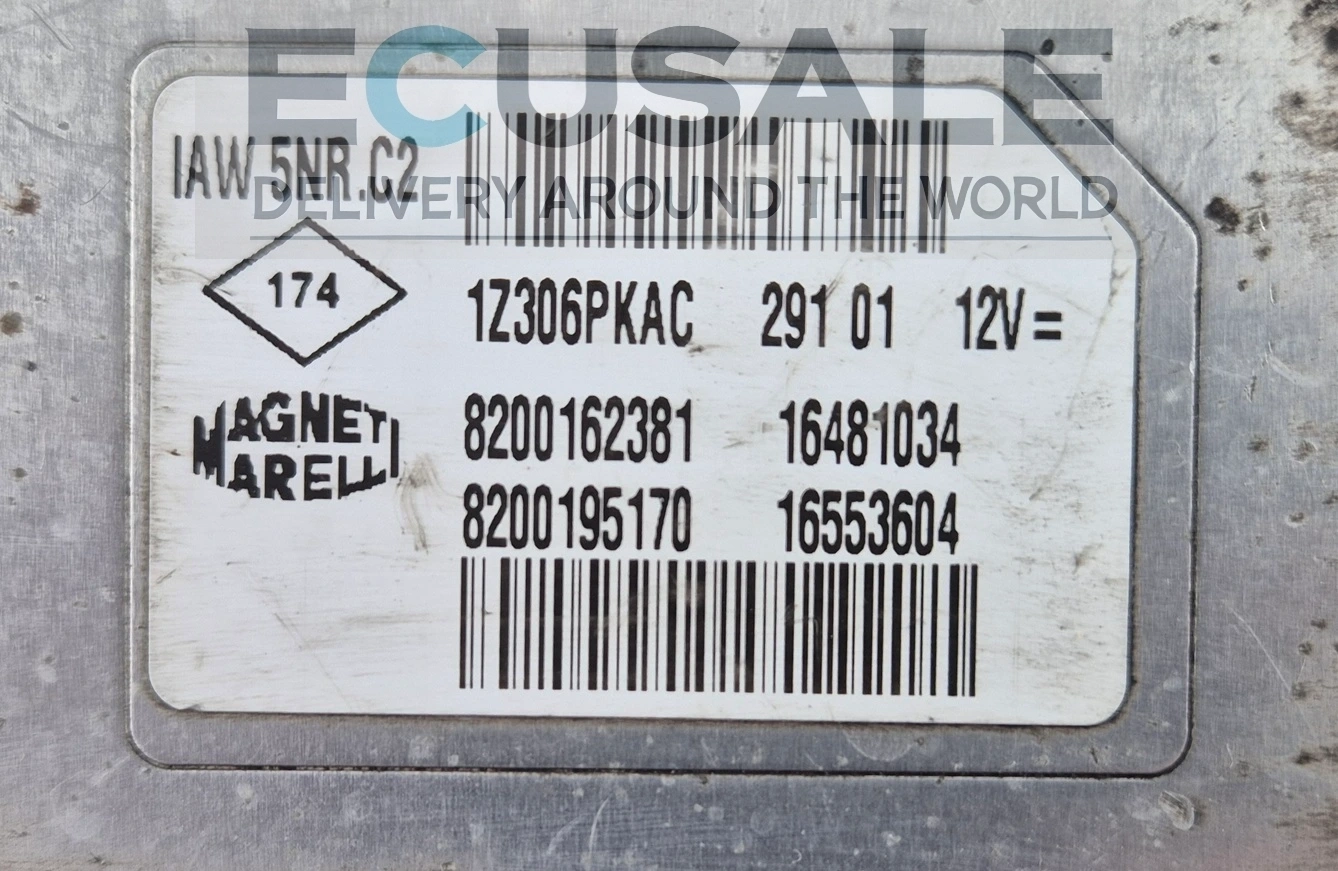

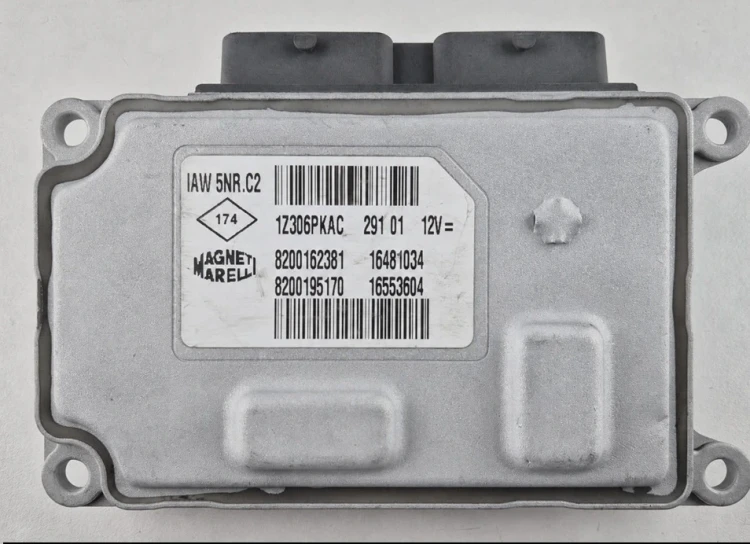

Do the numbers 16481034 and 16553604 have to match my original module?
Yes. It is best to compare the complete set of references shown on the label. The manufacturer numbers help confirm the correct software configuration and ECU version.
What should be checked if the Renault Clio 1.2 16V does not start after replacing the ECU?
Check the battery voltage, ECU power supply and ground connections, connectors, fuses, diagnostic communication, key and immobiliser operation. Make sure that all module part numbers also match.
Can the original 8200195170 control unit be cloned?
Yes, provided that the memory of the faulty module can still be read. Cloning transfers the stored data to the replacement ECU, although it is not normally required with the offered VIRGIN version.
