Compatibility of 8200181482 with Renault Clio II

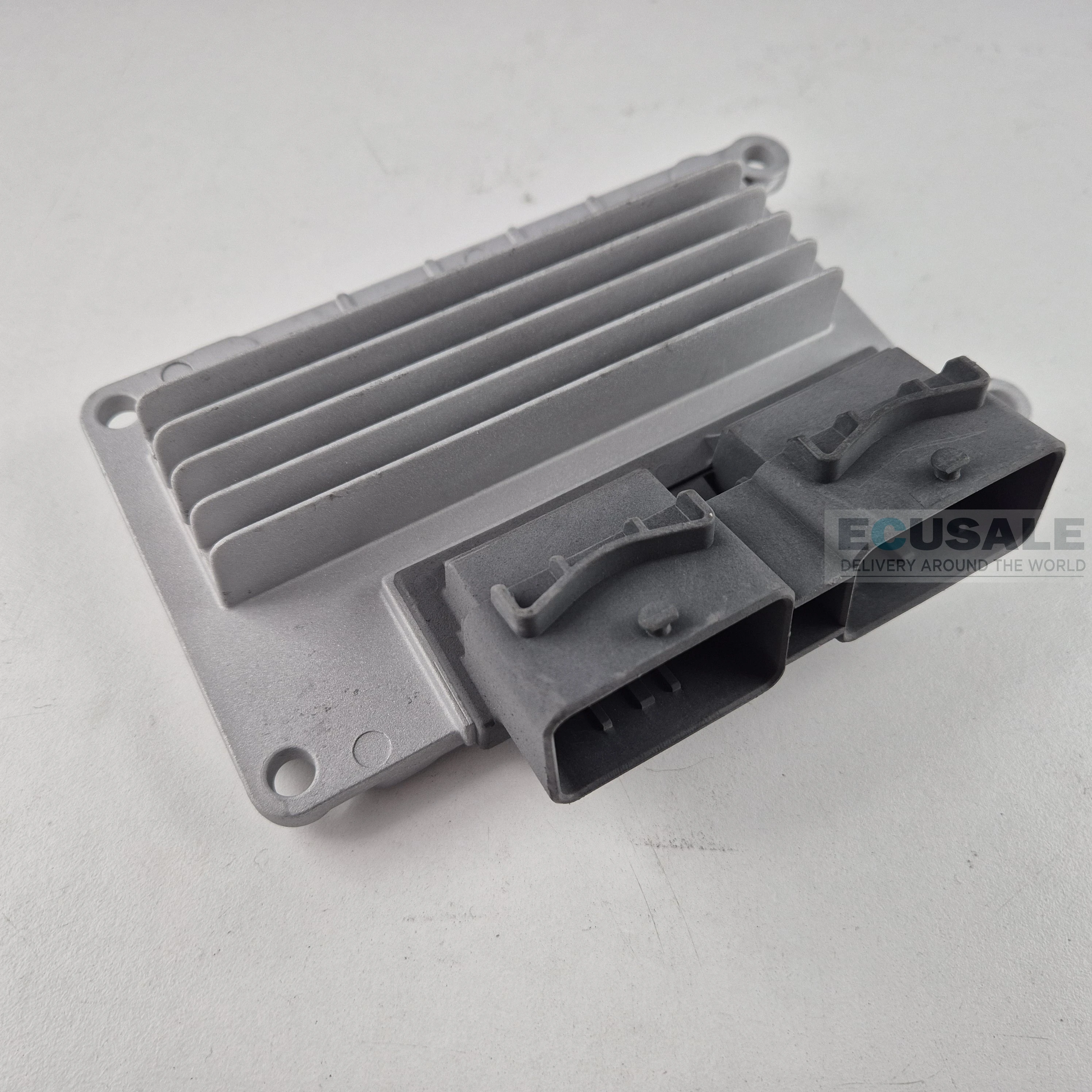

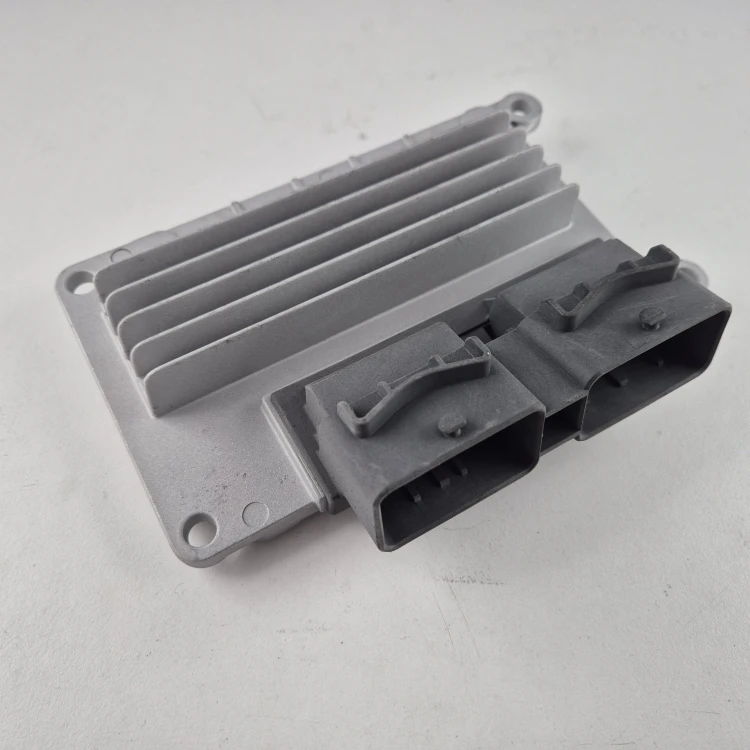

Original Magneti Marelli IAW 5NR2.C2 engine control unit designed for the Renault Clio II 1.2 16V. The module is identified by the part numbers 8200181482, 8200229098, 16481134 and 16553904. The ECU has been thoroughly tested, prepared for installation and is covered by a warranty.
The offered Renault 8200181482 engine control unit is supplied in Virgin plug & play condition. This means that the previous immobiliser data has been cleared. After correct installation, the module automatically pairs with the immobiliser and key already present in the vehicle. There is no need to transfer data from the original ECU.

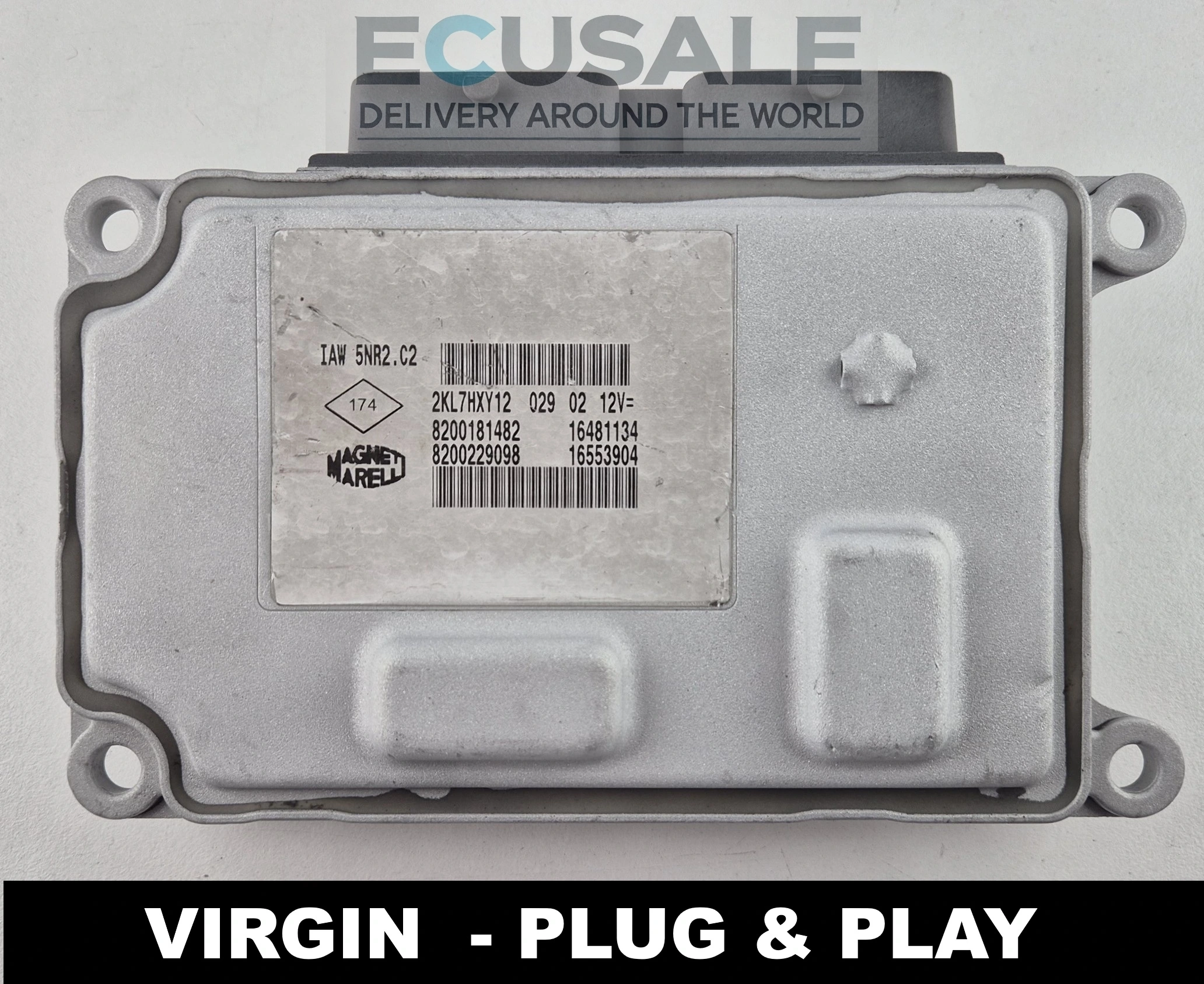

Part numbers shown on the ECU label
- Renault: 8200181482
- Renault: 8200229098
- Magneti Marelli: IAW 5NR2.C2
- Reference: IAW5NR2C2
- Part number: 16481134
- Part number: 16553904
- Calibration reference: 2KL7HXY12
Applications of the IAW 5NR2.C2 engine control unit
This ECU is mainly used in the Renault Clio II 1.2 16V petrol, most commonly manufactured between 2001 and 2006. The module works with 1149 cm³ petrol engines from the D4F family, particularly the D4F 712 version. Depending on the model year and vehicle equipment, control units from the IAW 5NR2 family may also be used with other D4F engine variants.
Before purchasing, compare all important references shown on the original ECU. The main compatibility criteria are the numbers 8200181482, 8200229098 and IAW 5NR2.C2. Matching only the engine capacity or vehicle model does not guarantee correct electronic compatibility.
Possible symptoms of a faulty Renault Clio 1.2 16V ECU
- the engine cranks but does not start,
- there is no diagnostic communication with the engine control unit,
- the vehicle stalls while driving or starts only intermittently,
- the ignition coils or fuel injectors are not being controlled,
- the engine runs unevenly despite correctly functioning sensors and wiring,
- internal ECU or memory faults are stored,
- there is no throttle response or starting problems occur when the engine is warm.
Similar symptoms may also be caused by damaged wiring, an incorrect power supply, poor ground connections, ignition coils, sensors or the UCH module. A complete vehicle diagnosis should be carried out before replacing the ECU.
Tested engine control unit with warranty
Every offered Renault Clio 8200181482 engine control unit is tested before dispatch. We check communication, power supply and the module’s ability to operate correctly. The housing is secured, and the ECU is prepared in Virgin plug & play condition and covered by a warranty.
FAQ about the Renault 8200181482 IAW 5NR2.C2 engine control unit
Is the 8200181482 ECU suitable for a Renault Clio II 1.2 16V?
Yes. The 8200181482 engine control unit is used in selected Renault Clio II versions with the 1.2 16V D4F petrol engine. Before purchasing, also check the 8200229098 and IAW 5NR2.C2 references on the label of the original module.
Does the 8200229098 engine control unit require coding?
The offered 8200229098 engine control unit is prepared in Virgin plug & play condition. After installation, it automatically pairs with the vehicle’s correctly functioning immobiliser, so manual entry of the immobiliser code is not normally required.
What does Virgin mean for an IAW 5NR2.C2 ECU?
Virgin means that the data from the previous vehicle has been removed from the ECU memory. The IAW 5NR2.C2 module behaves like a new control unit and stores the vehicle immobiliser data during the first start.
Do the 16481134 and 16553904 part numbers need to match?
For the safest possible selection, we recommend comparing all numbers shown on the label. The main references for this module are IAW 5NR2.C2, 8200181482, 8200229098, 16481134 and 16553904.
Can the Renault Clio 1.2 16V ECU be installed immediately?
Yes. The control unit has been tested and prepared in Virgin plug & play condition. After installation in a compatible Renault Clio II 1.2 16V, it should automatically pair with the original, correctly functioning vehicle immobiliser.
