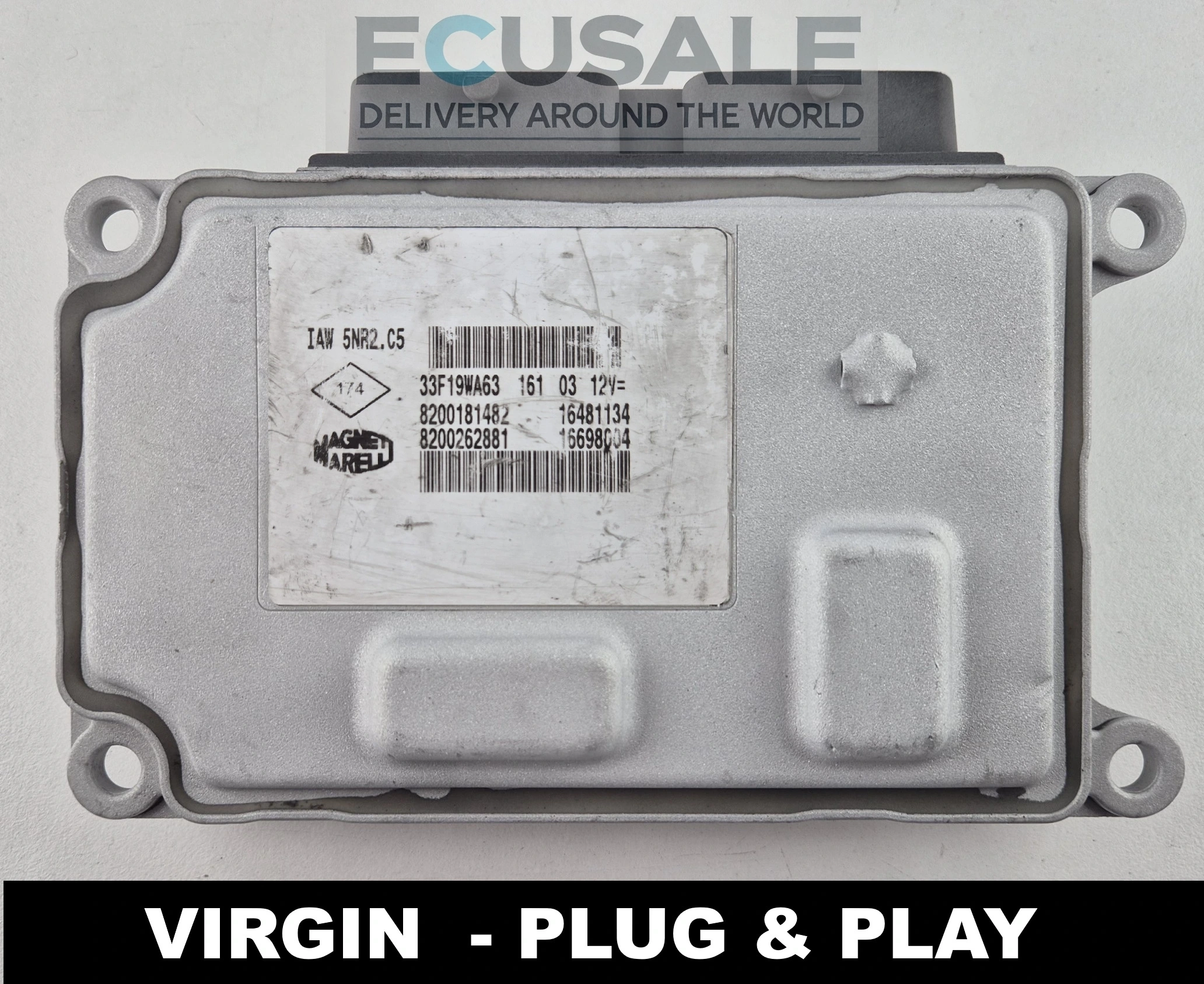

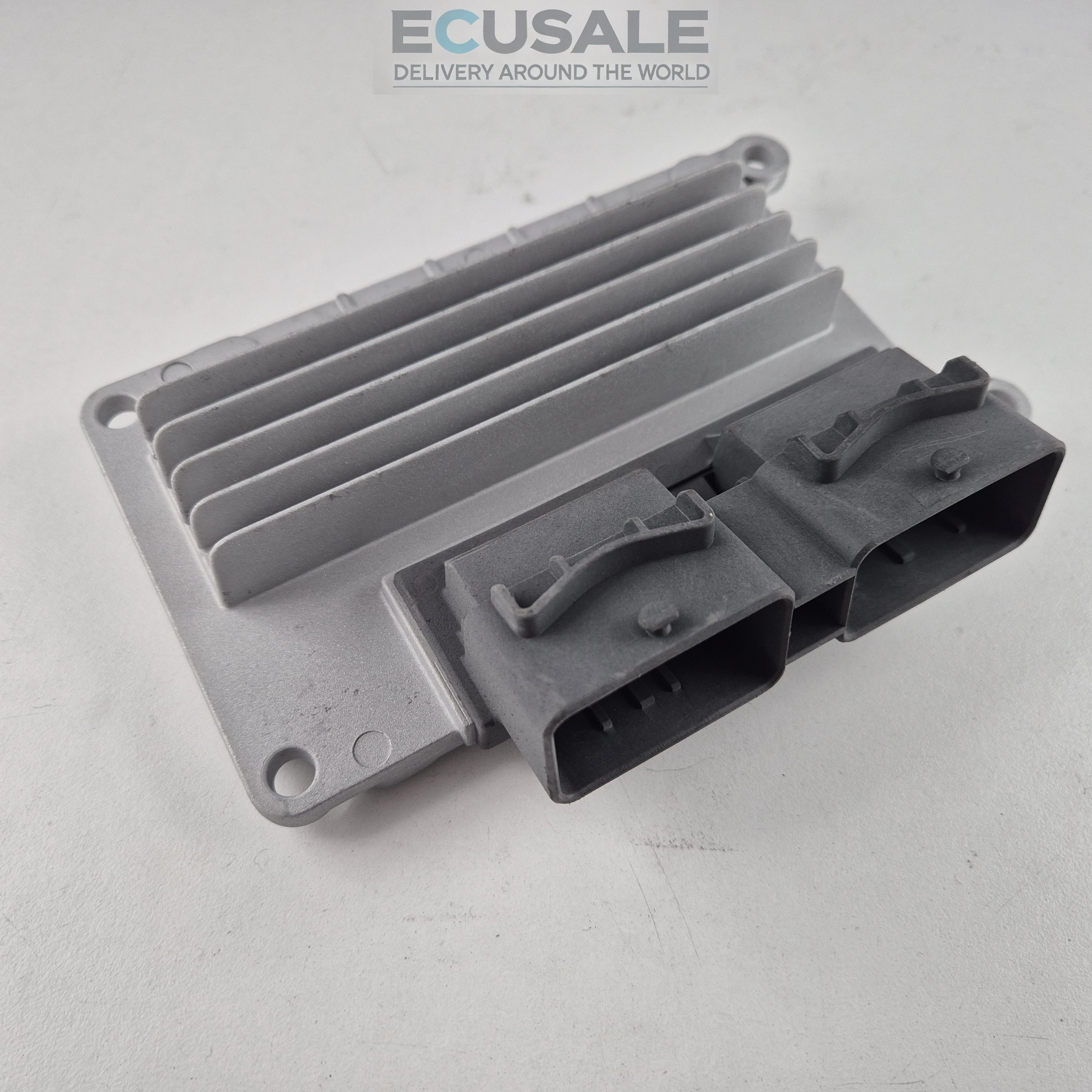

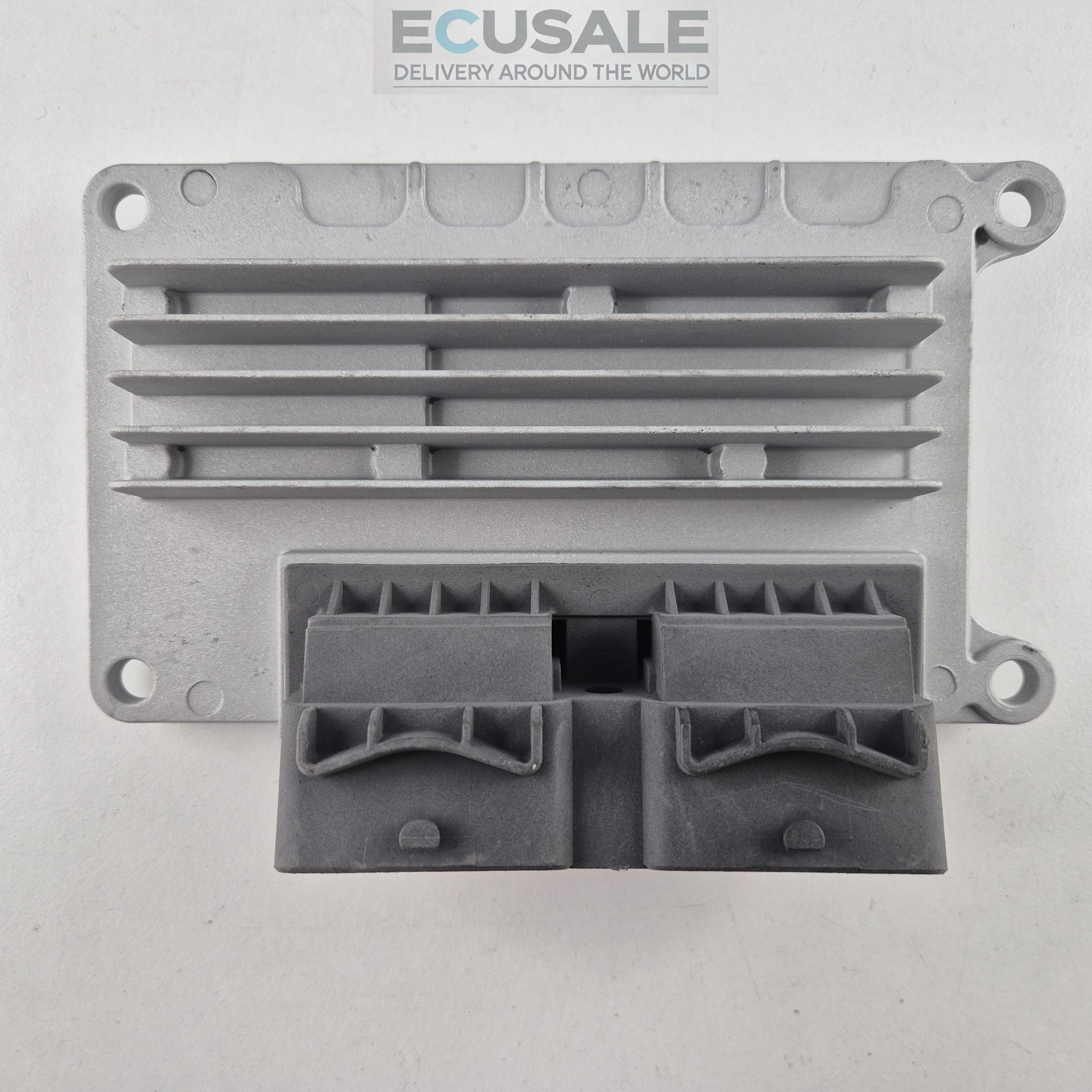

Magneti Marelli IAW5NR2.C5 ECU 8200262881 for Renault 1.2 16V Virgin
Original and fully tested Magneti Marelli IAW 5NR2.C5 engine control unit designed for selected Renault models with a 1.2 16V petrol engine. The module carries the part numbers 8200181482, 8200262881, 16481134 and 16698004. Every ECU is tested, prepared for operation and supplied with a warranty.
The offered Renault 8200262881 engine ECU has been prepared as a Virgin Plug & Play unit. This means that the previous immobiliser data has been removed. After correct installation, the ECU automatically synchronises with the vehicle’s original immobiliser and key. There is no need to copy data from the old ECU.
Applications of the IAW 5NR2.C5 ECU
This engine control unit is used in selected versions of the following vehicles:
- Renault Clio II 1.2 16V
- Renault Kangoo I 1.2 16V
- Renault Twingo I 1.2 16V
- D4F 1.2 16V petrol engines
- engine capacity of 1149 cm³
- most commonly vehicles manufactured between approximately 2001 and 2006.

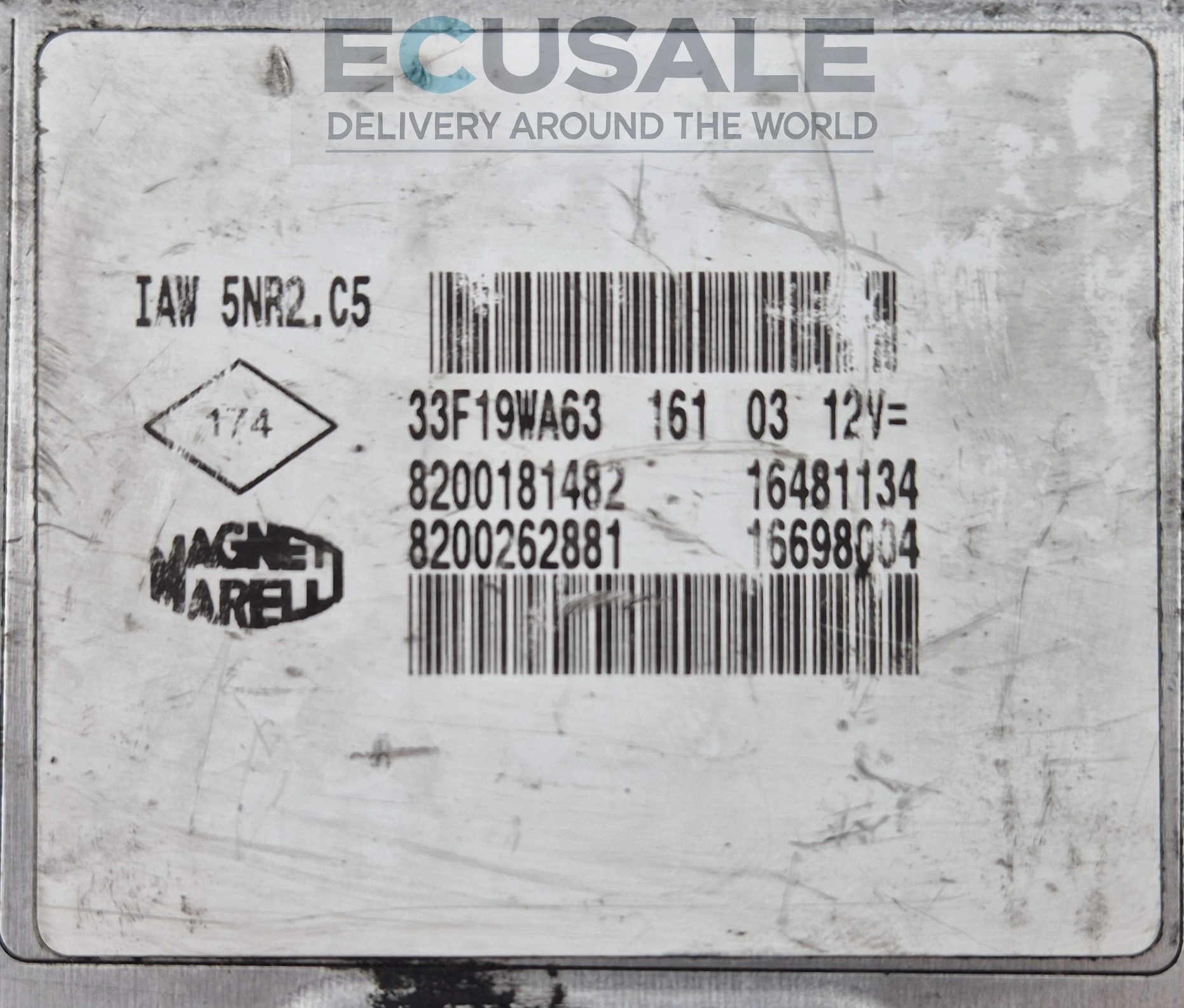

When selecting the correct ECU, compare the IAW 5NR2.C5 designation and the part numbers 8200181482, 8200262881, 16481134 and 16698004. The vehicle model or engine capacity alone does not guarantee compatibility, as Renault used several ECU variants from the same family.
Possible symptoms of a faulty ECU
- the engine does not start,
- no communication with diagnostic equipment,
- no control signal to the ignition coils or fuel injectors,
- the engine stalls while driving,
- uneven engine operation,
- the check engine light does not illuminate after the ignition is switched on,
- internal ECU faults.
Before replacing the module, it is advisable to check the electrical system, power supply, ground connections, ignition coils, immobiliser and engine wiring harness. A fault in the vehicle’s electrical system can cause symptoms similar to those of a defective ECU.
FAQ – Renault 8200181482 8200262881 IAW 5NR2.C5 ECU
Is the 8200262881 ECU compatible with the Renault Clio II 1.2 16V?
Yes, the 8200262881 part number is used in selected Renault Clio II versions fitted with a 1.2 16V D4F engine. Before purchasing, also compare the 8200181482 reference and the IAW 5NR2.C5 designation.
Does the 8200181482 engine ECU require programming?
No. The offered control unit has been prepared as a Virgin Plug & Play module and automatically synchronises with the vehicle’s immobiliser after correct installation.
Which Renault models use the IAW 5NR2.C5 ECU?
The IAW 5NR2.C5 ECU is found in selected Renault Clio II, Kangoo I and Twingo I models with a 1.2 16V D4F petrol engine. Compatibility is determined primarily by the part numbers shown on the ECU label.
What do the 16481134 and 16698004 references mean?
These are Magneti Marelli manufacturer references. They should be compared together with the Renault part numbers 8200181482 and 8200262881 to ensure that the correct ECU is selected.
Is it necessary to send the old ECU?
No. The ECU has been prepared in Virgin condition and does not require data to be copied from the original control unit.
Full range in this group: Renault Engine Control Units (ECUs).
