Magneti Marelli ECU 8200254494 for Renault Clio II 1.2 16V – Virgin Plug & Play
Original and fully tested Magneti Marelli IAW 5NR2.C2 engine control unit designed for selected Renault Clio II 1.2 16V models. The ECU carries the part numbers 8200254494, 8200181482, 16481134 and 16553134. The module has been tested, prepared for installation as a Virgin Plug & Play unit and is supplied with a warranty.

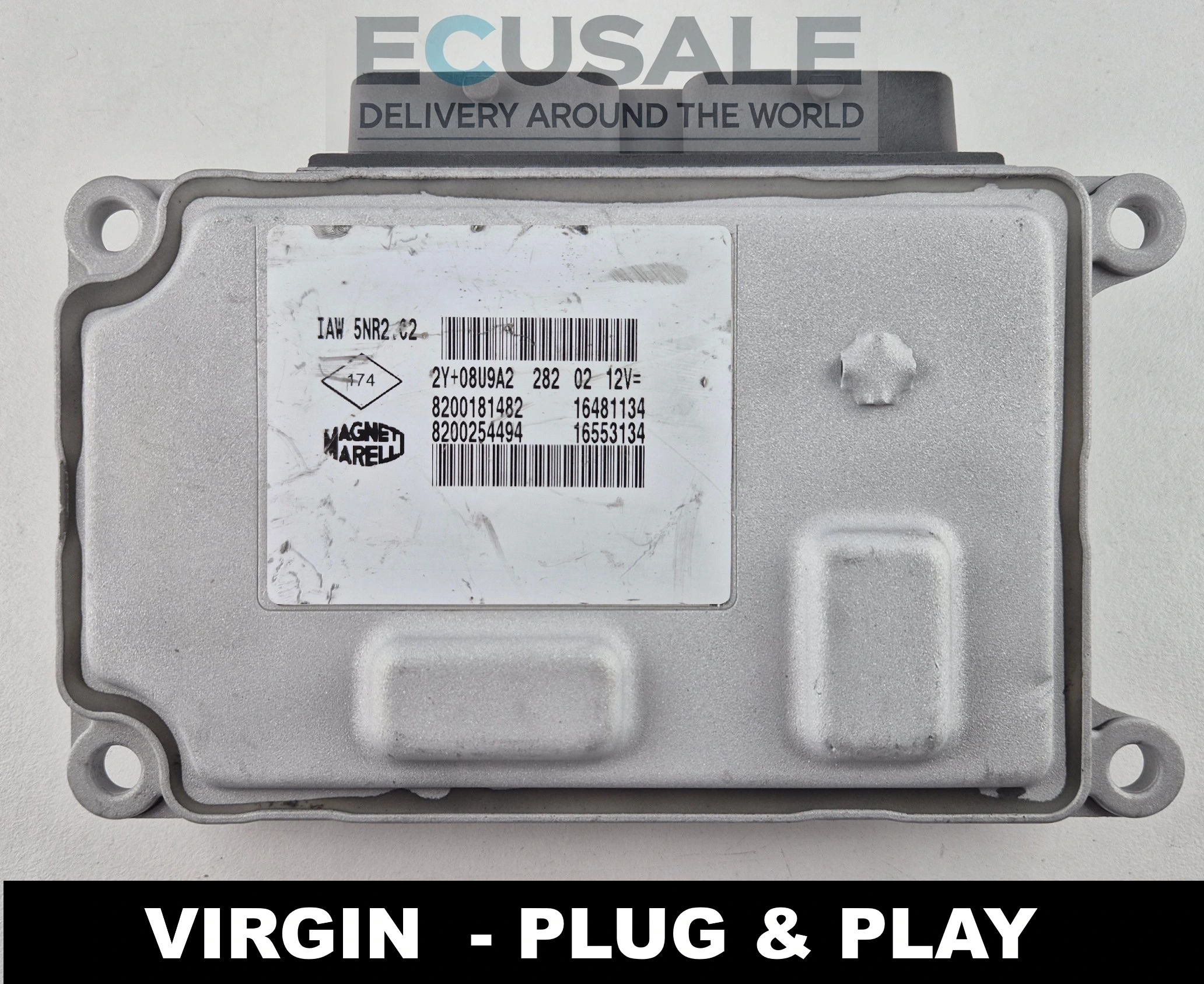

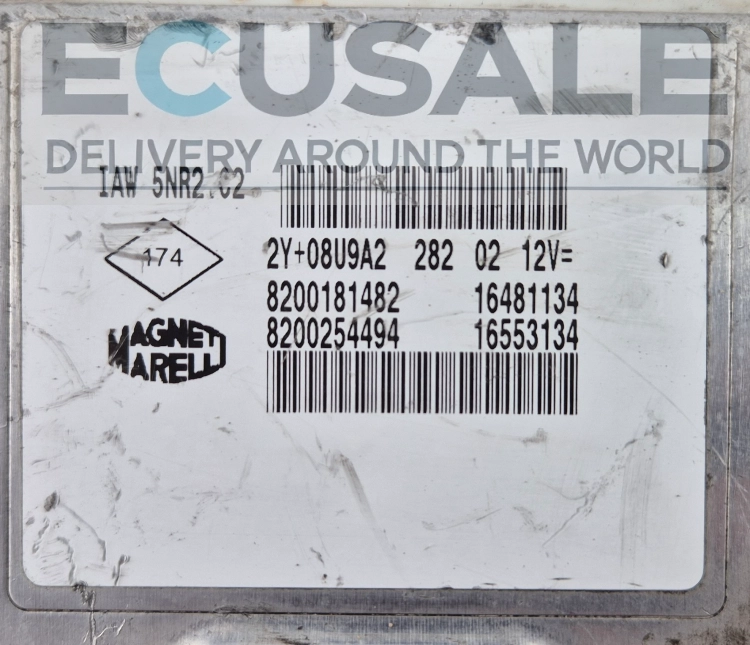

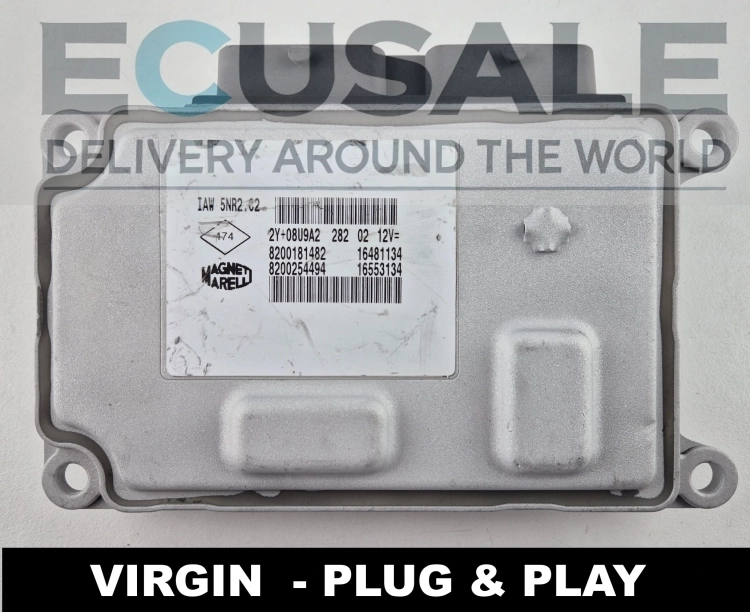

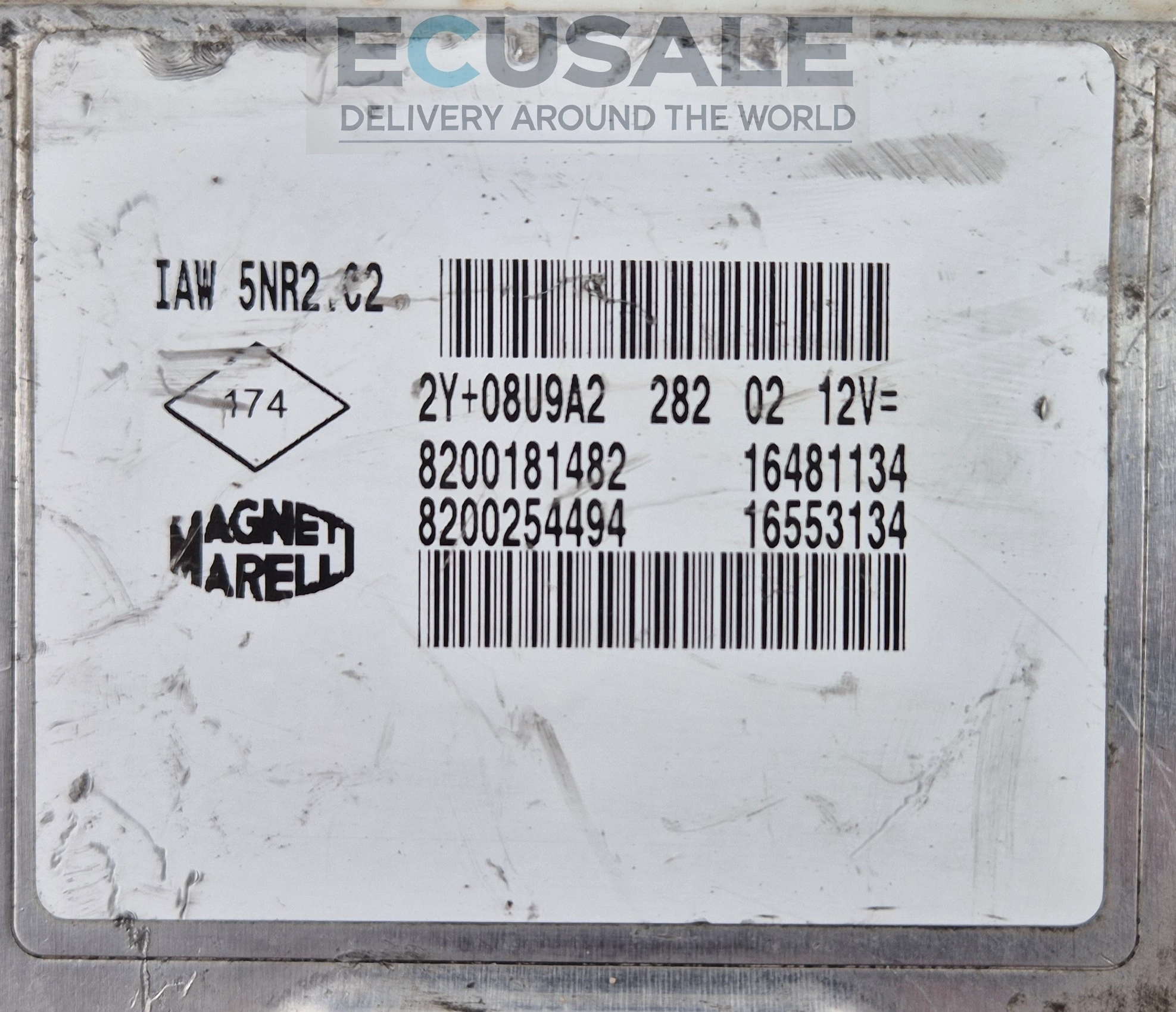

Part numbers shown on the ECU label
- 8200254494 – Renault part number,
- 8200181482 – module identification number,
- IAW 5NR2.C2 / IAW5NR2C2 – Magneti Marelli ECU type,
- 16481134 – manufacturer reference,
- 16553134 – ECU version number,
- 2Y+08U9A2 – additional reference shown on the label.
Before purchasing, compare all part numbers with those shown on the ECU removed from the vehicle. The most reliable match is provided by identical references 8200254494, 8200181482 and IAW 5NR2.C2. The vehicle model, year of manufacture or engine capacity alone are not sufficient to select the correct engine control unit.
Applications of the 8200254494 IAW 5NR2.C2 ECU
This ECU is mainly used in selected Renault Clio II 1.2 16V petrol versions, most commonly manufactured between 2000 and 2004. The module works with the 1149 cm³ engine from the D4F family, particularly the D4F 712 engine.
- Renault Clio II 1.2 16V – D4F 712 petrol engine,
- Renault Kangoo I 1.2 16V – selected versions fitted with a D4F engine,
- vehicles equipped with a Magneti Marelli IAW5NR2.C2 engine control unit,
- vehicles with matching 8200181482 and 8200254494 part numbers.
The 8200254494 reference may also be found in other Renault equipment versions. Final compatibility must always be confirmed by comparing the complete set of numbers on the original engine ECU label.
Possible symptoms of a faulty Renault Clio 1.2 16V ECU
- the engine cranks but does not start,
- the vehicle occasionally cuts out while driving,
- no diagnostic communication with the ECU,
- no control signal to the ignition coils or fuel injectors,
- difficulty starting the engine when warm,
- uneven engine operation despite working sensors and ignition components,
- internal ECU memory faults,
- no response from the throttle body or accelerator pedal.
Similar symptoms may also be caused by damaged wiring, missing power supply, poor ground connections, a faulty UCH module, a defective crankshaft position sensor or an ignition system fault. A complete vehicle diagnosis is recommended before replacing the engine control unit.
Tested engine control unit with warranty
Every 8200181482 IAW 5NR2.C2 engine ECU is inspected before being prepared for sale. We test diagnostic communication, power supply and module operation. The ECU is protected, prepared as a Virgin Plug & Play unit and ready for installation in a compatible vehicle.
FAQ – 8200254494 ECU for Renault Clio II 1.2 16V
Is the 8200254494 ECU compatible with the Renault Clio II 1.2 16V?
Yes, the 8200254494 engine control unit is used in selected Renault Clio II 1.2 16V models with a D4F petrol engine. Before purchasing, also confirm that the references 8200181482, 16481134, 16553134 and IAW 5NR2.C2 match the original module.
Does the IAW5NR2.C2 ECU require programming after installation?
The offered IAW5NR2.C2 module is prepared as a Virgin Plug & Play unit. After installation, it automatically pairs with the vehicle’s working immobiliser during the first start-up procedure.
Does the 8200181482 engine control unit work with the D4F 712 engine?
Yes, the 8200181482 8200254494 ECU is used in selected Renault vehicles fitted with the 1.2 16V D4F 712 petrol engine. However, the complete set of references on the ECU label must still match.
What does Virgin mean for the Renault Clio 8200254494 ECU?
Virgin means that the immobiliser data from the previous vehicle has been removed. This allows the 8200254494 IAW 5NR2.C2 ECU to automatically store the immobiliser data of the vehicle in which it is installed for the first time.
Are the 16481134 and 16553134 numbers important when selecting the ECU?
Yes. The 16481134 and 16553134 references identify a specific Magneti Marelli module version. For the best possible match, compare them together with the IAW 5NR2.C2, 8200181482 and 8200254494 references.
You will find other numbers in the Renault Engine Control Units (ECUs) category.
