Renault Clio engine control unit 8200181482 8200232132 IAW 5NR2.C2
This Magneti Marelli IAW 5NR2.C2 engine control unit has been prepared in a VIRGIN Plug & Play version. It is intended for selected Renault Clio models with a 1.2 16V petrol engine and automatically synchronises with the vehicle’s immobiliser system during the first correct installation.
Applications of the IAW 5NR2.C2 control unit
- Renault Clio II hatchback,
- selected versions manufactured approximately between 2001 and 2006,
- 1.2 16V petrol engine from the D4F family,
- selected versions equipped with the Magneti Marelli IAW 5NR2.C2 engine control unit.

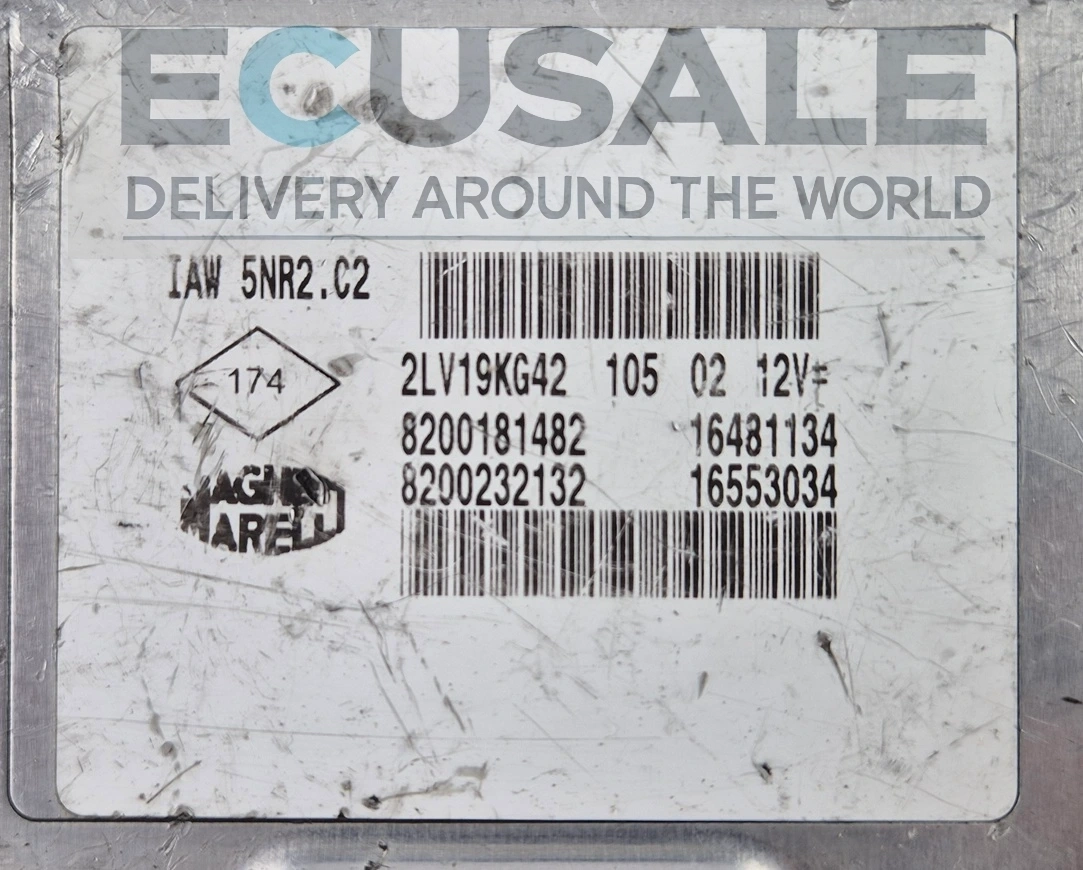

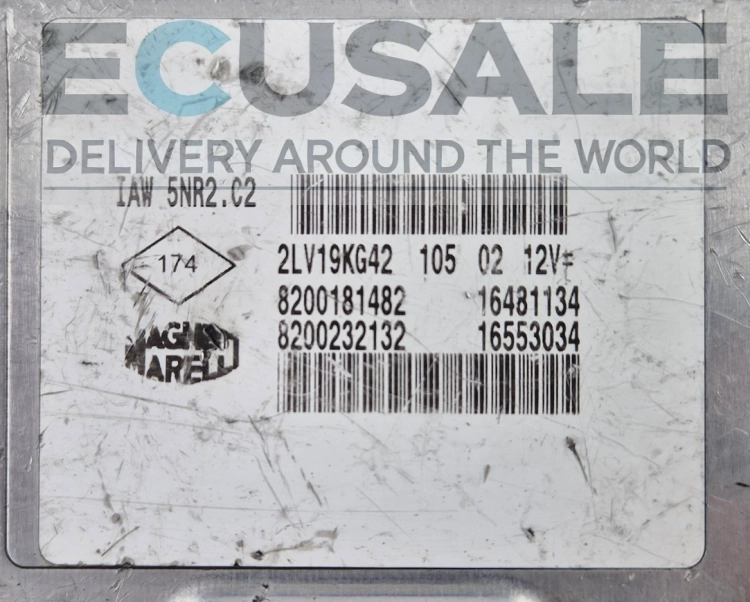

Before purchasing, compare all numbers shown on the original module. The control unit should carry references matching 8200181482, 8200232132, 16481134, 16553034 and the designation IAW 5NR2.C2. The vehicle model, engine capacity or year of manufacture alone is not sufficient to confirm compatibility.
Common symptoms of a faulty engine control unit
A defective ECU can cause various starting and engine operation problems. Possible symptoms include:
- the engine does not start despite a fully functional battery and starter motor,
- no diagnostic communication with the engine control unit,
- rough engine operation or unexpected stalling,
- no control of the ignition coils or fuel injectors,
- an illuminated engine warning light and fault codes that cannot be permanently cleared,
- starting problems that occur after the engine or control unit has warmed up.
Similar symptoms may also be caused by faults in the wiring, ignition coils, sensors, power supply or immobiliser system. A complete vehicle diagnosis is recommended before replacing the ECU.

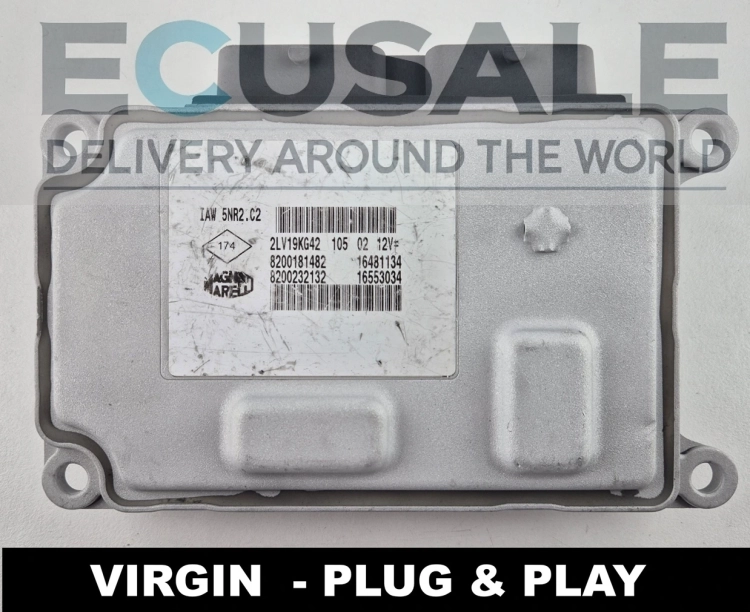

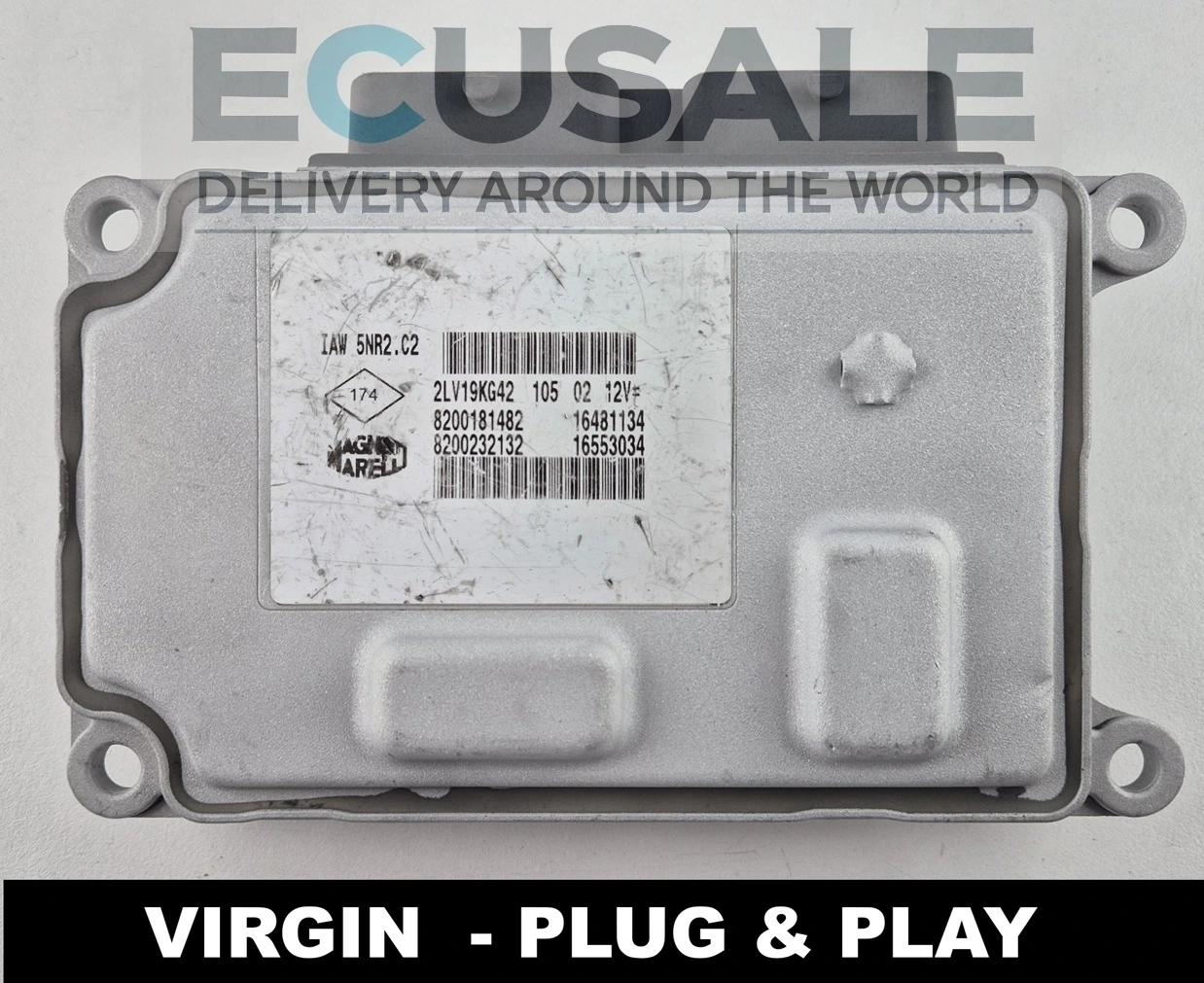

Programming and preparation of the VIRGIN Plug & Play module
The control unit has been prepared as VIRGIN, which means that the immobiliser data from the previous vehicle has been removed. It is not a standard used and locked module that requires the complete security set from the donor vehicle.
Once installed in a compatible vehicle, the ECU automatically synchronises during the first start and stores the vehicle’s immobiliser data. Under normal circumstances, there is no need to clone the contents of the old ECU or manually enter a code from the donor vehicle.
- install the control unit with the ignition switched off,
- make sure the vehicle battery is fully charged,
- the key and original immobiliser system must be working correctly,
- the module numbers must match those of the original control unit,
- attempt the first start only after all connectors have been fitted correctly.
After the first successful synchronisation, the module becomes assigned to the vehicle. Using it in another vehicle may require the memory to be reset again. Cloning the original control unit is a separate service and is only required when demanded by a specific vehicle version or equipment configuration.
Frequently asked questions
Does the 8200181482 ECU fit every Renault Clio 1.2 16V?
No. The reference 8200181482 was used with several Magneti Marelli ECU variants. You must also compare the number 8200232132, the IAW 5NR2.C2 designation and the remaining references shown on the original module label.
Does the IAW 5NR2.C2 ECU require coding after installation?
The offered module has been prepared as VIRGIN Plug & Play. During the first correct installation, it automatically synchronises with the Renault immobiliser system and stores the data required to start the vehicle.
Does the 8200232132 ECU need to be cloned from the original module?
Cloning the old control unit is not normally required with a VIRGIN module. The ECU prepared for first installation retrieves and stores the vehicle’s immobiliser data during synchronisation.
Is the Magneti Marelli 16481134 and 16553034 compatible with the 1.2 16V D4F engine?
This control unit was used in selected Renault Clio II vehicles with the 1.2 16V engine from the D4F family. Exact compatibility must be confirmed using the complete set of numbers from the original ECU, as different module versions were used with the same engine.
What should be checked if the Renault Clio does not start after replacing the ECU?
Check the ECU part numbers, battery condition, power supply and ground connections, fuses, wiring, key and immobiliser operation. An unsuccessful first synchronisation may be caused by a fault elsewhere in the vehicle rather than by the engine control unit itself.
