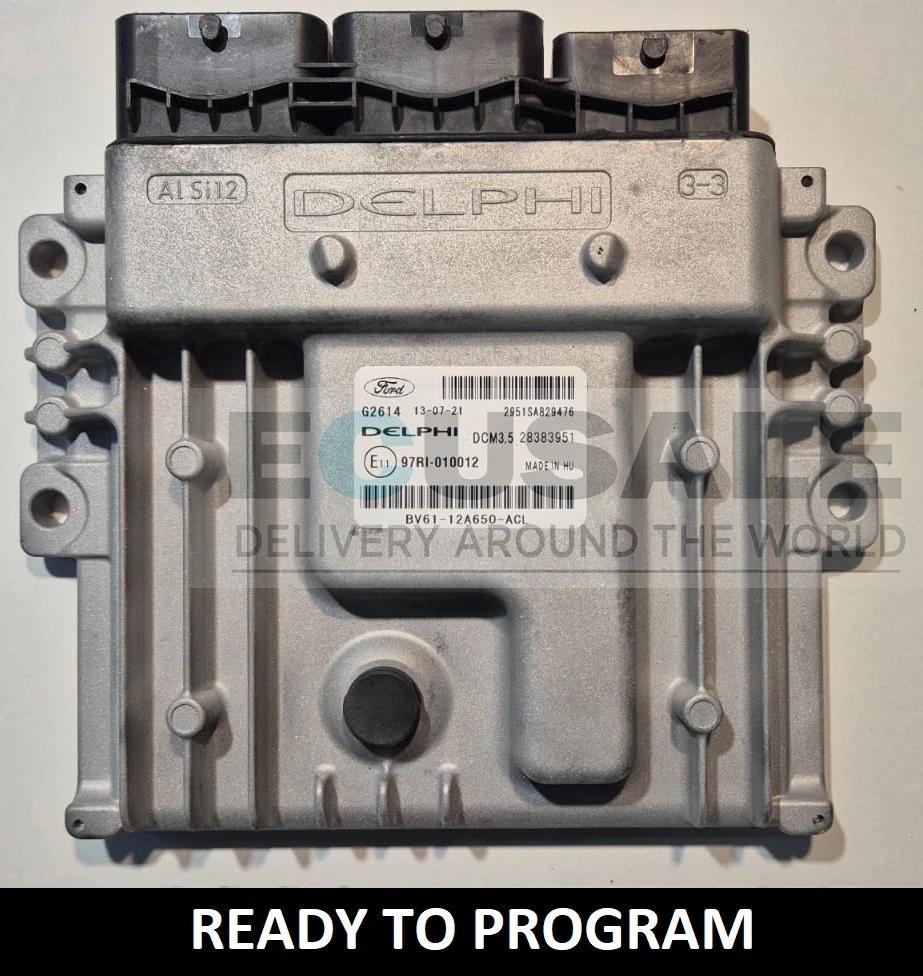

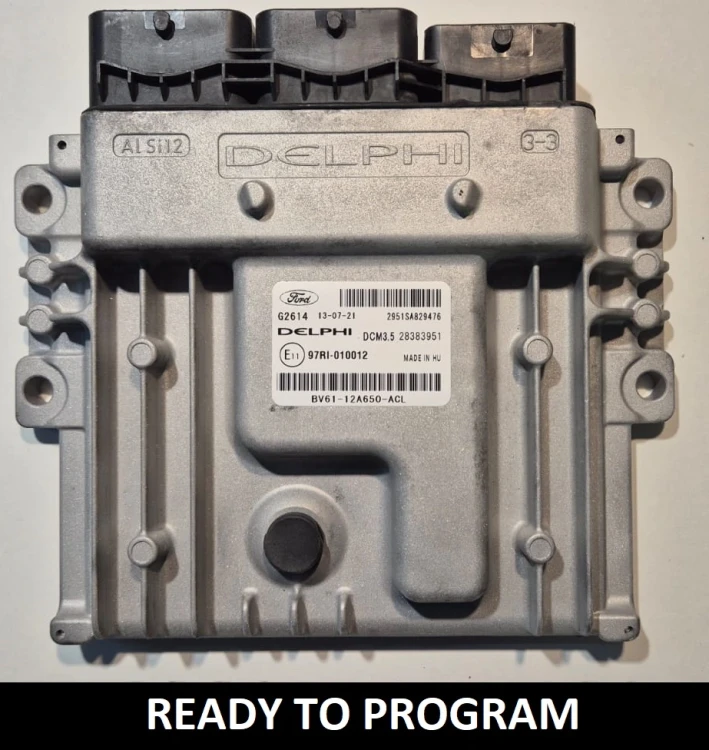

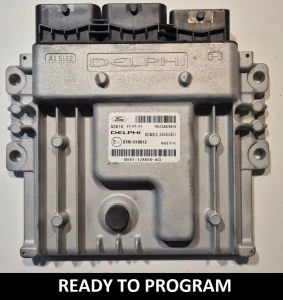

BV61-12A650-ACL / 28383951 – Ford TDCi (most often 2.0 TDCi) engine control unit
We offer an ECU from the Delphi DCM3.5 family, marked with Ford number BV61-12A650-ACL and Delphi number 28383951. It was fitted to Fords with the TDCi (most often 2.0 TDCi) engine. Before we ship the ECU, we check that it works.
Vehicle compatibility
ECU BV61-12A650-ACL may have been fitted to different Ford models, so compatibility is decided by the numbers on the label, not by the model and year of the car. Compare Ford number BV61-12A650-ACL and number 28383951 with your ECU. If in doubt, send us a photo of the label before buying.
Typical symptoms of a faulty DCM3.5 ECU
A damaged ECU can stop the engine from starting because the injectors receive no signal. The tester then cannot connect to the unit, and a measurement may show no power at the ECU despite good fuses. The failure can follow water ingress or a short circuit in the wiring.
The same symptoms can, however, come from a fault in the harness, power supply or sensors, so run a diagnosis before you buy an ECU.
What happens after purchase
Once you have placed your order, send us the car’s VIN. We prepare the ECU with data from the Ford server and load the latest software – this service costs nothing extra.
The ECU is not plug & play. After fitting, the keys and VIN must be assigned in the PATS procedure using FORScan or Ford IDS. The warranty is 6 months.
Numbers on the label
- Ford number: BV61-12A650-ACL / BV6112A650ACL
- Delphi number: 28383951
- ECU type: Delphi DCM3.5
Before fitting, it is worth reading our guide Ford DCM3.5 ECU replacement and VIN programming. If your ECU has a different number, check BV61-12A650-ACK (28371084), BV61-12A650-ACJ (28367353), BV61-12A650-ACF (28324830), BV61-12A650-ACE (28305898) or the whole Ford DCM3.5 ECU collection. About the manufacturer: Delphi.
Full range in this group: Ford Engine Control Units (ECUs).
Frequently asked questions about ECU BV61-12A650-ACL 28383951
Does ECU BV61-12A650-ACL fit my Ford?
Check the label of your ECU: Ford number BV61-12A650-ACL and number 28383951. The same number is used in several Ford models, so the number decides, not the model and year.
|
Can I just fit ECU BV6112A650ACL and start the car?
No. The ECU is not plug & play – after fitting, PATS programming is needed, which means assigning the keys and VIN with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU BV61-12A650-ACL myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
