What is behind part number 55245644?

Original Magneti Marelli control unit for the C635 DDCT dual-clutch gearbox – application: Fiat 500X MultiAir. Choose it by numbers 55245644 and CFC8TDW.01 on the label – no programming needed.

Go to full description

💳 Secure Payments

Stripe, PayPal, Google Pay, Apple Pay, BLIK, and all major credit and debit cards.

🚚 UPS Shipping Across Europe

Delivery within the European Union typically takes 2–3 business days.

🌍 Worldwide UPS Shipping

Worldwide delivery usually takes 4–7 business days.

Technical specifications

Vehicle Make and Model Fiat 500X MultiAir
Engine type MultiAir
Manufacturer Magneti Marelli
OEM Part Number 55245644
Manufacturer Part Number BC.0112522.A / BC0112522A / CFC8TDW.01 / CFC8TDW01 / CFC 8TDW.01
Part Number 55245644 / CFC8TDW.01
Module Type Gearbox control unit (TCU) Magneti Marelli CFC8TDW.01
Condition Second hand product
Warranty 6 months
Payment Methods Credit Card , Bank Transfer , PayPal
Express Delivery within the EU European Union 2-3 working days
International Delivery Outside the EU Worldwide 4-7 working days

Manufacturer

Marelli Europe S.p.A.

Viale Aldo Borletti 61/63

20011 Corbetta (MI), Italy

+39 02 97227111 customercare@marelli.com

Responsible person in the EU

AUTO-ELEKTRONIKA DAMIAN SOSNOWSKI

Lelowska 20

42-235 Biała Wielka, Poland

+48888638546 sale@ecusale.com Report a product safety issue

Importer

AUTO-ELEKTRONIKA DAMIAN SOSNOWSKI

20 Lelowska

42-235 Biała Wielka, Poland

+48888638546 sale@ecusale.com

Compatibility of 55245644 with Fiat 500X MultiAir

Original, used Magneti Marelli control unit for the C635 DDCT dual-clutch gearbox. The key numbers to compare are 55245644 and CFC8TDW.01. Every unit is bench-tested before shipping.

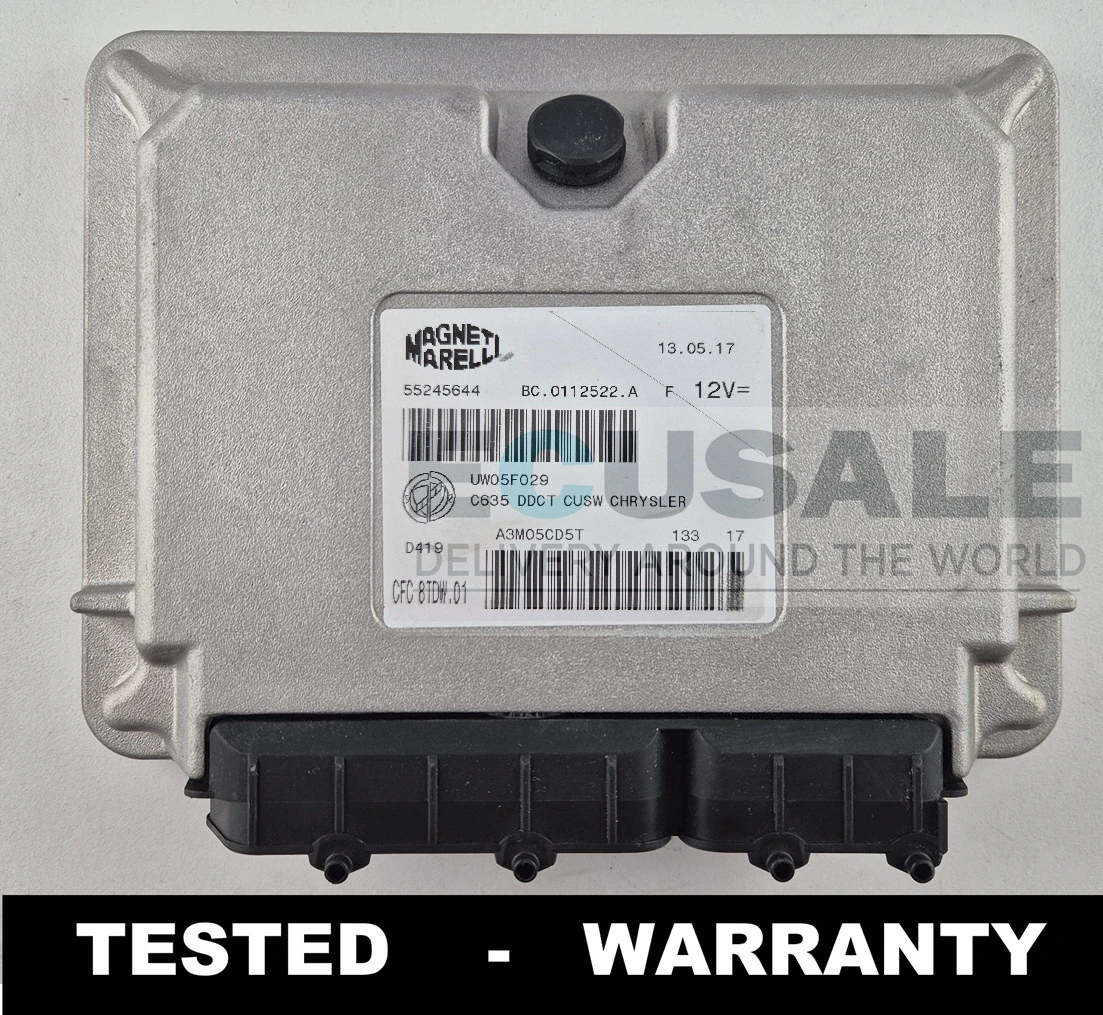

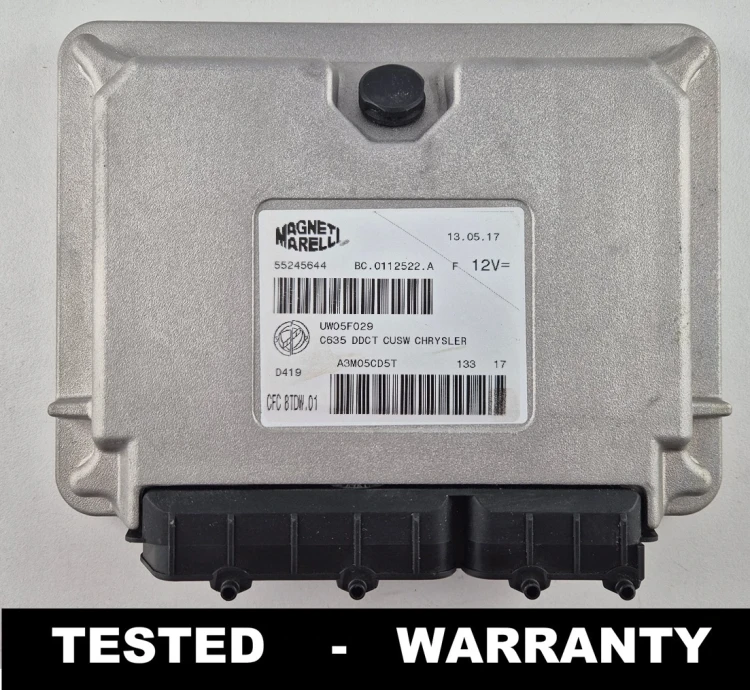

Numbers on the label

Label	Number (different formats)
Fiat number	55245644
BC code	BC.0112522.A / BC0112522A
Control unit type	CFC8TDW.01 / CFC8TDW01 / CFC 8TDW.01
Label code	UW05F029
Label code	A3M05CD5T
Application code	C635 DDCT CUSW

Application

Confirmed application of this number: Fiat 500X MultiAir. The list is not closed: if your car is missing, it may still fit, and a listed model is no guarantee. What matters is that numbers 55245644 and CFC8TDW.01 match the label of your original unit – a different ending of the number means a different version. The label carries the application code: C635 DDCT CUSW.

Other versions in stock

Similar control units with different numbers – the number on your label decides: 55246930 / CFC319F.03, 51864449 / CFC328F.05, 51800536 / CFC228F.04, 55271242 / CFC328F.13, 55201376 / CFC208F.09.

Fitting

The module does not need programming. Before ordering, compare the numbers with the label of your unit.

Symptoms of a faulty gearbox control unit

the gearbox goes into limp mode,
no communication with the gearbox control unit in diagnostics,
gearbox warning light or fault message,
the gearbox will not engage a gear or stays in neutral (N).

Similar symptoms can be caused by the clutch or gear-shift actuator, so a gearbox diagnosis before buying is worthwhile.

Warranty and contact

The control unit comes with a 6-month warranty. More control units: Fiat Transmission Control Units (TCU). Question about a number? Contact us.

Frequently asked questions about control unit 55245644

Question	Answer
How do I check whether the unit fits my car?	Compare numbers 55245644 and CFC8TDW.01 with the label of your unit – they must match, including the ending.
Does the module need programming?	No, the module does not need programming.
Which cars does this control unit fit?	Confirmed application: Fiat 500X MultiAir. The label number has the final say.
Is this a dual-clutch gearbox control unit?	Yes – the C635 DDCT is an electronically controlled 6-speed gearbox with two clutches. It is not a torque-converter automatic.
