Gearbox control unit 55201376 CFC208F.09 for Fiat / Lancia Ypsilon 1.3 JTD Selespeed

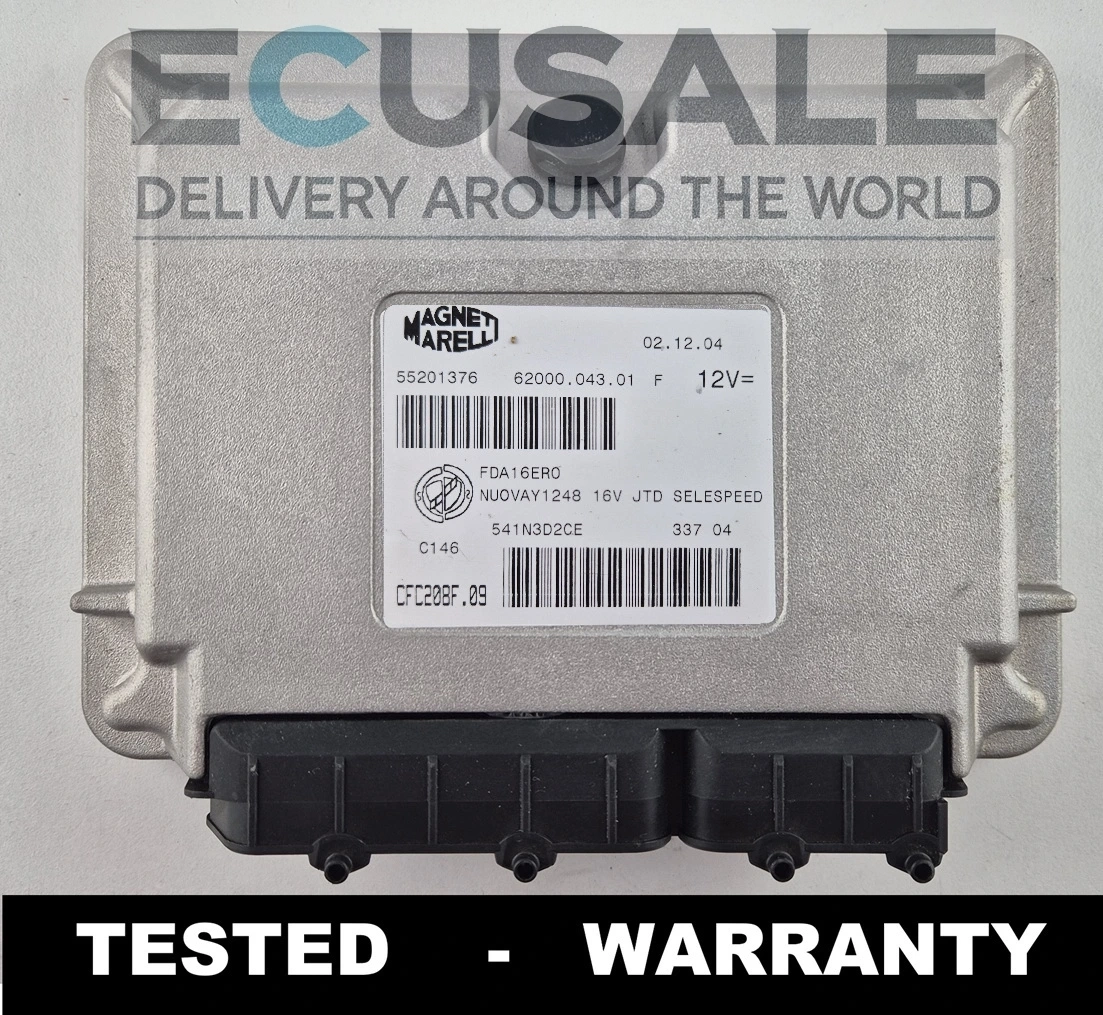

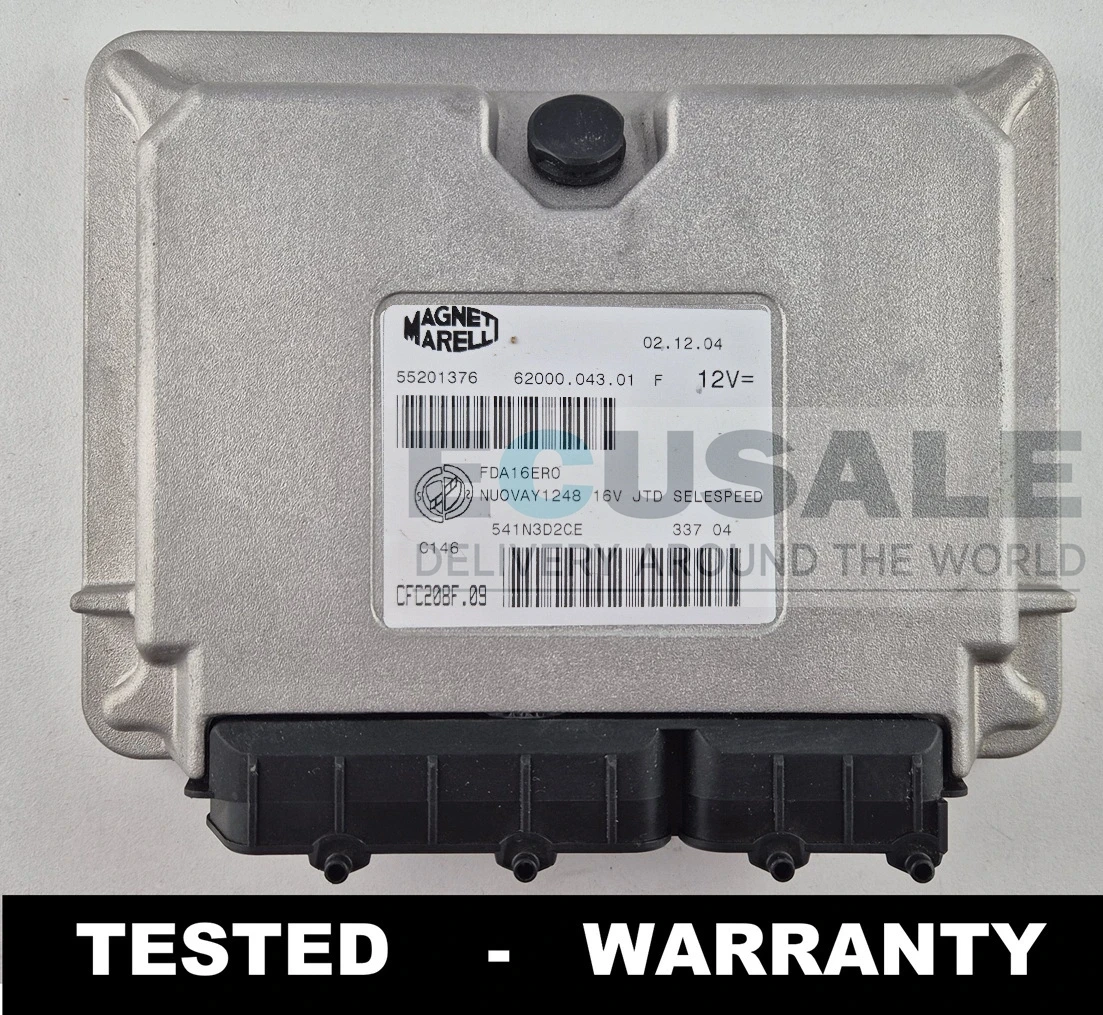

Original Magneti Marelli gearbox control unit for Lancia Ypsilon / Nuova Ypsilon with 1.3 JTD 1248 cm³ 16V engine and Selespeed gearbox. The module has the following numbers on the label: 55201376, 62000.043.01, CFC208F.09, FDA16ER0, 541N3D2CE and the marking NUOVAY1248 16V JTD SELESPEED. The control unit has been fully checked, prepared for installation and is covered by warranty.
Application and compatibility
The 55201376 CFC208F.09 control unit is used in selected versions of the Lancia Ypsilon with 1.3 JTD / 1.3 Multijet 16V diesel engine and Selespeed automated gearbox. It is most commonly found in model years around 2003–2006, depending on the vehicle version, market and equipment.
- Lancia Ypsilon / Nuova Ypsilon – 1.3 JTD 16V
- engine capacity: 1248 cm³
- gearbox: Selespeed
- possible engine code: 188A9000, depending on the vehicle version
- control unit manufacturer: Magneti Marelli
Before purchase, the numbers on the old control unit should be compared. The most important compatibility references are 55201376, 62000.043.01, CFC208F.09 and the description NUOVAY1248 16V JTD SELESPEED.
Common symptoms of a faulty 55201376 control unit
- gears cannot be engaged in Lancia Ypsilon Selespeed,
- flashing warning light or gearbox fault message,
- problem with N, 1 or R position,
- no diagnostic communication with the gearbox control unit,
- Selespeed gearbox emergency mode,
- jerking, delayed gear changes or no gearbox response.
Tested Magneti Marelli control unit with warranty
The offered 55201376 62000.043.01 CFC208F.09 module has been technically checked before sale. It is an original TCU gearbox control unit for Lancia Ypsilon 1.3 JTD Selespeed, prepared as a replacement part for repairing issues with the automated gearbox. Depending on the vehicle configuration, programming, adaptation or cloning of data from the old control unit may be required.
Frequently asked questions – 55201376 CFC208F.09 gearbox control unit for Lancia Ypsilon Selespeed
Does the 55201376 control unit fit Lancia Ypsilon 1.3 JTD Selespeed?
Yes, the 55201376 Magneti Marelli control unit is used in selected versions of the Lancia Ypsilon 1.3 JTD 16V with Selespeed gearbox. Before purchase, the number on the old module should be compared with the label.
Does the 62000.043.01 CFC208F.09 module require programming?
The 62000.043.01 CFC208F.09 control unit may require adaptation, programming or data cloning to work correctly with a specific vehicle. This depends on the vehicle version and gearbox configuration.
What are the symptoms of a faulty Lancia Ypsilon 1.3 JTD gearbox control unit?
A faulty gearbox control unit may cause loss of gears, emergency mode, problems with N / R position, jerking during gear changes and no diagnostic communication with the TCU module.
Is the FDA16ER0 number important when buying the control unit?
Yes, the FDA16ER0 marking helps identify the exact module version. However, the most important numbers for compatibility and search are 55201376, 62000.043.01 and CFC208F.09.
Does the CFC208F.09 control unit fit Lancia Ypsilon 1248 16V JTD?
Yes, the control unit label indicates the version NUOVAY1248 16V JTD SELESPEED, which means Lancia Ypsilon with 1.3 JTD 1248 cm³ 16V engine and Selespeed gearbox. For certainty, all numbers should be checked against the original control unit.
