CFC228F.04 – tested OEM gearbox controller 51800536 Fiat Idea Lancia Musa

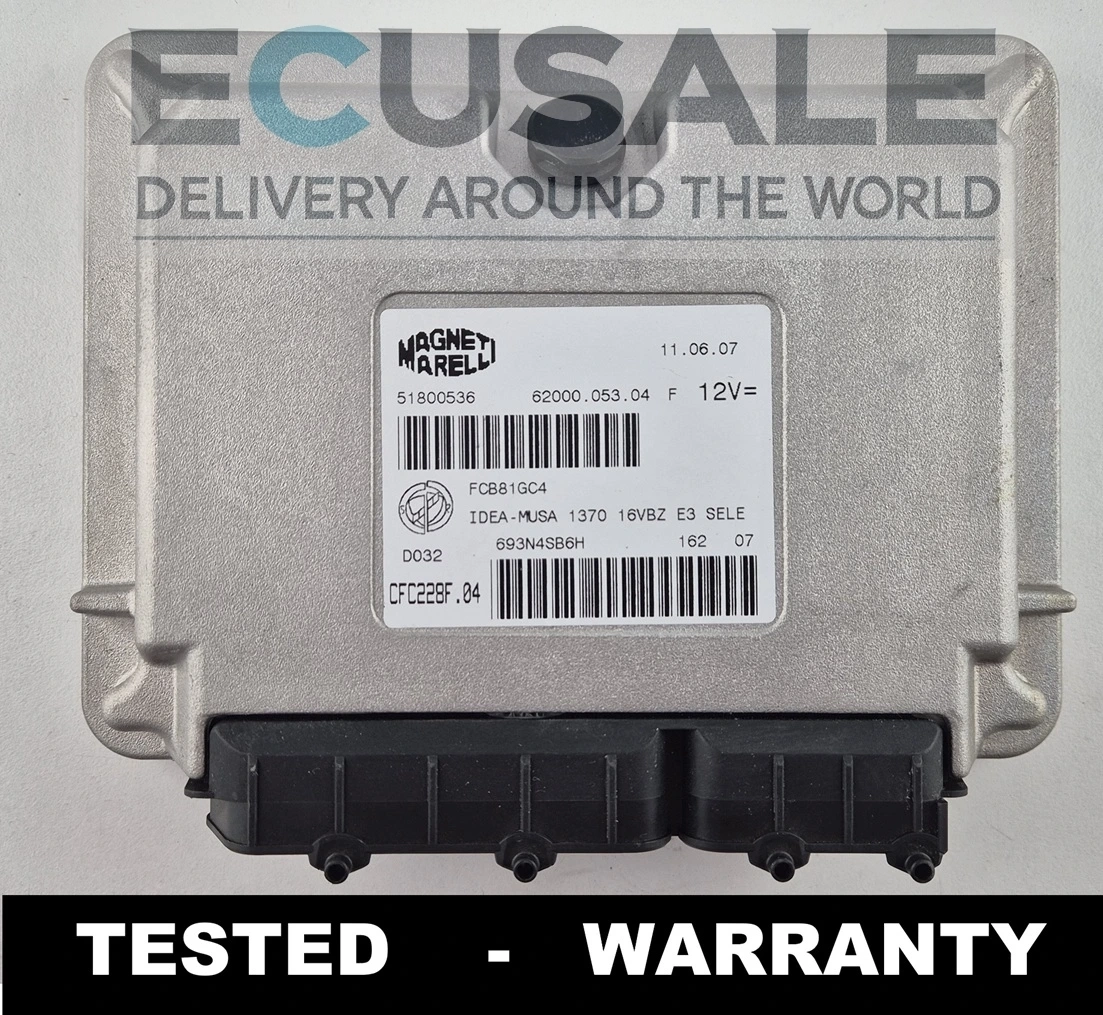

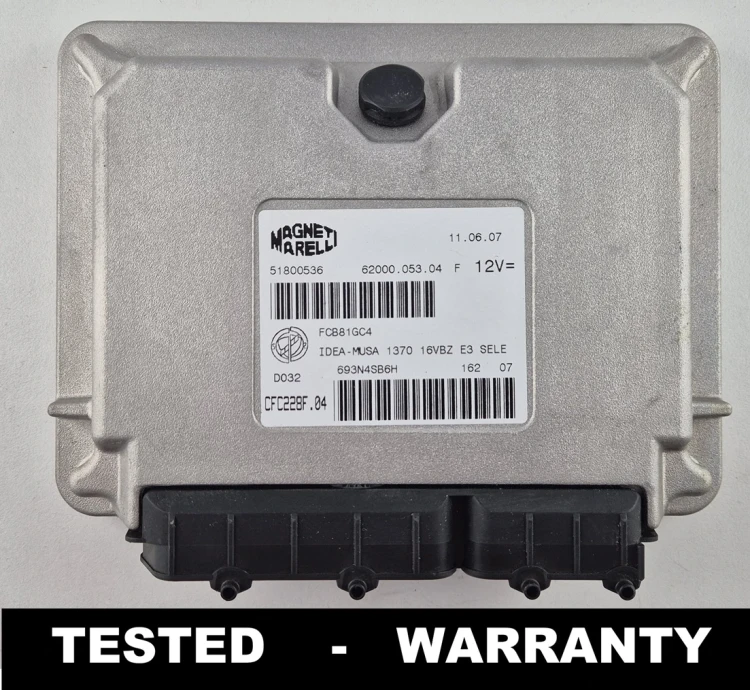

Original Magneti Marelli gearbox control module with part numbers 51800536, 62000.053.04 and marking CFC228F.04. The module is used in Fiat Idea and Lancia Musa vehicles with the 1.4 16V / 1370 cm³ petrol engine and Selespeed / Dualogic automated gearbox.
Compatibility by part number
The most important step when choosing the correct unit is to compare the numbers from the label of the old gearbox controller. This module should be checked by the following markings:
- 51800536 – Fiat / Lancia number
- 62000.053.04 – Magneti Marelli number
- CFC228F.04 / CFC 228F.04 – gearbox controller type
- FCB81GC4 – additional code from the label
- IDEA-MUSA 1370 16VBZ E3 SELE – application marking
- 693N4SB6H, 162 07, 11.06.07 – auxiliary version numbers
Which vehicles use 51800536 CFC228F.04?
The 51800536 62000.053.04 CFC228F.04 controller is found in Fiat Idea and Lancia Musa models, most commonly with the 1.4 16V petrol 1370 cm³ engine and Selespeed / Dualogic automated gearbox. The application mainly concerns versions produced approximately between 2004 and 2012, depending on the market and vehicle equipment.
With gearbox controllers, the vehicle model or engine capacity alone is not enough. The safest match is confirmed by the numbers 51800536, 62000.053.04, CFC228F.04 and the marking IDEA-MUSA 1370 16VBZ E3 SELE from the old module.
Possible symptoms of a faulty gearbox controller
- unable to engage a gear,
- gearbox goes into emergency mode,
- no communication with the gearbox controller,
- actuator, clutch or gear selector faults,
- vehicle starting problem caused by a gearbox error,
- flashing gearbox warning light or gearbox fault message on the dashboard.
The offered Magneti Marelli 51800536 / CFC228F.04 controller is fully tested, prepared for professional installation, adaptation or data cloning and sold with warranty.
FAQ – gearbox controller 51800536 62000.053.04 CFC228F.04
Does the 51800536 controller fit Fiat Idea 1.4 16V?
Yes, the 51800536 controller is used in Fiat Idea 1.4 16V with an automated gearbox. Before purchase, the number 62000.053.04 and the marking CFC228F.04 should also be compared.
Does CFC228F.04 fit Lancia Musa 1.4 petrol?
The CFC228F.04 controller may be used in Lancia Musa 1.4 16V with a Selespeed / Dualogic gearbox. The most important step is to compare the numbers 51800536 and 62000.053.04 from the old controller.
Are 62000.053.04 and CFC 228F.04 the same gearbox controller?
62000.053.04 is the Magneti Marelli number, while CFC228F.04 identifies the gearbox controller type. Both markings may appear on the same Fiat Idea / Lancia Musa module label.
Does the 51800536 gearbox controller require adaptation after installation?
In many cases, after replacing the 51800536 controller, adaptation, clutch calibration, gear learning or data cloning from the old module is required. This depends on the condition of the gearbox and the vehicle configuration.
Is the offered CFC228F.04 controller tested?
Yes, the offered CFC228F.04 51800536 62000.053.04 gearbox controller is fully tested and covered by warranty. The module is ready for further installation, adaptation or cloning.
