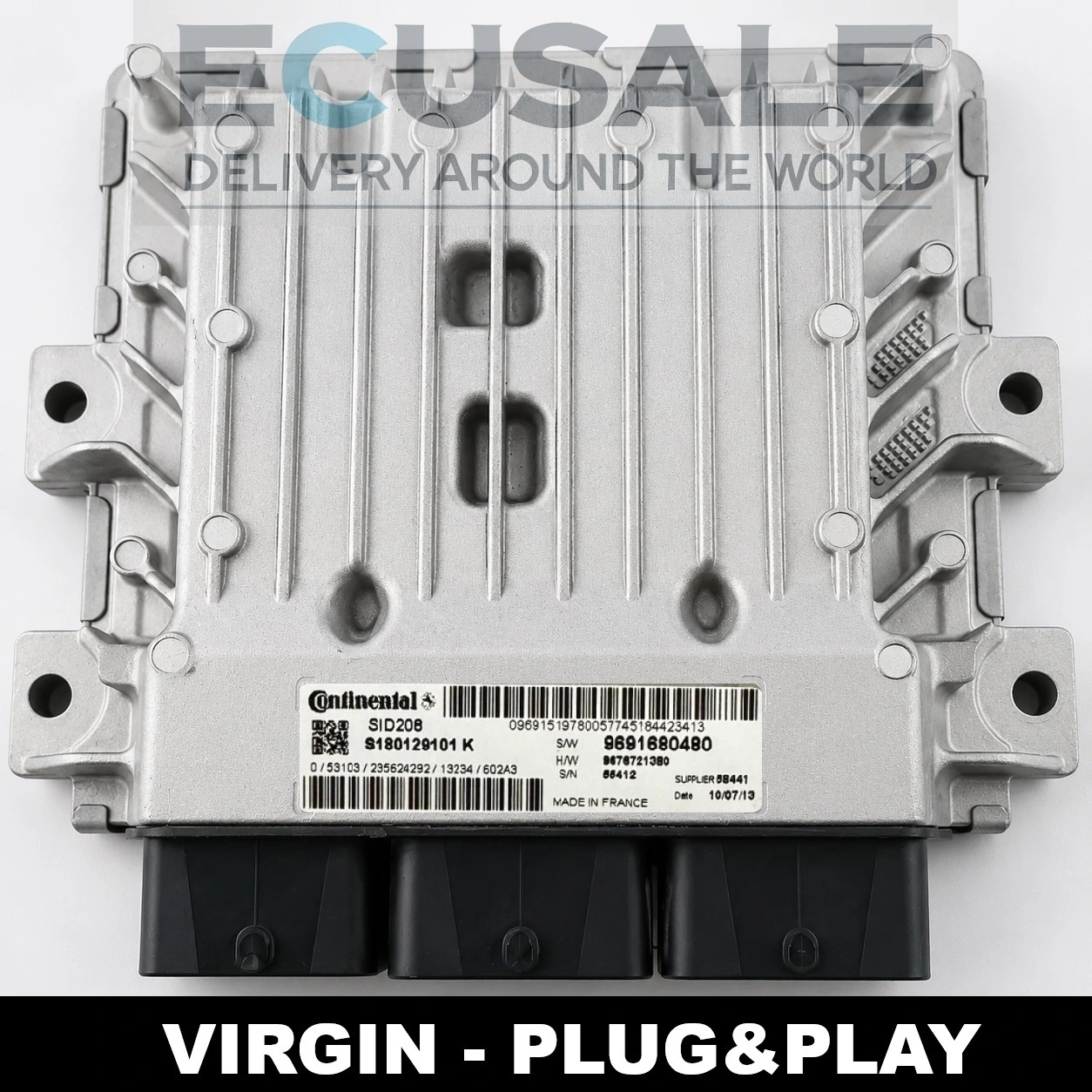

ECU S180129101K with software 9691680480
What we need to know after purchase
After purchase please tell us whether the vehicle has air conditioning and whether the gearbox is manual or automatic. The same number comes in two software versions, and they differ exactly by vehicle equipment.
What it fits
Fits the Boxer and Jumper 2.2 HDi if your ECU has the same numbers:
- Continental number: S180129101K
- Software number S/W: 9691680480
Ignore the other markings on the sticker. The full range is in the Peugeot and Citroën categories, e.g. S180129101L, S180129102B, S180129201C, S180129101H.
Typical damage
Water is almost always to blame. A short circuit from the injectors means the ECU no longer sends the injector signal and the vehicle will not start. The refurbished housing is protected against water but not waterproof, so keep the drains clear and protect the ECU from flooding. Whether to repair or replace is covered in SID208 – repair or replacement?, and what to do with a damaged ECU in Broken SID208 ECU – what to do?.
Condition and preparation
An unrepaired unit with a refurbished housing protected against water, though not waterproof. We test it on the bench and in a vehicle.
Virgin version: the ECU programs itself after fitting, with no coding and no injector coding; it needs a working immobiliser. Optional EGR OFF and DPF OFF, 6-month warranty, and step-by-step fitting in our guide SID208 Virgin ECU installation guide.
Questions and answers – ECU S180129101K
Will S180129101K fit with a software number other than 9691680480?
No. The Continental number S180129101K and the S/W number 9691680480 must be the same as on your ECU label.
|
What do I need to tell you after buying S180129101K?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Does the S180129101K ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
