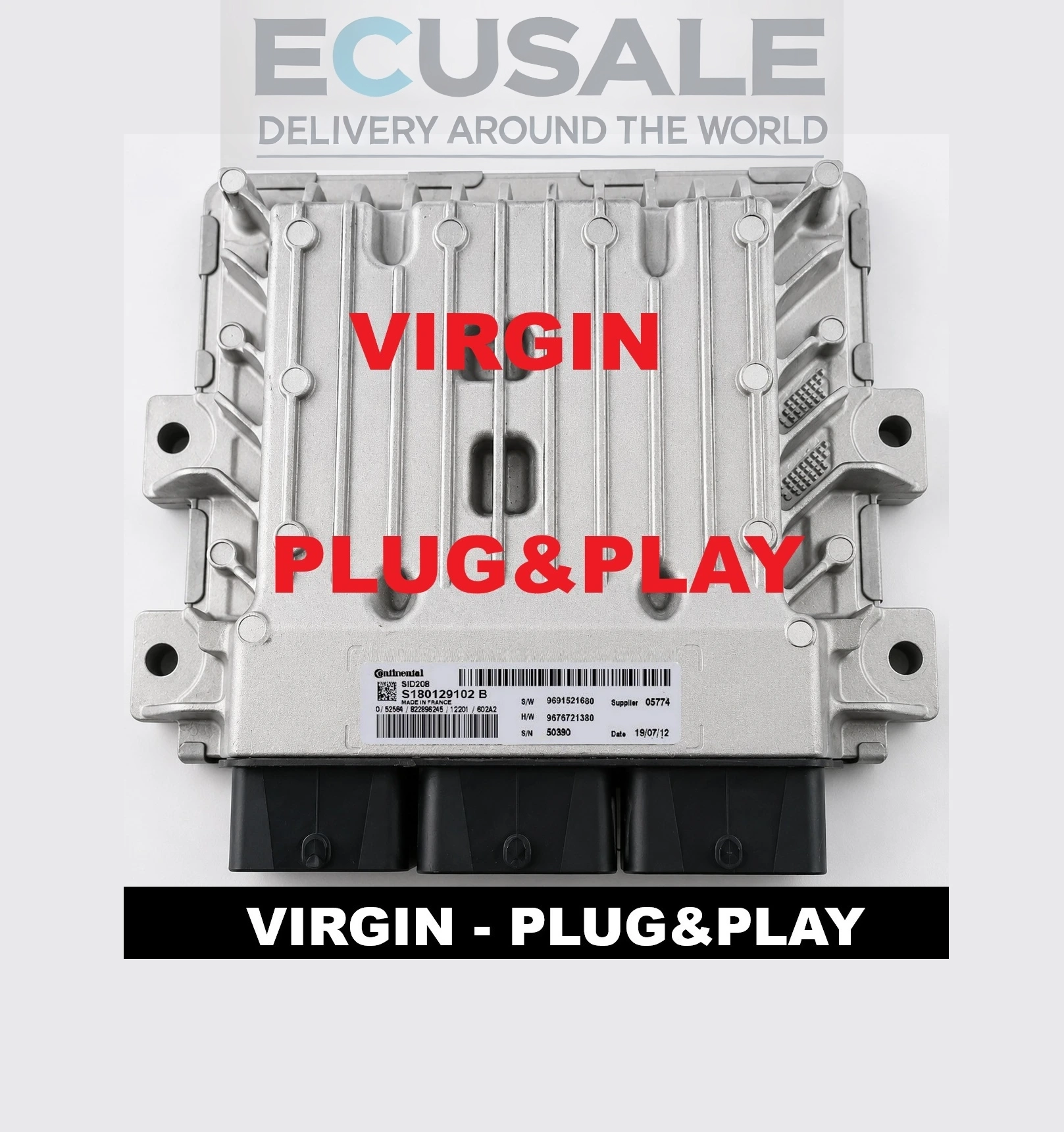

What you get when you buy S180129102B
Condition in which we ship the ECU
An unrepaired unit with a refurbished housing protected against water, though not waterproof. We test it on the bench and in a vehicle.
Virgin version: the ECU programs itself after fitting, with no coding and no injector coding; it needs a working immobiliser. Optional EGR OFF and DPF OFF, 6-month warranty, and step-by-step fitting in our guide SID208 Virgin ECU installation guide.
How to check that it fits

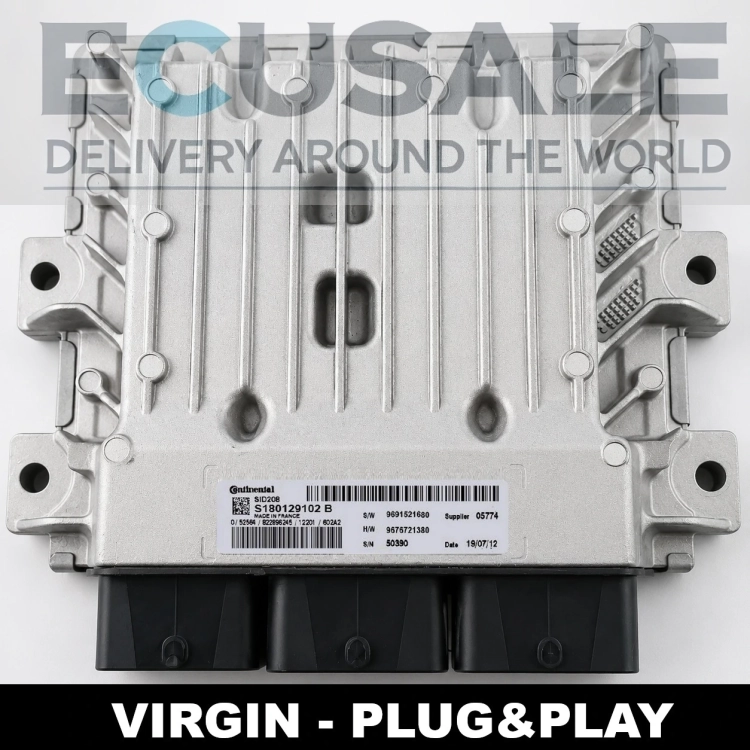

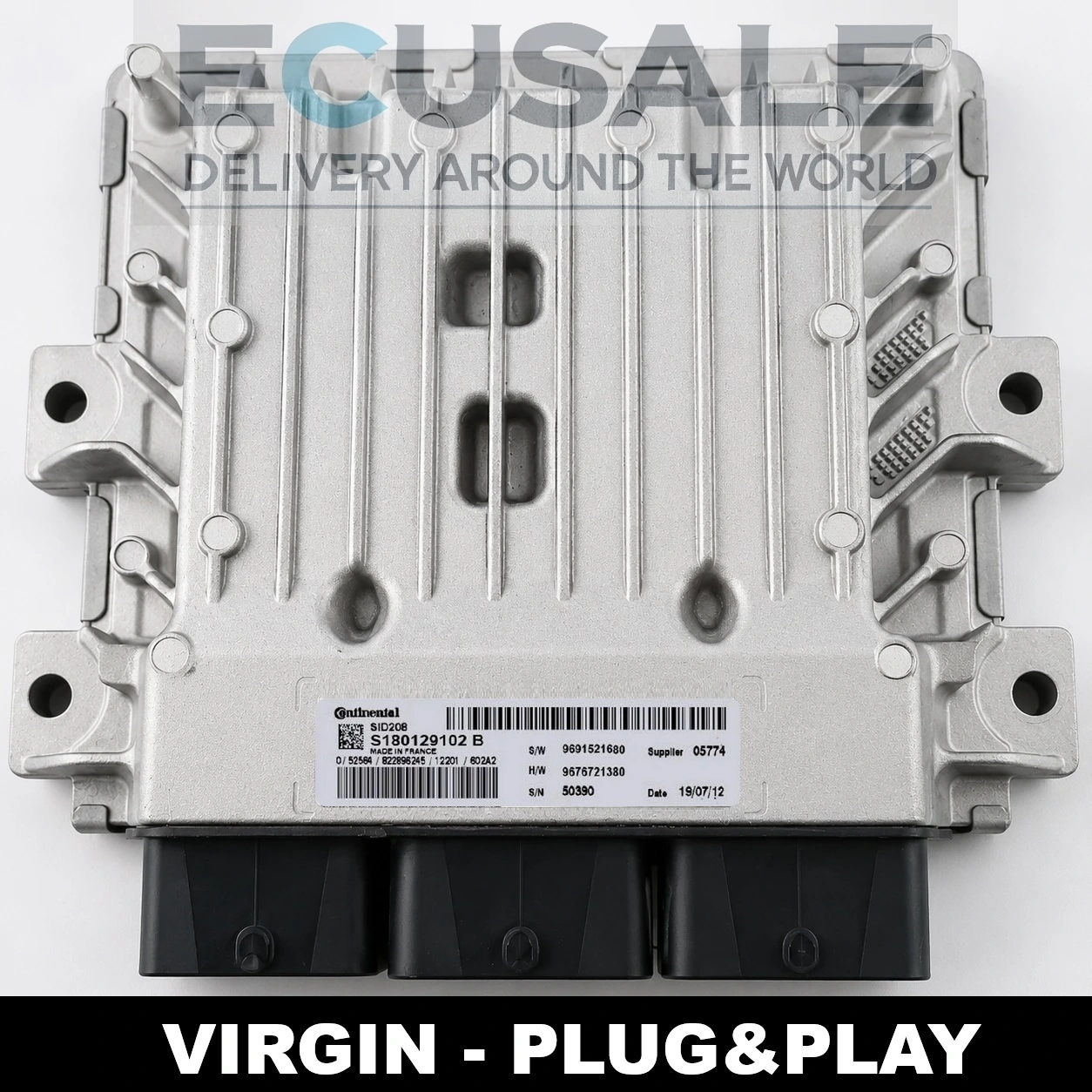

- Continental number: S180129102B
- Software number S/W: 9691521680
If both numbers on your ECU are the same, this unit fits your Boxer or Jumper 2.2 HDi. You do not need to compare other markings on the label. Different number? Check S180129101K, S180129101N, S180129201C, S180129201E.
Most common cause of failure
SID208 units are most often damaged by water: a short circuit occurs on the injector side and the ECU stops sending the signal to the injectors, so the engine will not start. The housing of this unit is protected against water but is not waterproof – protect the ECU from flooding and make sure the water drains in the vehicle are clear. More in our articles Broken SID208 ECU – what to do? and SID208 – repair or replacement?.
Air conditioning and gearbox – let us know
All SID208 units share the same hardware, and engine power and displacement are the same – the software changes only because of equipment. That is why after ordering, send us whether the vehicle has air conditioning and which gearbox it has: manual or automatic.
See also the other items in the Peugeot Engine Control Units (ECUs) category.
FAQ: SID208 S180129102B
Will S180129102B fit with a software number other than 9691521680?
No. The Continental number S180129102B and the S/W number 9691521680 must be the same as on your ECU label.
|
Does the S180129102B ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Has S180129102B been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
