SID208 S180129201H – condition, matching and fitting
How to check that it fits

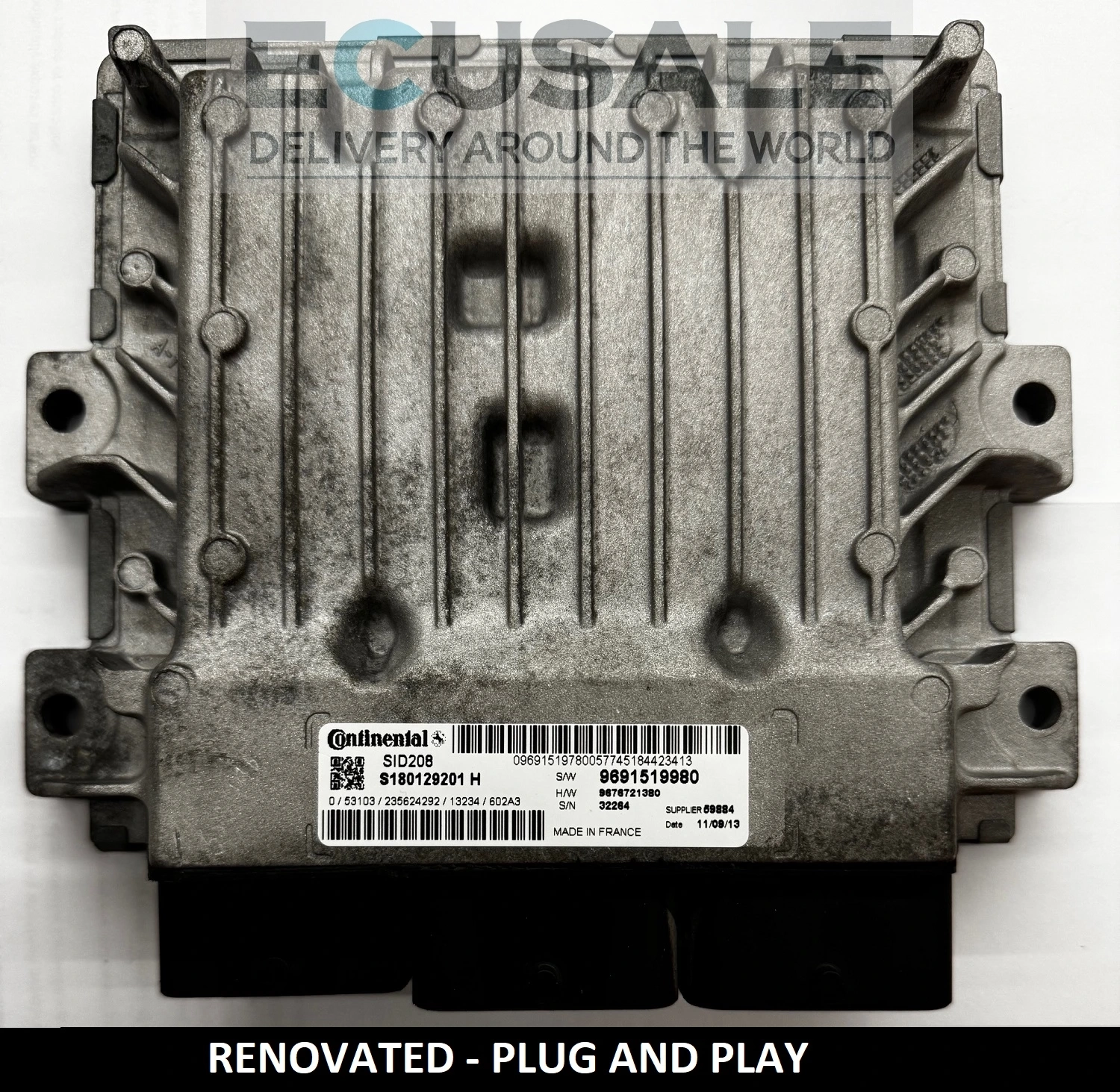

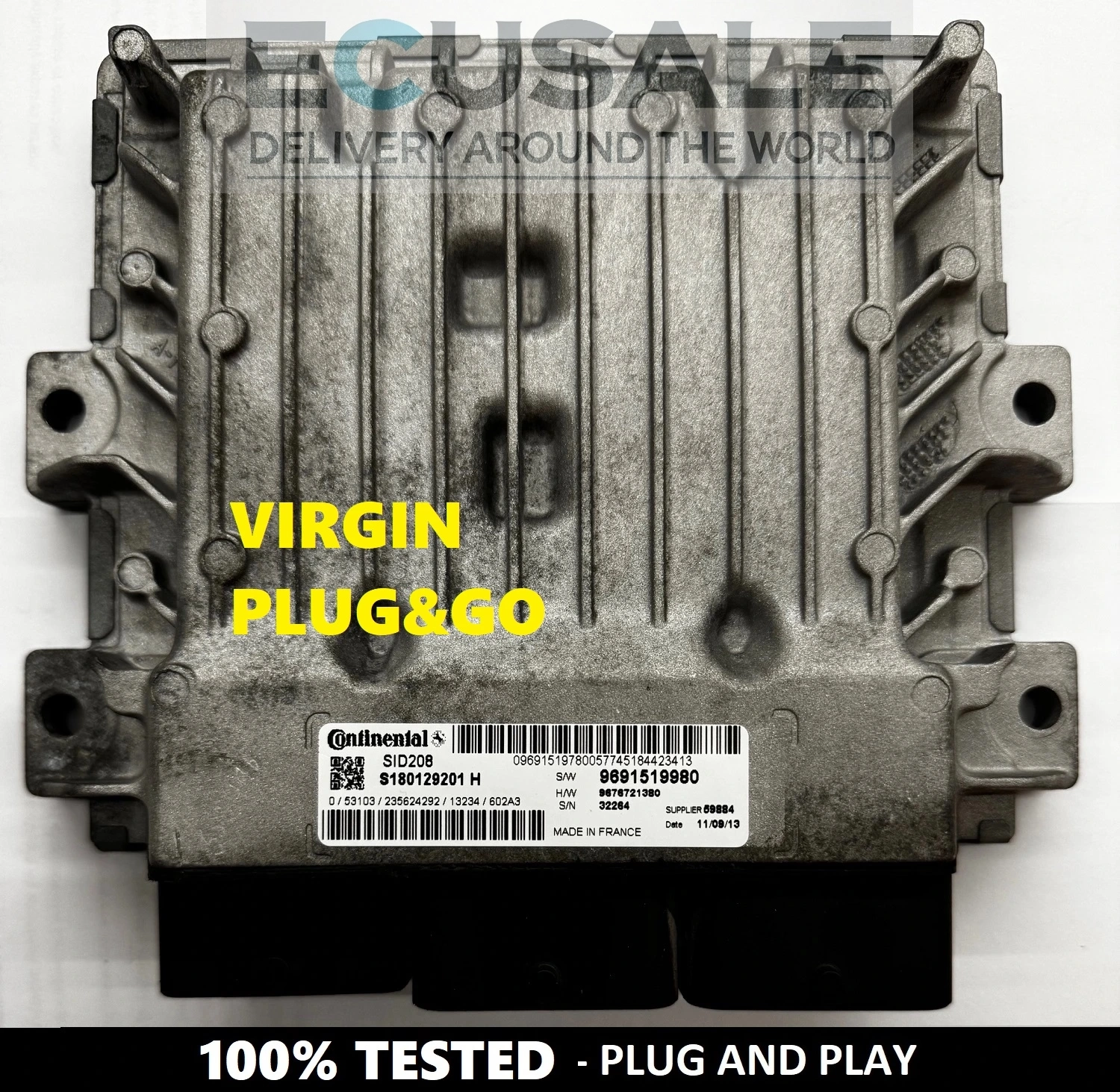

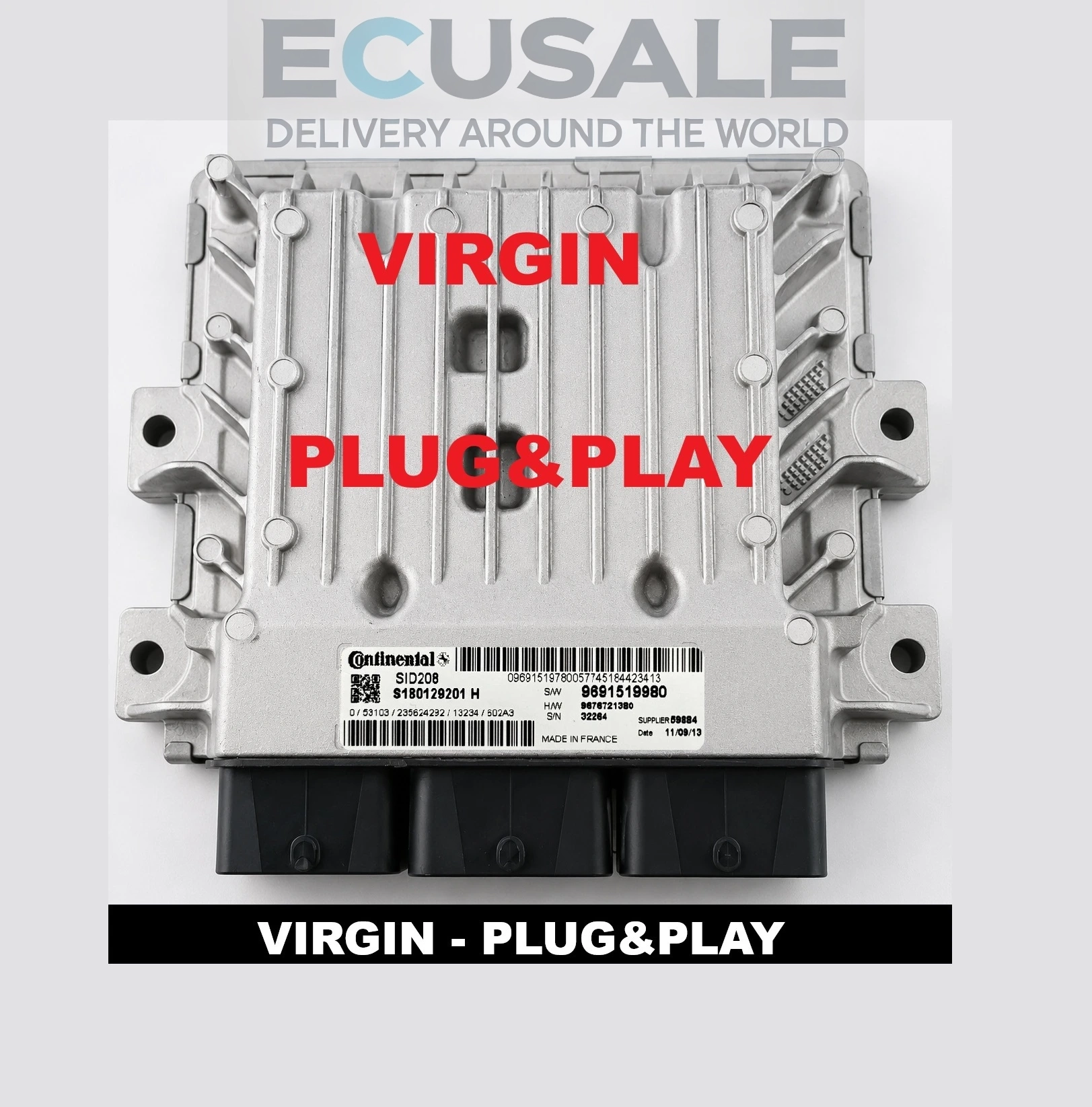

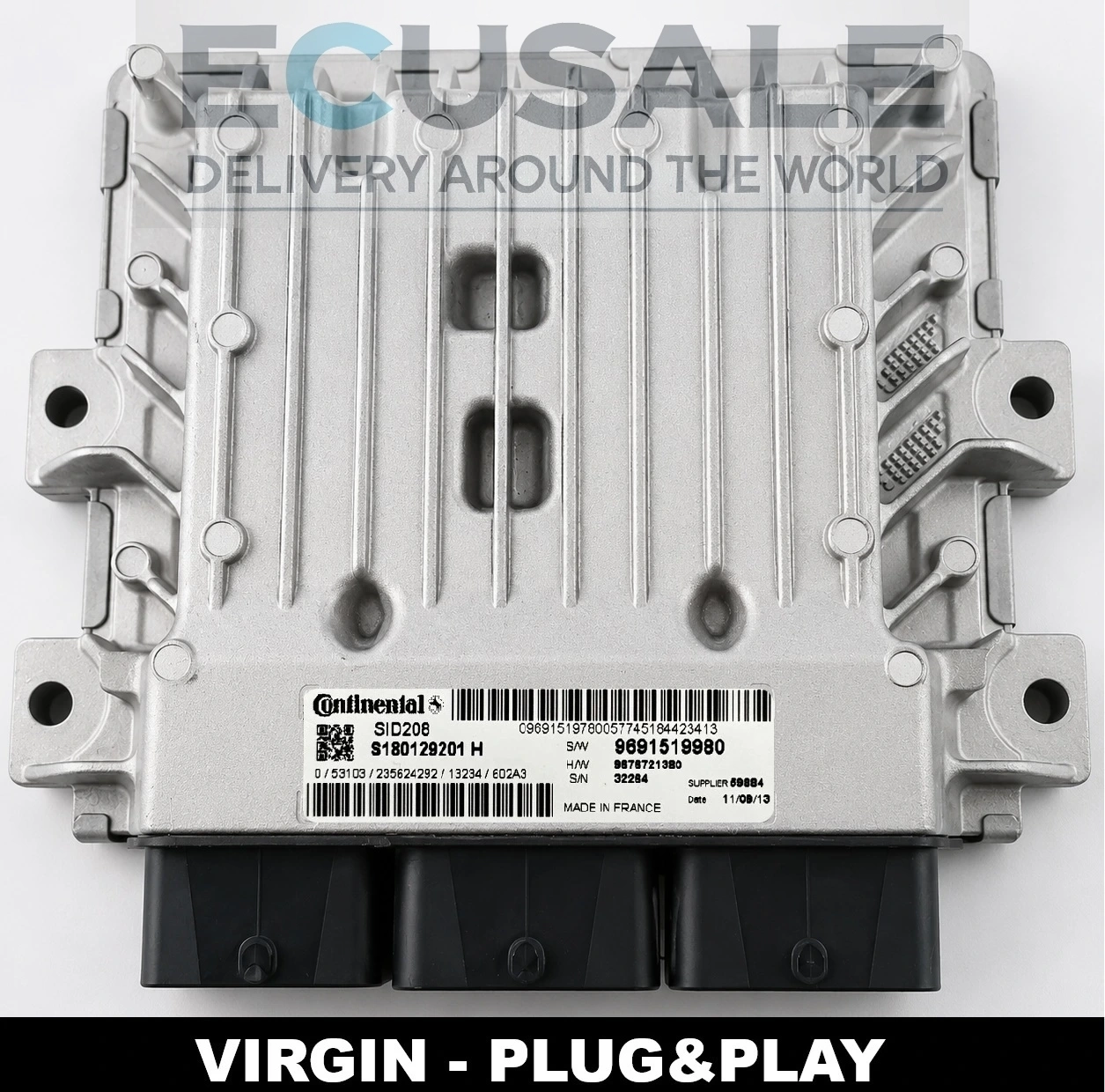

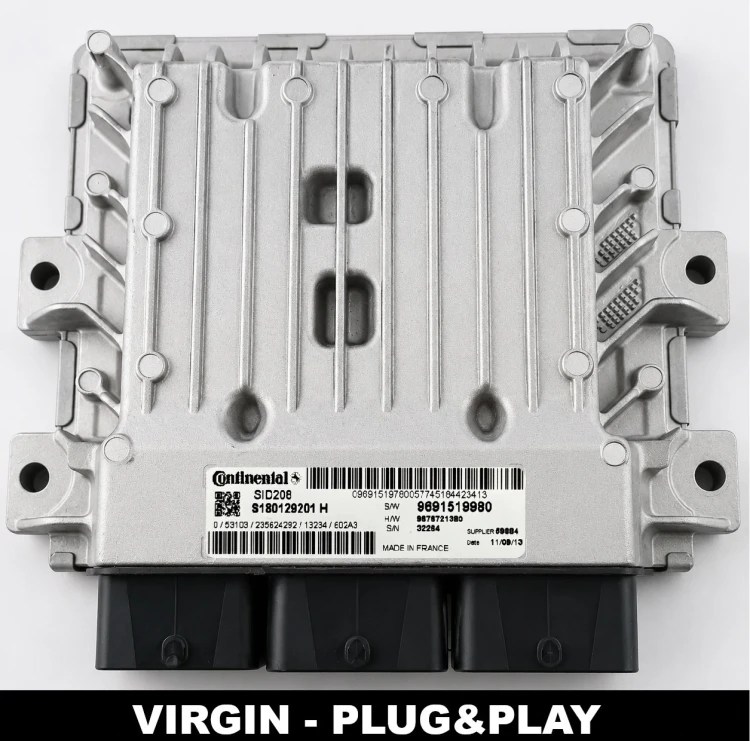

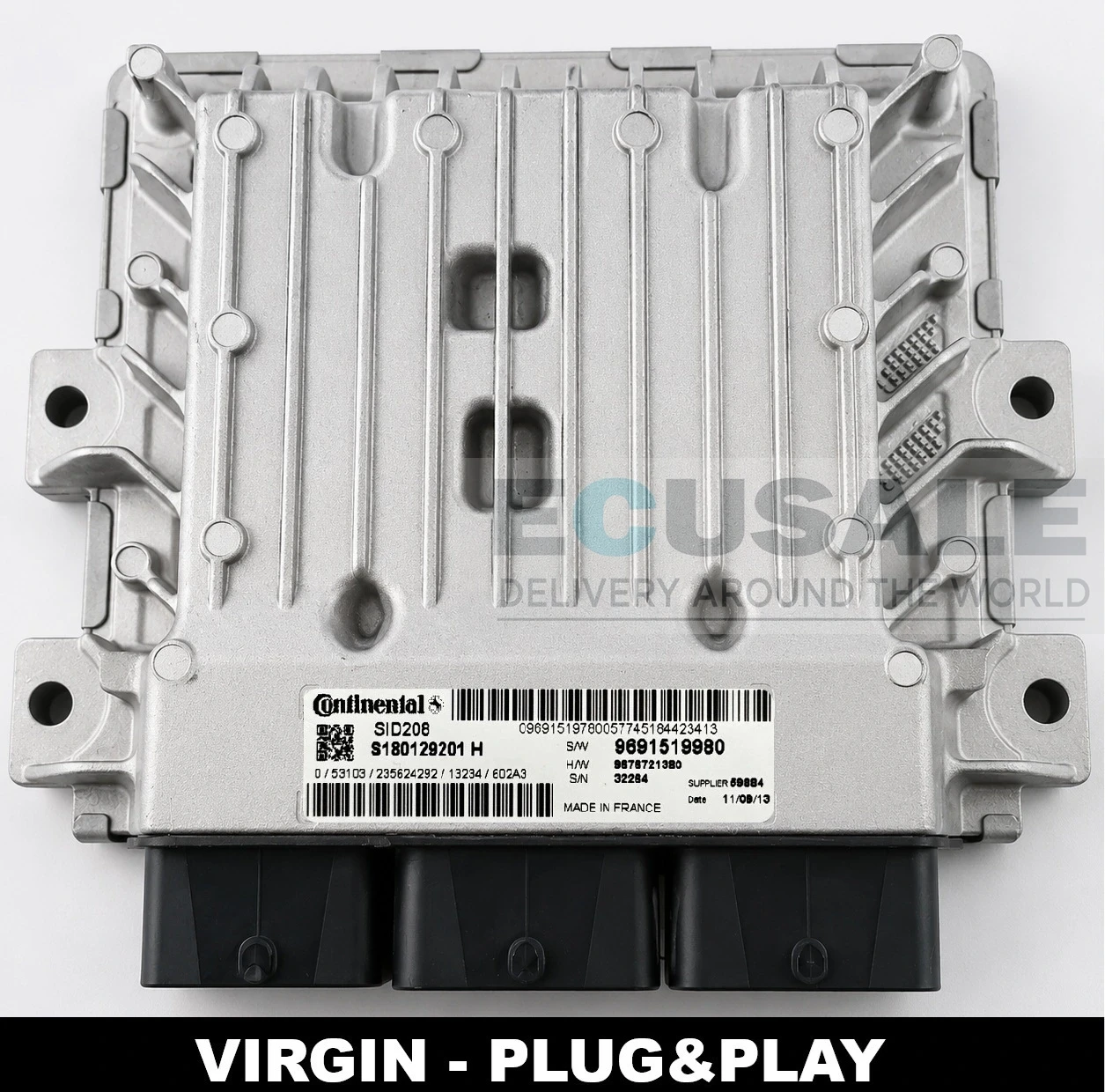

Fits the Boxer and Jumper 2.2 HDi if your ECU has the same numbers:
- Continental number: S180129201H
- Software number S/W: 9691519980
Ignore the other markings on the sticker. The full range is in the Peugeot and Citroën categories, e.g. S180129201K, S180129301B, S180129303C, S180129201E.
Condition in which we ship the ECU

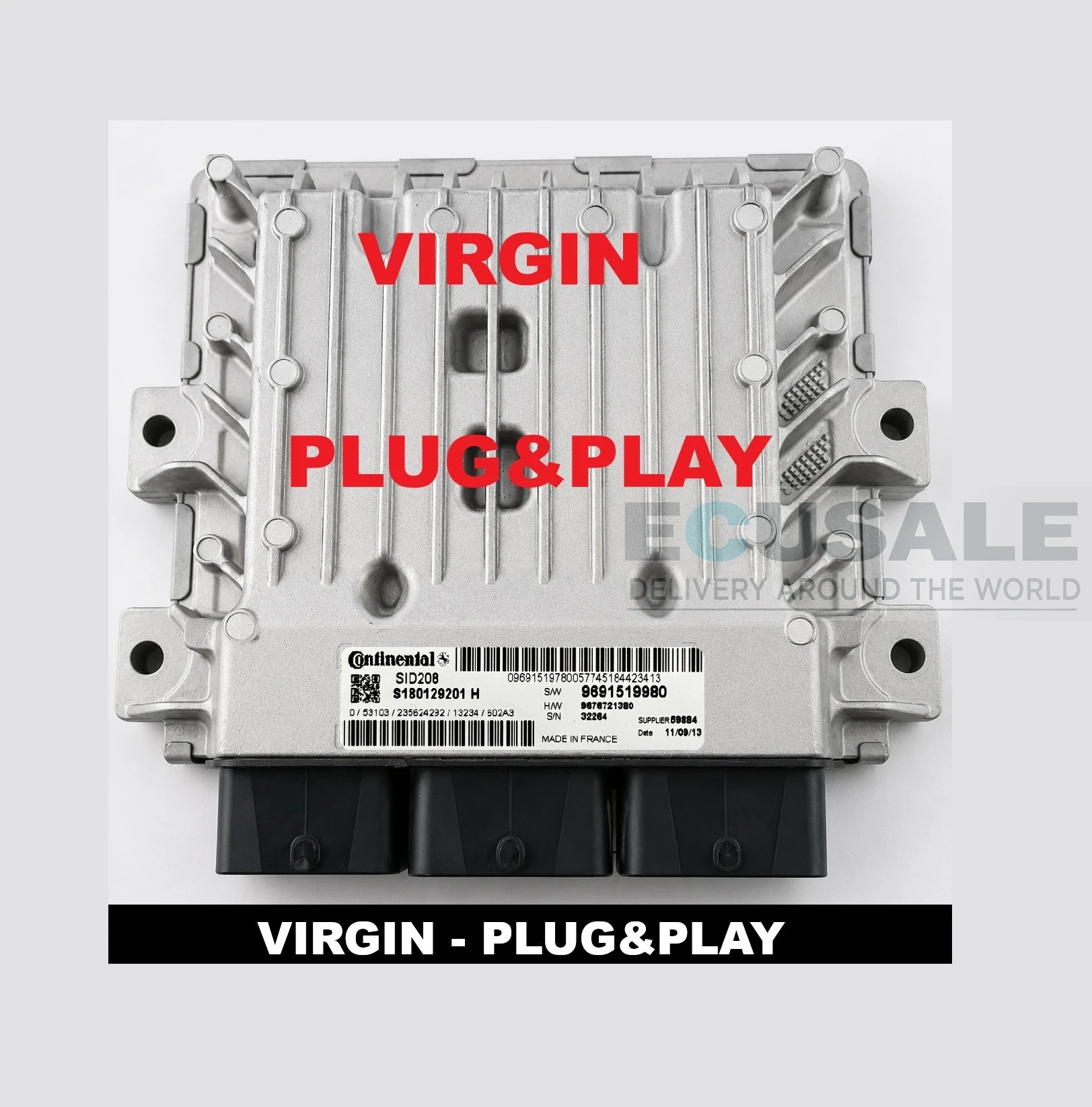

This ECU is a Virgin unit – it programs itself to the vehicle, with no coding, immobiliser programming or injector coding (condition: matching numbers and a working immobiliser). The electronics have never been repaired. We refurbished the housing and protected it against water, but it is not waterproof. Every unit is tested on the bench and in a vehicle.
On request: EGR OFF and DPF OFF. Warranty: 6 months. First installation is described in our guide SID208 Virgin ECU installation guide.
Air conditioning and gearbox – let us know
Please: after purchase tell us – air conditioning yes or no, gearbox manual or automatic. Number S180129201H comes in two versions depending on equipment, and this information lets us prepare the right one.
Water – the main cause of SID208 failure
The typical scenario: water ingress, a short circuit on the injector side and no injector signal. So that the new ECU does not share the fate of the old one, protect it from water and keep an eye on the drains in the vehicle – the housing is protected but not waterproof. Useful articles: Broken SID208 ECU – what to do?, SID208 – repair or replacement?.
FAQ: SID208 S180129201H
Will S180129201H fit with a software number other than 9691519980?
No. The Continental number S180129201H and the S/W number 9691519980 must be the same as on your ECU label.
|
What do I need to tell you after buying S180129201H?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Has S180129201H been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
