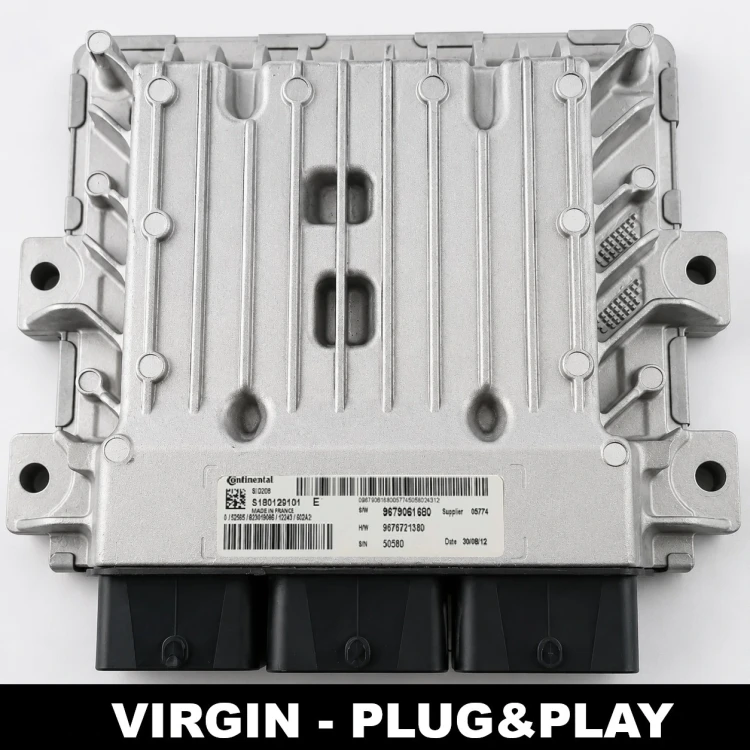

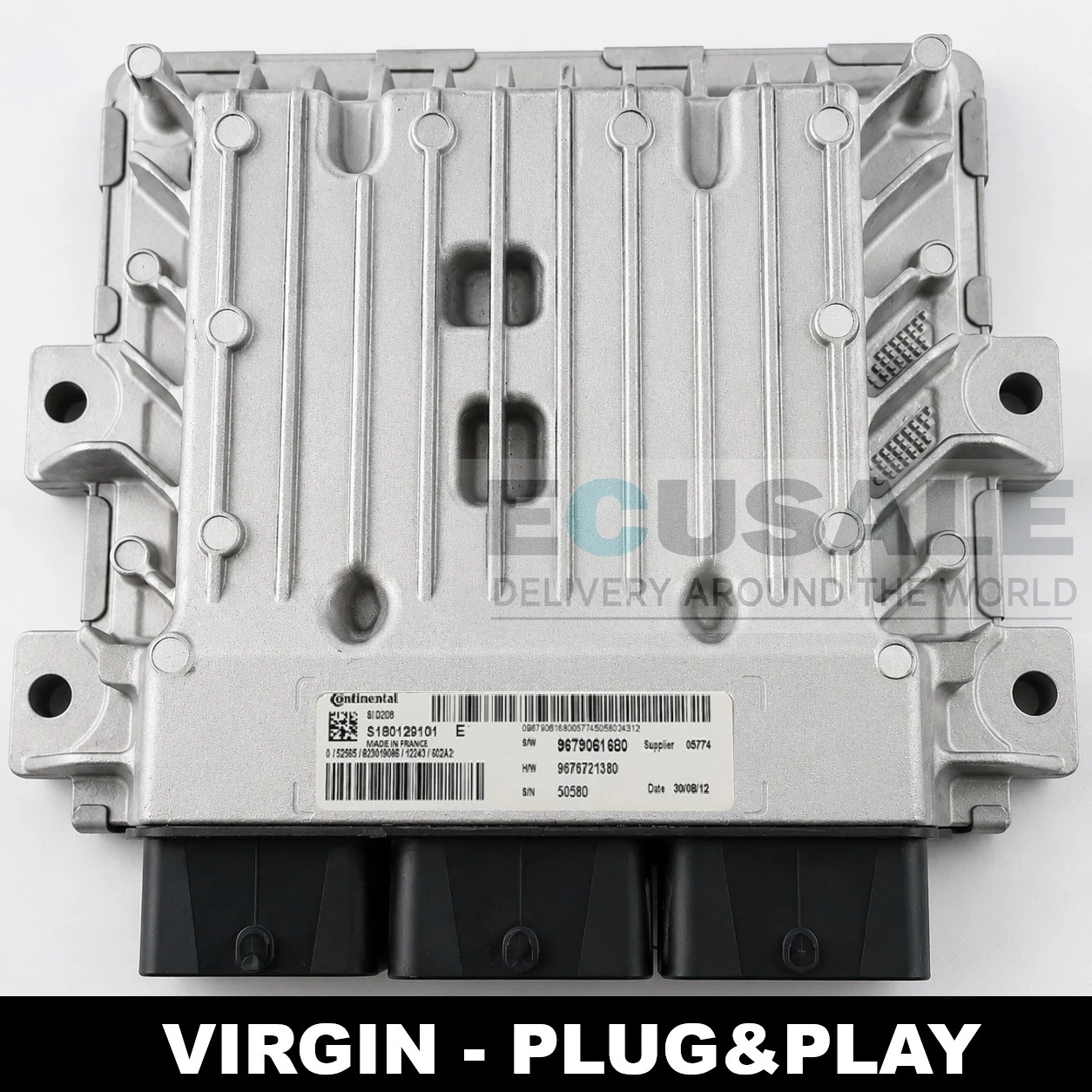

Offer: SID208 S180129101E in Virgin version
Most common cause of failure
- cause: water and a short circuit on the injector side,
- result: no injector signal, the engine will not start.
After fitting, make sure the ECU is not flooded again and check the water drains – the housing protection does not make it waterproof. See also SID208 – repair or replacement? and Broken SID208 ECU – what to do?.
Condition in which we ship the ECU
An unrepaired unit with a refurbished housing protected against water, though not waterproof. We test it on the bench and in a vehicle.
Virgin version: the ECU programs itself after fitting, with no coding and no injector coding; it needs a working immobiliser. Optional EGR OFF and DPF OFF, 6-month warranty, and step-by-step fitting in our guide SID208 Virgin ECU installation guide.
What we need to know after purchase
All SID208 units share the same hardware, and engine power and displacement are the same – the software changes only because of equipment. That is why after ordering, send us whether the vehicle has air conditioning and which gearbox it has: manual or automatic.
Vehicle compatibility
The ECU is intended for Peugeot Boxer and Citroën Jumper 2.2 HDi. On the label of your old ECU find the Continental number and the S/W number – they must match character for character:
- Continental number: S180129101E
- Software number S/W: 9679061680
The remaining numbers do not affect the choice. Other SID208 units we have: S180129101G, S180129101J, S180129101L, S180129101C.
You will find other numbers in the Peugeot Engine Control Units (ECUs) category.
Frequently asked questions about the S180129101E ECU for Boxer / Jumper
Will S180129101E fit with a software number other than 9679061680?
No. The Continental number S180129101E and the S/W number 9679061680 must be the same as on your ECU label.
|
Is the S180129101E housing waterproof?
No. It is protected against water but not waterproof – protect the ECU from flooding and keep the water drains clear.
|
Can I order EGR OFF or DPF OFF with S180129101E?
Yes, we do both on request before shipping.
|
