SID208 S180129201G – condition, matching and fitting
Important: information after purchase
- Does the vehicle have air conditioning?
- Gearbox: manual or automatic?
Without these two details we cannot prepare the right software version – one number has two possibilities.
Numbers that must match

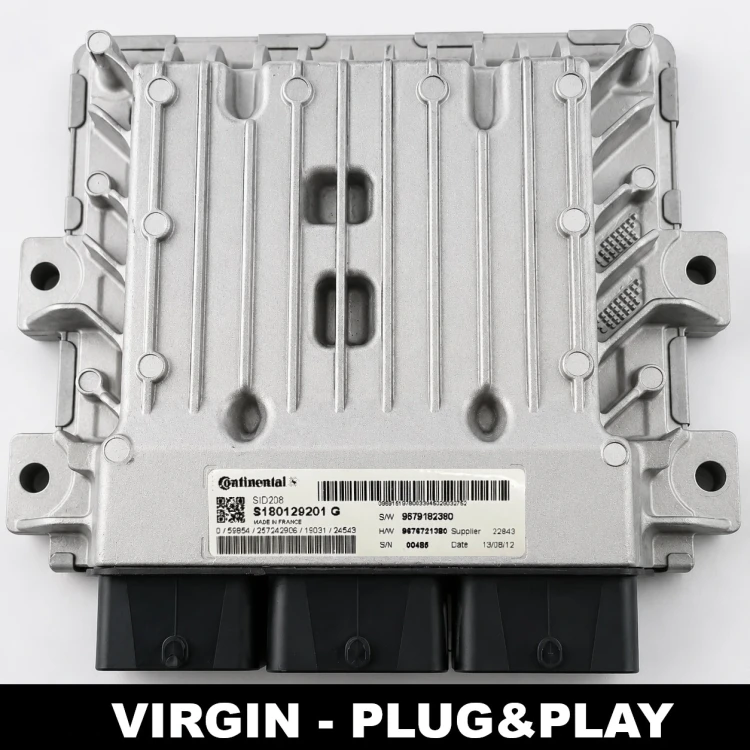

The ECU is intended for Peugeot Boxer and Citroën Jumper 2.2 HDi. On the label of your old ECU find the Continental number and the S/W number – they must match character for character:
- Continental number: S180129201G
- Software number S/W: 9679182380
The remaining numbers do not affect the choice. Other SID208 units we have: S180129201C, S180129201E, S180129201K, S180129301B.
How we prepared this unit

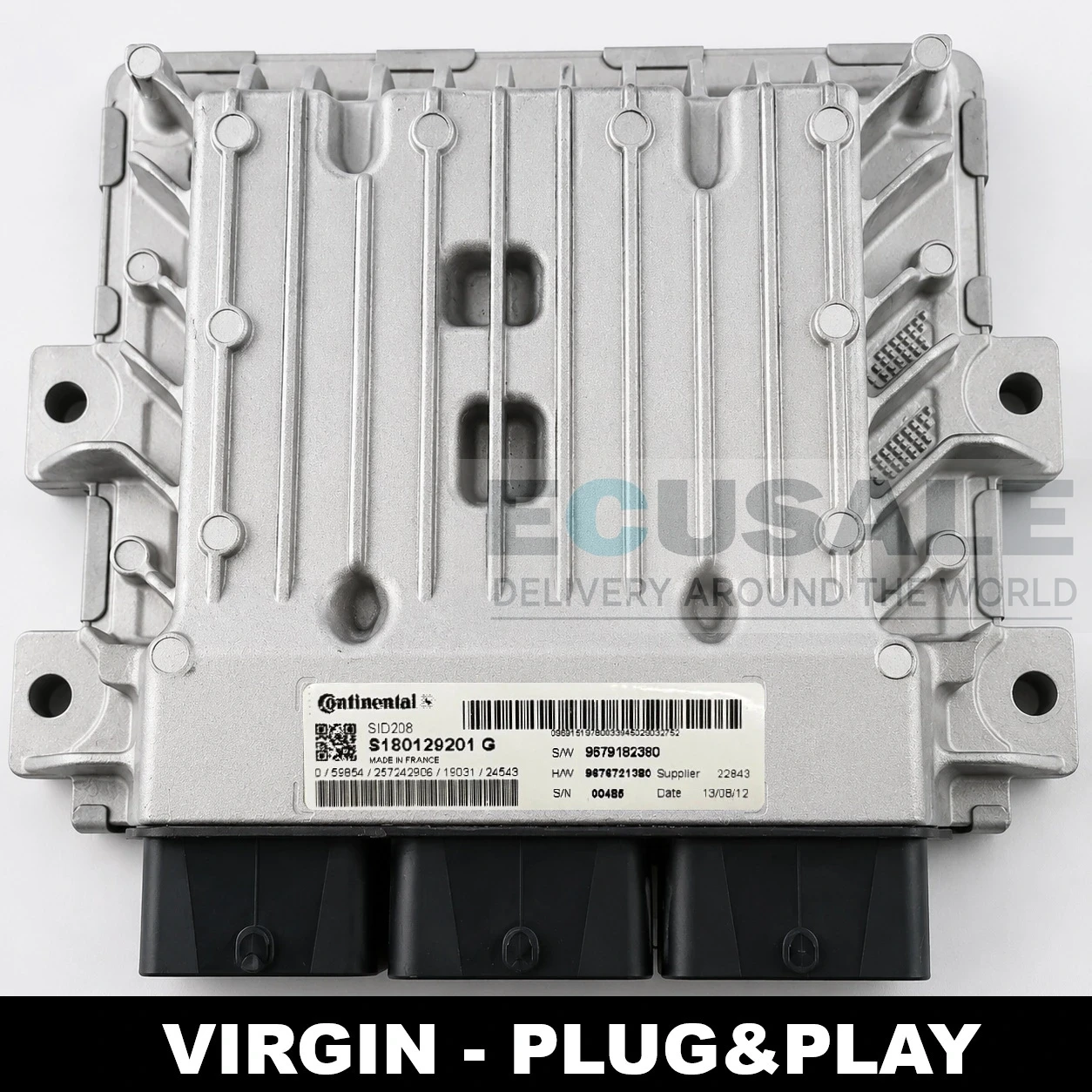

- Virgin Plug & Play – once connected the ECU programs itself; matching numbers and a working immobiliser are required.
- Original electronics, never repaired.
- Housing refurbished and protected against water – it is not waterproof, though.
- Tested on the bench and in a vehicle before shipping.
- 6-month warranty; EGR OFF and DPF OFF on request.
Installation instructions are in our guide SID208 Virgin ECU installation guide.
Typical damage
Water is almost always to blame. A short circuit from the injectors means the ECU no longer sends the injector signal and the vehicle will not start. The refurbished housing is protected against water but not waterproof, so keep the drains clear and protect the ECU from flooding. Whether to repair or replace is covered in SID208 – repair or replacement?, and what to do with a damaged ECU in Broken SID208 ECU – what to do?.
You will find other numbers in the Peugeot Engine Control Units (ECUs) category.
FAQ: SID208 S180129201G
What do I need to tell you after buying S180129201G?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Is the S180129201G housing waterproof?
No. It is protected against water but not waterproof – protect the ECU from flooding and keep the water drains clear.
|
Can I order EGR OFF or DPF OFF with S180129201G?
Yes, we do both on request before shipping.
|
