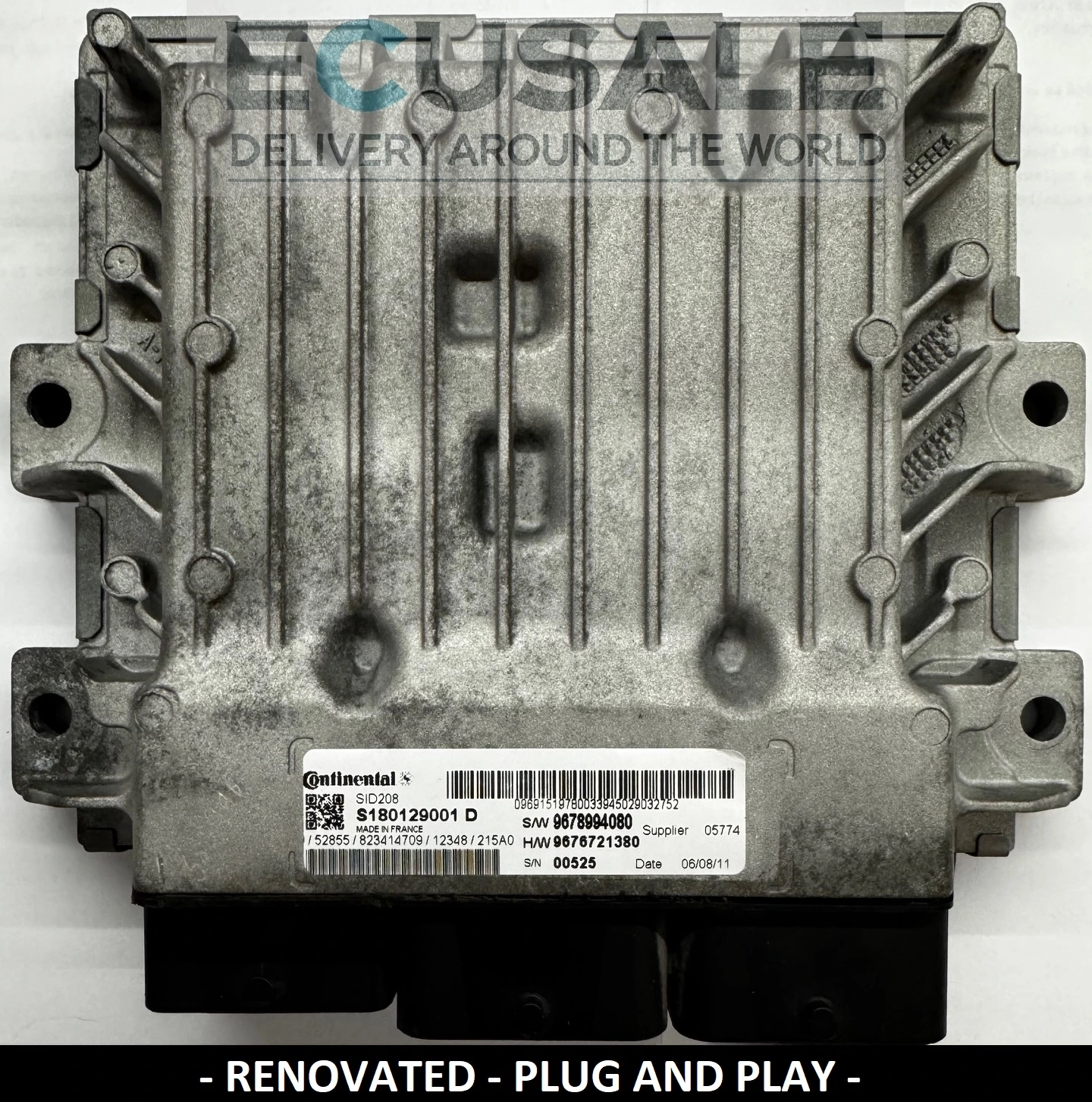

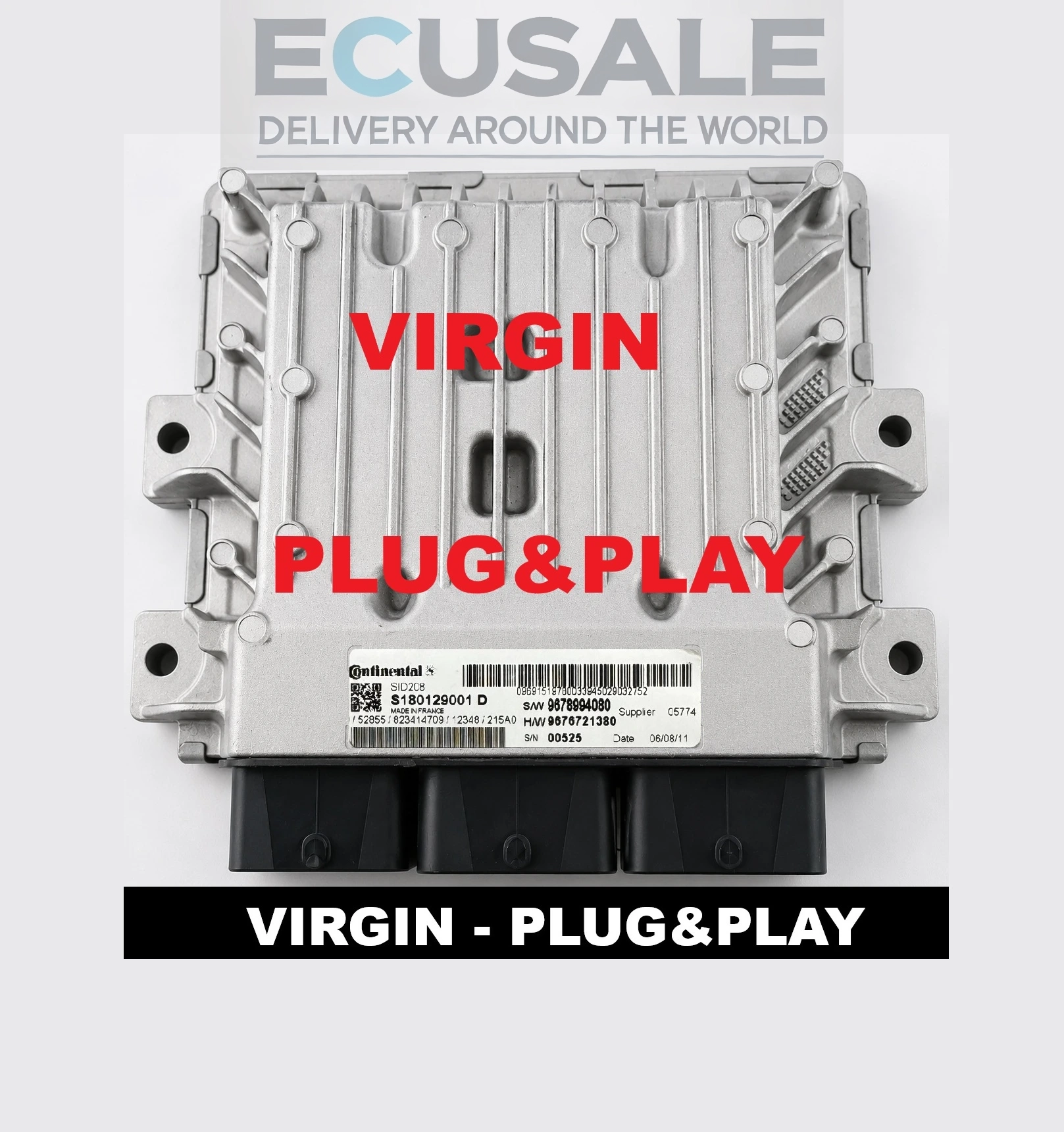

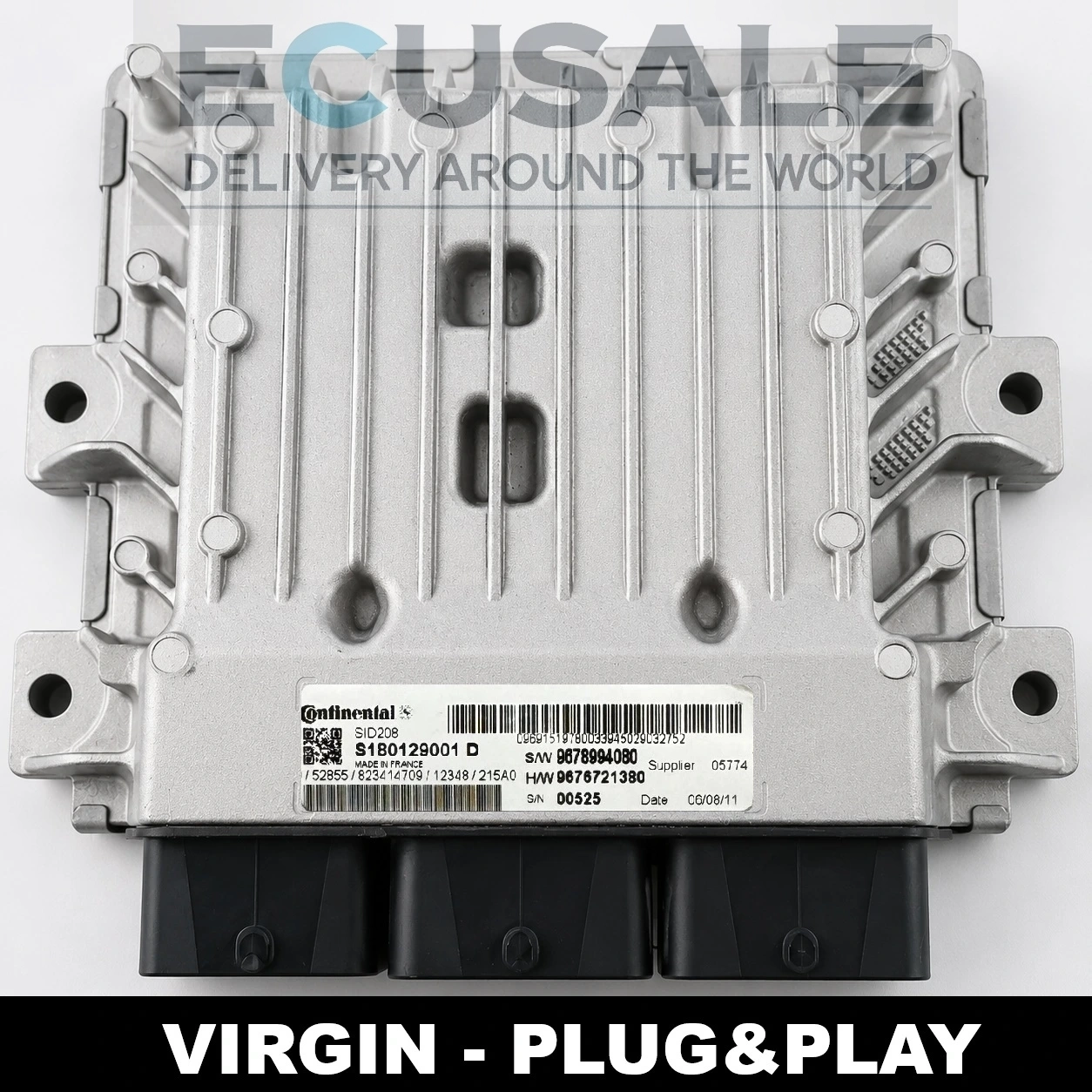

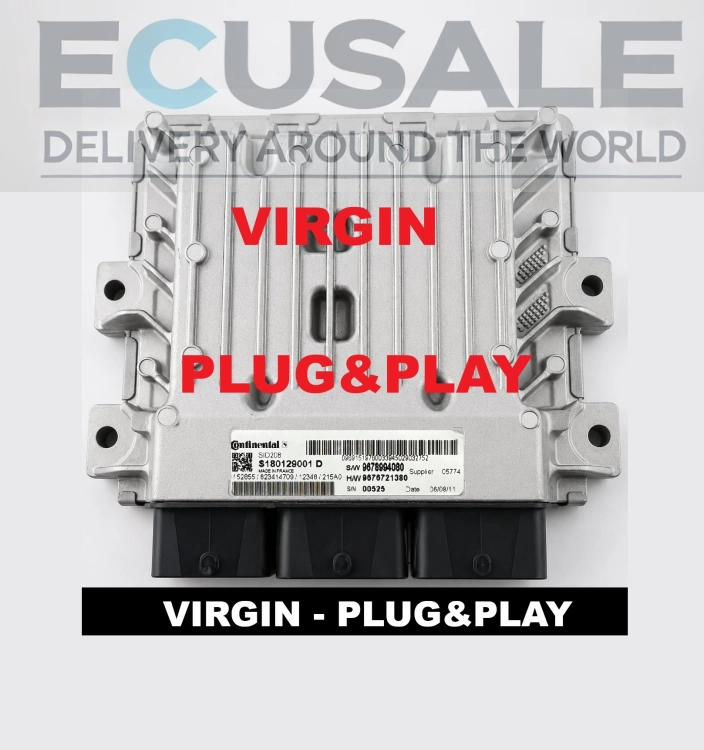

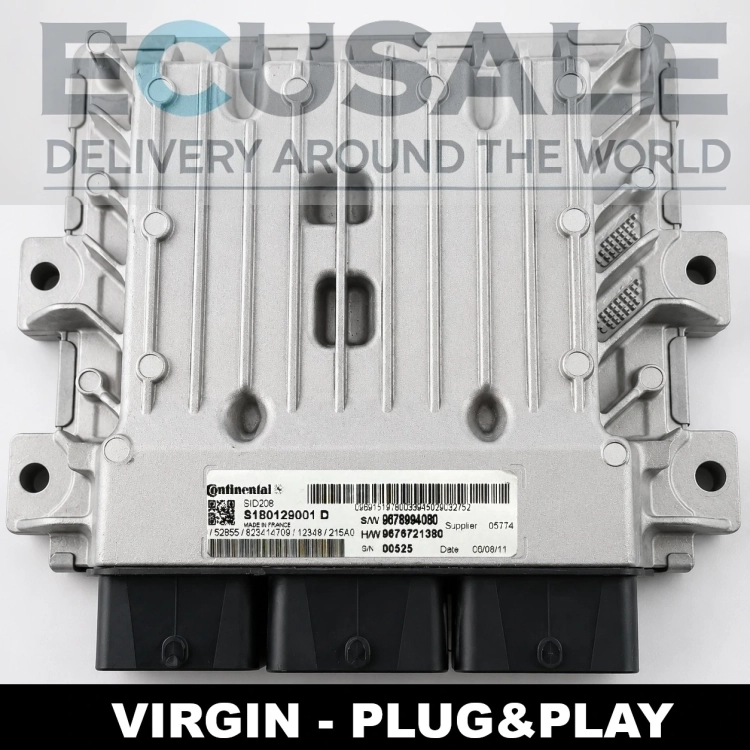

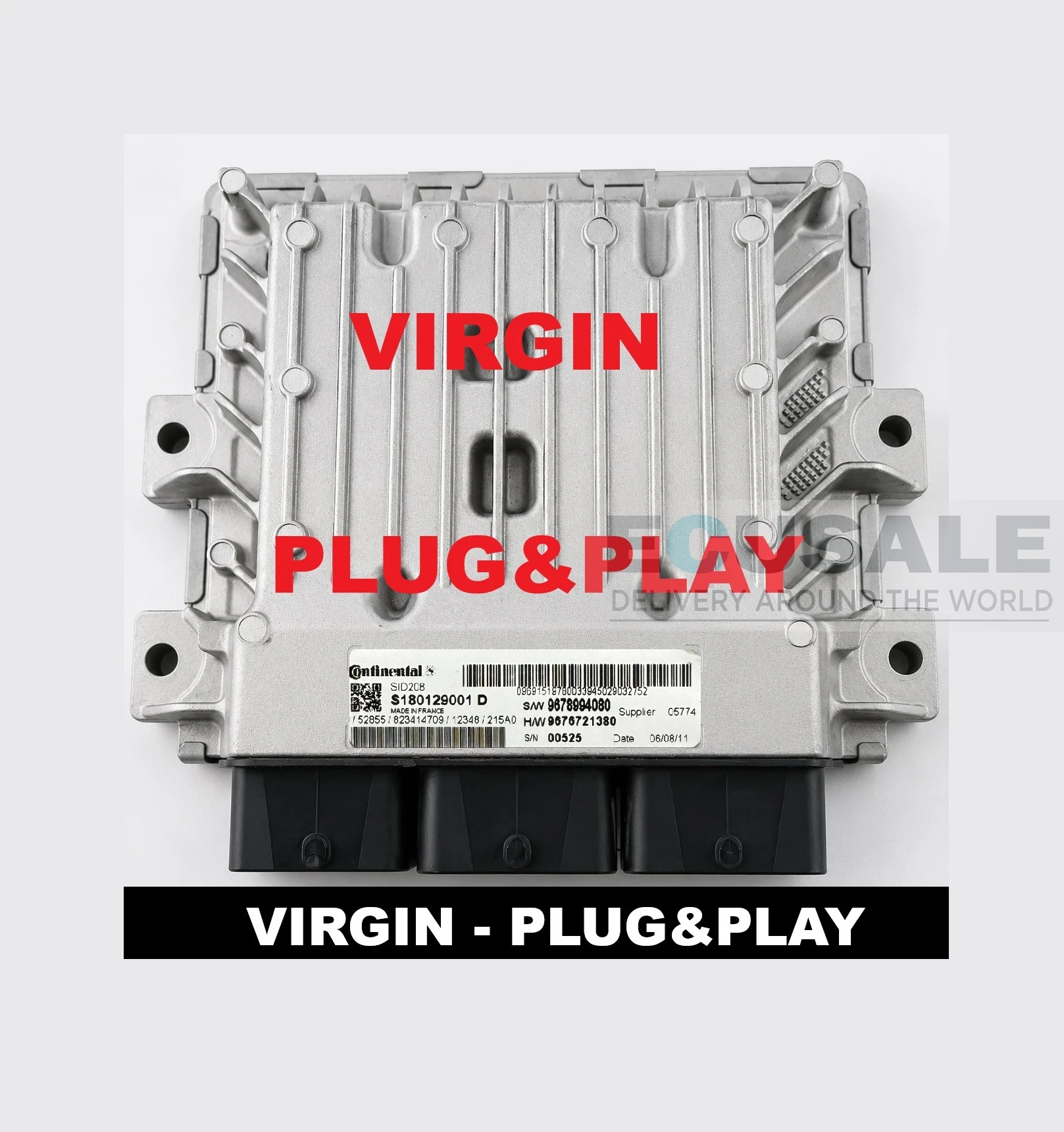

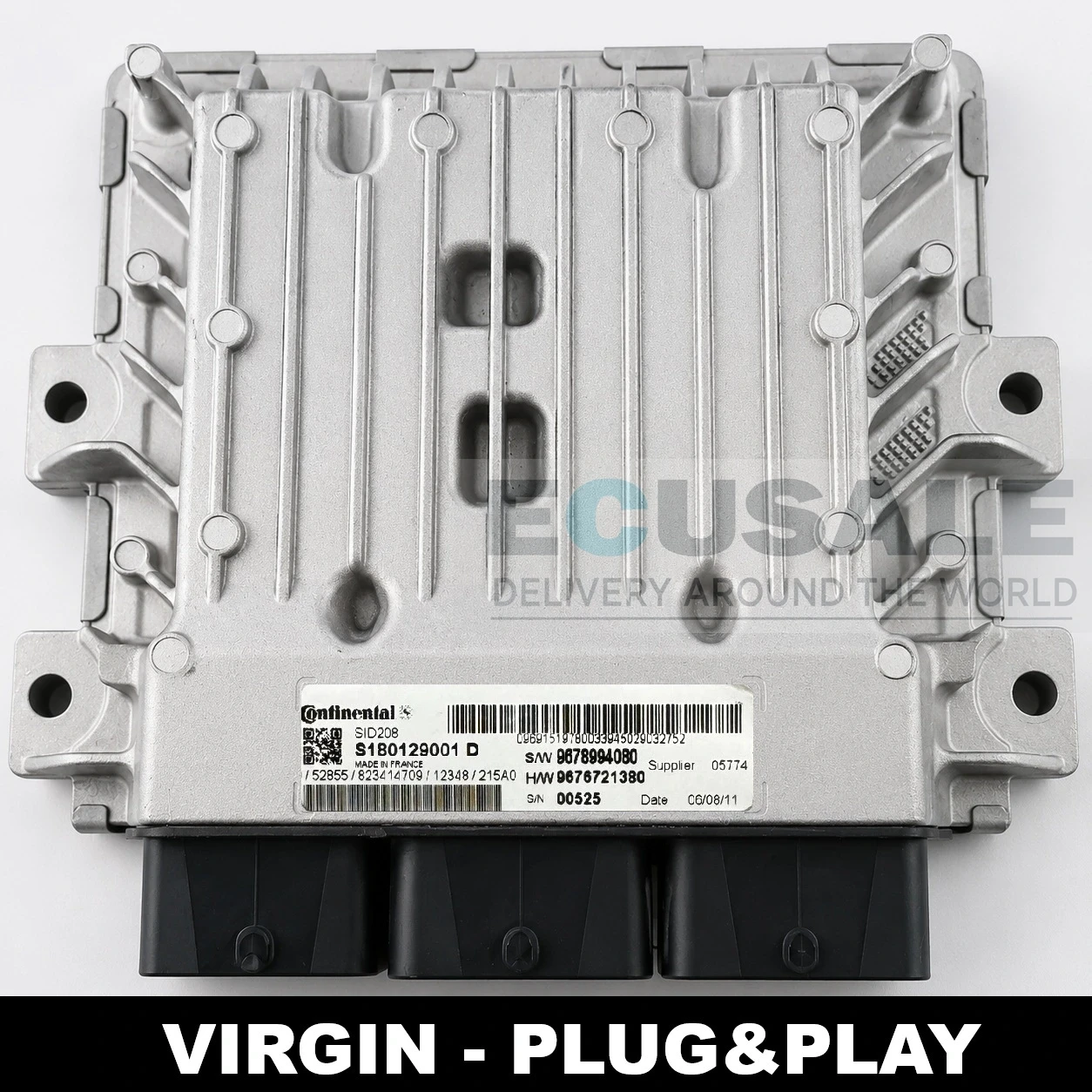

SID208 S180129001D – condition, matching and fitting
Most common cause of failure
- cause: water and a short circuit on the injector side,
- result: no injector signal, the engine will not start.
After fitting, make sure the ECU is not flooded again and check the water drains – the housing protection does not make it waterproof. See also SID208 – repair or replacement? and Broken SID208 ECU – what to do?.
How we prepared this unit
This ECU is a Virgin unit – it programs itself to the vehicle, with no coding, immobiliser programming or injector coding (condition: matching numbers and a working immobiliser). The electronics have never been repaired. We refurbished the housing and protected it against water, but it is not waterproof. Every unit is tested on the bench and in a vehicle.
On request: EGR OFF and DPF OFF. Warranty: 6 months. First installation is described in our guide SID208 Virgin ECU installation guide.
What it fits
Fits the Boxer and Jumper 2.2 HDi if your ECU has the same numbers:
- Continental number: S180129001D
- Software number S/W: 9678994080
Ignore the other markings on the sticker. The full range is in the Peugeot and Citroën categories, e.g. S180129303C, S180129001C, S180129001G, S180129001J.
Important: information after purchase
All SID208 units share the same hardware, and engine power and displacement are the same – the software changes only because of equipment. That is why after ordering, send us whether the vehicle has air conditioning and which gearbox it has: manual or automatic.
Questions and answers – ECU S180129001D
What do I need to tell you after buying S180129001D?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Does the S180129001D ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Can I order EGR OFF or DPF OFF with S180129001D?
Yes, we do both on request before shipping.
|
