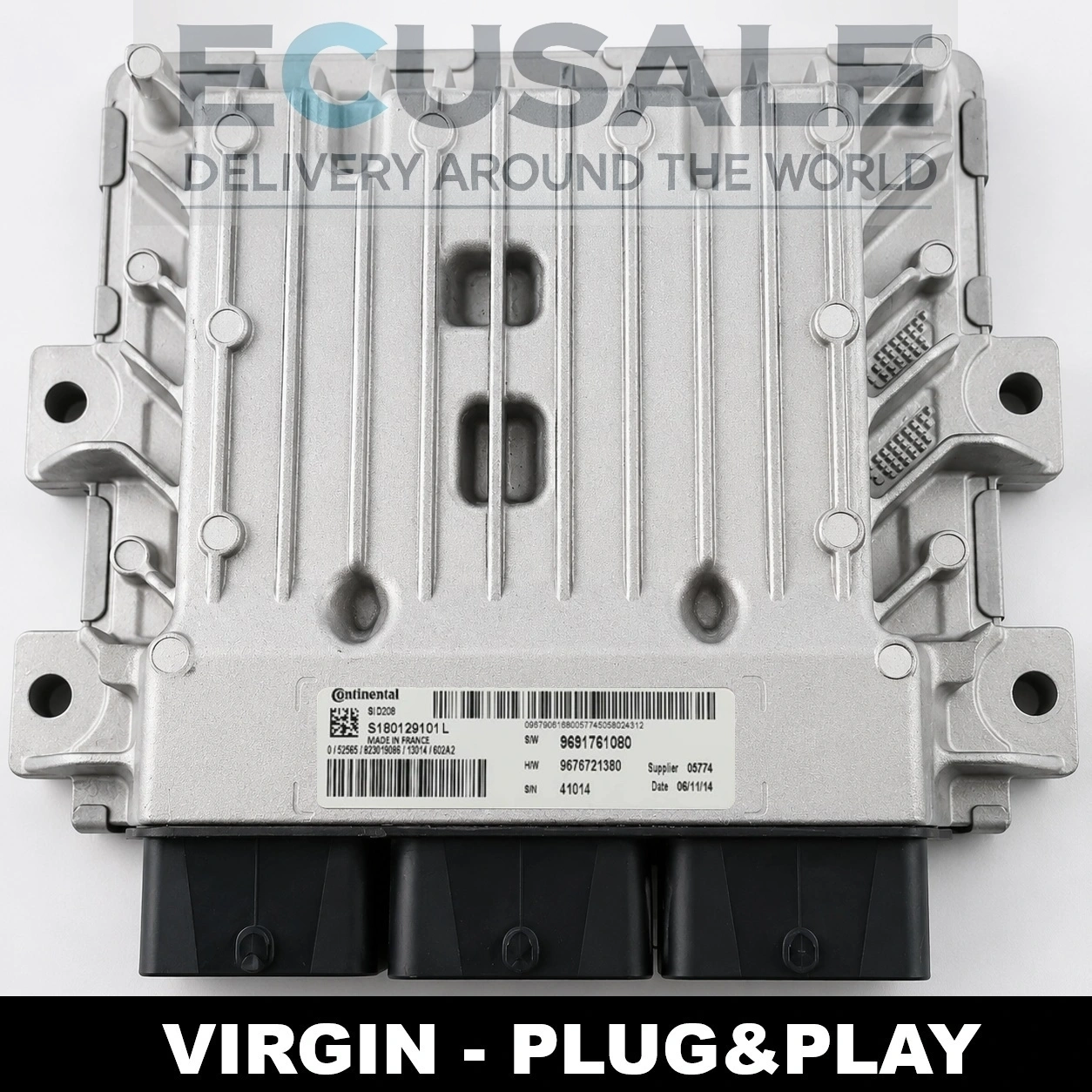

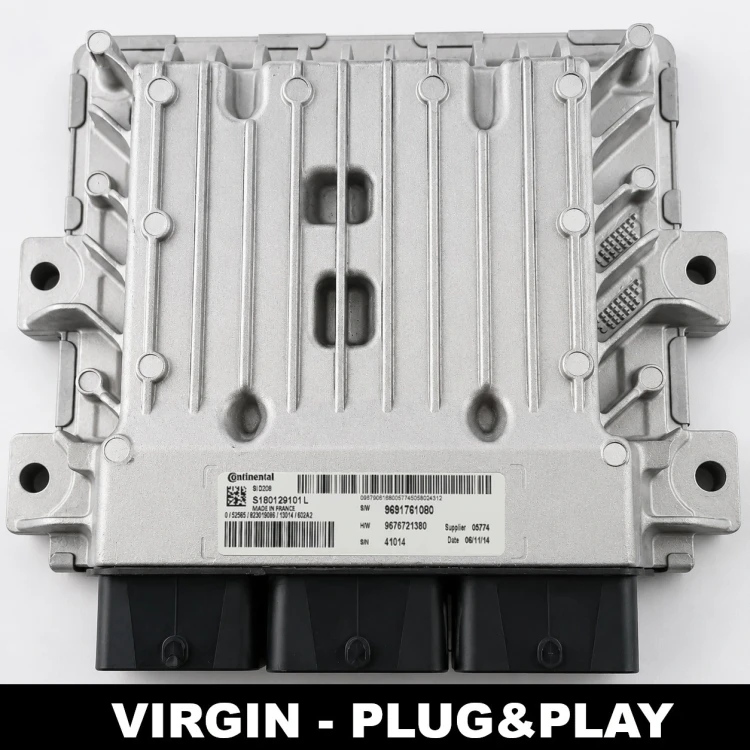

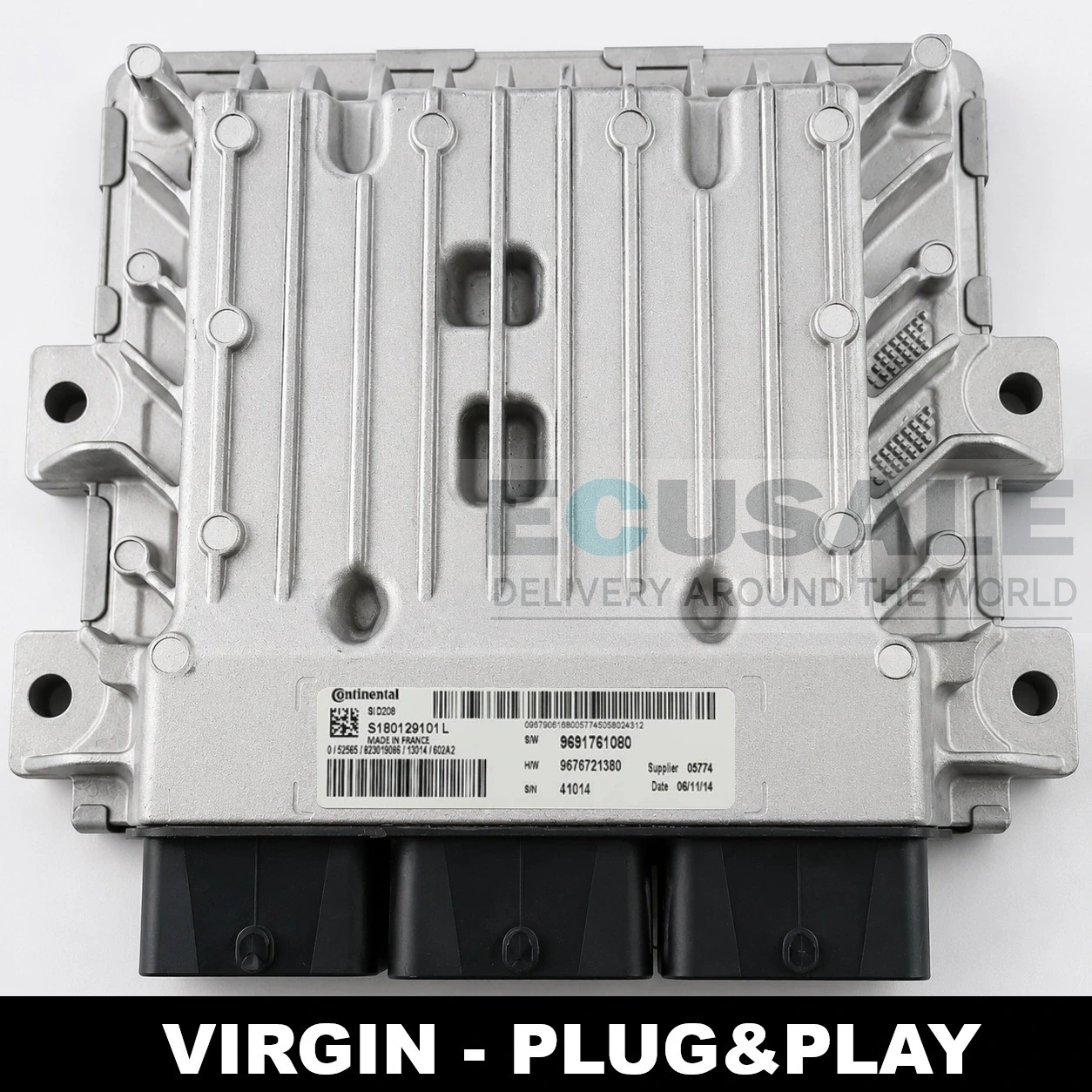

SID208 S180129101L – condition, matching and fitting
Air conditioning and gearbox – let us know
- Does the vehicle have air conditioning?
- Gearbox: manual or automatic?
Without these two details we cannot prepare the right software version – one number has two possibilities.

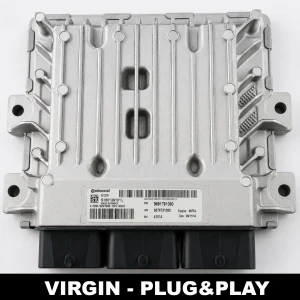

Virgin – programs itself
This ECU is a Virgin unit – it programs itself to the vehicle, with no coding, immobiliser programming or injector coding (condition: matching numbers and a working immobiliser). The electronics have never been repaired. We refurbished the housing and protected it against water, but it is not waterproof. Every unit is tested on the bench and in a vehicle.
On request: EGR OFF and DPF OFF. Warranty: 6 months. First installation is described in our guide SID208 Virgin ECU installation guide.
Vehicle compatibility
- Continental number: S180129101L
- Software number S/W: 9691761080
If both numbers on your ECU are the same, this unit fits your Boxer or Jumper 2.2 HDi. You do not need to compare other markings on the label. Different number? Check S180129101H, S180129101K, S180129102B, S180129201C.
Why SID208 units fail
The typical scenario: water ingress, a short circuit on the injector side and no injector signal. So that the new ECU does not share the fate of the old one, protect it from water and keep an eye on the drains in the vehicle – the housing is protected but not waterproof. Useful articles: Broken SID208 ECU – what to do?, SID208 – repair or replacement?.
You will find other numbers in the Peugeot Engine Control Units (ECUs) category.
Frequently asked questions about the S180129101L ECU for Boxer / Jumper
Will S180129101L fit with a software number other than 9691761080?
No. The Continental number S180129101L and the S/W number 9691761080 must be the same as on your ECU label.
|
Does the S180129101L ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Can I order EGR OFF or DPF OFF with S180129101L?
Yes, we do both on request before shipping.
|
