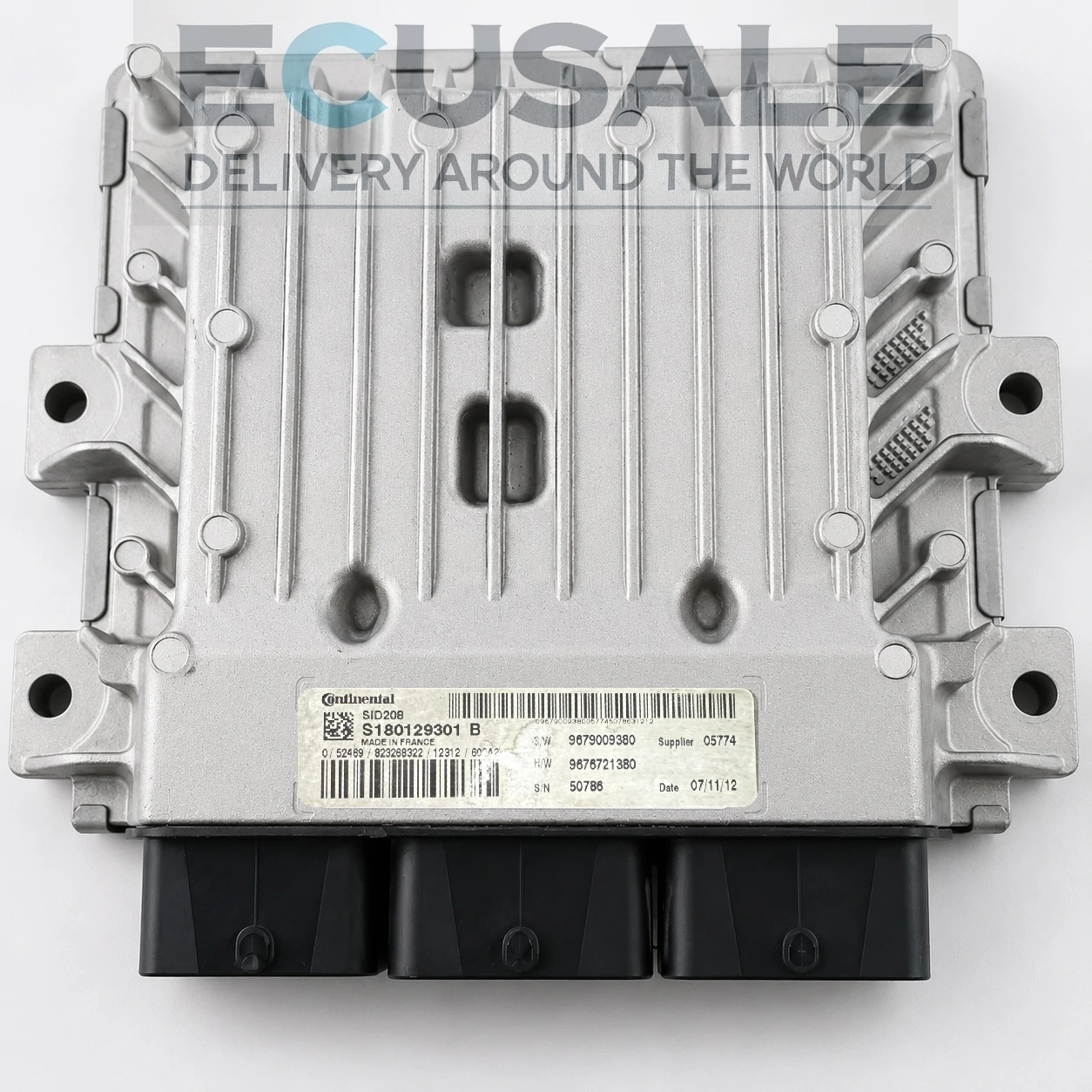

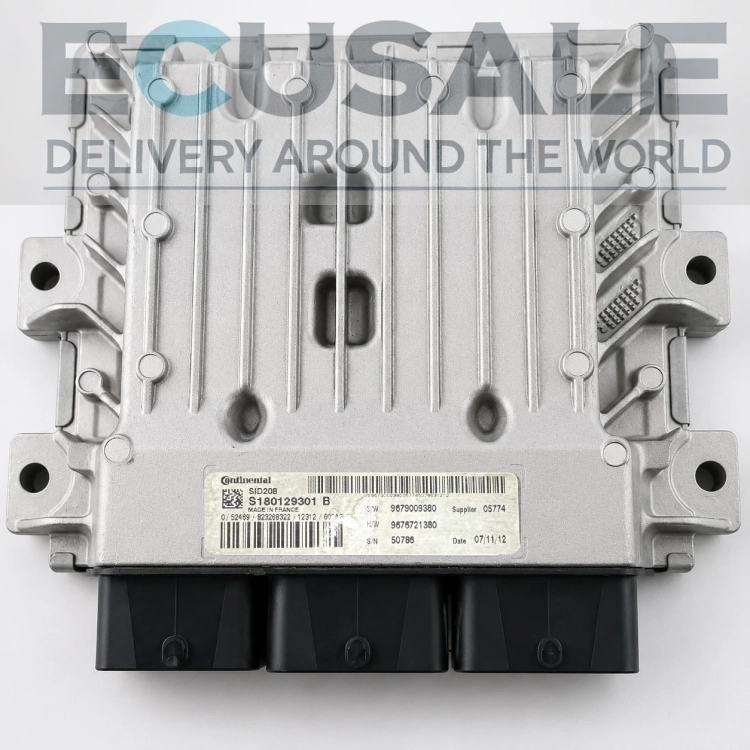

SID208 S180129301B – condition, matching and fitting
Water – the main cause of SID208 failure
SID208 units are most often damaged by water: a short circuit occurs on the injector side and the ECU stops sending the signal to the injectors, so the engine will not start. The housing of this unit is protected against water but is not waterproof – protect the ECU from flooding and make sure the water drains in the vehicle are clear. More in our articles Broken SID208 ECU – what to do? and SID208 – repair or replacement?.
Numbers that must match
Peugeot Boxer and Citroën Jumper with the 2.2 HDi engine. Two numbers on your ECU label decide – both must be identical:
- Continental number: S180129301B
- Software number S/W: 9679009380
Other numbers on the sticker do not matter. Other SID208 numbers we offer: S180129201K, S180129201N, S180129303A, S180129303C.
After ordering, send us two details
After purchase please tell us whether the vehicle has air conditioning and whether the gearbox is manual or automatic. The same number comes in two software versions, and they differ exactly by vehicle equipment.
How we prepared this unit
- Virgin Plug & Play – once connected the ECU programs itself; matching numbers and a working immobiliser are required.
- Original electronics, never repaired.
- Housing refurbished and protected against water – it is not waterproof, though.
- Tested on the bench and in a vehicle before shipping.
- 6-month warranty; EGR OFF and DPF OFF on request.
Installation instructions are in our guide SID208 Virgin ECU installation guide.
Full range in this group: Peugeot Engine Control Units (ECUs).
FAQ: SID208 S180129301B
Does the S180129301B ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Has S180129301B been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
Can I order EGR OFF or DPF OFF with S180129301B?
Yes, we do both on request before shipping.
|
