SID208 S180129201N – condition, matching and fitting
How to check that it fits

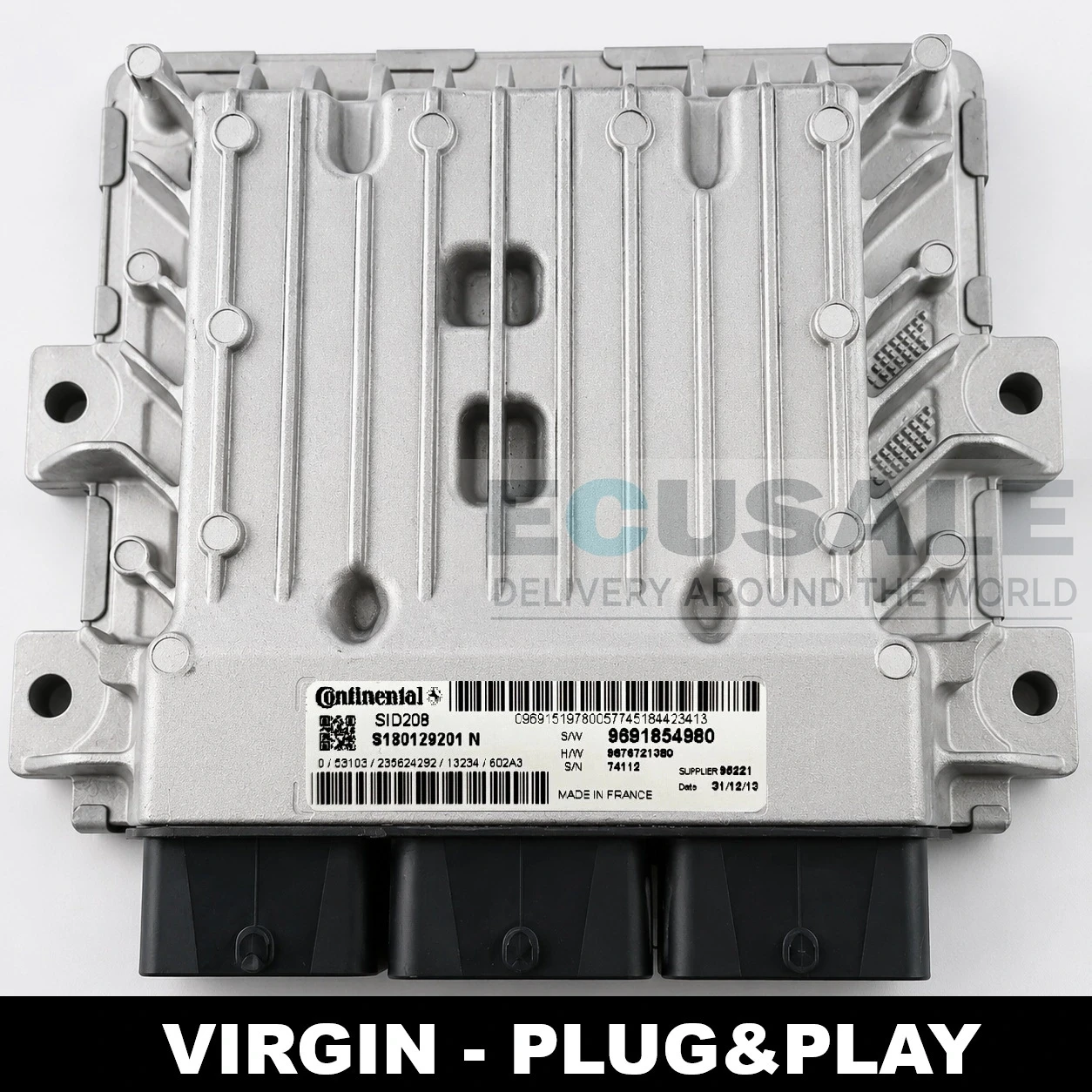

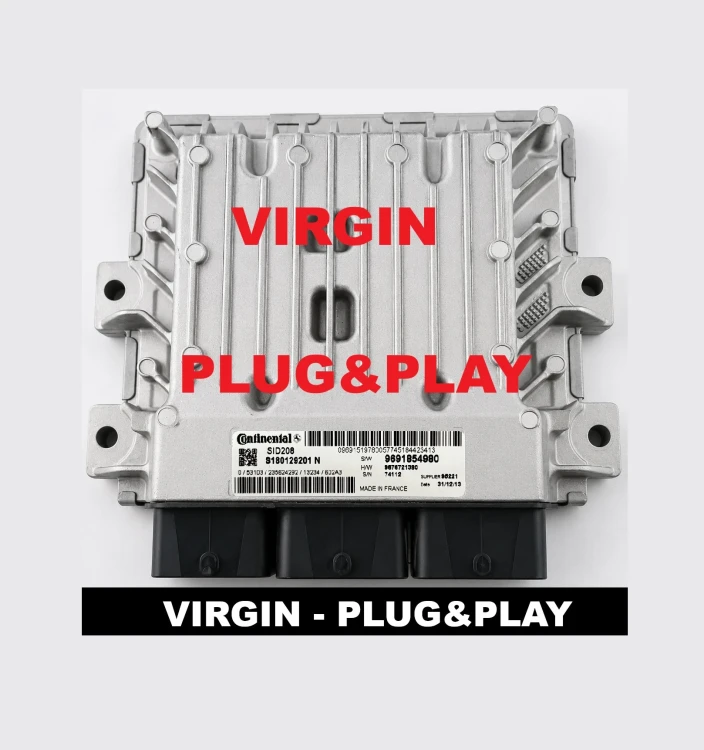

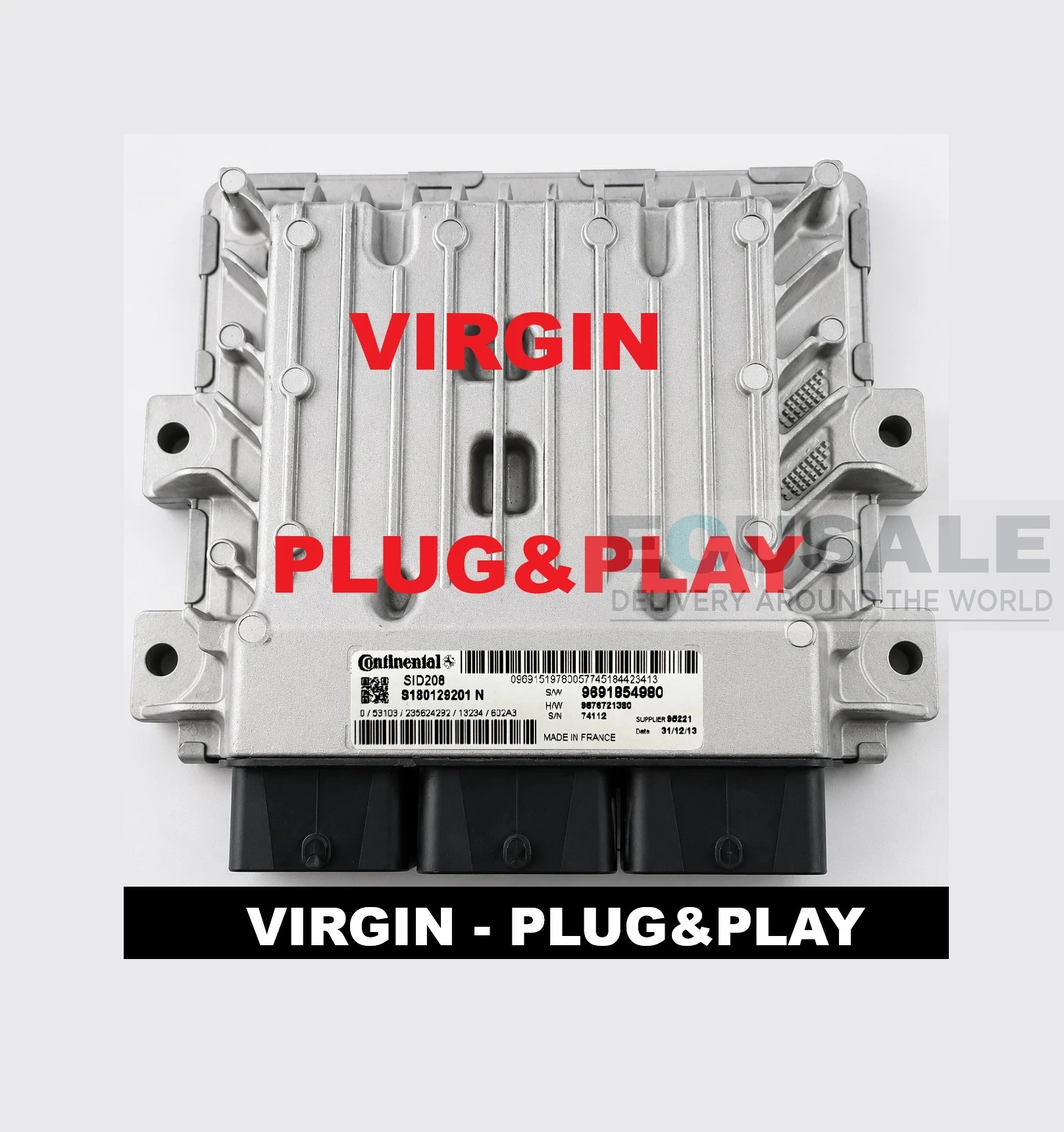

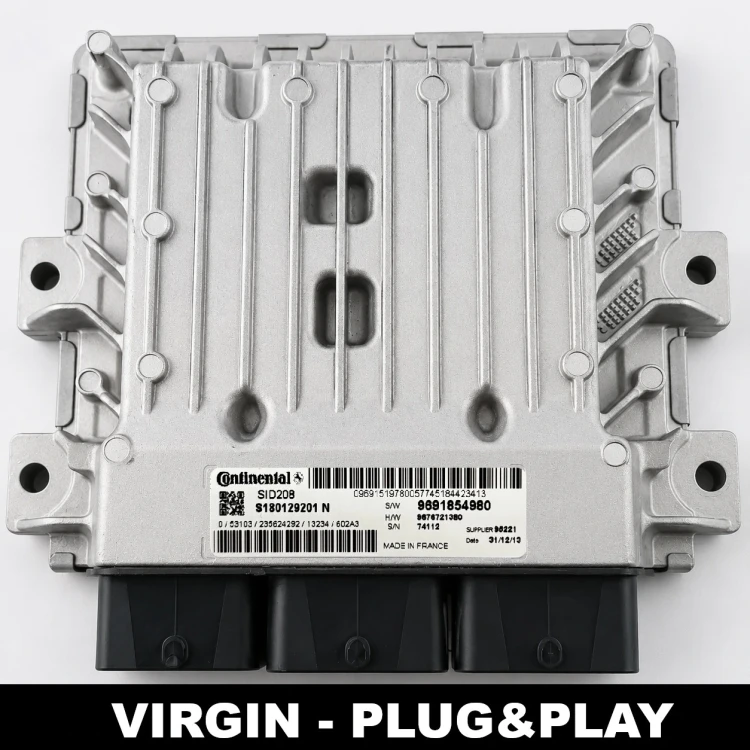

Fits the Boxer and Jumper 2.2 HDi if your ECU has the same numbers:
- Continental number: S180129201N
- Software number S/W: 9691854980
Ignore the other markings on the sticker. The full range is in the Peugeot and Citroën categories, e.g. S180129201H, S180129201K, S180129301B, S180129303A.
Why SID208 units fail
Water is almost always to blame. A short circuit from the injectors means the ECU no longer sends the injector signal and the vehicle will not start. The refurbished housing is protected against water but not waterproof, so keep the drains clear and protect the ECU from flooding. Whether to repair or replace is covered in SID208 – repair or replacement?, and what to do with a damaged ECU in Broken SID208 ECU – what to do?.

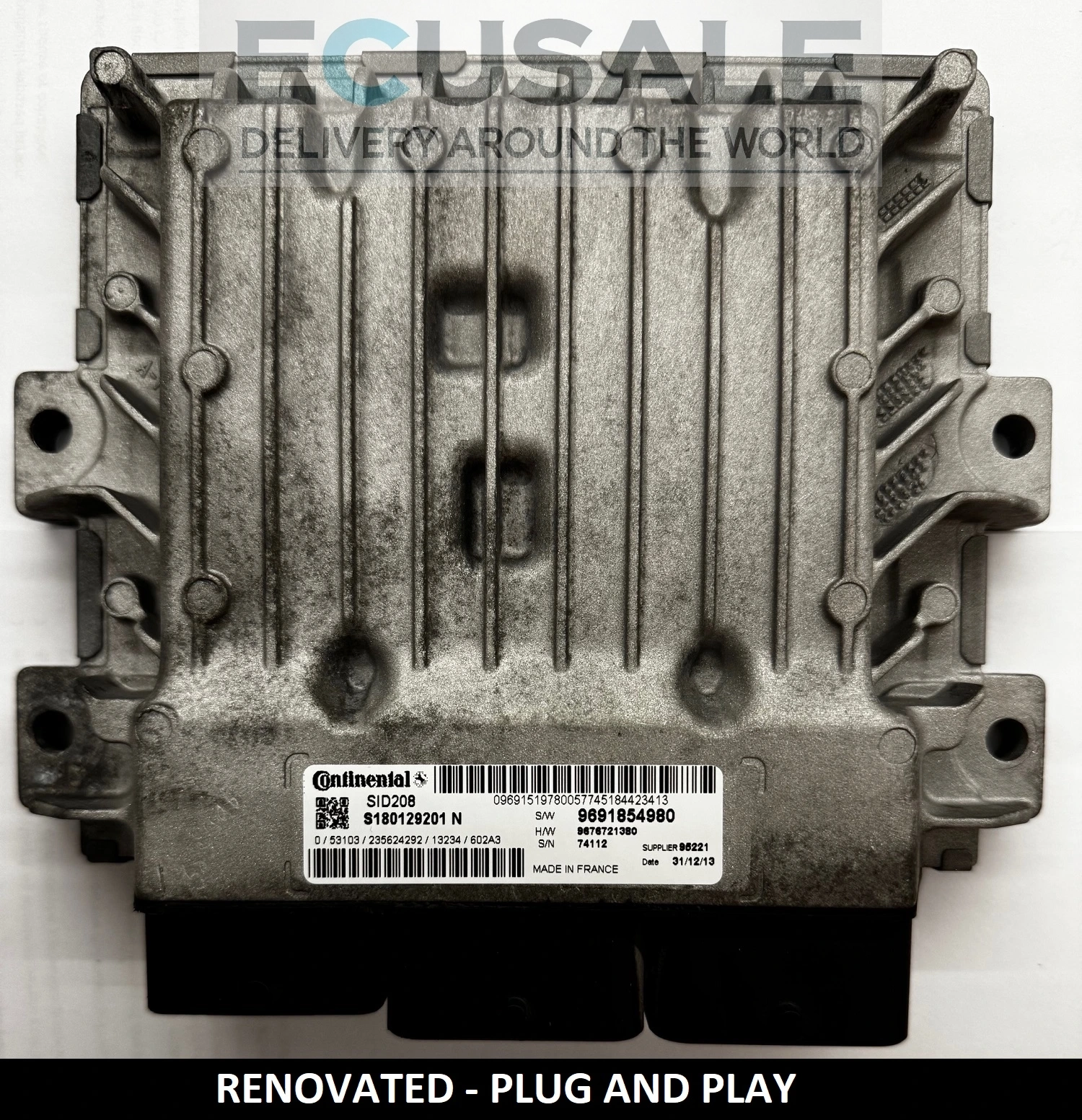

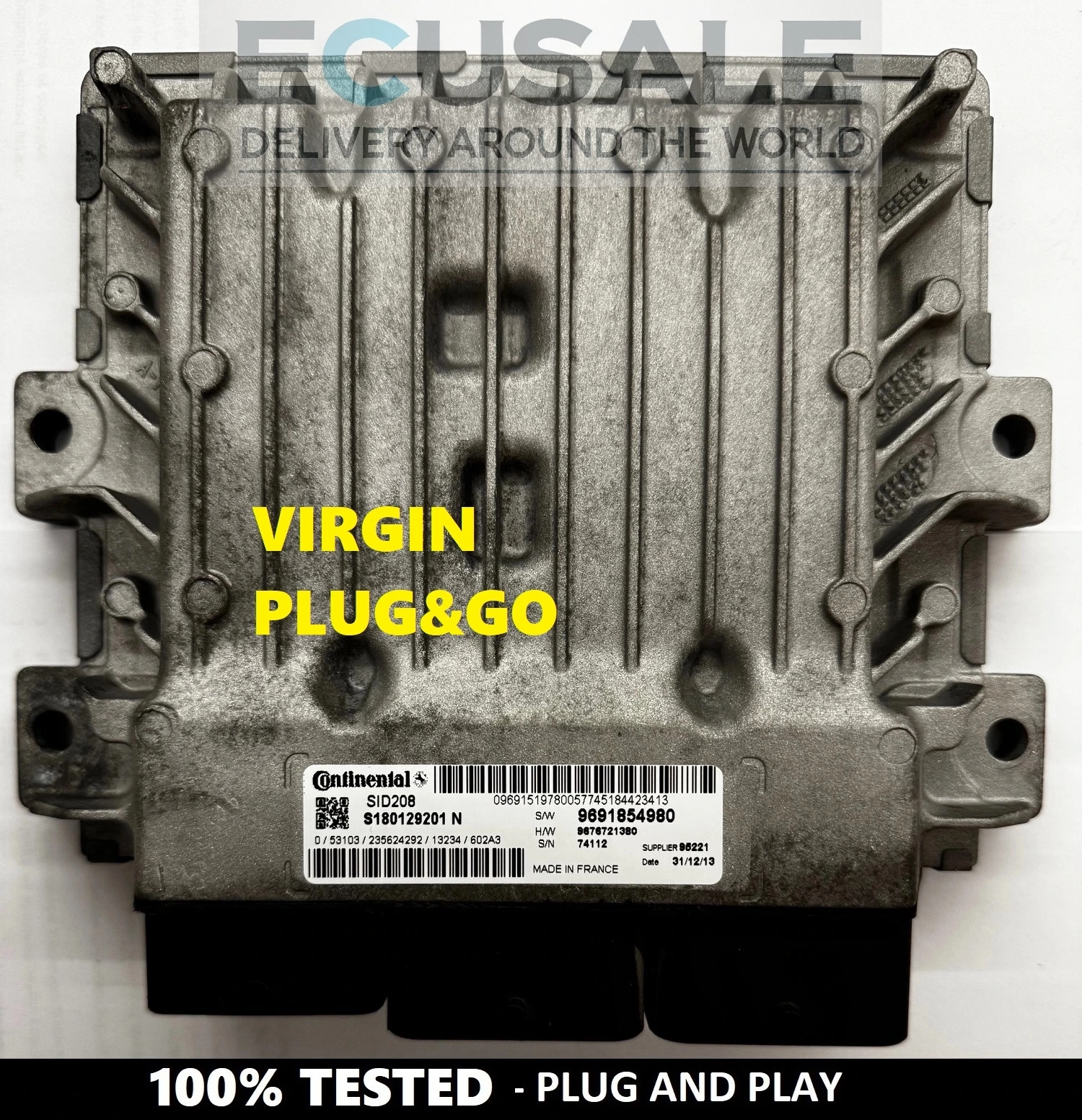

Condition in which we ship the ECU

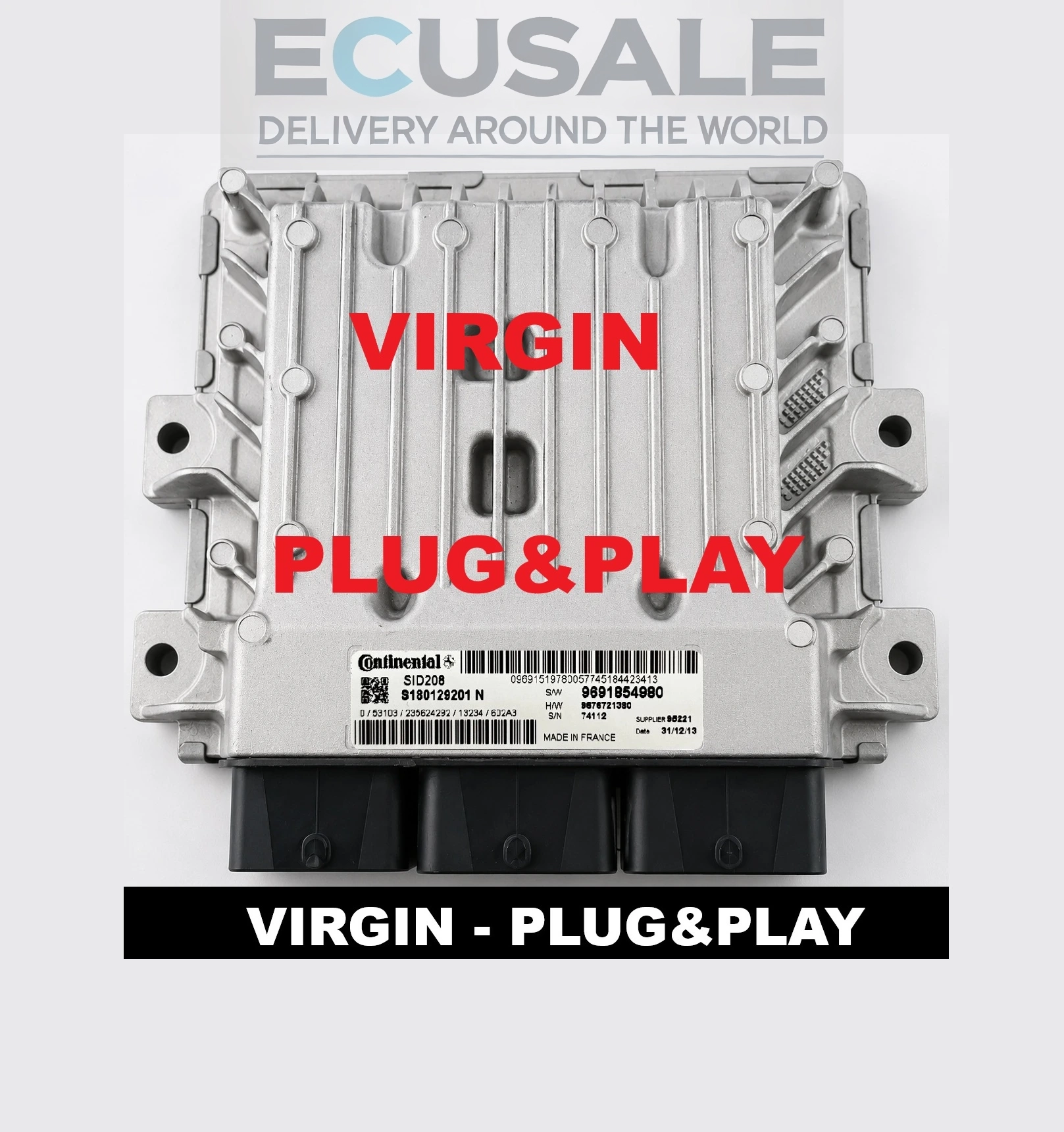

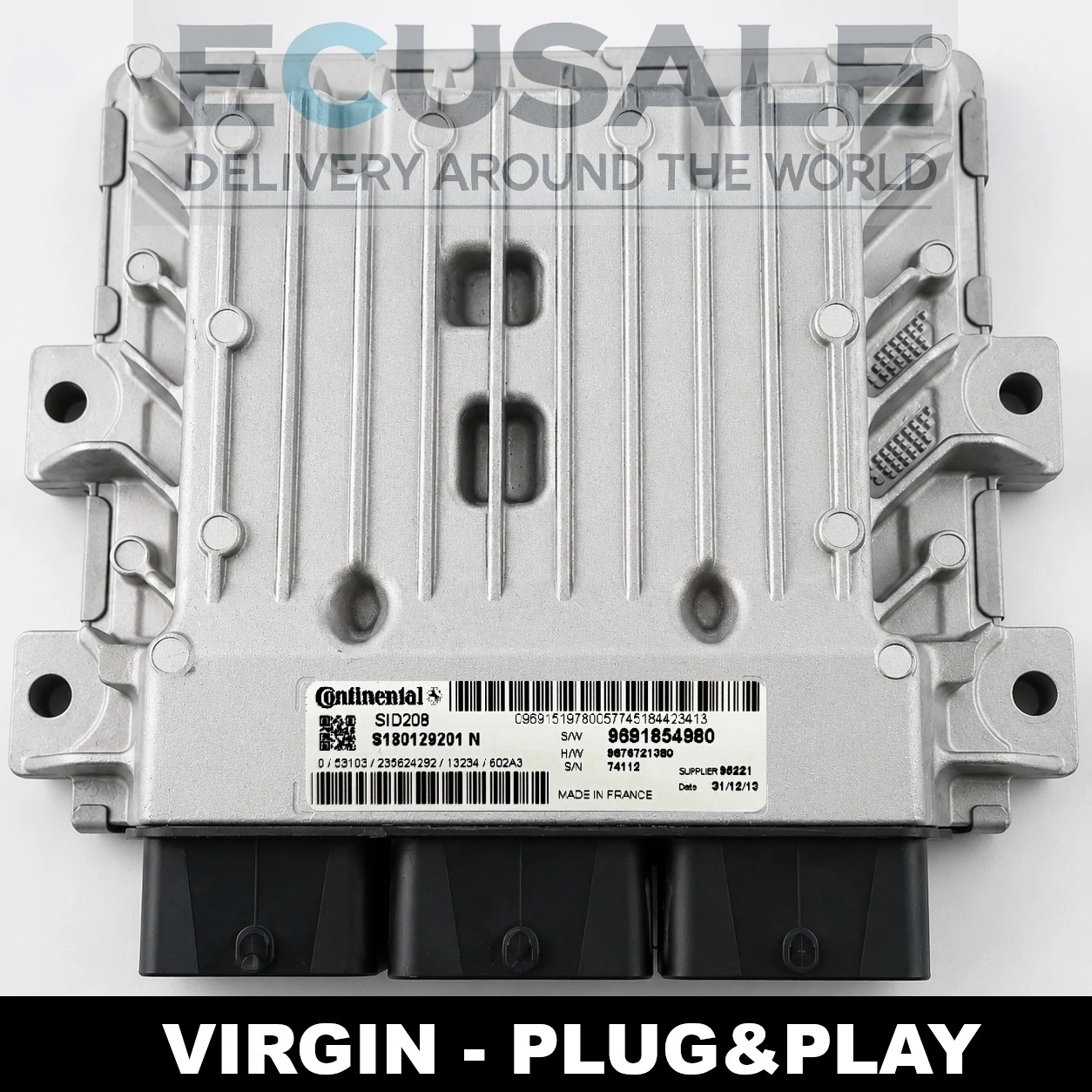

- Virgin Plug & Play – once connected the ECU programs itself; matching numbers and a working immobiliser are required.
- Original electronics, never repaired.
- Housing refurbished and protected against water – it is not waterproof, though.
- Tested on the bench and in a vehicle before shipping.
- 6-month warranty; EGR OFF and DPF OFF on request.
Installation instructions are in our guide SID208 Virgin ECU installation guide.
After ordering, send us two details
Please: after purchase tell us – air conditioning yes or no, gearbox manual or automatic. Number S180129201N comes in two versions depending on equipment, and this information lets us prepare the right one.
Questions and answers – ECU S180129201N
Will S180129201N fit with a software number other than 9691854980?
No. The Continental number S180129201N and the S/W number 9691854980 must be the same as on your ECU label.
|
Does the S180129201N ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Is the S180129201N housing waterproof?
No. It is protected against water but not waterproof – protect the ECU from flooding and keep the water drains clear.
|
