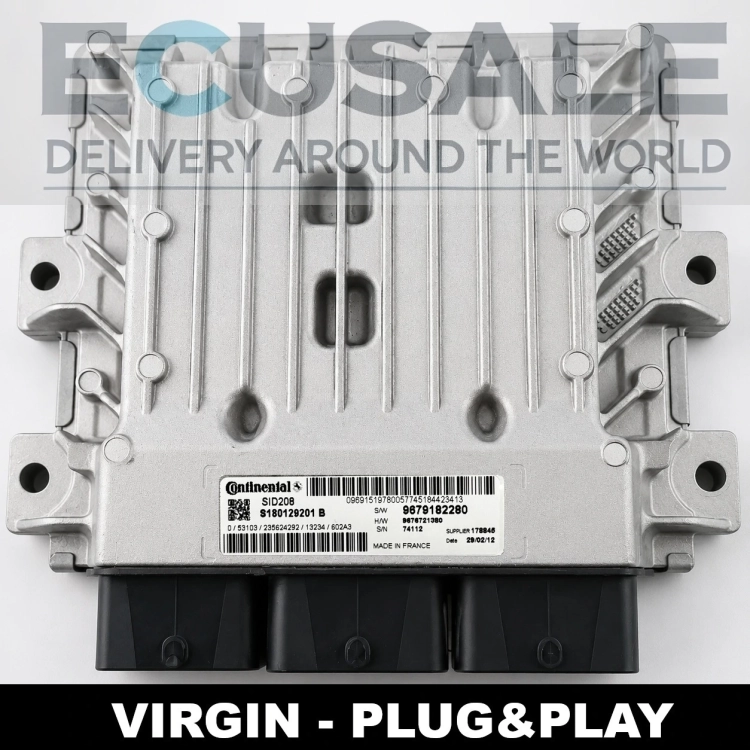

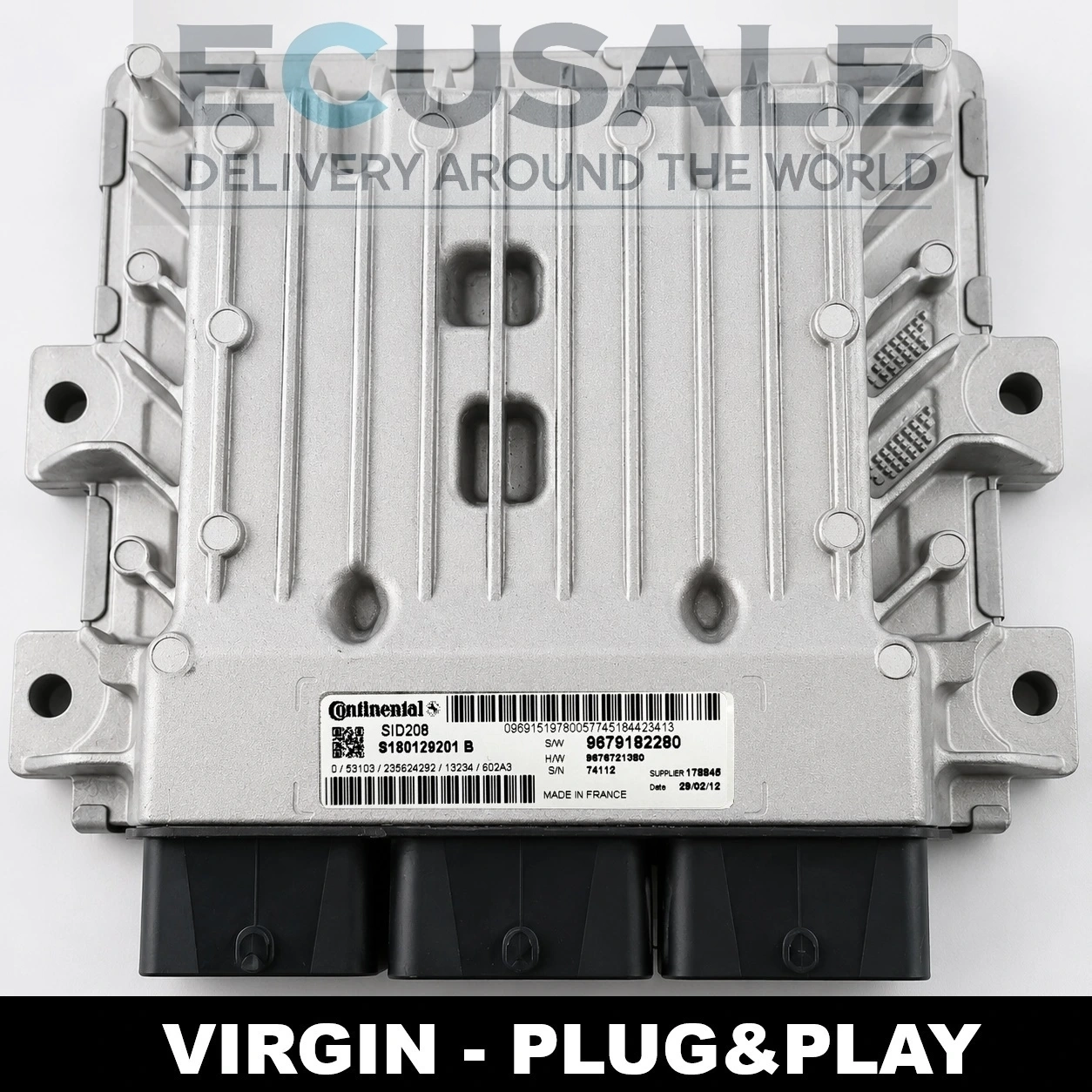

What you get when you buy S180129201B
Numbers that must match
Peugeot Boxer and Citroën Jumper with the 2.2 HDi engine. Two numbers on your ECU label decide – both must be identical:
- Continental number: S180129201B
- Software number S/W: 9679182280
Other numbers on the sticker do not matter. Other SID208 numbers we offer: S180129101N, S180129102B, S180129201C, S180129201D.
After ordering, send us two details
All SID208 units share the same hardware, and engine power and displacement are the same – the software changes only because of equipment. That is why after ordering, send us whether the vehicle has air conditioning and which gearbox it has: manual or automatic.
Condition in which we ship the ECU
We sell it as Virgin: the ECU programs itself once connected – no coding and no pairing with the immobiliser, as long as the immobiliser works and the numbers match. It has never been repaired, and the refurbished housing is protected against water (which does not make it waterproof). Before shipping we test it on the bench and in a vehicle. The warranty is 6 months, and EGR OFF or DPF OFF can be done on request. The first installation is shown in our guide SID208 Virgin ECU installation guide.
Most common cause of failure
Water is almost always to blame. A short circuit from the injectors means the ECU no longer sends the injector signal and the vehicle will not start. The refurbished housing is protected against water but not waterproof, so keep the drains clear and protect the ECU from flooding. Whether to repair or replace is covered in SID208 – repair or replacement?, and what to do with a damaged ECU in Broken SID208 ECU – what to do?.
See also the other items in the Peugeot Engine Control Units (ECUs) category.
Frequently asked questions about the S180129201B ECU for Boxer / Jumper
What do I need to tell you after buying S180129201B?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Has S180129201B been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
Is the S180129201B housing waterproof?
No. It is protected against water but not waterproof – protect the ECU from flooding and keep the water drains clear.
|
